Plan 2241SL
2-Car Garage Apartment
Heated S.F.
701
Beds
1
Baths
1
Stories
2
Cars
2
What's Included
Plan Details
  • This 2-car garage apartment plan is the perfect way to add living space to a residence with a growing family or can serve as a weekend retreat.
  • The garage features 9' ceilings and two 9'x7' overhead doors.
  • Covered exterior stairs lead to the one bedroom, one bath apartment above.
  • Large windows brighten the great room and dining area.
  • The utility room is conveniently located off the kitchen.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans

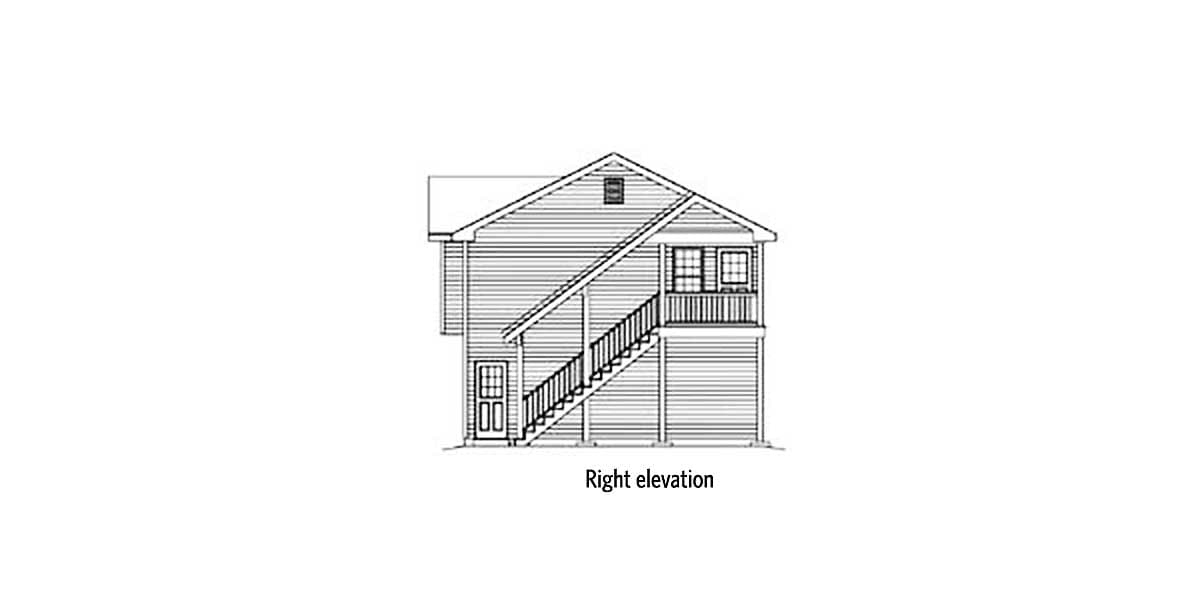

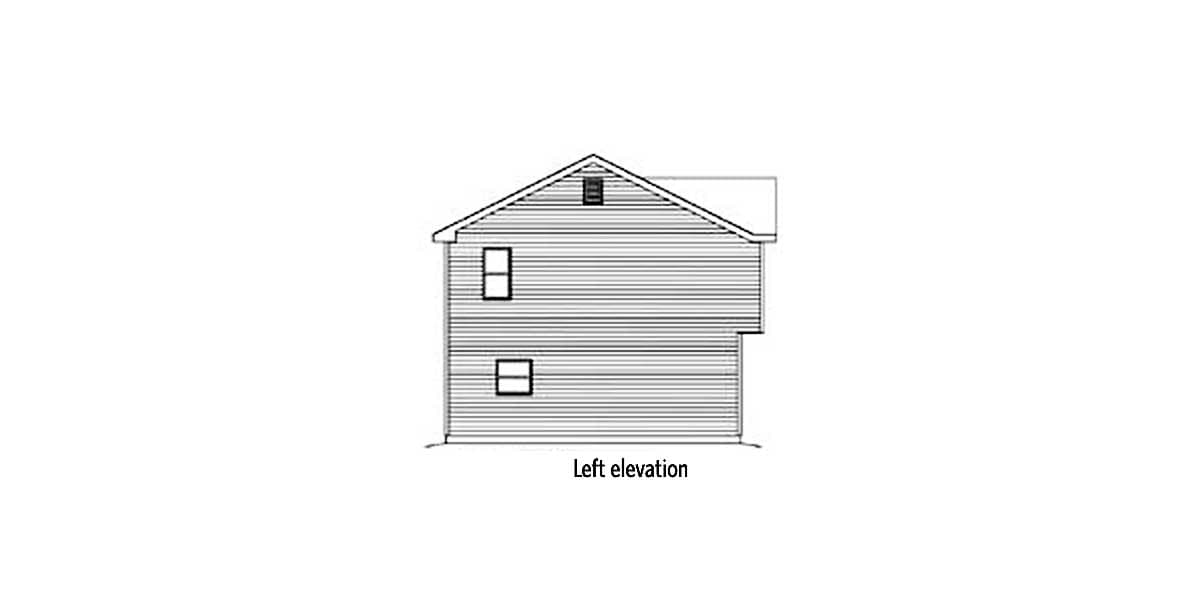

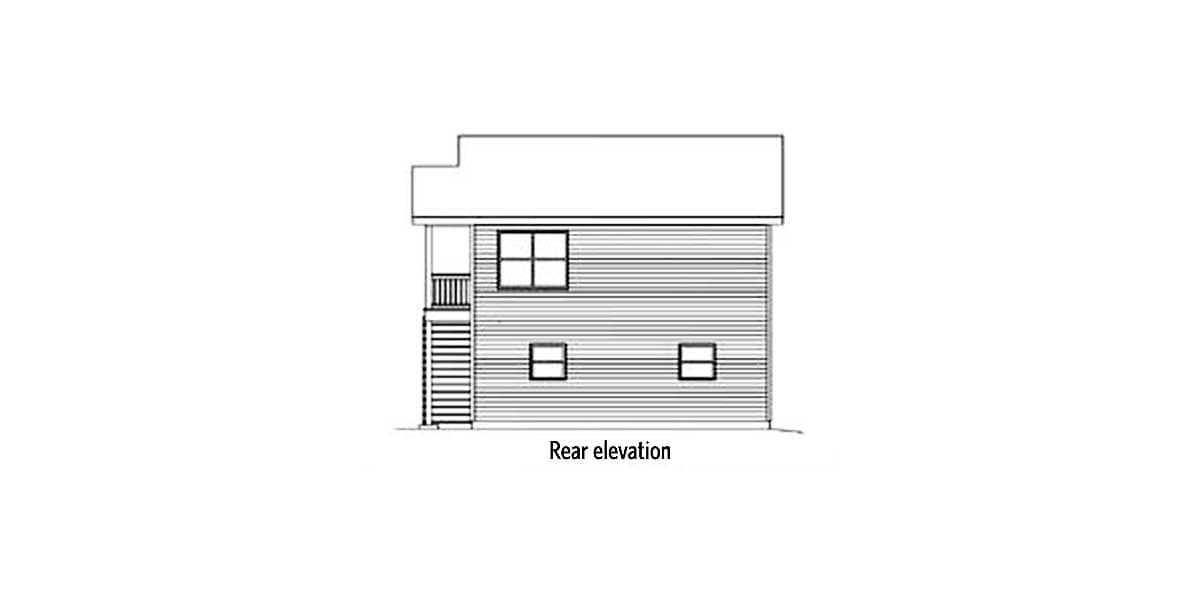

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Car Garage Apartment

  • 701

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

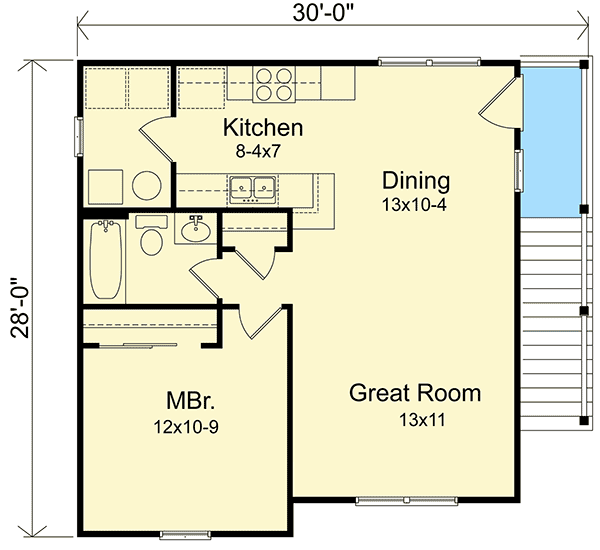

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 701 sq. ft.
  • 2nd Floor: 701 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 28' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 676 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
