2-Car Garage with Expanded Footprint

Plan 68594VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • Related Plan: Get a 20’ by 20’ version with garage plan 68528VR.

This plan set has the following details:

Cover Page

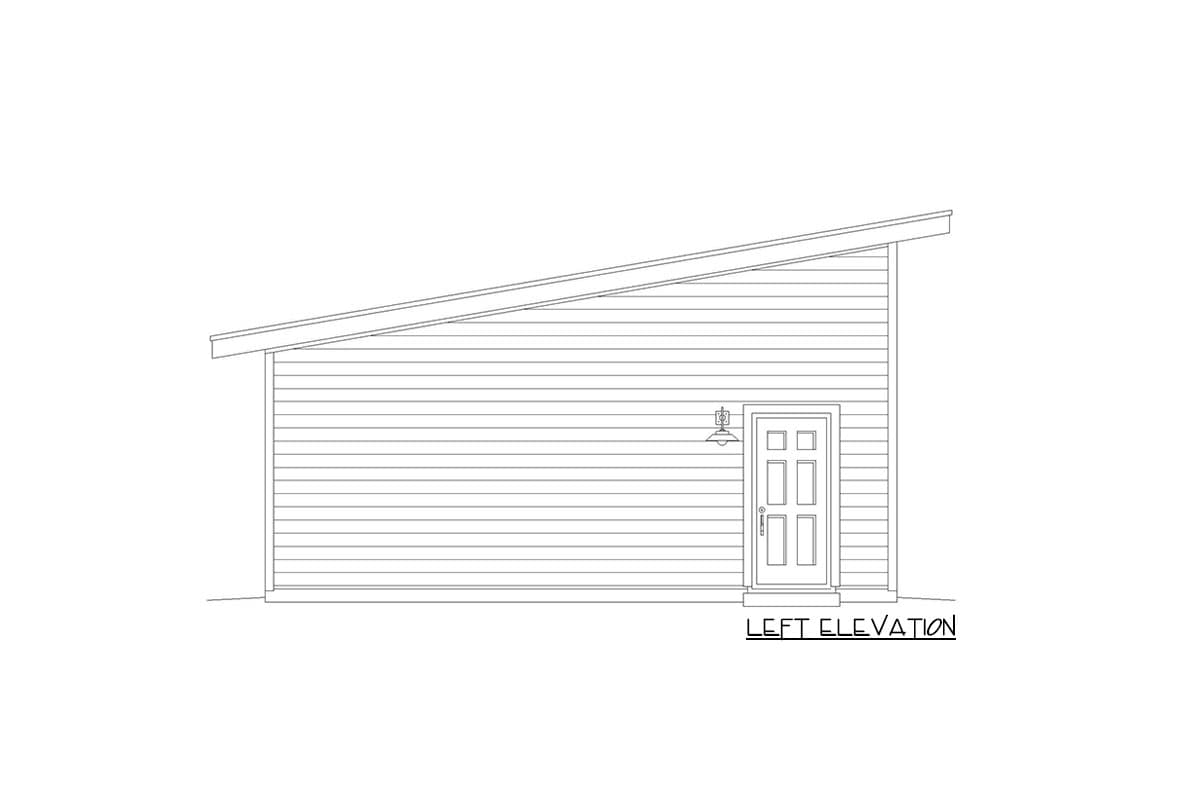

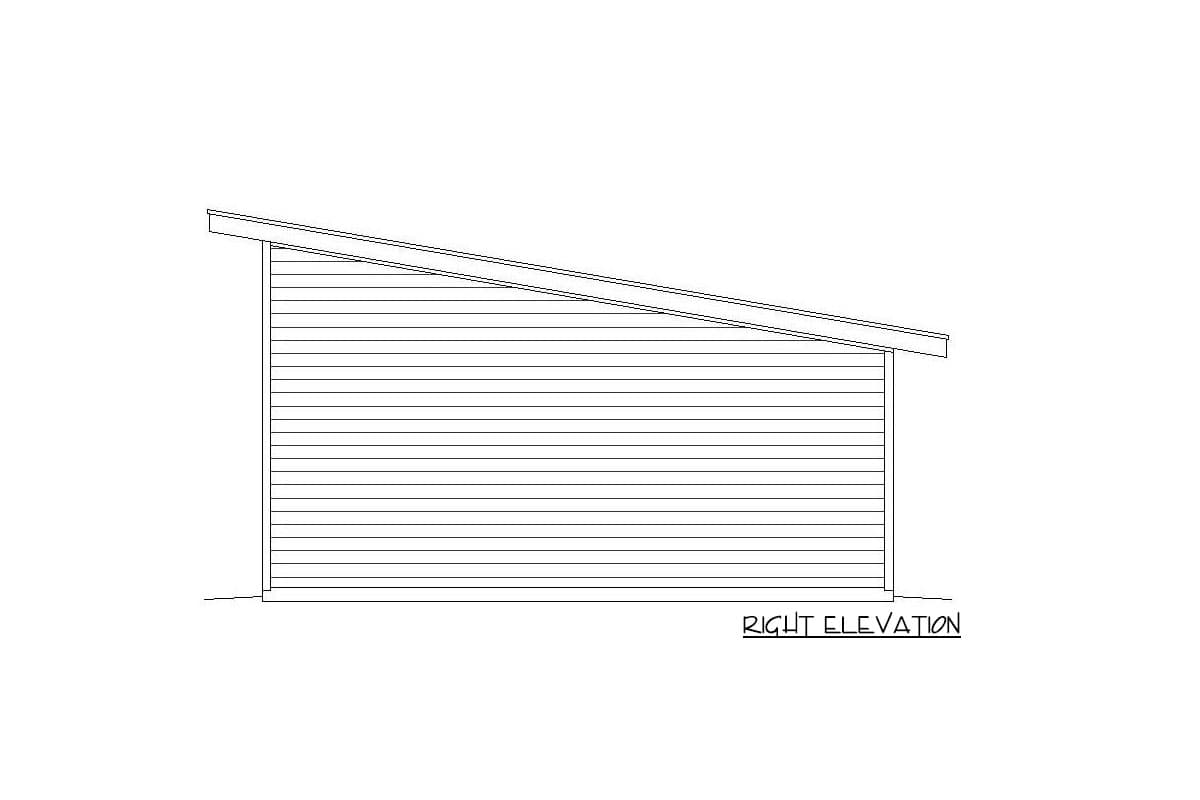

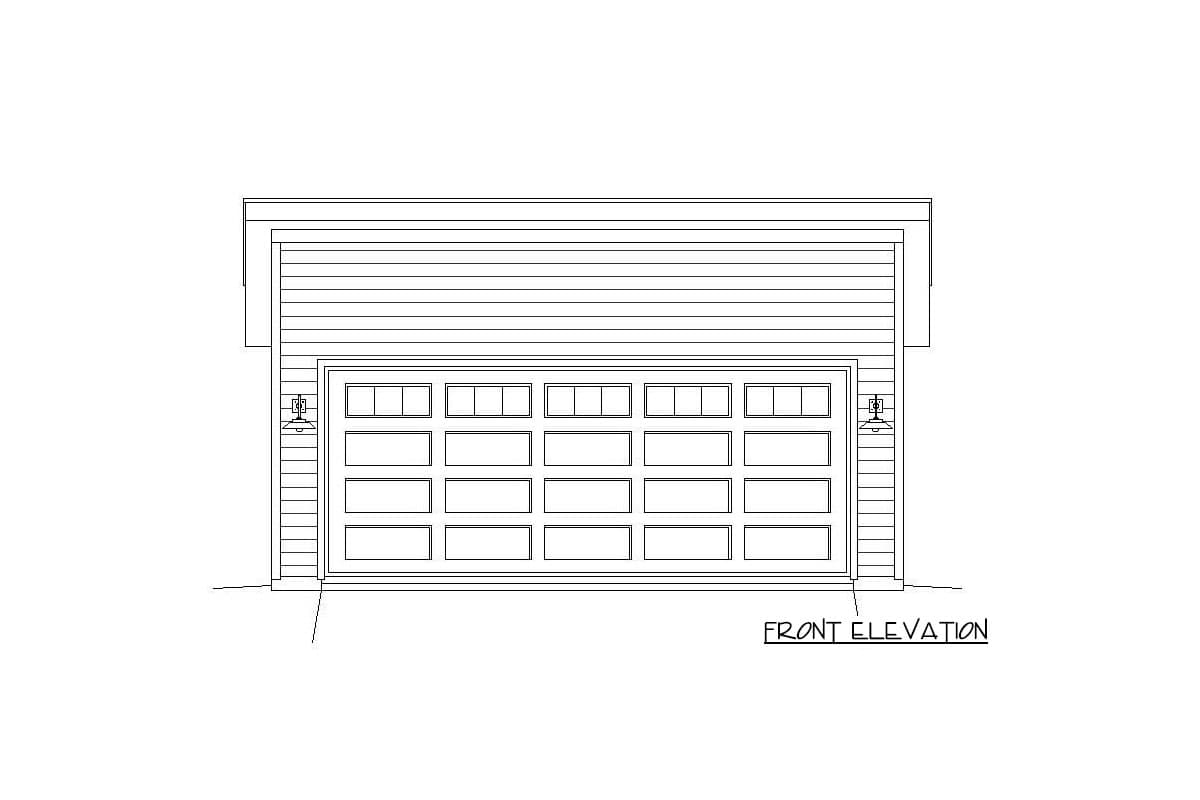

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Plan details



2-Car Garage with Expanded Footprint

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $525
  • 5 Sets $550
  • 5 Sets + PDF $650
  • CAD - Single-Build $825
  • View all purchase option online

About This Plan

  • Related Plan: Get a 20’ by 20’ version with garage plan 68528VR.

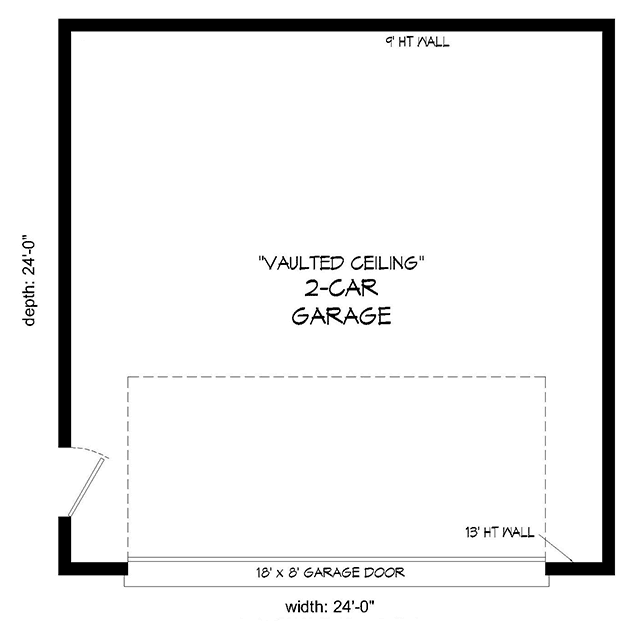

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 24' 0"
  • Max ridge height: 14' 5"

Garage

  • Type: Detached
  • Area: 576 sq. ft.
  • Count: 2 Cars

Roof

  • Primary Pitch: 2 on 12
