Double Bay Garage Plan with Shed Roof

Plan 68528VR

  • 0

    Heated s.f.

  • 0


  • 1


  • 2


  • Related Plan: Get a 24’ by 24’ version with garage plan 68594VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

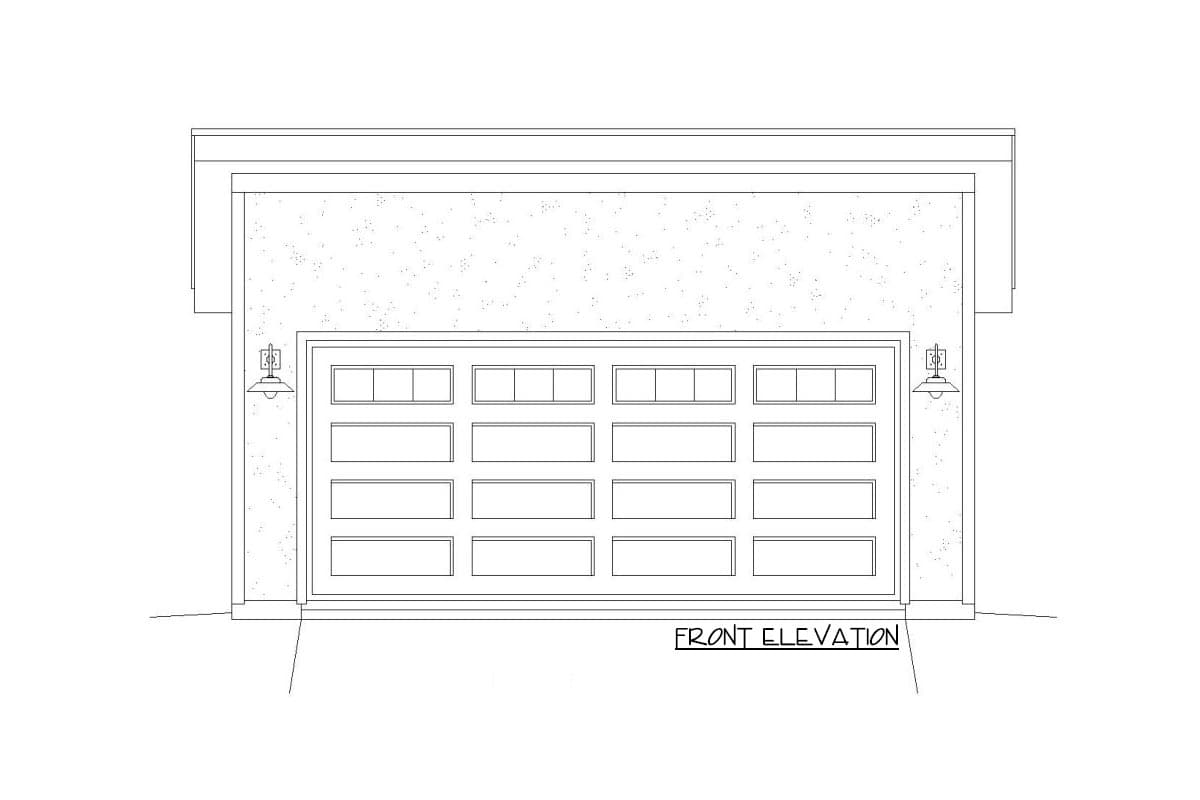

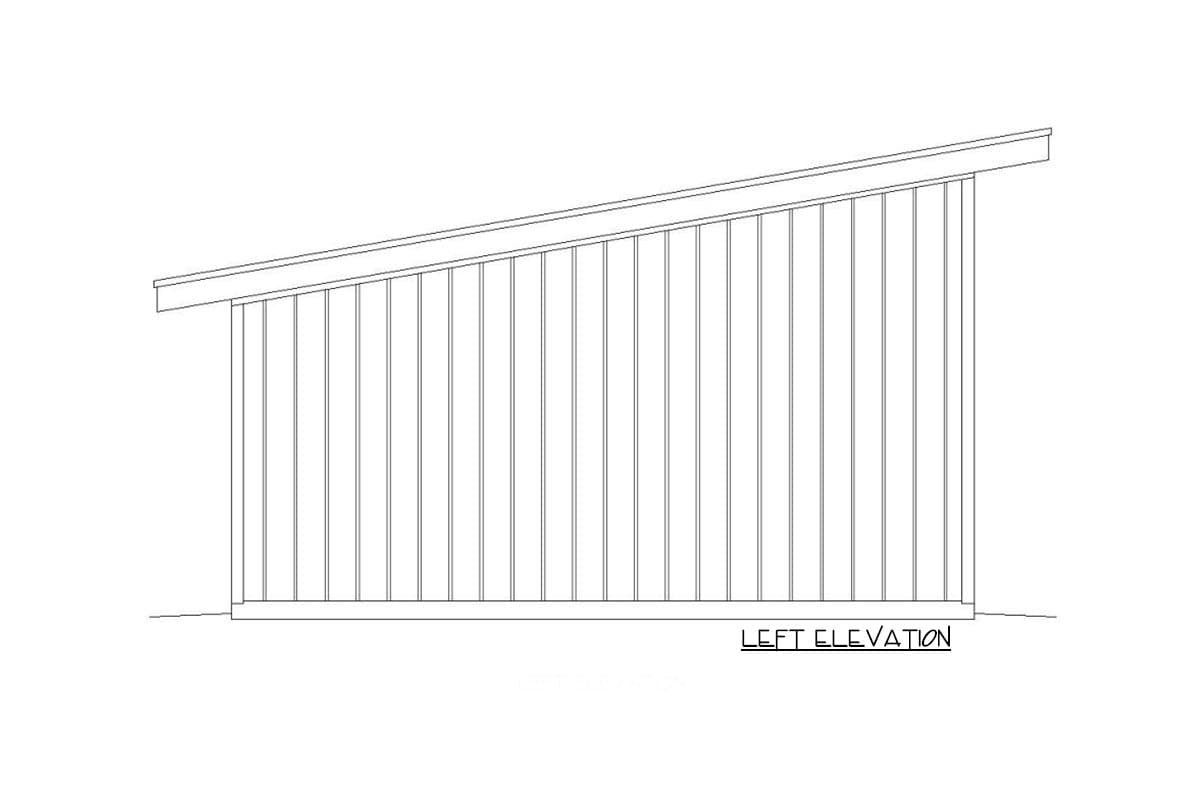

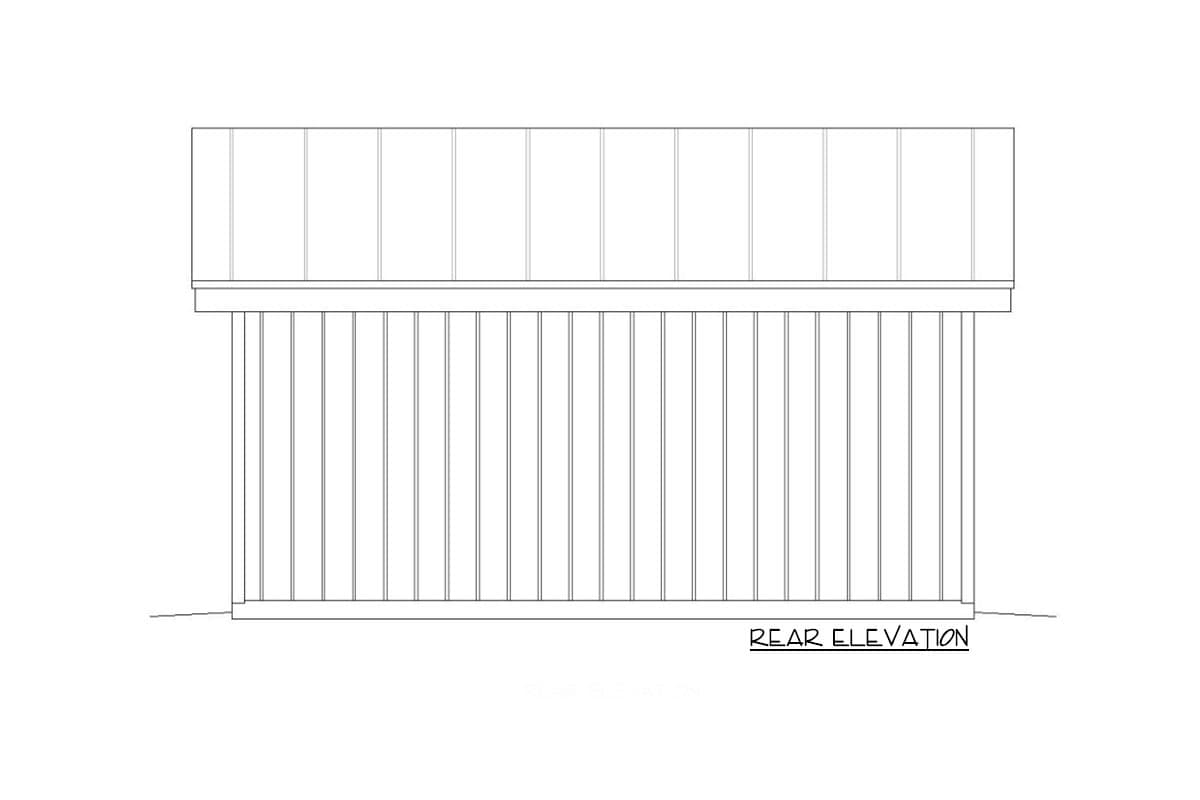

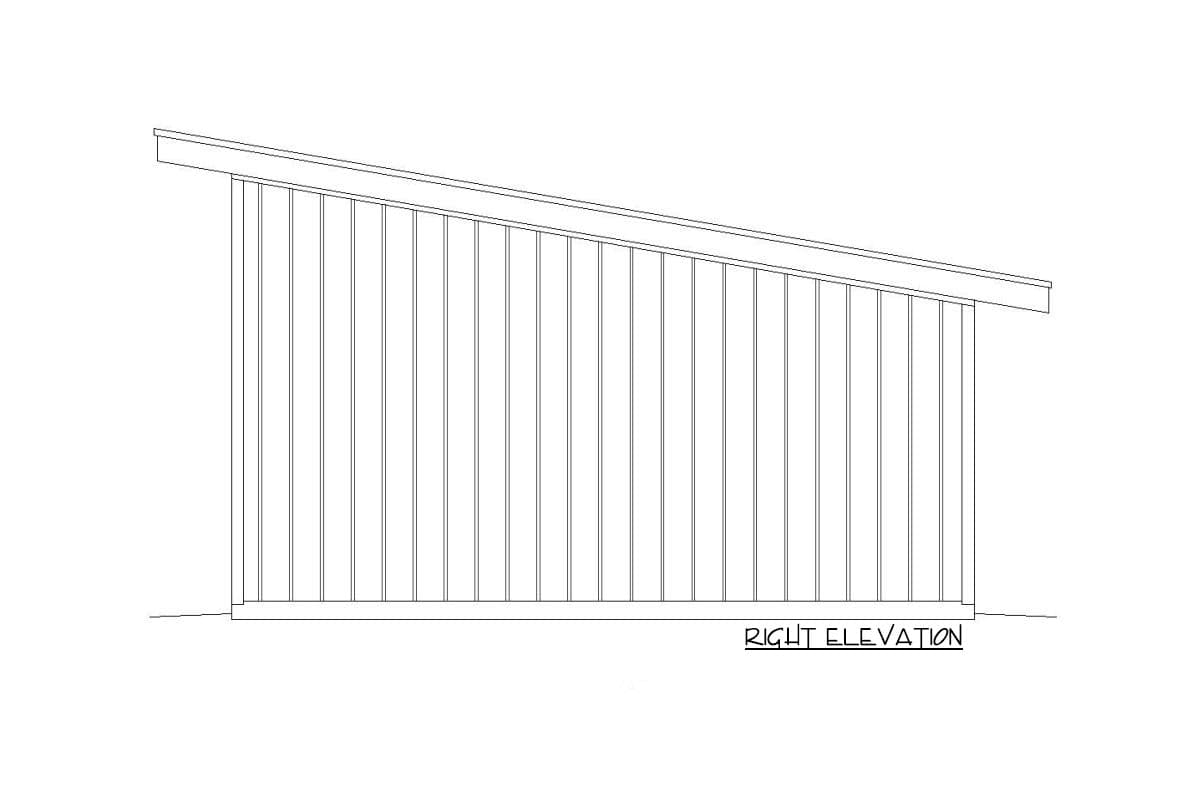

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Double Bay Garage Plan with Shed Roof - 68528VR floor plan - Main Level

Plan details

Architectural Style

Double Bay Garage Plan with Shed Roof

  • 0

    Heated s.f.

  • 0


  • 0


  • 1


  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $675
  • 5 Sets $750
  • 5 Sets + PDF $800
  • CAD + PDF - Single-Build $975
  • View all purchase option online

About This Plan

  • Related Plan: Get a 24’ by 24’ version with garage plan 68594VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.


  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6


  • Width: 20' 0"
  • Depth: 20' 0"


  • Type: Detached
  • Area: 400 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 11' 3"


  • Primary Pitch: 2 on 12
  • Framing Type: Stick
