Plan 135025GRA
2-Car New American Garage Plan with Flexible Loft Upstairs
Heated S.F.
0
Baths
0.5
Stories
2
Cars
2
What's Included
Plan Details
  • A shed dormer across the front of this detached 2-car garage adds both curb appeal and functionality to this detached garage plan.

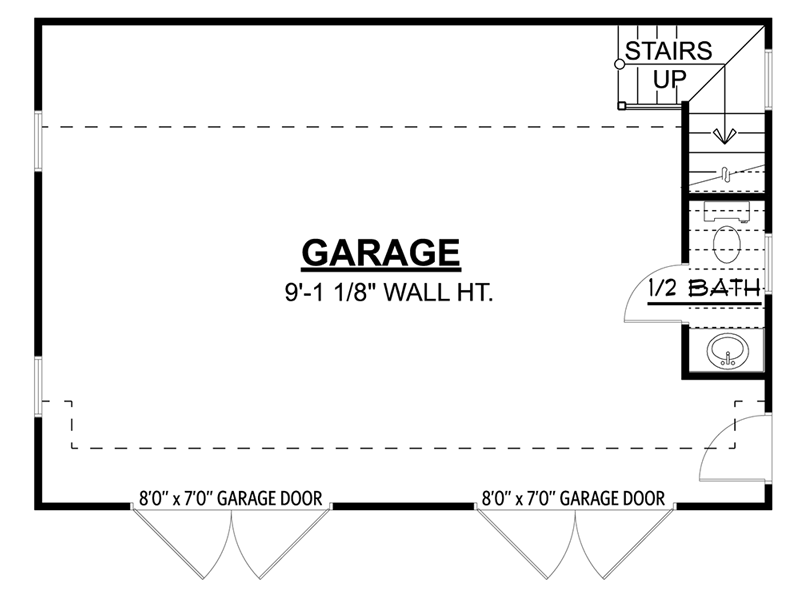

  • Two sets of  barn doors open to give you parking for a car in each bay. A man door on the side and a half bath are other features of the main floor.

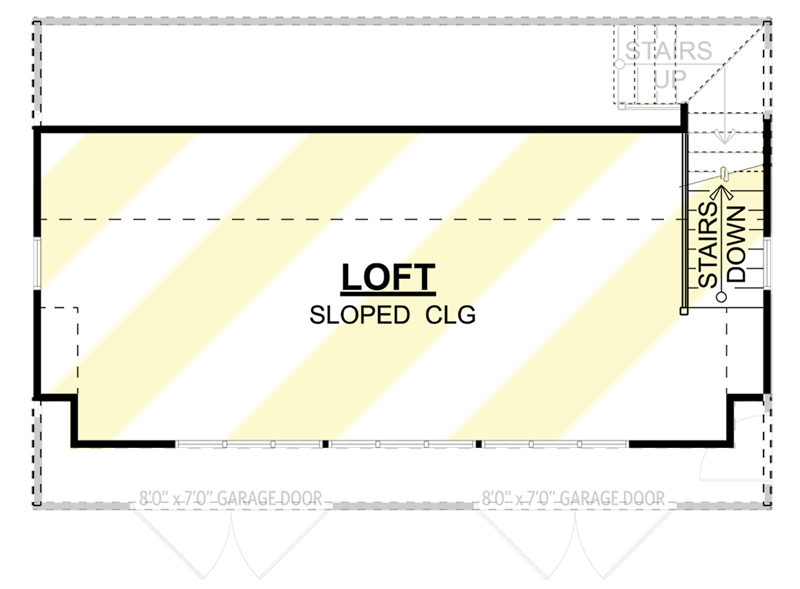

  • Stairs take you to the open loft above giving you the flexibility to use this as a work-from-home space, a play room, or simply for storage.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Car New American Garage Plan with Flexible Loft Upstairs

  • 0

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 20' 0"
  • Max ridge height: 20' 8"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 598 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
