Plan 77651FB 2-Story Barndominium with 10' Deep Front and Rear Porches

3,299 5 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Story Barndominium with 10' Deep Front and Rear Porches

Plan 77651FB

  • 3,299

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This rectangular Barndominium is framed by 10'-deep covered porches and totals 3,299 sq ft of living space, along with a 1,563 sq ft garage.
  • Tall ceilings define the living room that flows freely into the island kitchen and dining area, and a sizable pantry lends plenty of storage space for dried goods and large appliances.
  • The master bedroom is comfortably situated on the main level and features a 5-fixture bathroom and walk-in closet.
  • Upstairs, a balcony overlooks the living room below and leads to 4 bedrooms that share 2 Jack-and-Jill bathrooms.
  • Two 12' by 12' overhead doors provide access to the garage, as well as two man doors that lead to both porches.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan
  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

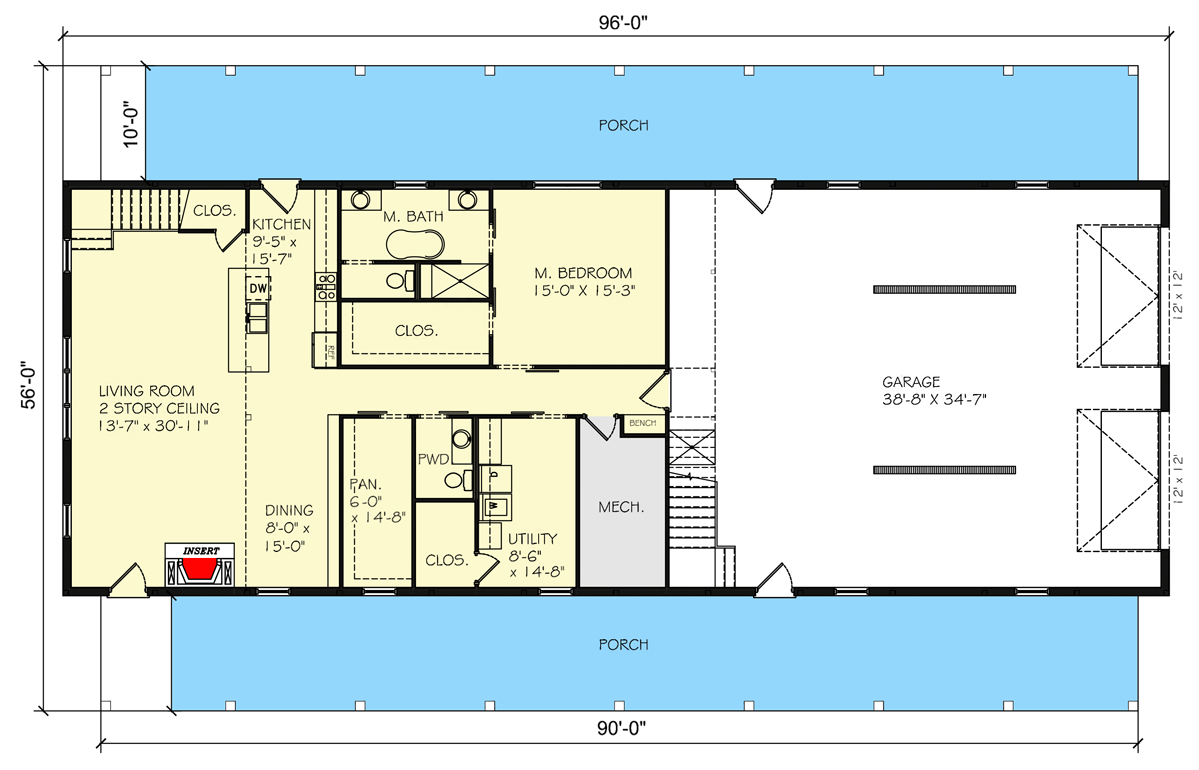

2-Story Barndominium with 10' Deep Front and Rear Porches - 77651FB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

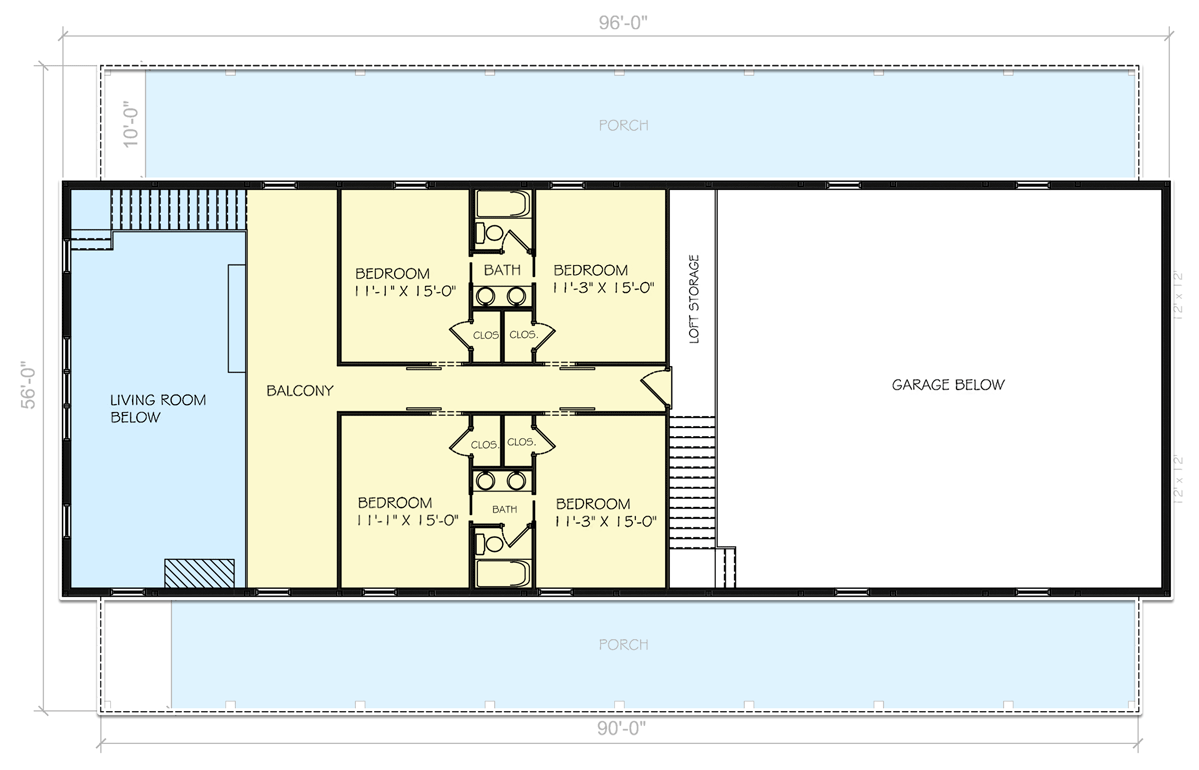

2-Story Barndominium with 10' Deep Front and Rear Porches - 77651FB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,299 sq. ft.
  • 1st Floor: 1,893 sq. ft.
  • 2nd Floor: 1,406 sq. ft.
  • Porch, Combined: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 96' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on
  • Secondary Pitch: 3 on
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2-Story Barndominium with 10' Deep Front and Rear Porches

  • 3,299

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • 5 Sets + PDF $1,695
  • CAD - Single-Build $1,895
  • View all purchase option online

About This Plan

  • This rectangular Barndominium is framed by 10'-deep covered porches and totals 3,299 sq ft of living space, along with a 1,563 sq ft garage.
  • Tall ceilings define the living room that flows freely into the island kitchen and dining area, and a sizable pantry lends plenty of storage space for dried goods and large appliances.
  • The master bedroom is comfortably situated on the main level and features a 5-fixture bathroom and walk-in closet.
  • Upstairs, a balcony overlooks the living room below and leads to 4 bedrooms that share 2 Jack-and-Jill bathrooms.
  • Two 12' by 12' overhead doors provide access to the garage, as well as two man doors that lead to both porches.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,299 sq. ft.
  • 1st Floor: 1,893 sq. ft.
  • 2nd Floor: 1,406 sq. ft.
  • Porch, Combined: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 96' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on
  • Secondary Pitch: 3 on
  • Framing Type: Truss
Plan 77651FB
View this and more for this plan by visiting www.architechtecturaldesigns.com/77651FB
|
Need Help? 800-854-7852
|
