2-Story Barndominium with Home Office and Wraparound Porch

Plan 135110GRA

  • 3,164

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • The rectangular footprint of this two-story Barndominium helps to stay within budget, while a 10'-deep wraparound porch adds to the curb appeal.
  • Tall ceilings unite the great room and dining area, which opens to the island kitchen, complete with a walk-in pantry and window above the double-bowl sink.
  • A home office is available just off the foyer, across from the master bedroom. Two closets provide the homeowner with plenty of space for larger wardrobes, and a comfortable ensuite delivers a freestanding tub and dual-sink vanity.
  • Upstairs, a loft overlooks the great room below and leads to bedrooms 2 and 3, separated by a compartmentalized bath. Dedicated storage space helps organize holiday decor and memories.
  • The garage totals 2,304 square feet with two, 12' by 14' overhead doors and two man doors.
  • The exterior finish is spec'd for corrugated metal siding.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

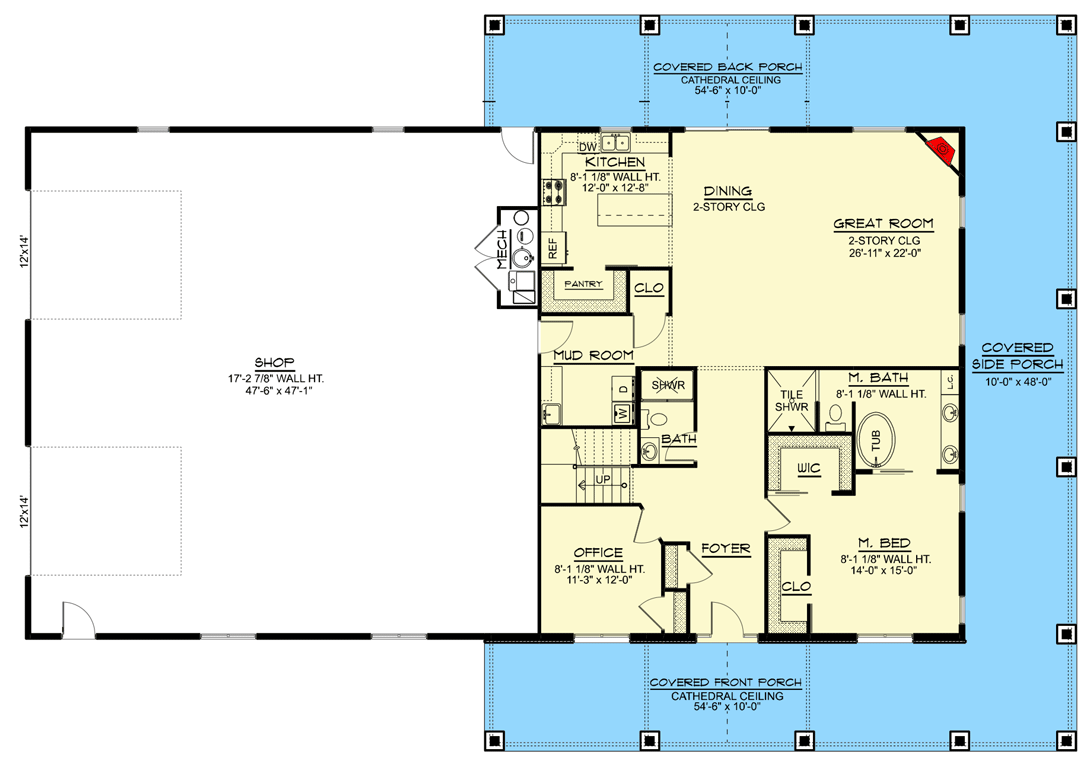

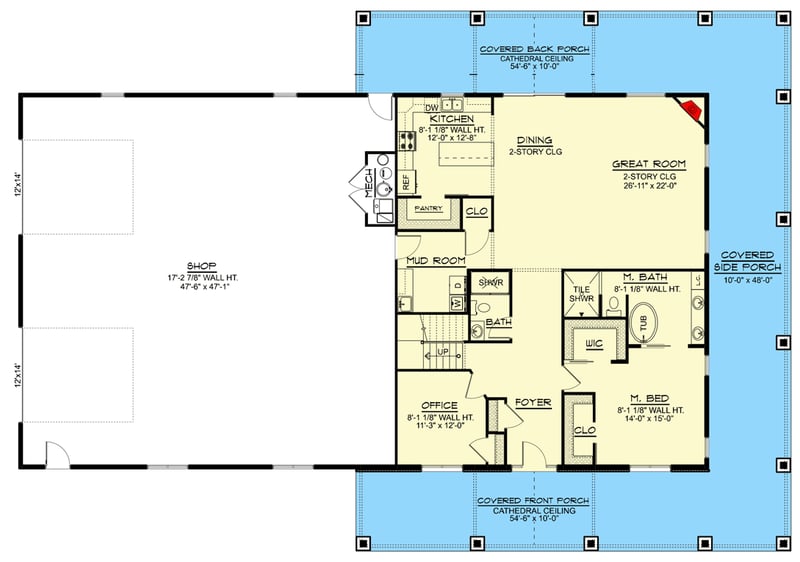

2-Story Barndominium with Home Office and Wraparound Porch - 135110GRA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

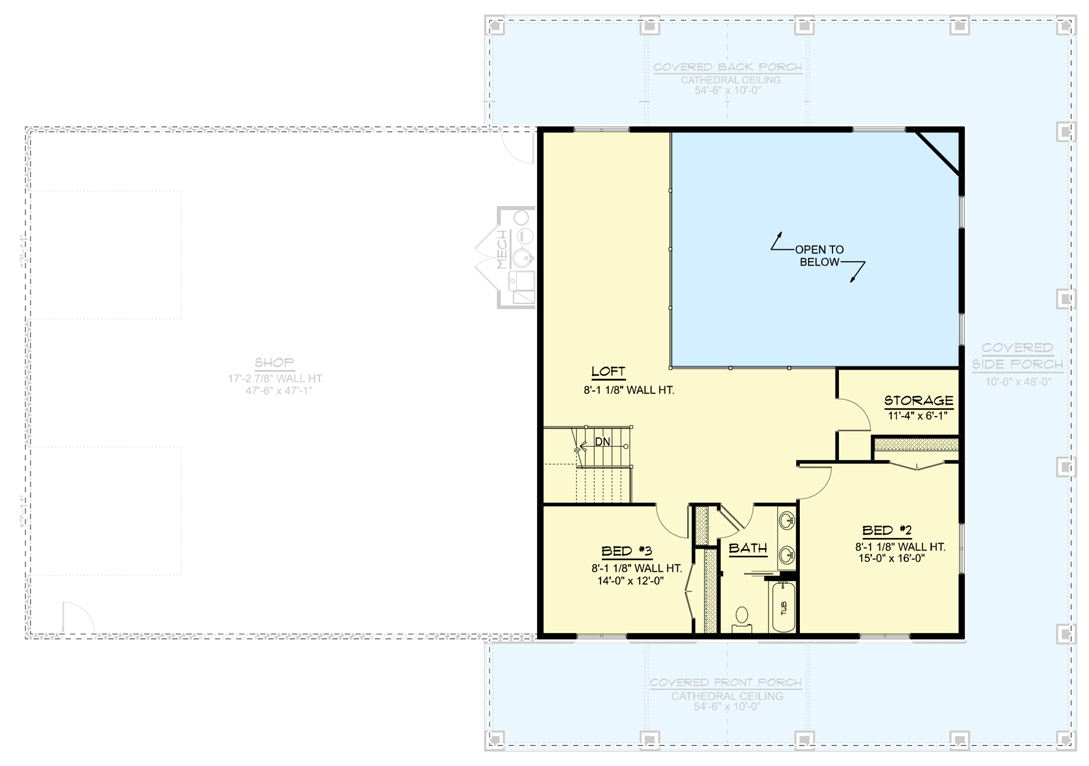

2-Story Barndominium with Home Office and Wraparound Porch - 135110GRA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,164 sq. ft.
  • 1st Floor: 1,920 sq. ft.
  • 2nd Floor: 1,244 sq. ft.
  • Porch, Combined: 1,512 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 9"

Garage

  • Type: RV Garage, Attached
  • Area: 2304 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

2-Story Barndominium with Home Office and Wraparound Porch

  • 3,164

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,525
  • 5 Sets + PDF $1,600
  • PDF - Unlimited Build $1,850
  • CAD + PDF - Single-Build $2,600
  • CAD - Unlimited Build $3,100
  • View all purchase option online

About This Plan

  • The rectangular footprint of this two-story Barndominium helps to stay within budget, while a 10'-deep wraparound porch adds to the curb appeal.
  • Tall ceilings unite the great room and dining area, which opens to the island kitchen, complete with a walk-in pantry and window above the double-bowl sink.
  • A home office is available just off the foyer, across from the master bedroom. Two closets provide the homeowner with plenty of space for larger wardrobes, and a comfortable ensuite delivers a freestanding tub and dual-sink vanity.
  • Upstairs, a loft overlooks the great room below and leads to bedrooms 2 and 3, separated by a compartmentalized bath. Dedicated storage space helps organize holiday decor and memories.
  • The garage totals 2,304 square feet with two, 12' by 14' overhead doors and two man doors.
  • The exterior finish is spec'd for corrugated metal siding.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,164 sq. ft.
  • 1st Floor: 1,920 sq. ft.
  • 2nd Floor: 1,244 sq. ft.
  • Porch, Combined: 1,512 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 9"

Garage

  • Type: RV Garage, Attached
  • Area: 2304 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 135110GRA
View this and more for this plan by visiting www.architechtecturaldesigns.com/135110GRA
|
