Plan 86110BW
2-Story Coastal Contemporary House Plan with Outdoor Fireplace and Kitchen
Heated S.F.
4,430
Beds
4
Baths
4.5
Stories
2
Cars
3
Plan Details
  • This 4,430 square foot 2-story coastal contemporary house plan features 4 bedrooms, 4 baths, 1 powder bath and a 3-car garage.
  • First floor amenities include a great room with a ventless gas fireplace, island kitchen with hidden pantry and a dining room. Also featured is an expansive wet bar area, a study and a dedicated laundry room.
  • The private master suite includes two large walk-in closets, dual sinks, water closet and a shower.  A secondary bedroom with bath are located across the home.
  • The outdoor living space features a second ventless fireplace, dining area and a kitchen and bar.
  • The second floor, easily accessible by elevator, includes a loft, an additional great room, 2 secondary bedrooms and baths and covered balconies.
What's Included

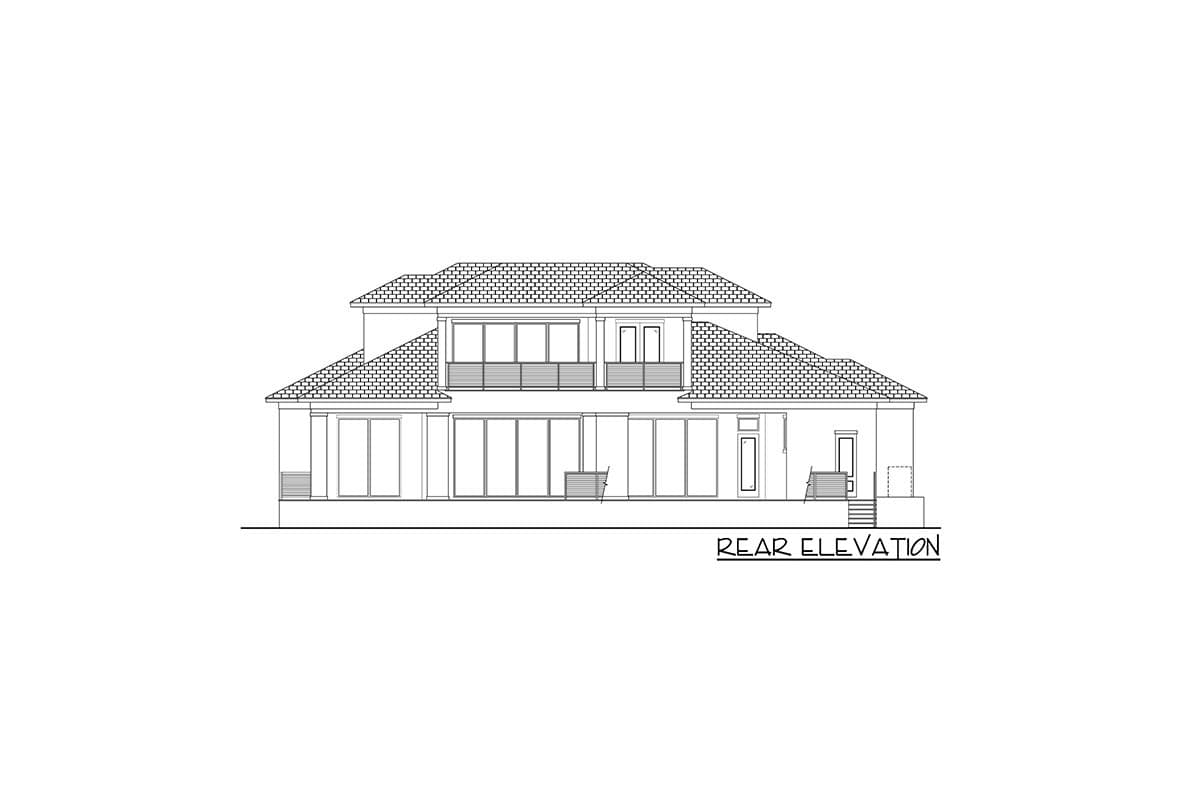

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Coastal Contemporary House Plan with Outdoor Fireplace and Kitchen

  • 4,430

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,430 sq. ft.
  • 1st Floor: 3,055 sq. ft.
  • 2nd Floor: 1,375 sq. ft.
  • Non AC Storage: 59 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 69' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 6:12 on
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

2-Story Coastal Contemporary House Plan with Outdoor Fireplace and Kitchen

  • 4,430

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

2-Story Coastal Contemporary House Plan with Outdoor Fireplace and Kitchen

  • 4,430

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,430 sq. ft.
  • 1st Floor: 3,055 sq. ft.
  • 2nd Floor: 1,375 sq. ft.
  • Non AC Storage: 59 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 69' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 6:12 on
  • Framing Type: Truss

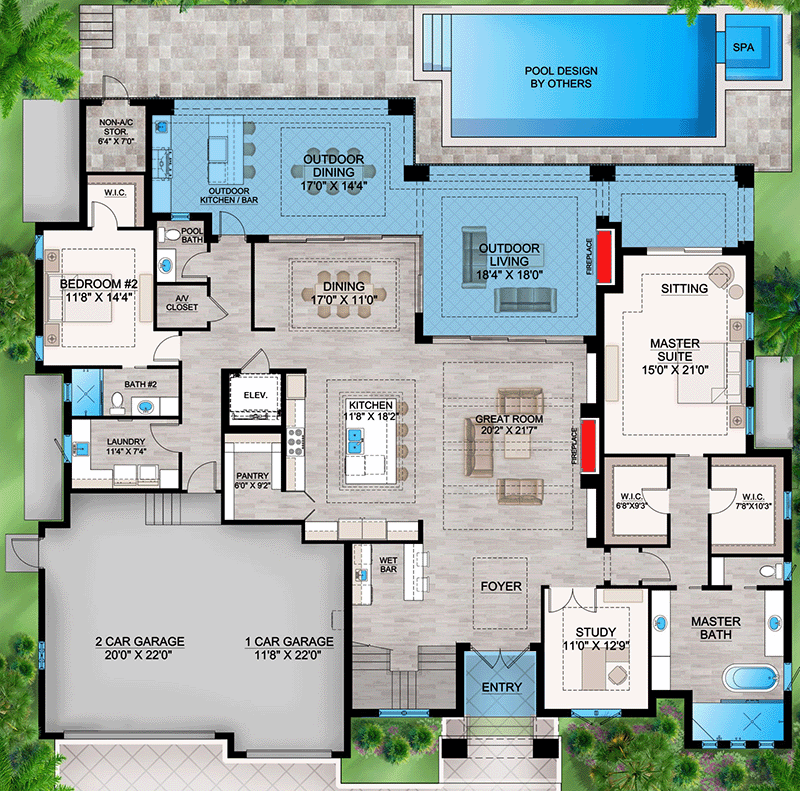

    Main Level

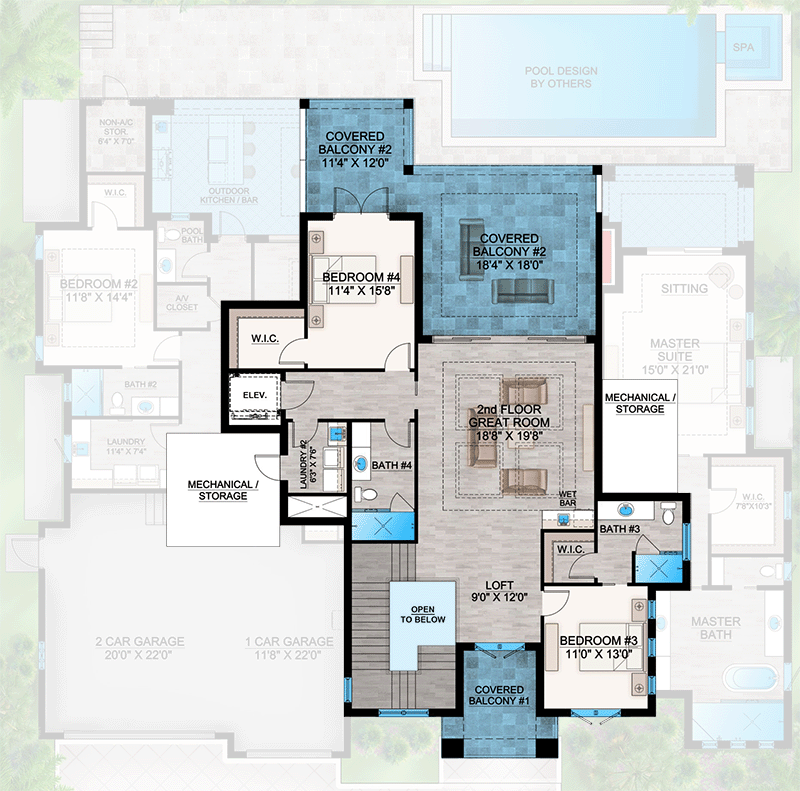

    2nd Floor
