2-Story Contemporary Home Plan with RV Garage Bay

Plan 666144RAF

This plan plants 3 trees

4,683
Heated s.f.
4
Beds
4.5
Baths
2
Stories
4
Cars

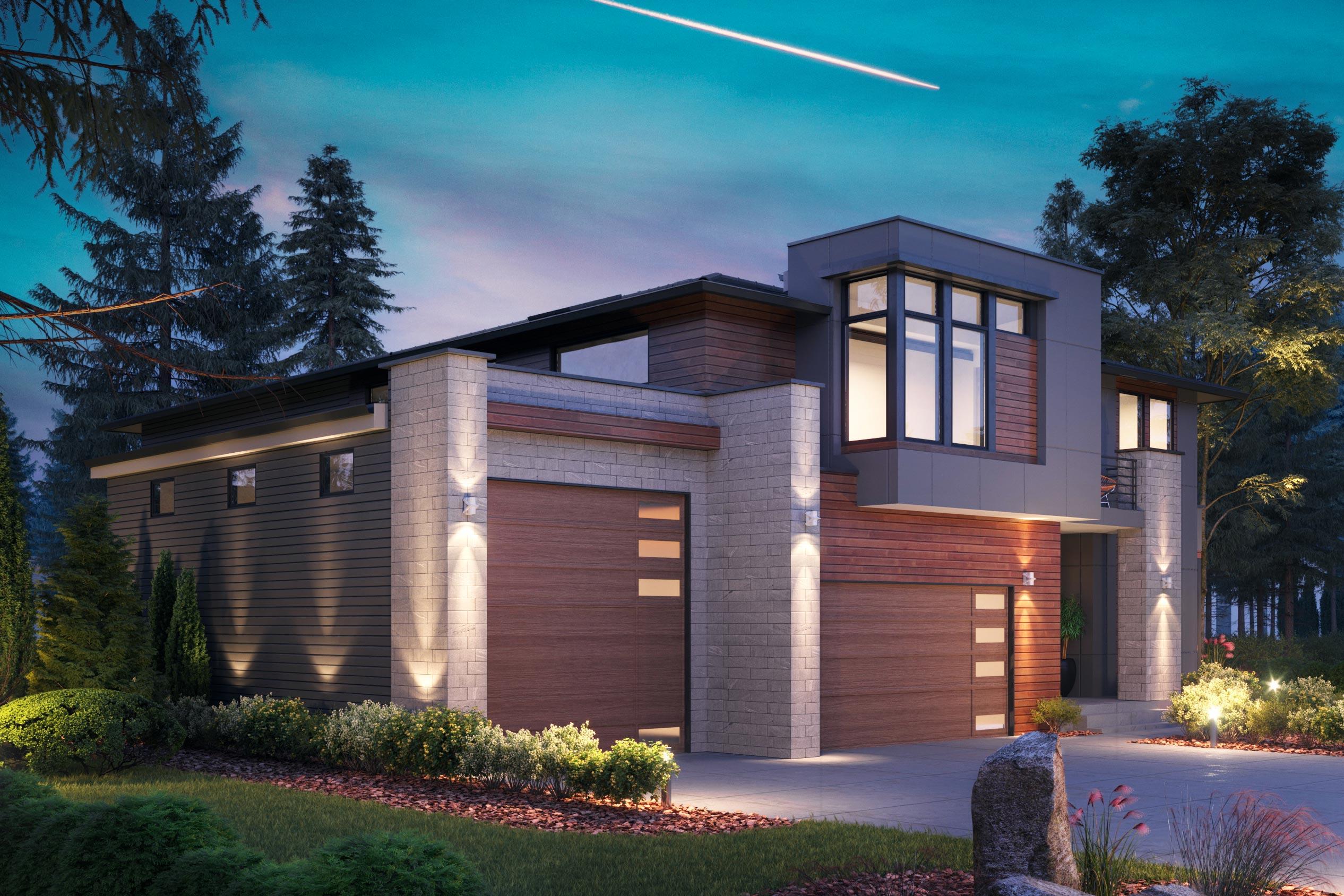

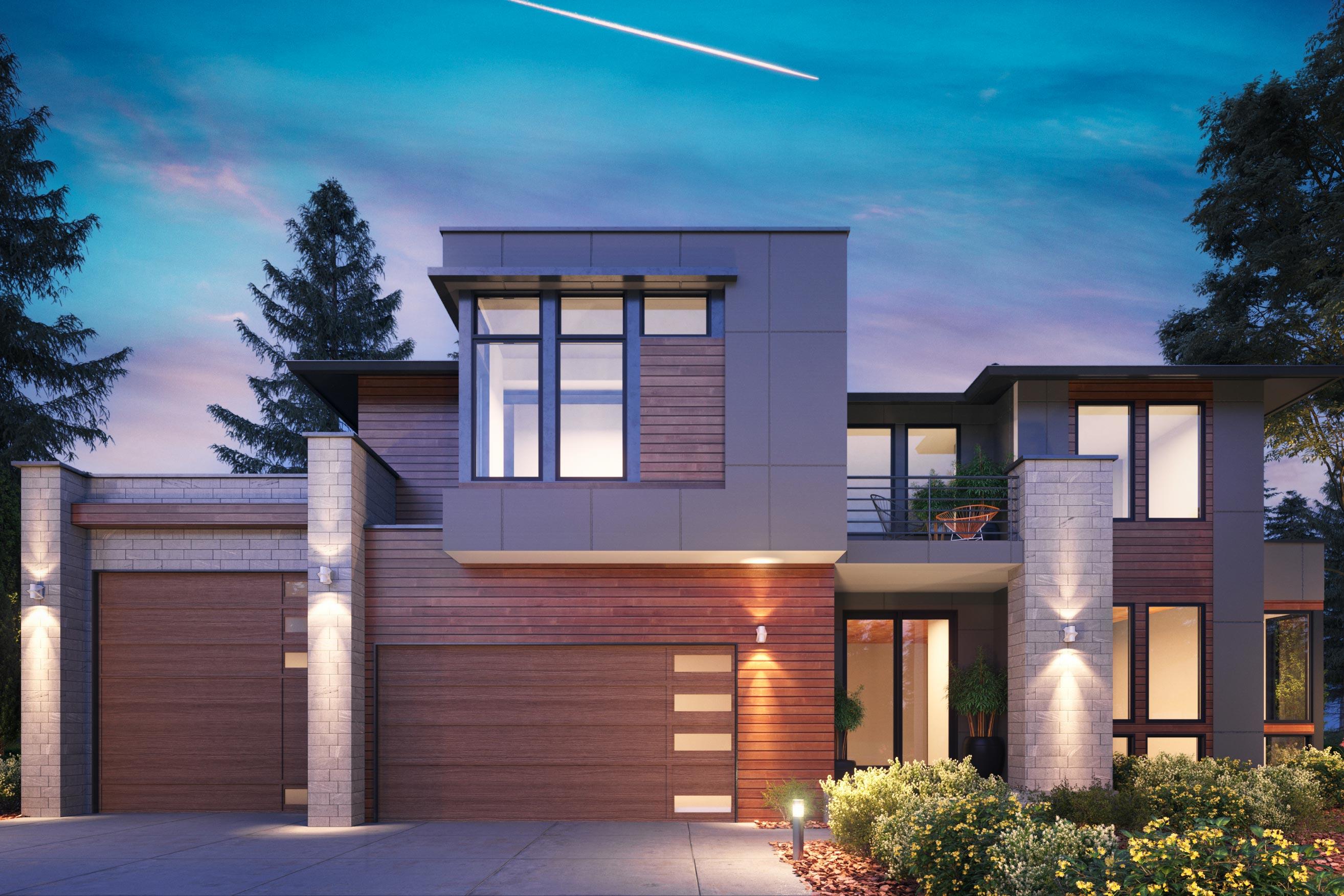

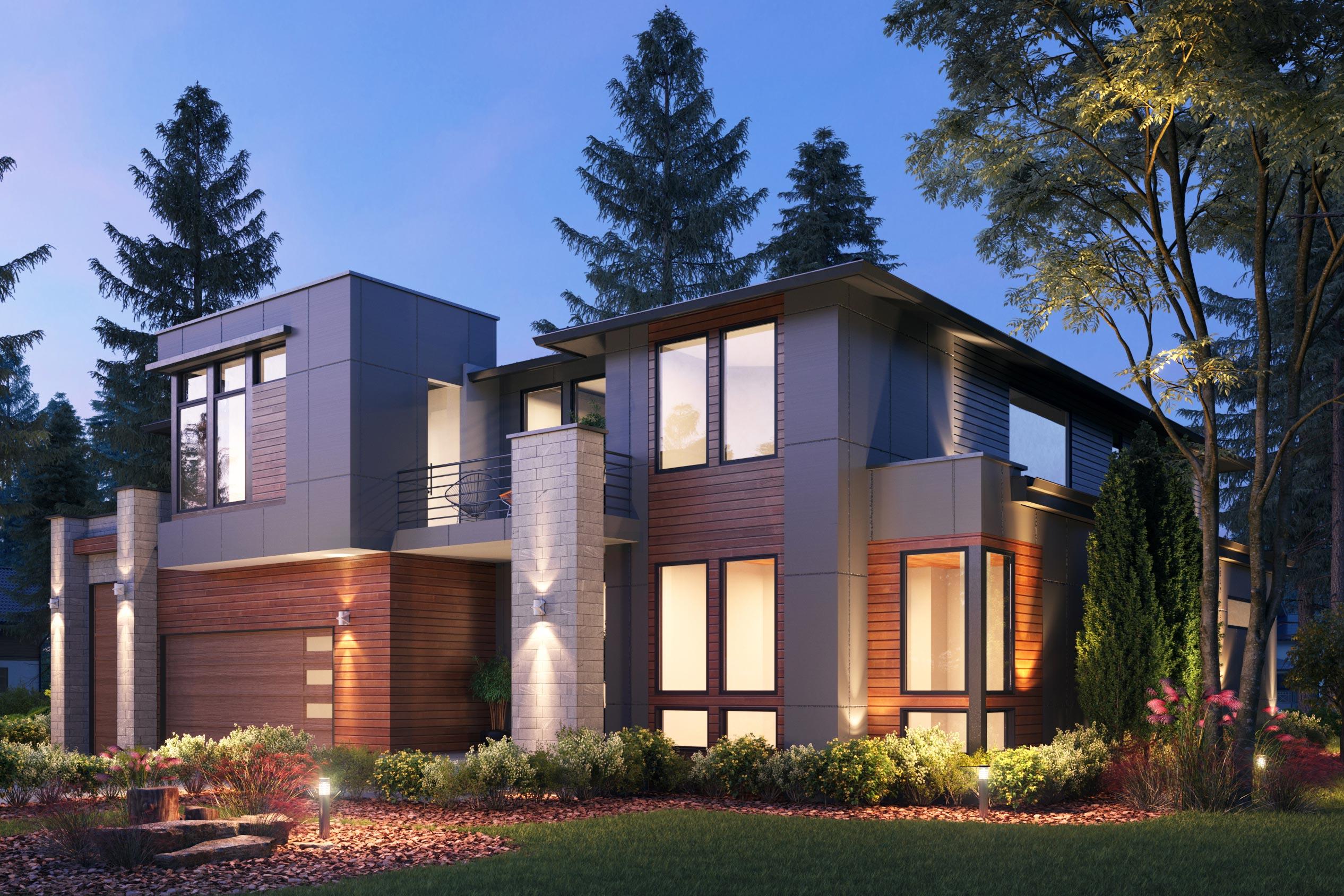

A blend of modern siding materials come together to enhance the facade of this two-story, Contemporary home plan.
Inside, a grand foyer presents a curved staircase, niche for a console table, and a coat closet; a flex room rests behind french doors to the right.

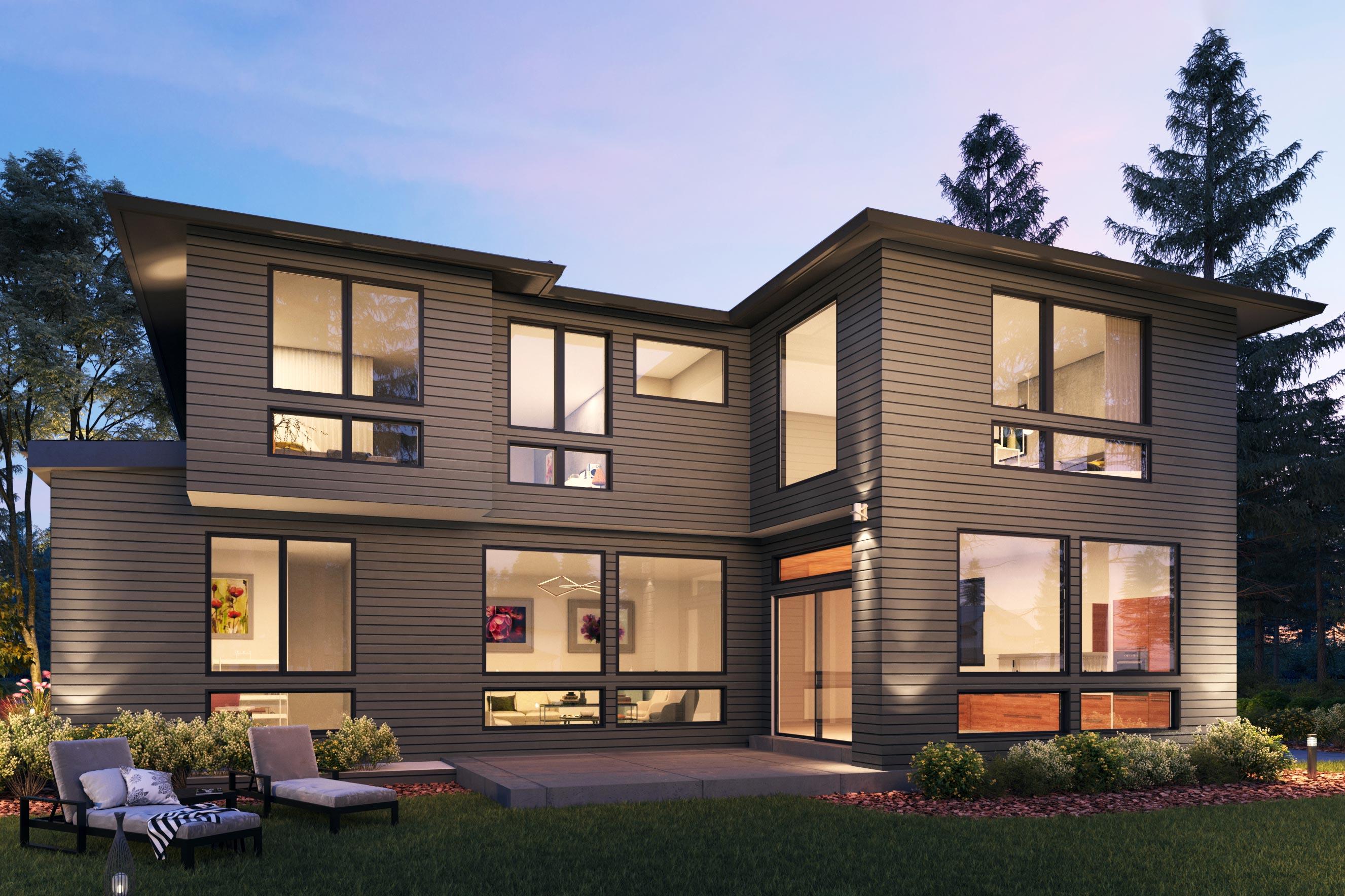

The kitchen and great room act as one space allowing families to easily gather. A formal dining room with a 10'-coffered ceiling provides access to the perfect grilling porch.
A guest suite can be found on the main level, while the remaining bedrooms and laundry room are located upstairs. Two master suites consume the majority of the second level, each with attached bathrooms and walk-in closets.
The garage includes an RV bay for those looking to travel and a rear overhead door for easy access to lawn equipment.

Plans include:

Cover Sheet
General notes
Foundation Plan
Fully dimensioned floor plans

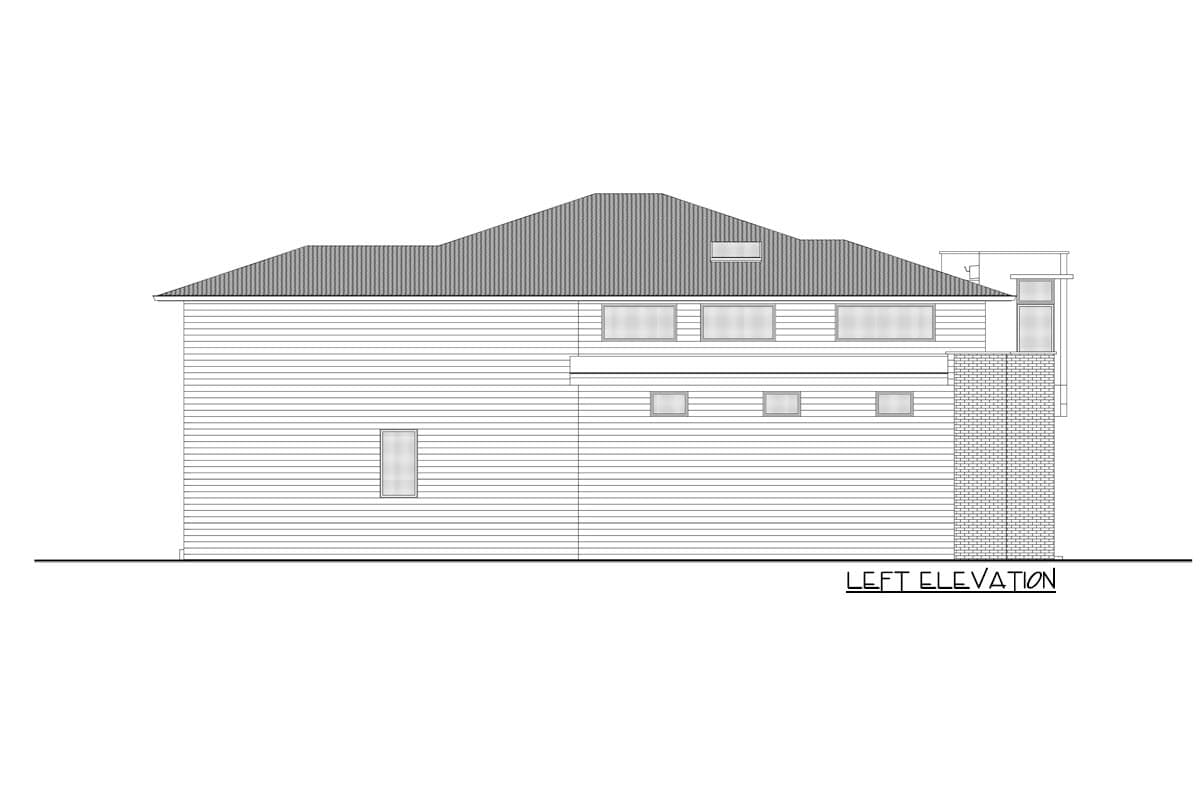

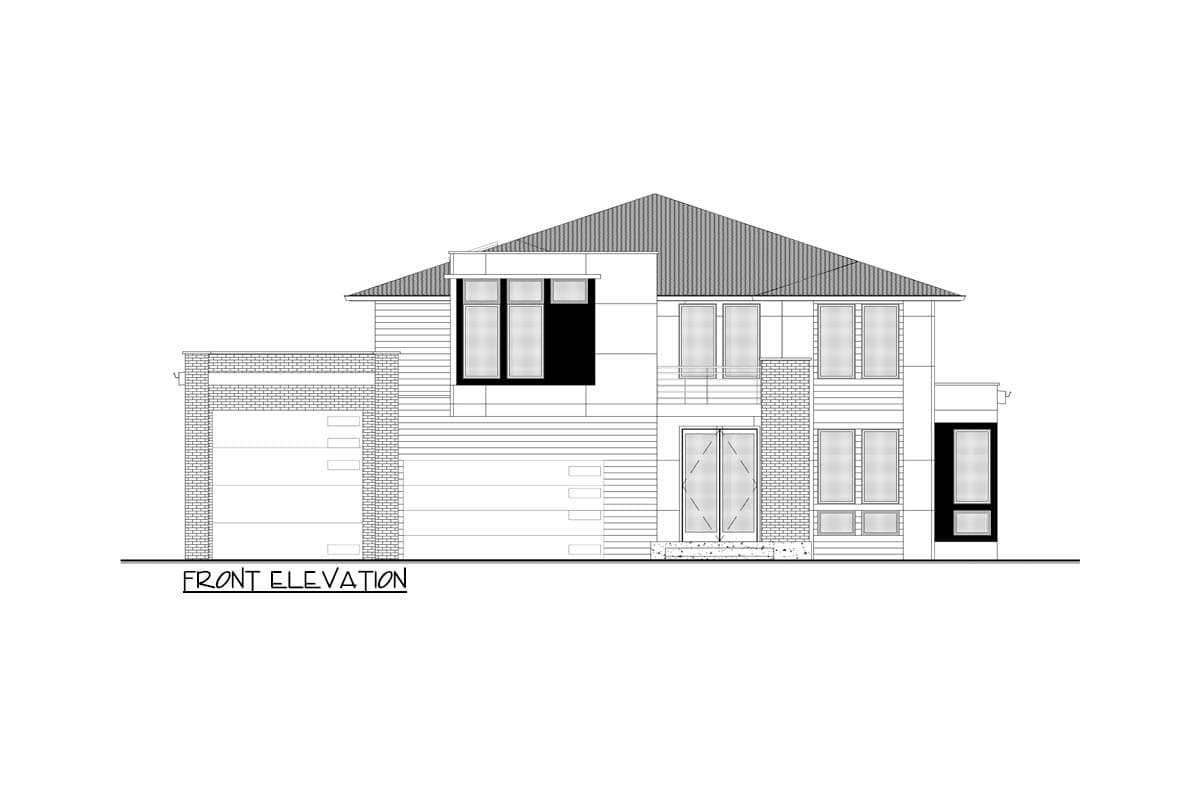

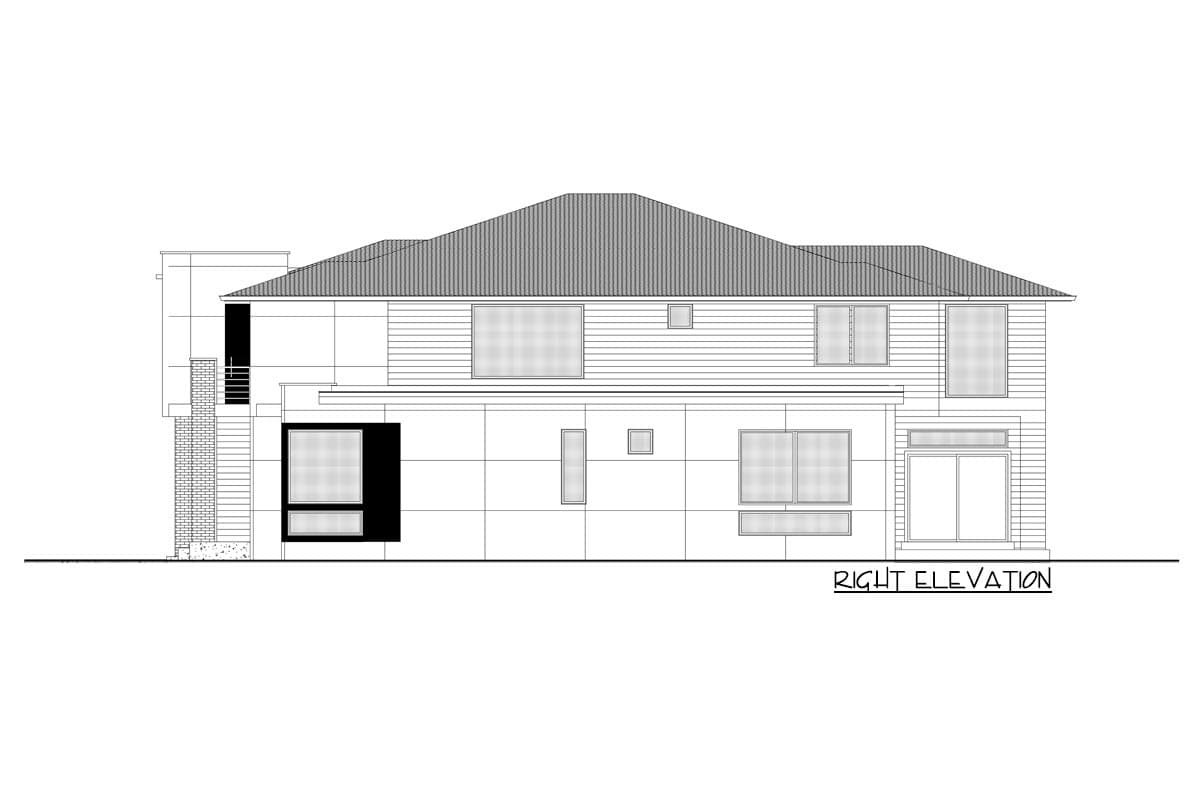

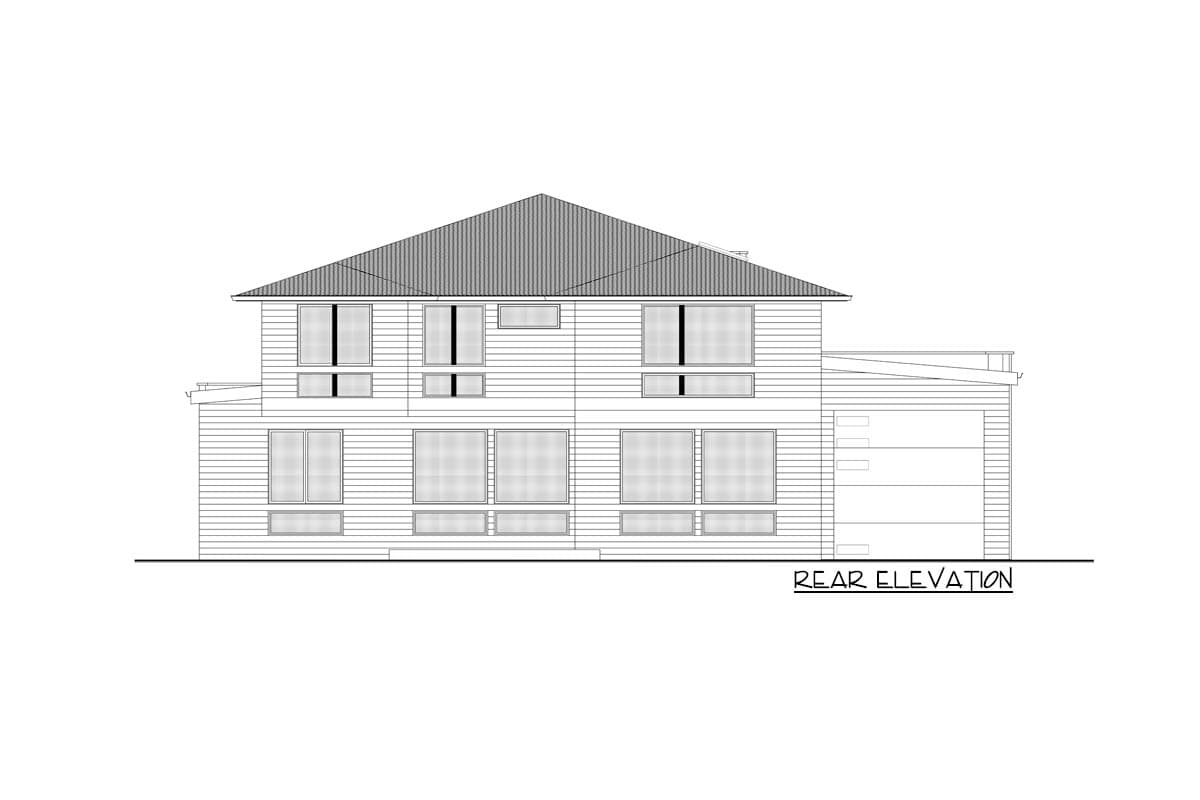

Elevations
Building cross sections
Roof Plan

What is NOT included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations

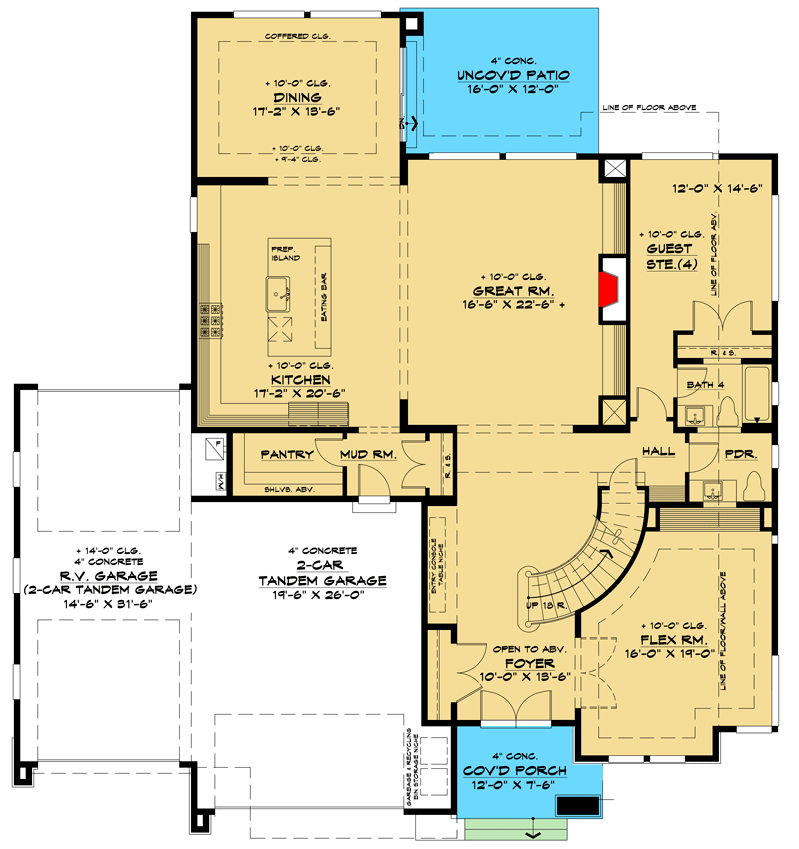

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

2-Story Contemporary Home Plan with RV Garage Bay - 666144RAF floor plan - Main Level

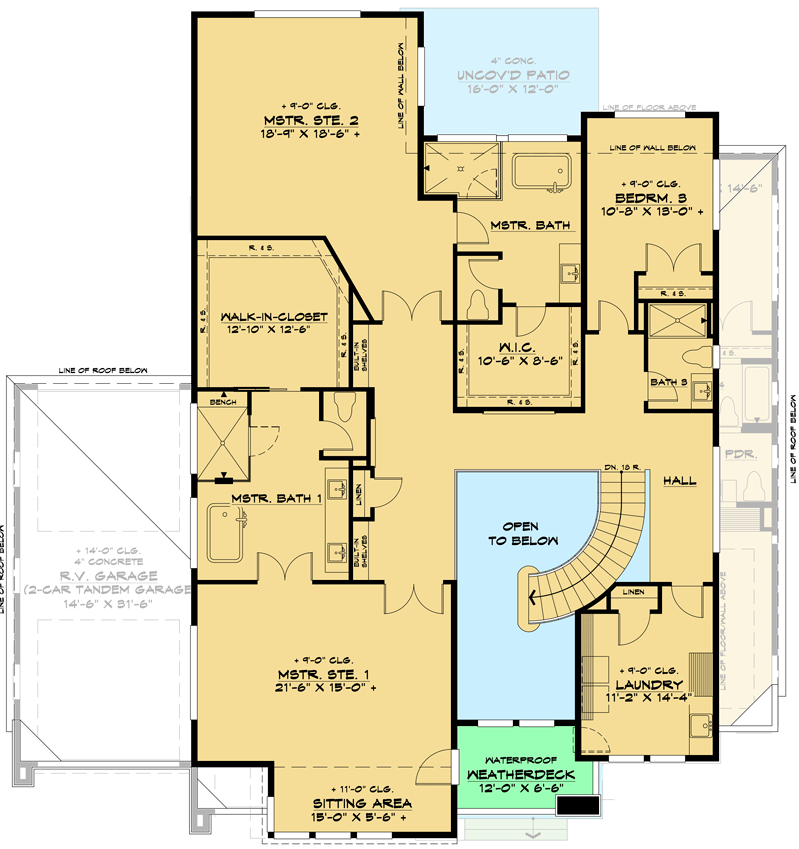

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

2-Story Contemporary Home Plan with RV Garage Bay - 666144RAF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,683 sq. ft.
1st Floor: 2,278 sq. ft.
2nd Floor: 2,405 sq. ft.

Porch, Front: 90 sq. ft.
Uncovered Patio: 201 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 64' 8"
Depth: 69' 4"
Max ridge height: 29' 2"

Garage

Type: RV Garage, Attached
Area: 993 sq. ft.
Count: 4 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Garage 11' 6" Garage 2 14' 0"

Roof Details

Primary Pitch: 4 on 12
Secondary Pitch: 1 on 12

Framing Type: Truss

Architectural Style

Special features
