2-Story Craftsman Cottage with Side-Entry Garage

Plan 710078BTZ

  • 2,855

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This two-story Craftsman cottage house plan comes with a column-lined porch, two shed dormers and a side-entry garage making the home perfect for a corner lot.
  • Upon entering the foyer, eyes are drawn to the rear wall of windows that give views to the rear and allow the natural light to flood in. The dining room is directly off the foyer welcoming guests.
  • The vaulted family room is open and spacious with built-in cabinets flanking the fireplace.
  • The kitchen is open to the family room making entertaining easy and comfortable. A center island is large enough for the family chef to prepare meals and helps keep things organized with a built-in desk.
  • The vaulted master suite (15'6" ceiling) includes a beamed ceiling as one of its many amenities. A large walk-in closet allows personal items and clothing a place to rest. The master bath (11'4" ceiling) offers separate sinks, private toilet, garden tub and a shower that must be seen to be believed.
  • On the opposite side of the home behind the kitchen is an additional bedroom and bath. This room can also be used as a home office or nursery. The full bath is convenient for overnight guests, allowing them plenty of privacy.
  • Upstairs offers two additional bedrooms, both with walk-in closets. A teen loft overlooks the family room and can be converted into another bedroom. The optional bonus room completes the second level allowing the homeowners to finish this room as they wish.
  • Related Plans: Get alternate exteriors with house plans 710054BTZ, 710076BTZ and 710077BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

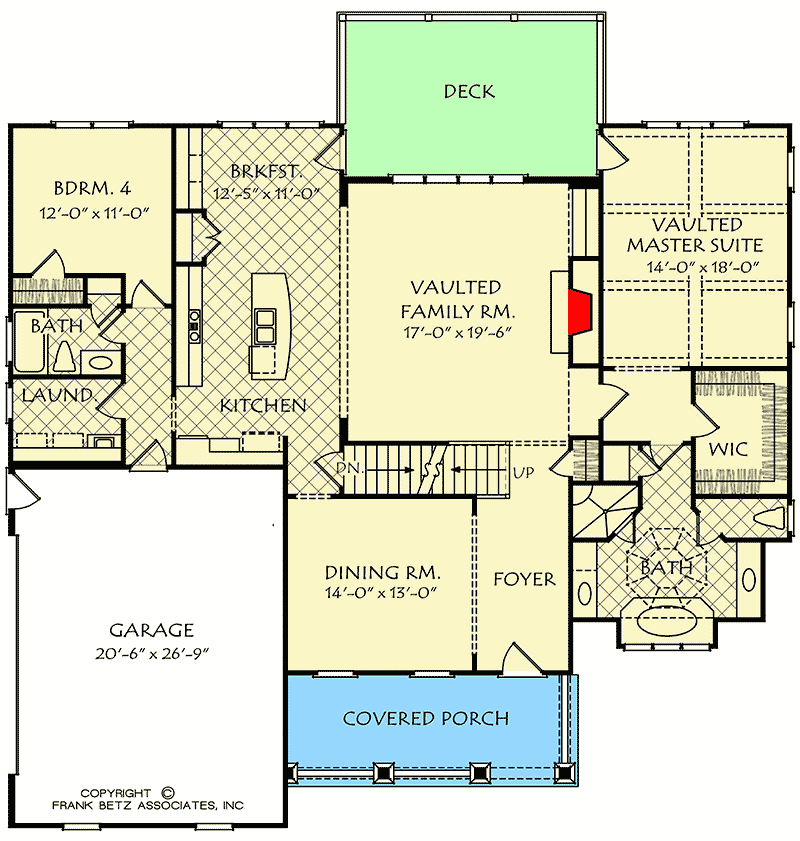

2-Story Craftsman Cottage with Side-Entry Garage - 710078BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

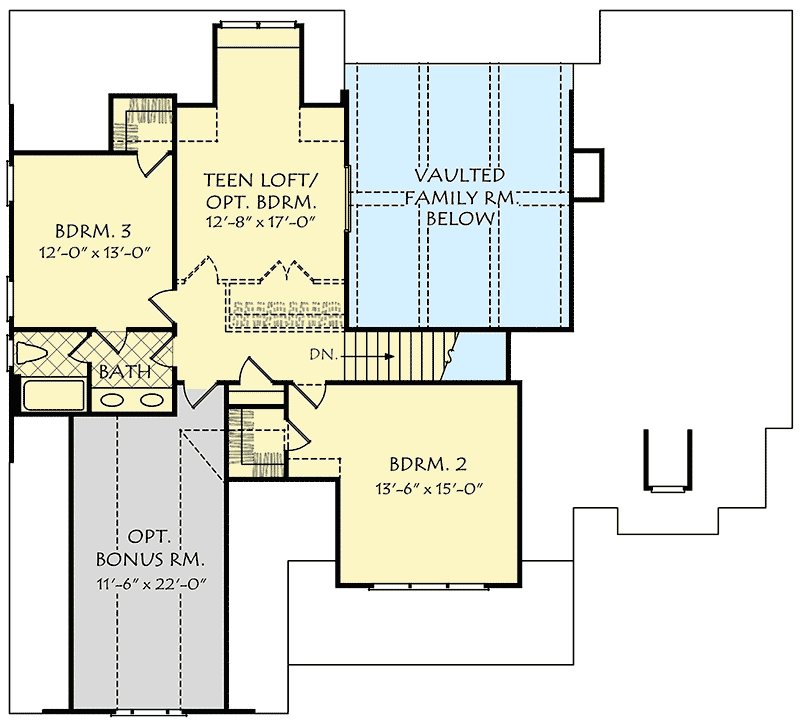

2-Story Craftsman Cottage with Side-Entry Garage - 710078BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,855 sq. ft.
  • 1st Floor: 1,988 sq. ft.
  • 2nd Floor: 867 sq. ft.
  • Bonus: 276 sq. ft.
  • Basement Unfinished: 1,988 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 53' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

2-Story Craftsman Cottage with Side-Entry Garage

  • 2,855

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets + PDF $2,175
  • PDF - Unlimited Build $2,195
  • PDF - Unlimited Build + 5-Sets $2,475
  • CAD - Unlimited Build $3,595
  • View all purchase option online

About This Plan

  • This two-story Craftsman cottage house plan comes with a column-lined porch, two shed dormers and a side-entry garage making the home perfect for a corner lot.
  • Upon entering the foyer, eyes are drawn to the rear wall of windows that give views to the rear and allow the natural light to flood in. The dining room is directly off the foyer welcoming guests.
  • The vaulted family room is open and spacious with built-in cabinets flanking the fireplace.
  • The kitchen is open to the family room making entertaining easy and comfortable. A center island is large enough for the family chef to prepare meals and helps keep things organized with a built-in desk.
  • The vaulted master suite (15'6" ceiling) includes a beamed ceiling as one of its many amenities. A large walk-in closet allows personal items and clothing a place to rest. The master bath (11'4" ceiling) offers separate sinks, private toilet, garden tub and a shower that must be seen to be believed.
  • On the opposite side of the home behind the kitchen is an additional bedroom and bath. This room can also be used as a home office or nursery. The full bath is convenient for overnight guests, allowing them plenty of privacy.
  • Upstairs offers two additional bedrooms, both with walk-in closets. A teen loft overlooks the family room and can be converted into another bedroom. The optional bonus room completes the second level allowing the homeowners to finish this room as they wish.
  • Related Plans: Get alternate exteriors with house plans 710054BTZ, 710076BTZ and 710077BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,855 sq. ft.
  • 1st Floor: 1,988 sq. ft.
  • 2nd Floor: 867 sq. ft.
  • Bonus: 276 sq. ft.
  • Basement Unfinished: 1,988 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 53' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
