2-Story Craftsman Home Plan with Guest Suite and Screened Porch

Plan 790108GLV

  • 3,609

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Tapered columns support the front porch while adding Craftsman appeal to this two-story home plan.
  • A formal dining room and home office flank the foyer, while the shared living spaces are flooded with natural lighting and completely open to one another.
  • The kitchen hosts a 10'-long island, sizable walk-in pantry, and a butler's pantry with a wine fridge.
  • Three bedrooms, a bonus room, and laundry room are located upstairs, including the master bedroom with his and hers closets.
  • Additional amenities include a 3-car garage, spacious mudroom, main-level guest suite, and a screened porch.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

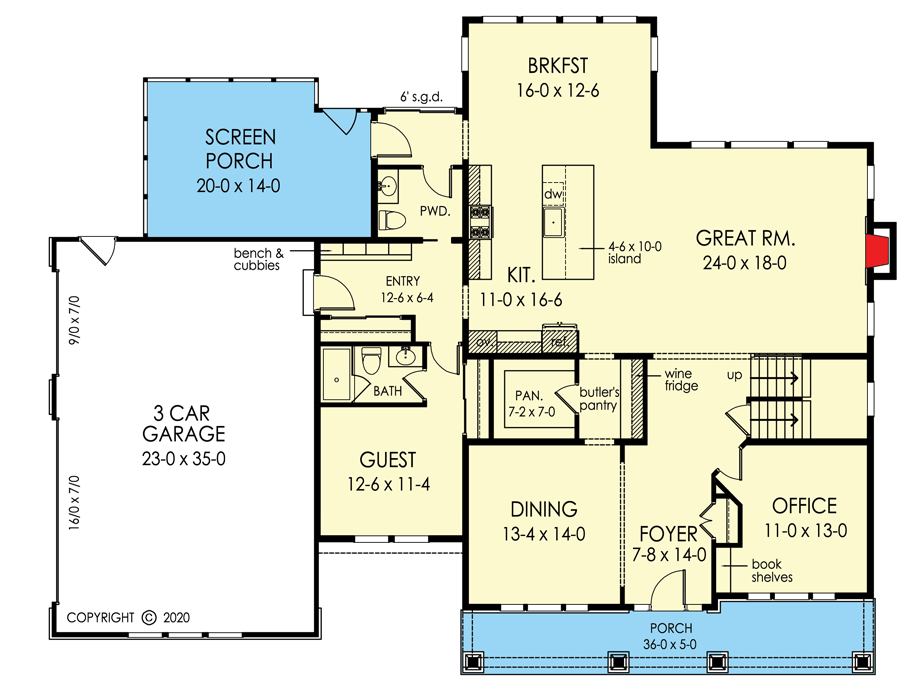

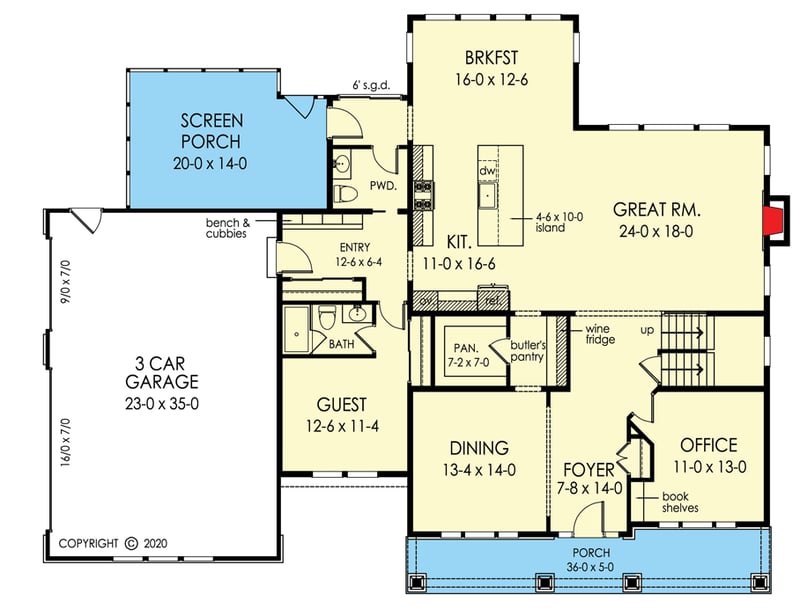

2-Story Craftsman Home Plan with Guest Suite and Screened Porch - 790108GLV floor plan - Main Level

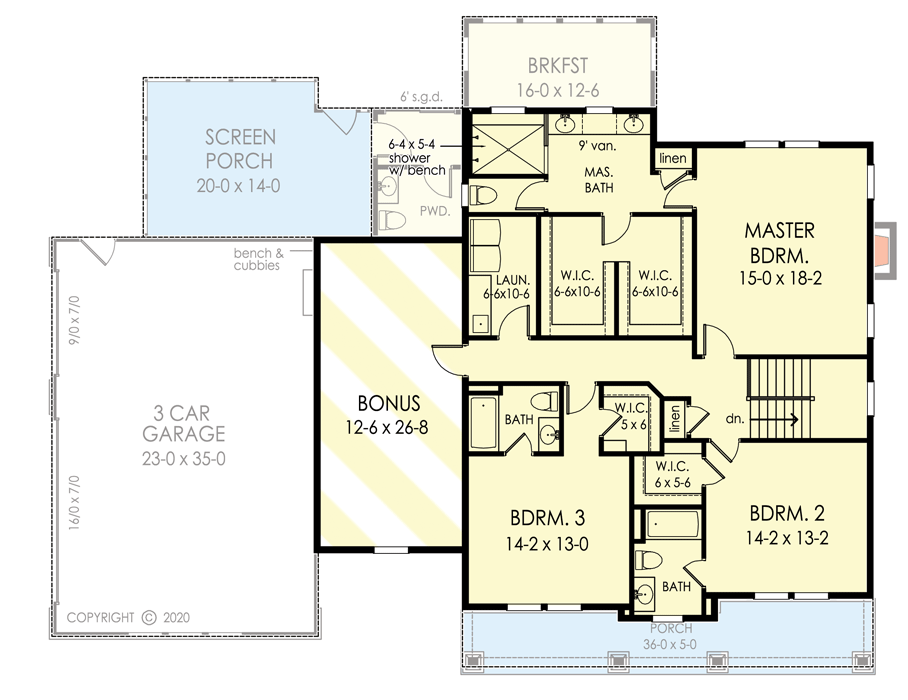

Second Floor with Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story Craftsman Home Plan with Guest Suite and Screened Porch - 790108GLV floor plan - Second Floor with Bonus Room

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,609 sq. ft.
  • 1st Floor: 2,087 sq. ft.
  • 2nd Floor: 1,522 sq. ft.
  • Porch, Rear: 267 sq. ft.
  • Porch, Front: 194 sq. ft.
  • Bonus: 360 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type
