2-Story Craftsman Home Plan with Main Level Guest Suite - 3094 Sq Ft
Heated S.F.
3,094
Beds
5
Baths
3
Stories
2
Cars
3
What's Included
Plan Details
  • This 3,094 sq. ft. house plan gives you 5 beds, 3 baths and a 3-car garage (892 sq. ft.).
  • Inside, you are greeted by a guest bed on your right and a study room to your left. Just past the staircase that leads upstairs, you enter the open-concept living space with a kitchen, dining room and great room with a fireplace all sharing eyelines.
  • In back, a covered porch gives you 208 sq. ft. of outdoor living perfect for leisure or get-togethers.
  • Upstairs, you'll find all the bedrooms, bridged by a hallway that leads to the laundry room.
  • Related: Get an alternate house plan in reverse with 790146GLV.
What's Included
  • Cover sheet with notes

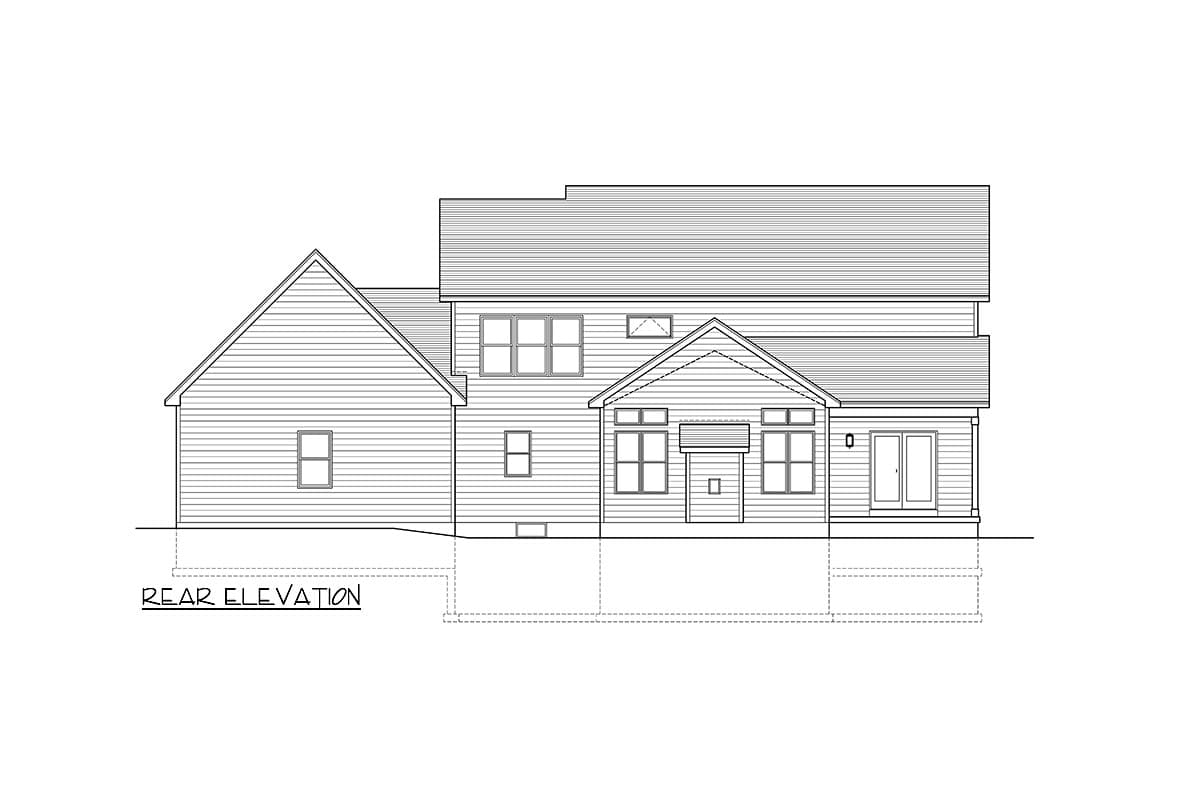

  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Craftsman Home Plan with Main Level Guest Suite - 3094 Sq Ft

  • 3,094

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

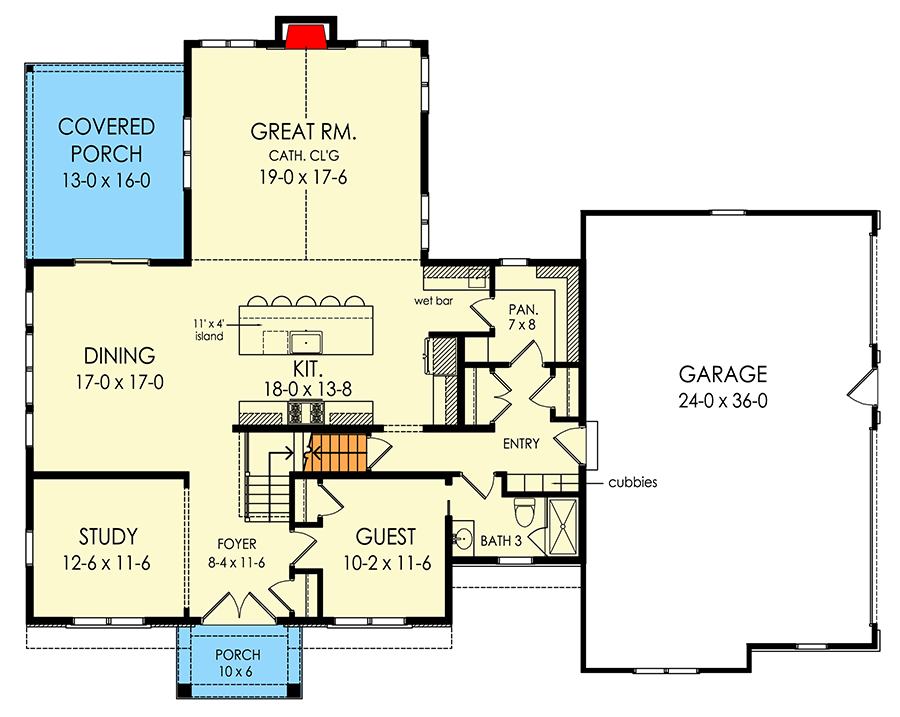

  • Main Level

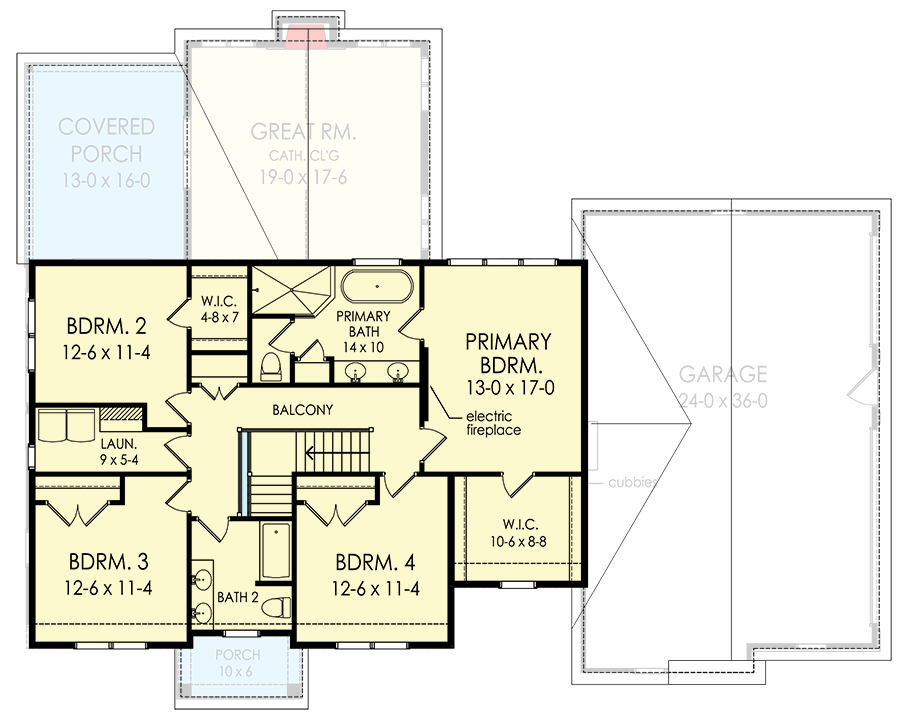

  • 2nd Floor
