2-Story Duplex House Plan with Side-By-Side 1400 Square Foot 3 Bed Units

Plan 42439DB

  • 2,836

    Heated s.f.

  • 2

    Units

  • 52' 0"

    Width

  • 47' 8"

    Depth

  • This 2-story duplex house plan gives you side-by-side 3-bed, 2.5 bath units, each with 1,418 square feet of heated living (654 sq. ft. on the main floor, 764 sq. ft. on the second floor) and a 2-car 434 square foot garage.
  • All three bedrooms and the two full baths are upstairs.
  • An open concept living area combines the family room with fireplace, kitchen and breakfast room into a unified space.

This house plan set has the following details:

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

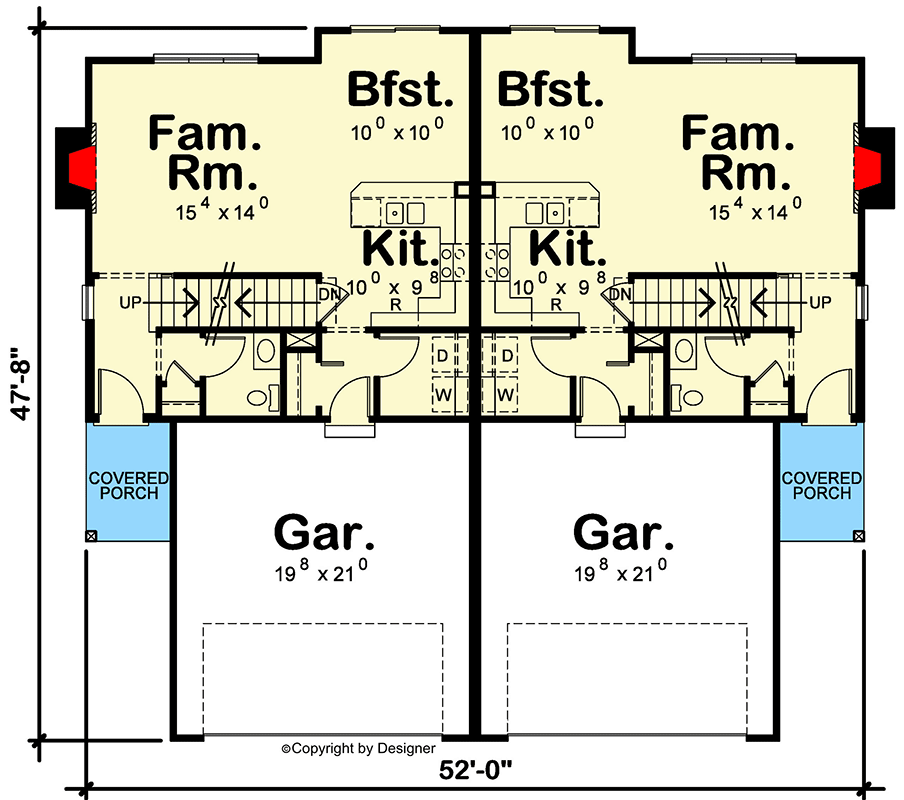

2-Story Duplex House Plan with Side-By-Side 1400 Square Foot 3 Bed Units - 42439DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

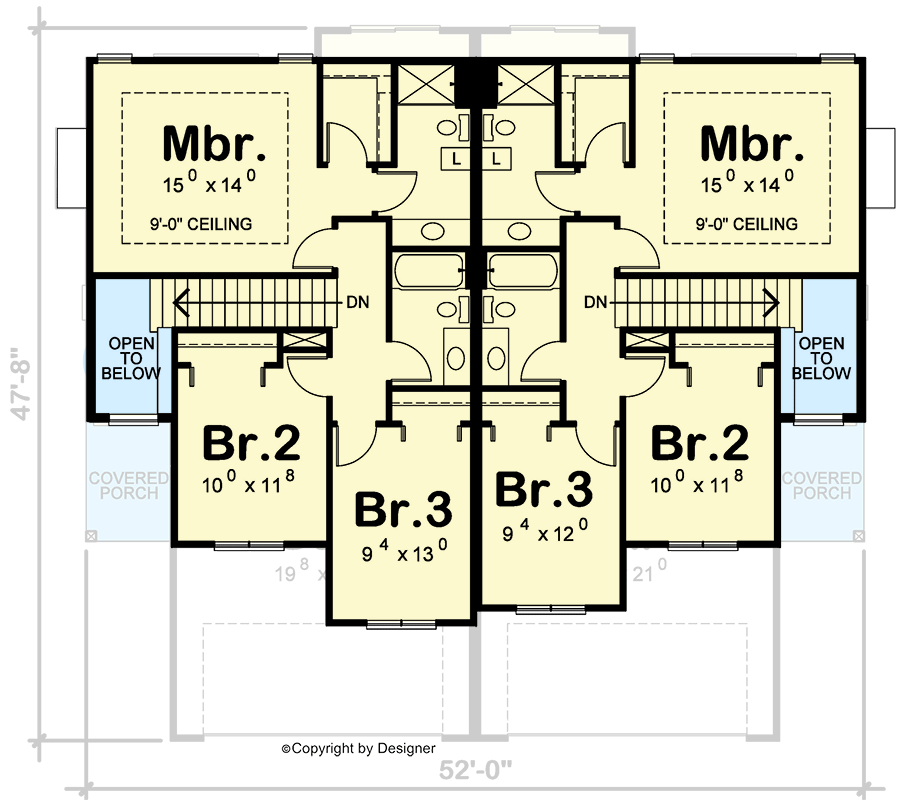

2-Story Duplex House Plan with Side-By-Side 1400 Square Foot 3 Bed Units - 42439DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,836 sq. ft.
  • 1st Floor: 1,308 sq. ft.
  • 2nd Floor: 1,528 sq. ft.
  • Porch, Front: 90 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 47' 8"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 434 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12

Architectural Style

Special features

2-Story Duplex House Plan with Side-By-Side 1400 Square Foot 3 Bed Units

  • 2,836

    Heated s.f.

  • 2

    Units

  • 52' 0"

    Width

  • 47' 8"

    Depth

Buy This Plan
  • Study Set - Digital $1,255
  • PDF - Single-Build $1,980
  • PDF - Unlimited Build $2,480
  • CAD + PDF - Single-Build $2,995
  • CAD - Unlimited Build $3,495
  • View all purchase option online

About This Plan

  • This 2-story duplex house plan gives you side-by-side 3-bed, 2.5 bath units, each with 1,418 square feet of heated living (654 sq. ft. on the main floor, 764 sq. ft. on the second floor) and a 2-car 434 square foot garage.
  • All three bedrooms and the two full baths are upstairs.
  • An open concept living area combines the family room with fireplace, kitchen and breakfast room into a unified space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,836 sq. ft.
  • 1st Floor: 1,308 sq. ft.
  • 2nd Floor: 1,528 sq. ft.
  • Porch, Front: 90 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 47' 8"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 434 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
Plan 42439DB
