2-Story House Plan Over 4700 Square Feet with Home Office and Main-Level Master Bedroom

Plan 911023JVD

  • 4,728

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This 2-story house plan is filled with functional and thoughtful details for easy living, including a main-level master bedroom, large service areas, and an open living space to bring the family together.
  • The great room is crowned by a vaulted ceiling and features a fireplace and views onto the rear porch. The open kitchen is home to a large island with a hidden walk-in pantry for maximum storage space.
  • The master bedroom consumes the right side of the main level and boasts an ensuite with a large walk-in closet. A home office completes the main level.
  • Upstairs, four bedrooms share two Jack-and-Jill bathrooms and a second laundry room helps with efficiency.
  • The 4-car garage extends from the front of the house, creating a parking courtyard, and enters into a mudroom with a closet and built-in cubbies.

Each plan set includes the following:

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

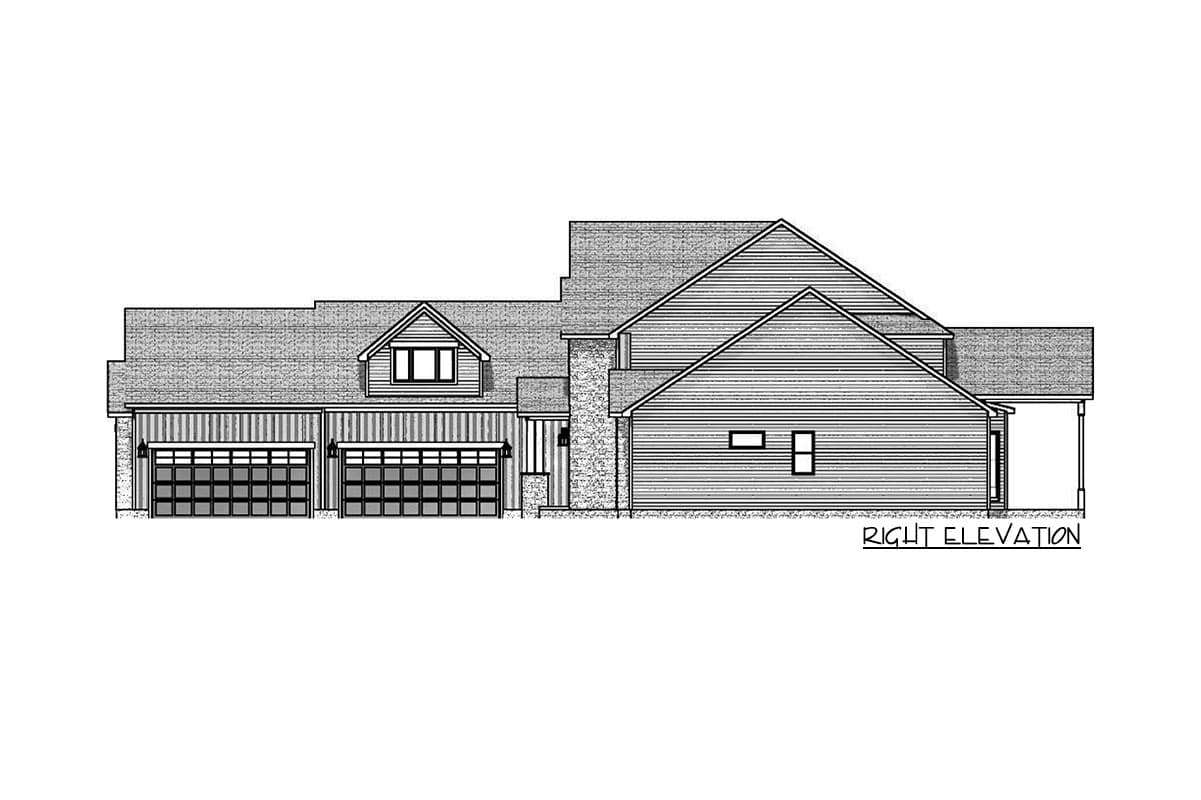

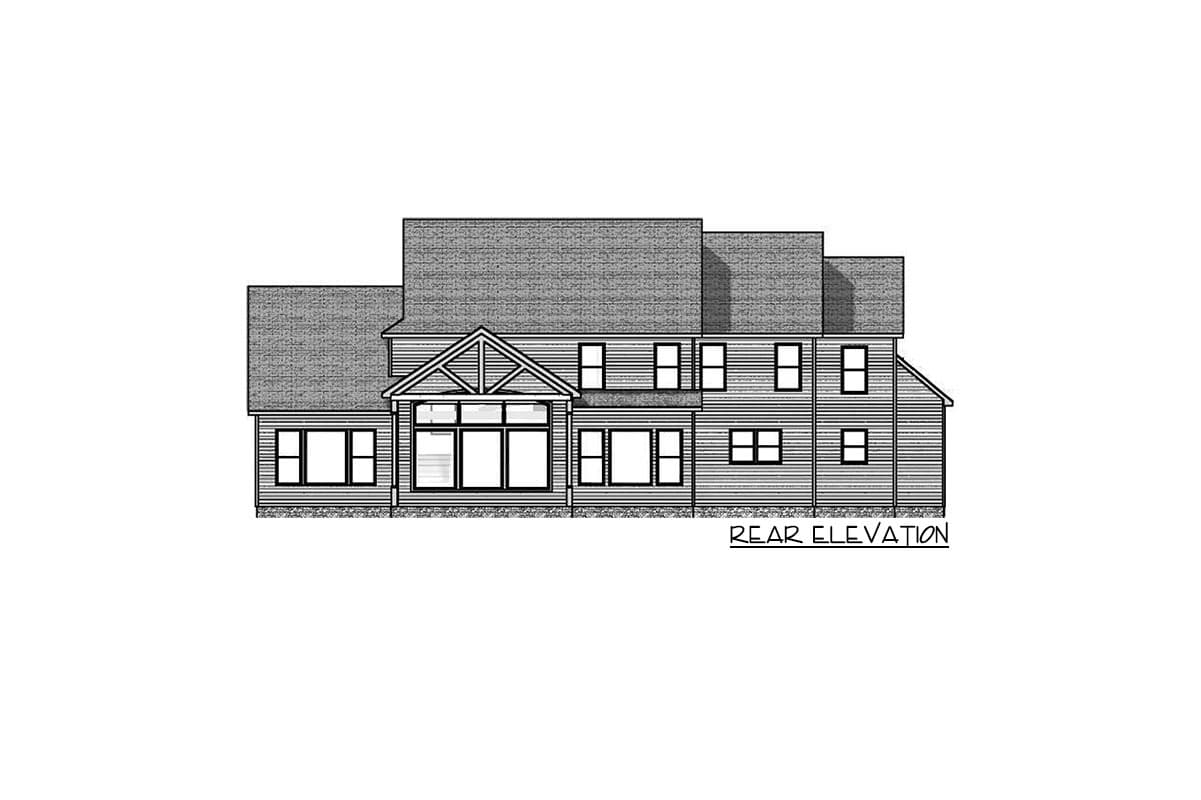

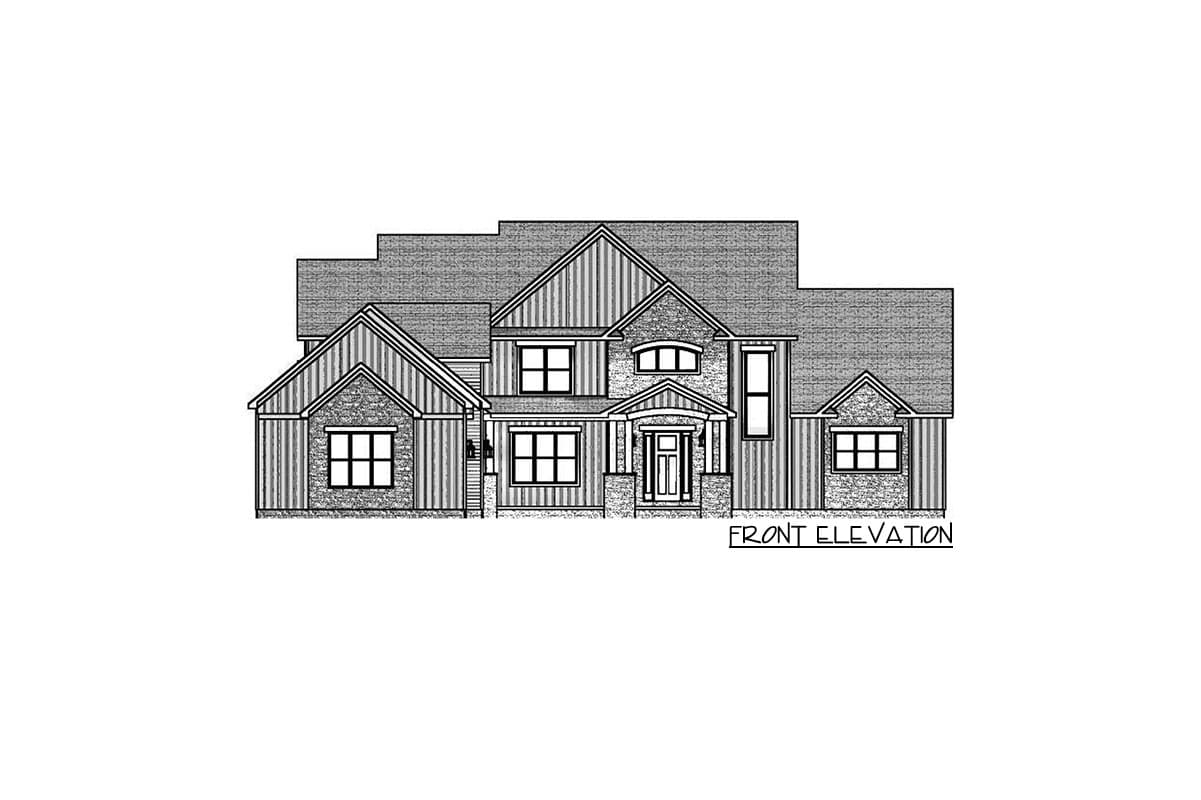

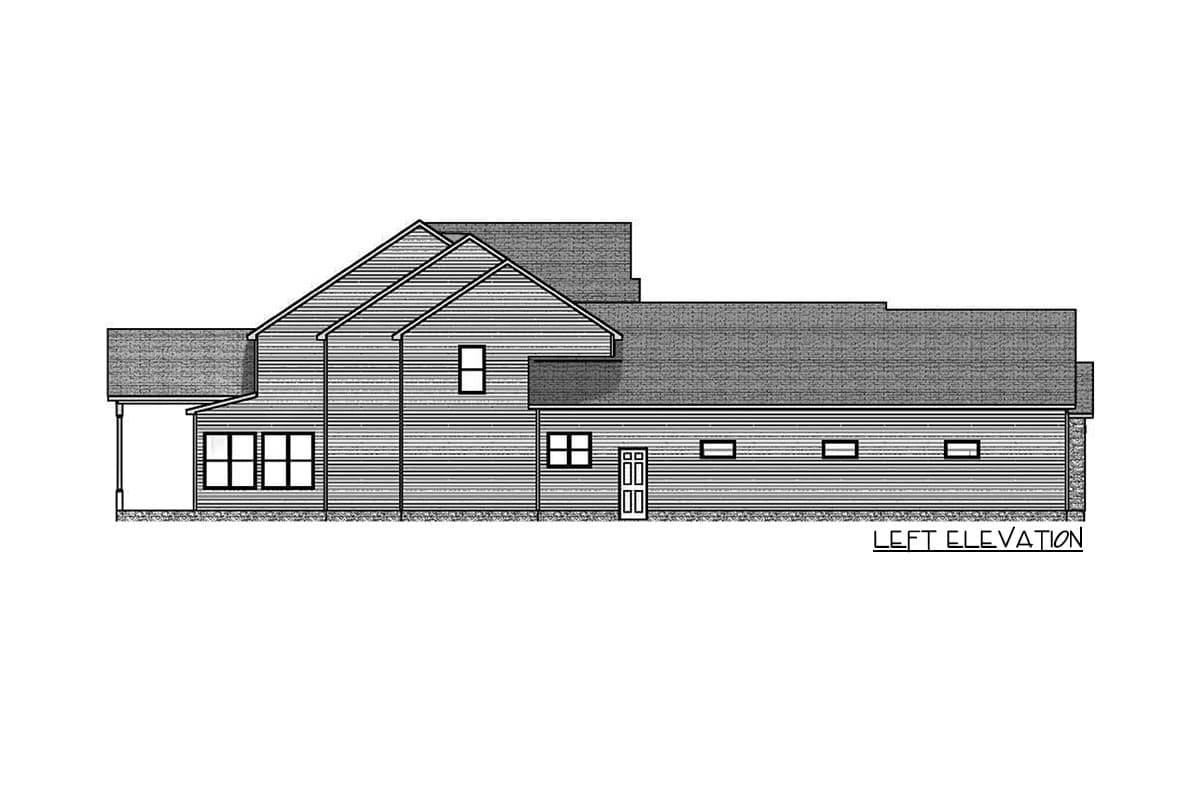

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

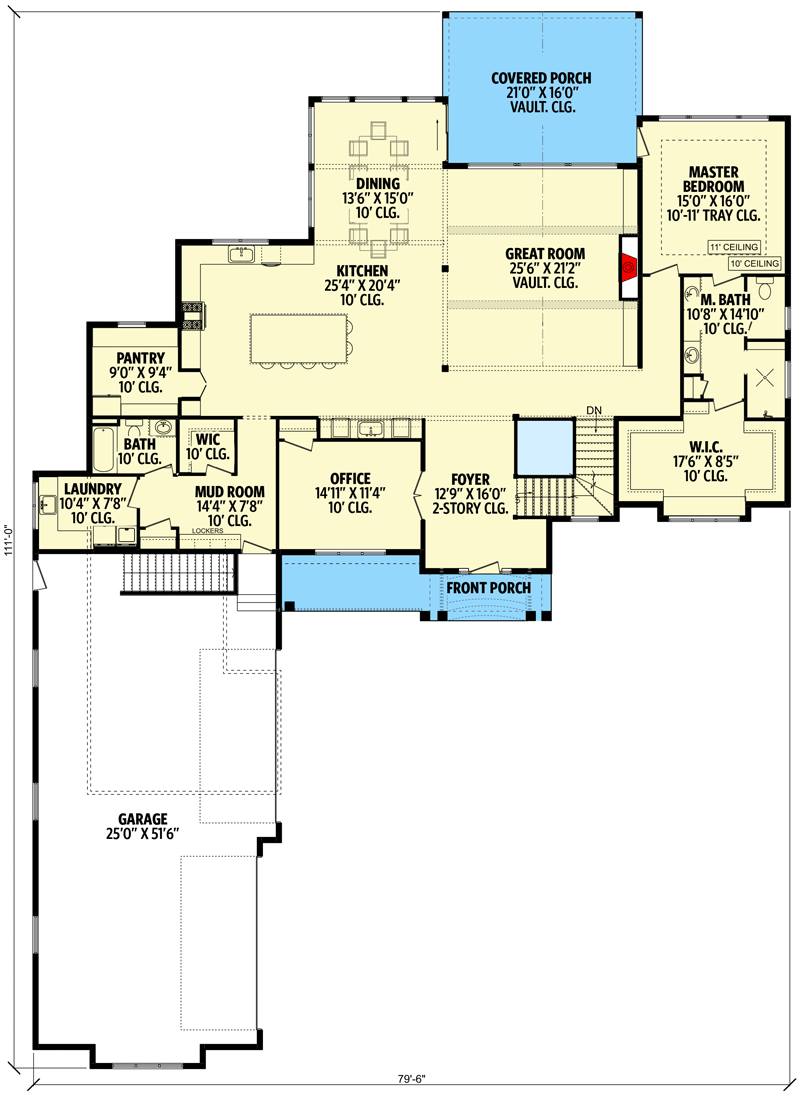

2-Story House Plan Over 4700 Square Feet with Home Office and Main-Level Master Bedroom - 911023JVD floor plan - Main Level

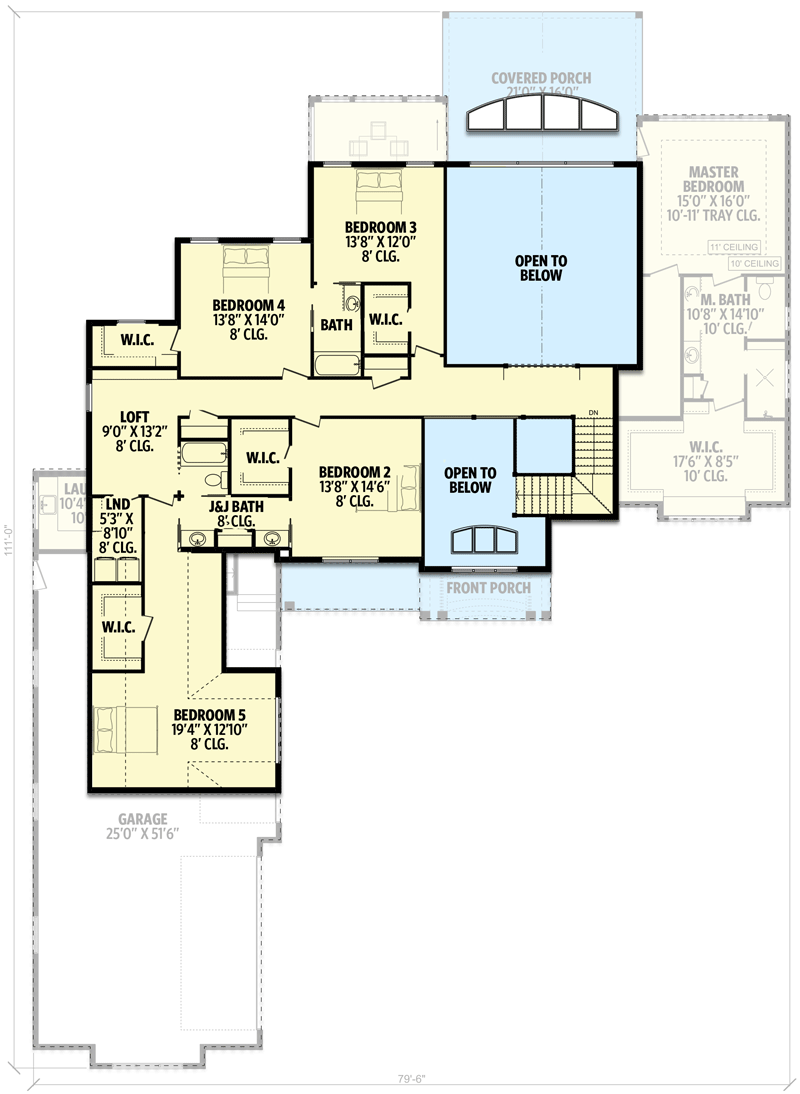

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story House Plan Over 4700 Square Feet with Home Office and Main-Level Master Bedroom - 911023JVD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,728 sq. ft.
  • 1st Floor: 2,917 sq. ft.
  • 2nd Floor: 1,811 sq. ft.
  • Porch, Rear: 330 sq. ft.
  • Porch, Front: 152 sq. ft.
  • Basement Unfinished: 2,917 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 6"
  • Depth: 111' 0"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 1333 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 On 12; 6 On 12; 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

2-Story House Plan Over 4700 Square Feet with Home Office and Main-Level Master Bedroom

  • 4,728

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets + PDF $1,845
  • PDF - Unlimited Build $2,095
  • CAD - Unlimited Build $2,395
  • View all purchase option online

About This Plan

  • This 2-story house plan is filled with functional and thoughtful details for easy living, including a main-level master bedroom, large service areas, and an open living space to bring the family together.
  • The great room is crowned by a vaulted ceiling and features a fireplace and views onto the rear porch. The open kitchen is home to a large island with a hidden walk-in pantry for maximum storage space.
  • The master bedroom consumes the right side of the main level and boasts an ensuite with a large walk-in closet. A home office completes the main level.
  • Upstairs, four bedrooms share two Jack-and-Jill bathrooms and a second laundry room helps with efficiency.
  • The 4-car garage extends from the front of the house, creating a parking courtyard, and enters into a mudroom with a closet and built-in cubbies.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,728 sq. ft.
  • 1st Floor: 2,917 sq. ft.
  • 2nd Floor: 1,811 sq. ft.
  • Porch, Rear: 330 sq. ft.
  • Porch, Front: 152 sq. ft.
  • Basement Unfinished: 2,917 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 6"
  • Depth: 111' 0"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 1333 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 On 12; 6 On 12; 3 on 12
  • Framing Type: Truss
