Plan 666145RAF

2-Story Modern Northwest Home Plan with Angled Garage

Heated S.F.
7,061
Beds
4 - 5
Baths
5.5+
Stories
2
Cars
4

Floor Plan

Plan 666145RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666145RAF

M-F 9am-5pm EST |

1-203-761-8500

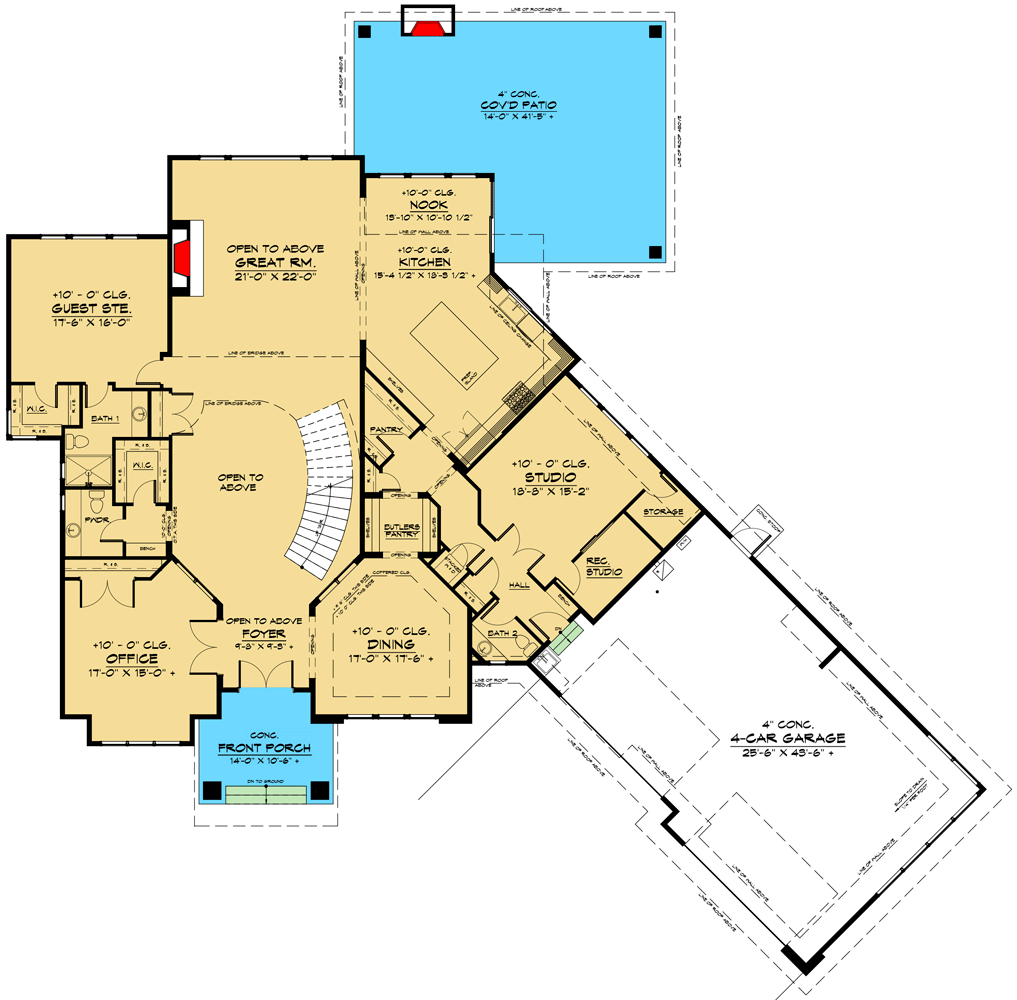

Main Level

Plan 666145RAF: 2-Story Modern Northwest Home Plan with Angled Garage - Floor Plan - Main Level - Modern, Northwest

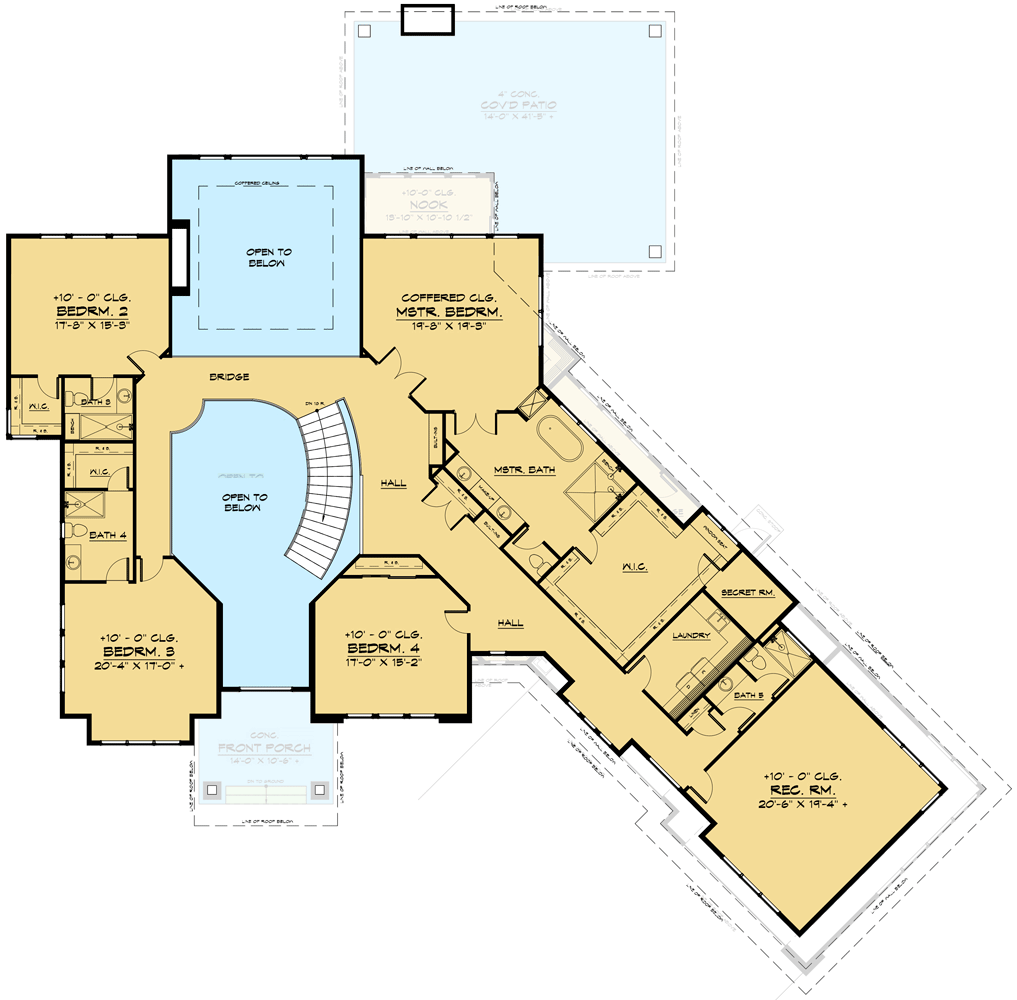

2nd Floor

Plan 666145RAF: 2-Story Modern Northwest Home Plan with Angled Garage - Floor Plan - 2nd Floor - Modern, Northwest

Plan Details

  • With over 7,000 square feet of living space, this 2-story Modern Northwest home plan offers something for everyone: gourmet kitchen, recording studio, 4-car garage, and a rec room.
  • The grand foyer boasts a two-story ceiling and a curved staircase to the second level. A home office and formal dining room flank the entryway, and a butler's pantry offers a shortcut from the dining room to the kitchen.
  • The sizable kitchen allows space for multiple cooks with its large island and ample counter space, and a rear covered patio off the breakfast nook encourages outdoor living.
  • A guest suite can be found on the main level, while the remaining bedrooms are located upstairs. A coffered ceiling crowns the master bedroom, paired with a deluxe ensuite with an enormous walk-in closet and secret room.
  • Down the hall, the laundry room neighbors a full bath and large recreation room.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

7,061 sq. ft.

1st Floor

3,608 sq. ft.

2nd Floor

3,453 sq. ft.

Porch, Front

155 sq. ft.

Covered Patio

782 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 8"

Depth

66' 0"

Max Ridge Height

30' 8"

Garage

Type

Attached

Area

1229 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Garage

11' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Angled Garage

Breakfast Nook

Formal Dining

Game/Rec Room

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Home Office

Luxury

Square Footage Breakdown

Total Heated Area

7,061 sq. ft.

1st Floor

3,608 sq. ft.

2nd Floor

3,453 sq. ft.

Porch, Front

155 sq. ft.

Covered Patio

782 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 8"

Depth

66' 0"

Max Ridge Height

30' 8"

Garage

Type

Attached

Area

1229 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Garage

11' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Angled Garage

Breakfast Nook

Formal Dining

Game/Rec Room

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Plan Collections

Home Office

Luxury
