2-Story Multi-Gabled 3-Bed House Plan

Plan 39289ST

  • 1,906

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Multiple gables and a brick-and-siding façade and covered porch decorate the exterior of this two-story home plan.
  • The great room enjoys a 12’ ceiling height, a gas fireplace and offers views to the front and rear yards.
  • The open kitchen and breakfast area are defined by an island with seating and the kitchen conveniently serves a dining room offering a quiet place for more formal entertaining.
  • A large pantry, walk-in closet, powder room and laundry room combine to form a mud room/service entry at the garage.
  • The second floor master suite showcases a 9’ ceiling height, and boasts a walk-in closet and bath with shower, double bowl vanity and private commode room. Two additional bedrooms with large closets complete this lovely home.

  • General notes and specifications

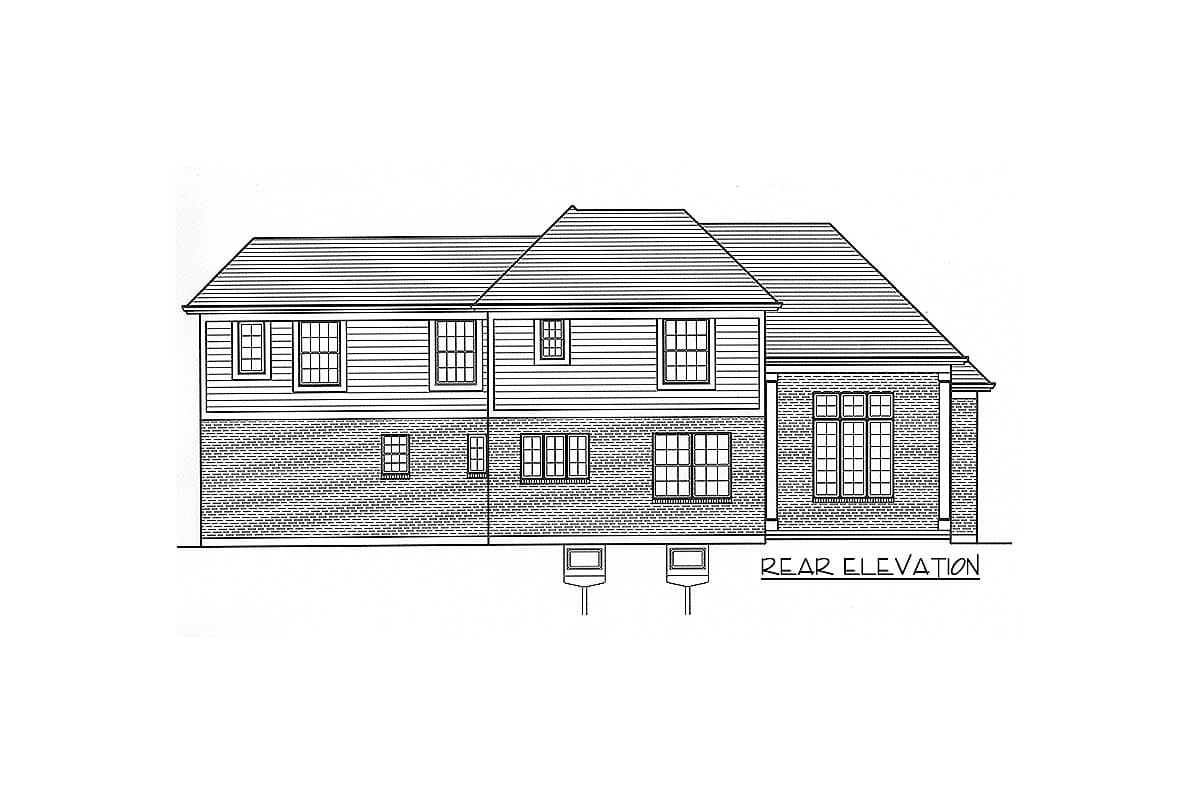

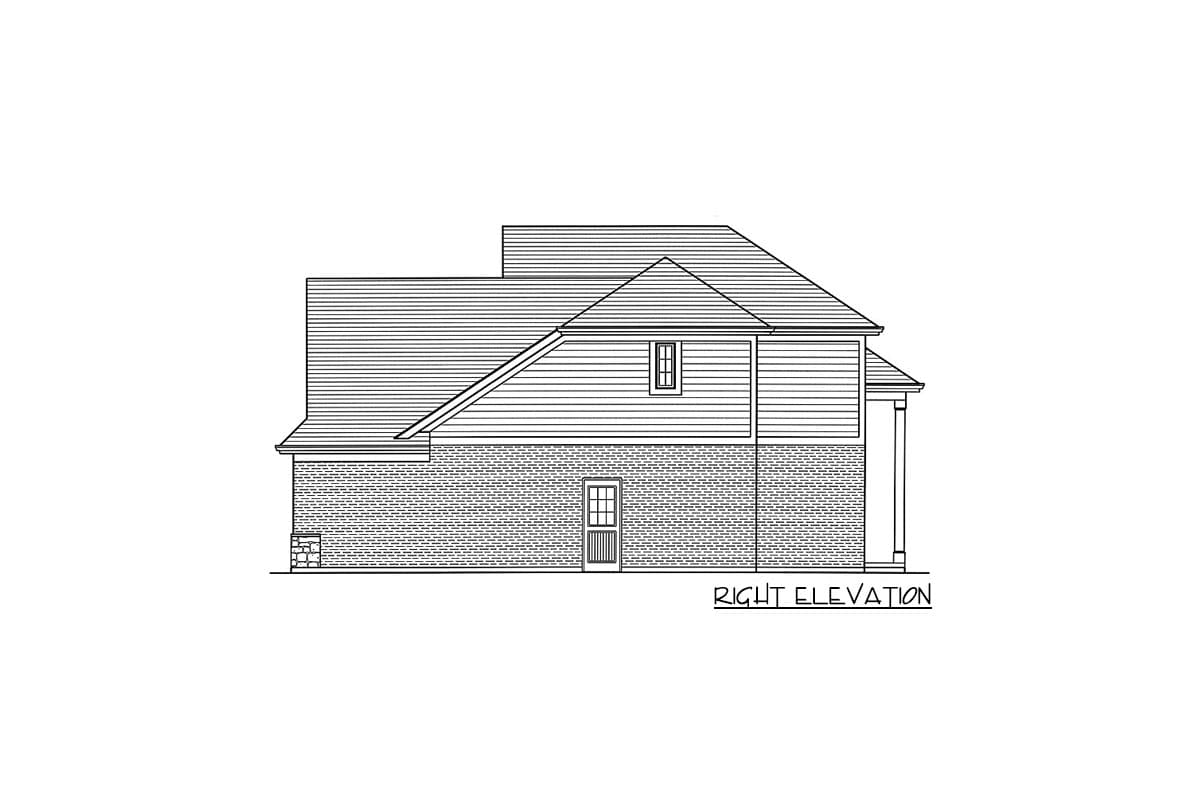

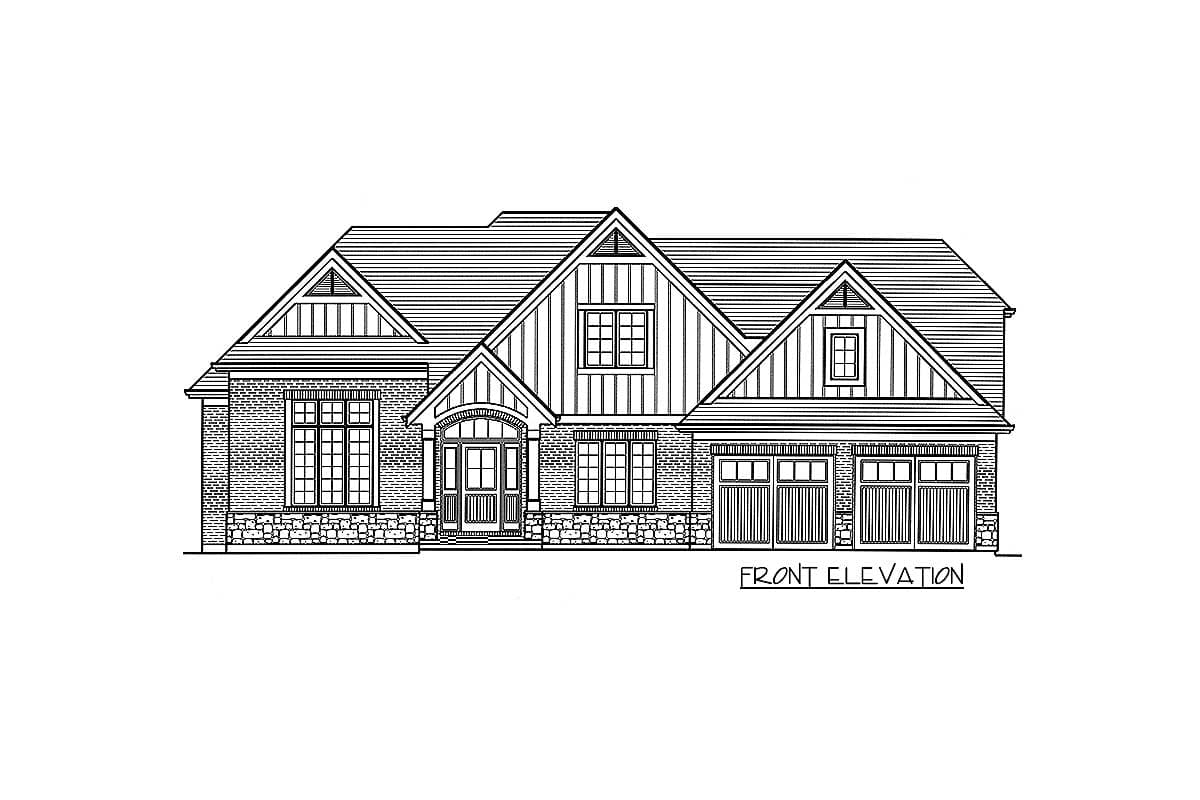

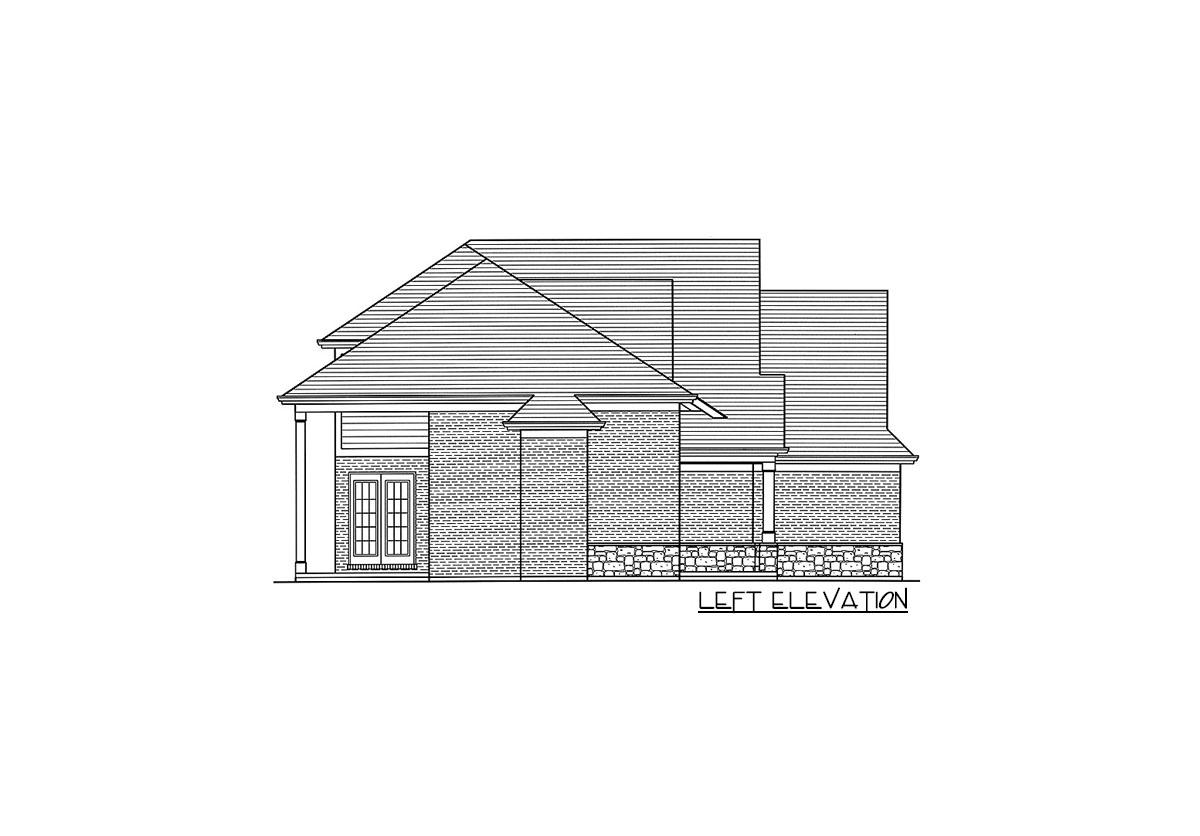

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

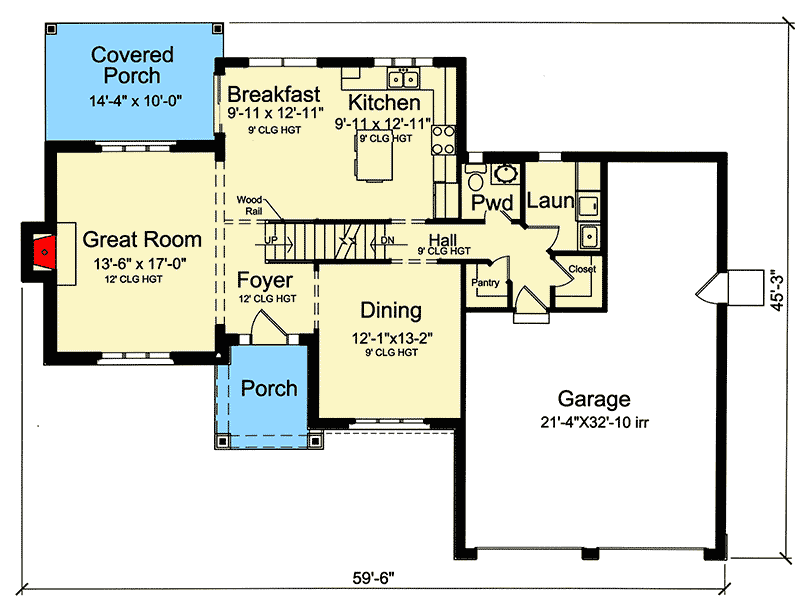

2-Story Multi-Gabled 3-Bed House Plan - 39289ST floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

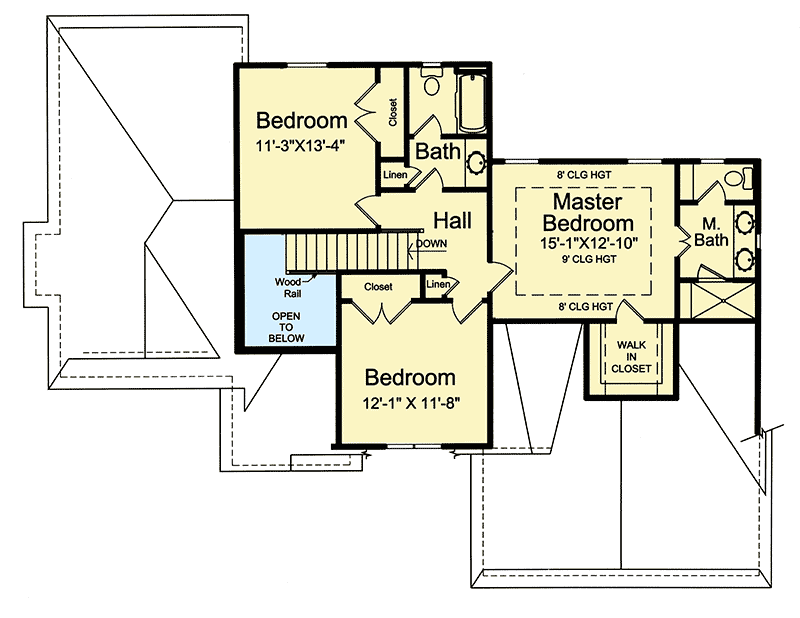

2-Story Multi-Gabled 3-Bed House Plan - 39289ST floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

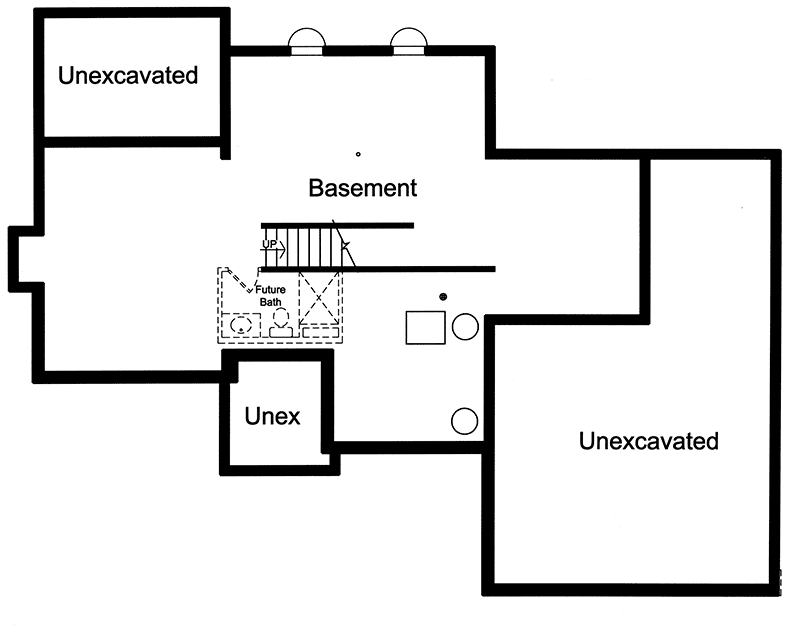

2-Story Multi-Gabled 3-Bed House Plan - 39289ST floor plan - Lower Level

2-Story Multi-Gabled 3-Bed House Plan

  • 1,906

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,906 sq. ft.
  • 1st Floor: 1,038 sq. ft.
  • 2nd Floor: 868 sq. ft.

Dimensions

  • Width: 59' 8"
  • Depth: 45' 5"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 546 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
