Plan 490022NAH 2-Story New American Home Plan with Vaulted Master and Bedroom-with-Loft Upstairs

2,901 4-6 3.5 - 5.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Story New American Home Plan with Vaulted Master and Bedroom-with-Loft Upstairs

Plan 490022NAH

  • 2,901

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

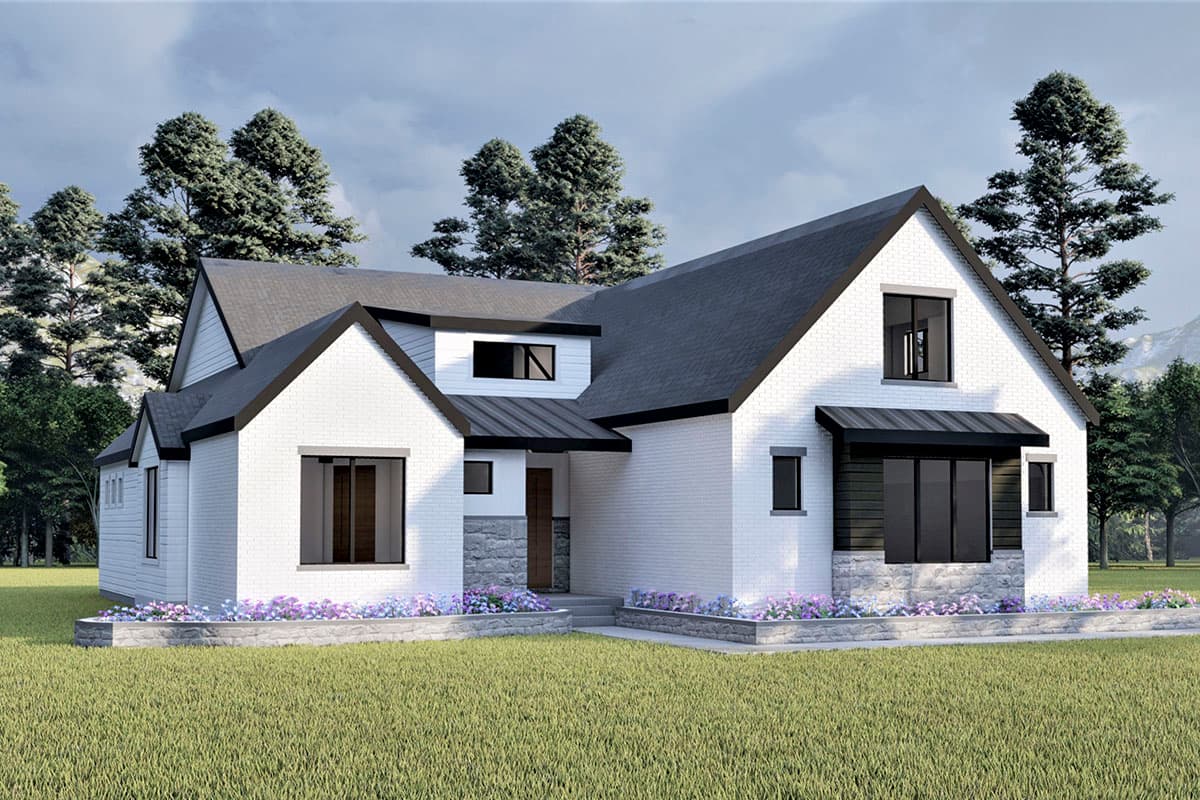

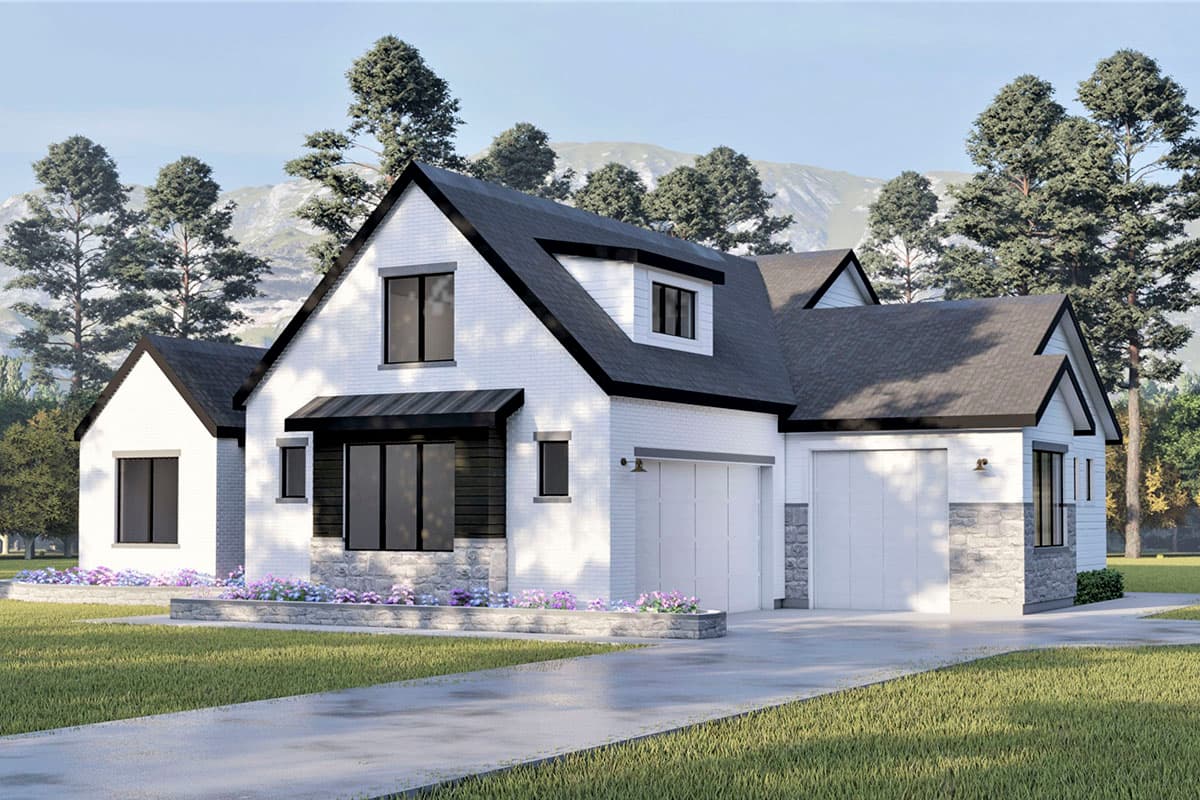

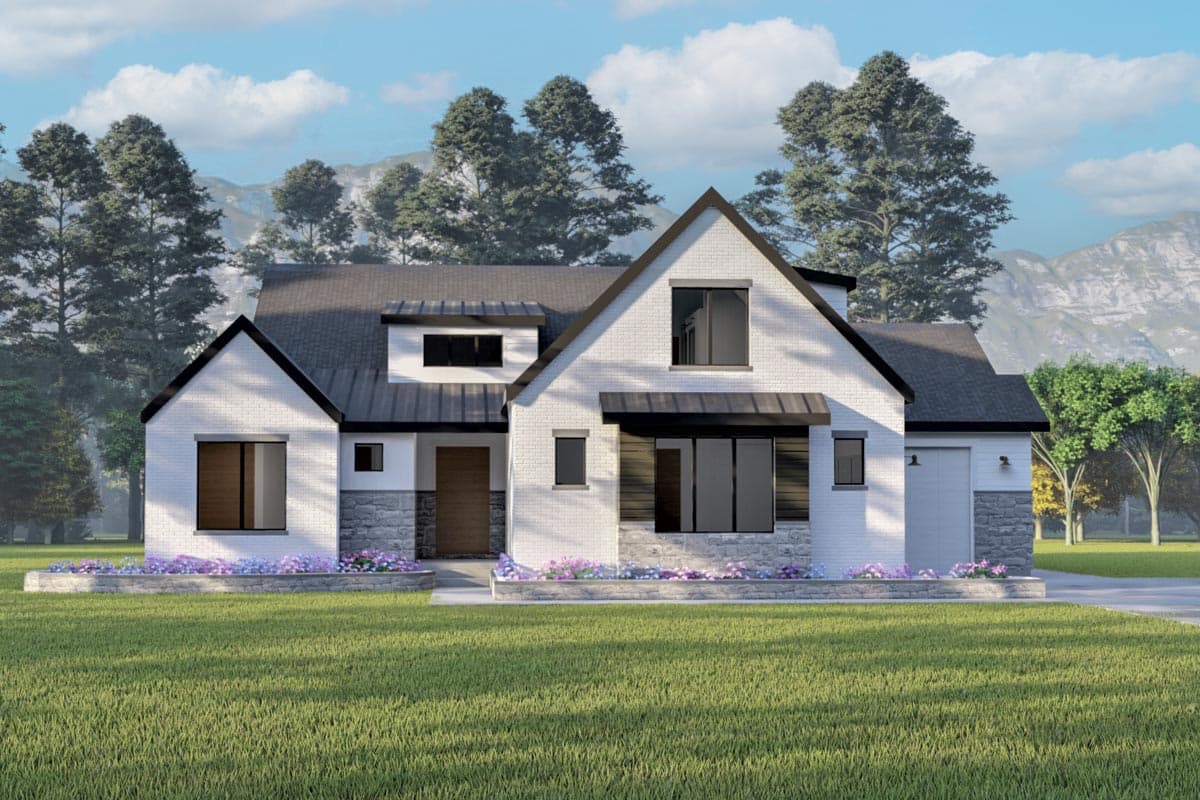

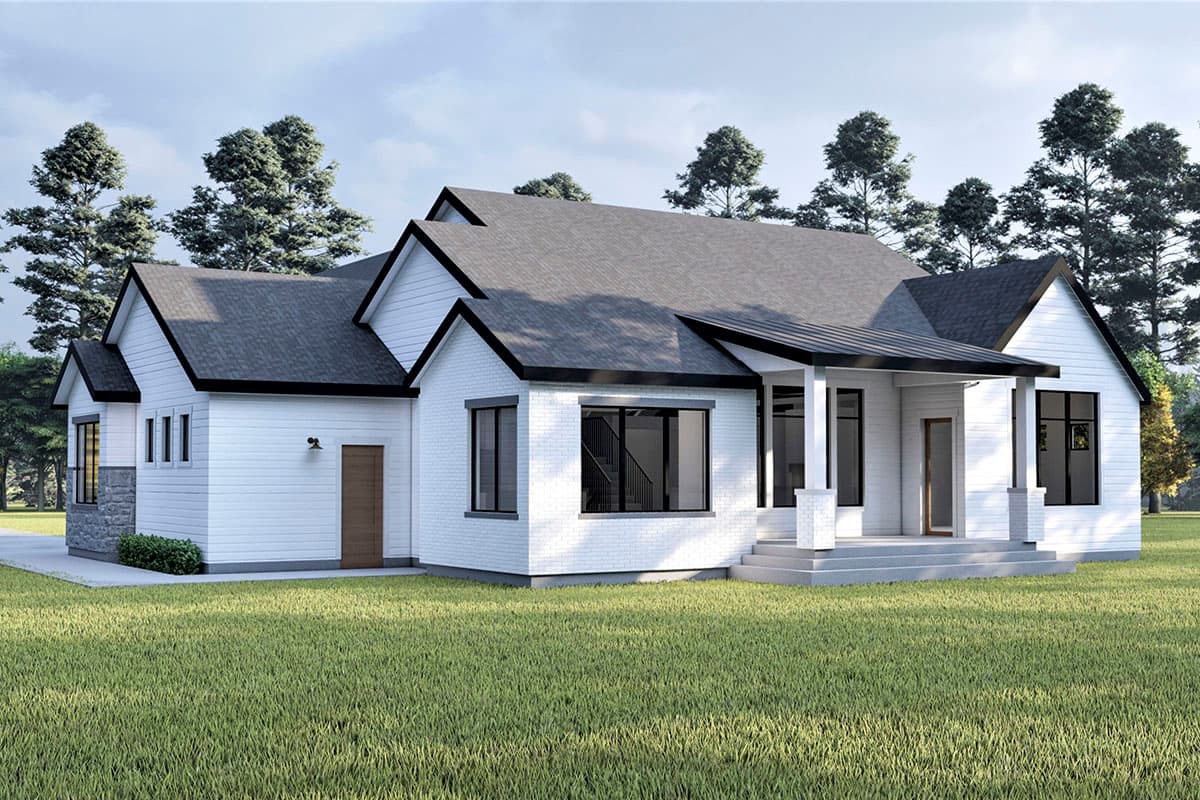

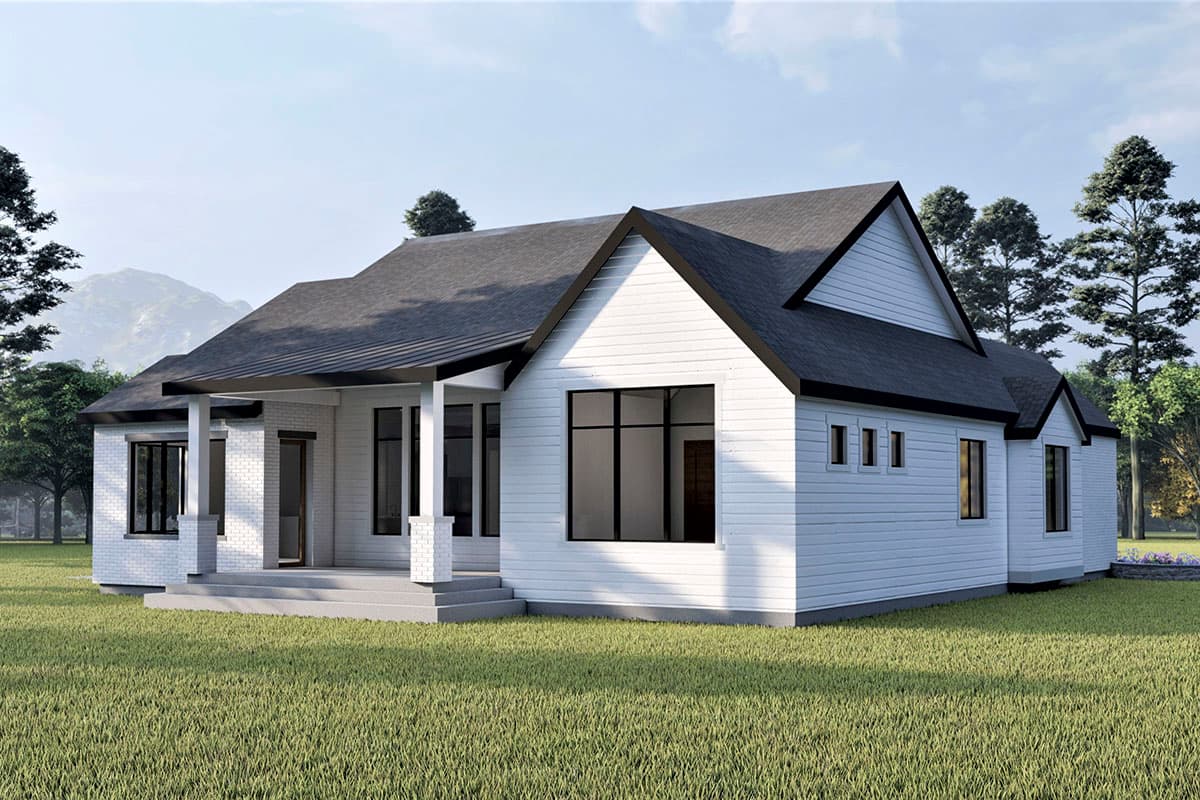

  • This 2-story, new American-style house plan offers a covered porch in the front and a covered patio in the rear, with metal roofs that add to the winning curb appeal. The exterior has a mix of wood siding, brick, and stone wainscots with wood and concrete trim around the doors and windows.

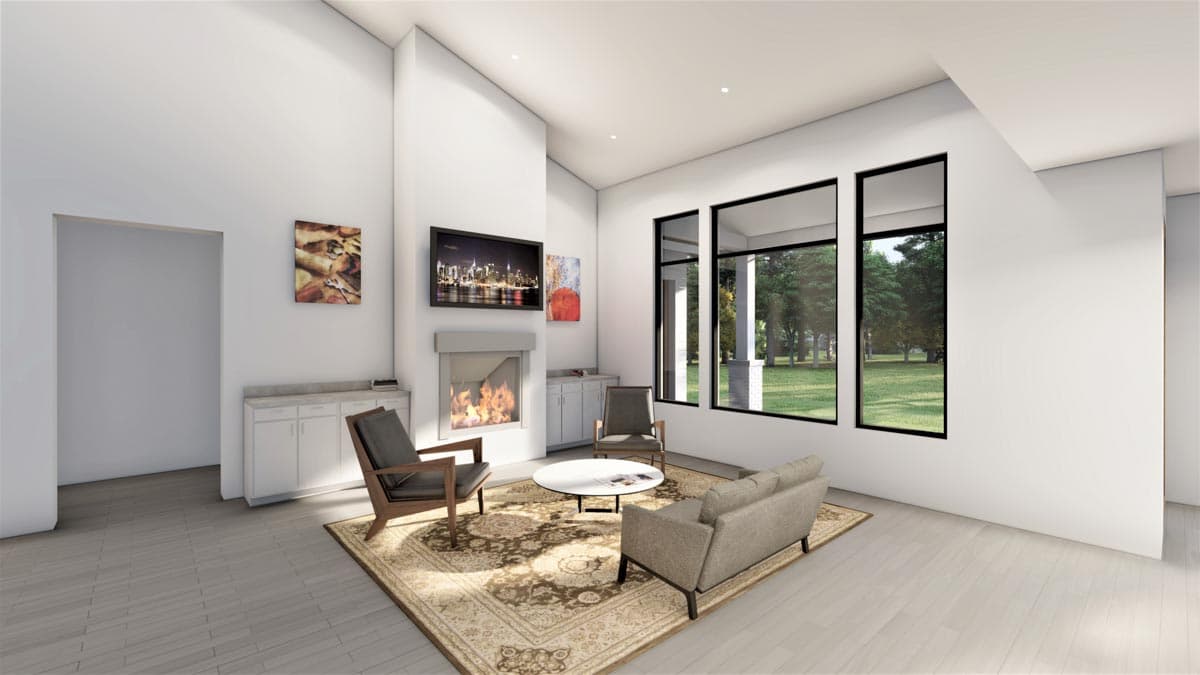

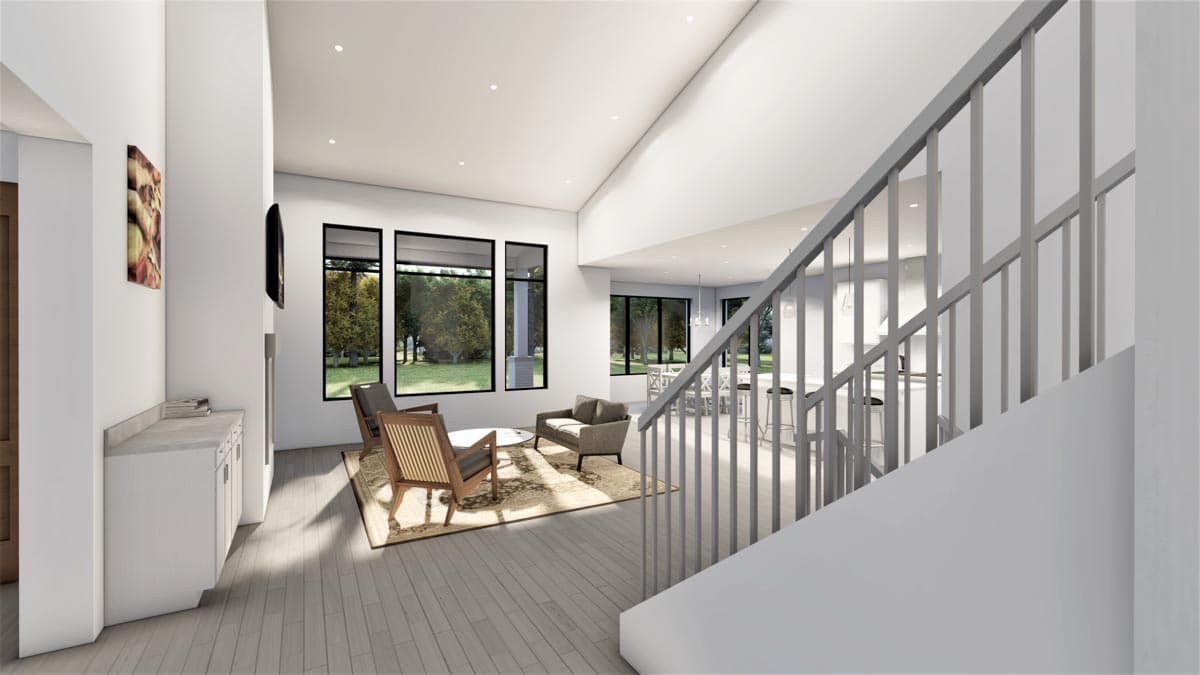

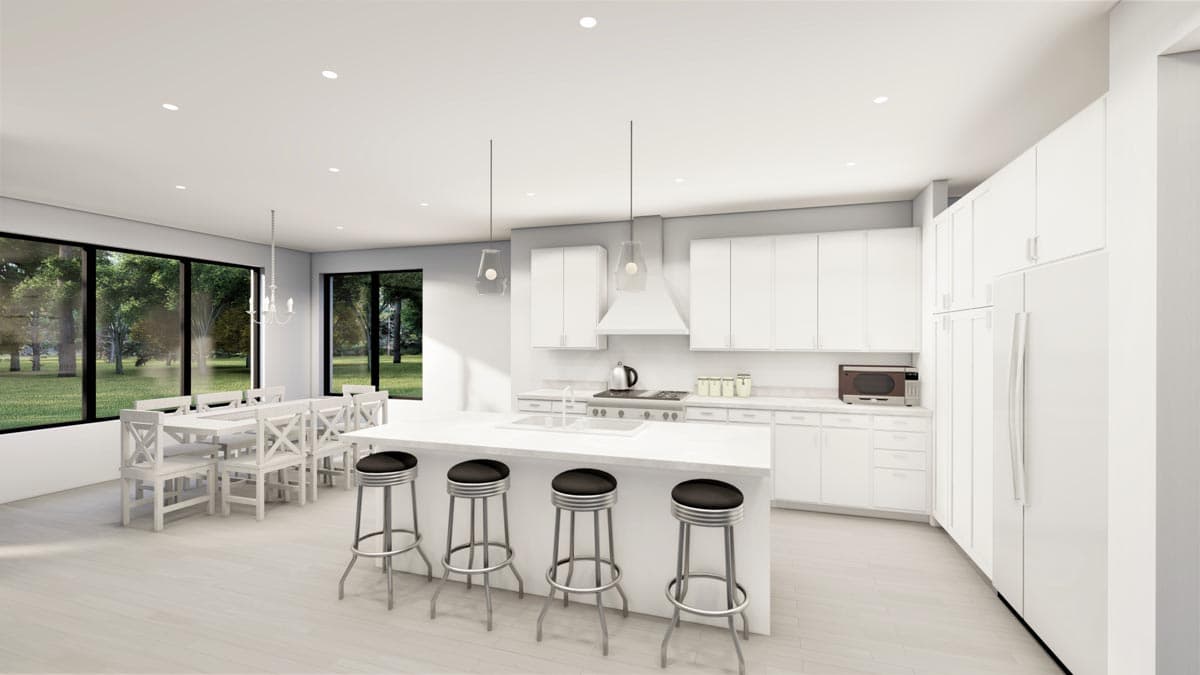

  • Step in off the covered porch and you find yourself in the great room with it's vaulted ceiling, fireplace, and series of windows looking out to the backyard. An open concept design, the kitchen and dining rooms each have views of the fireplace in the great room. The kitchen has a modest island, a walk-in pantry and convenient garage access making unloading groceries a breeze.

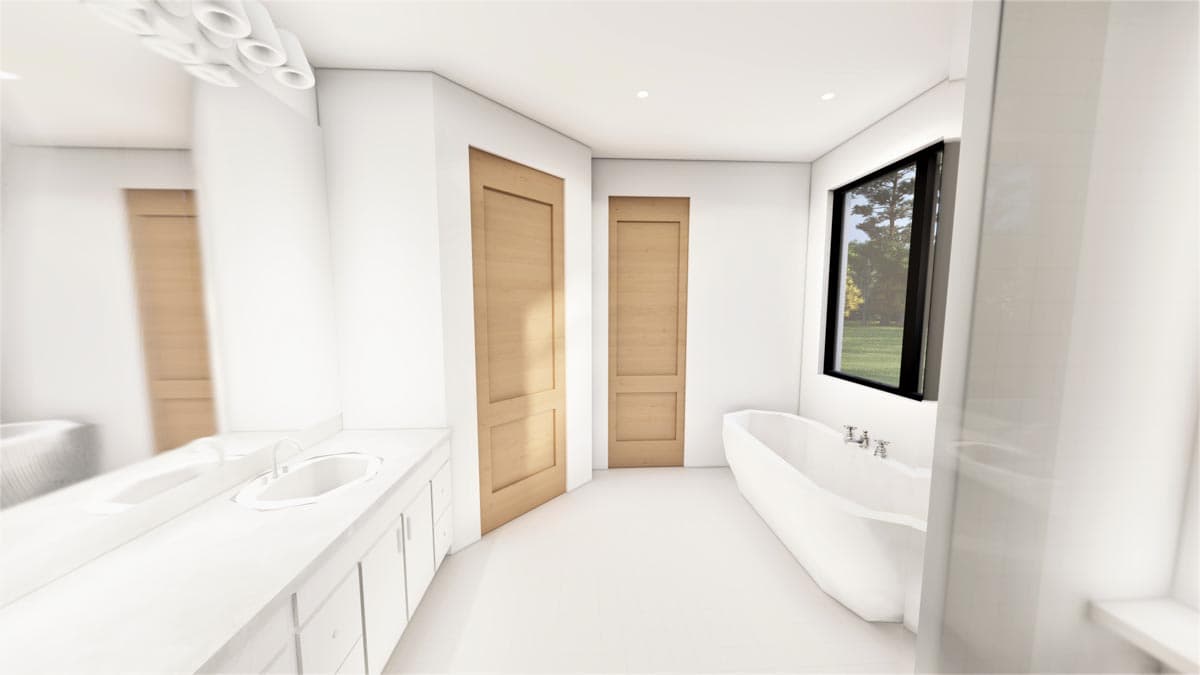

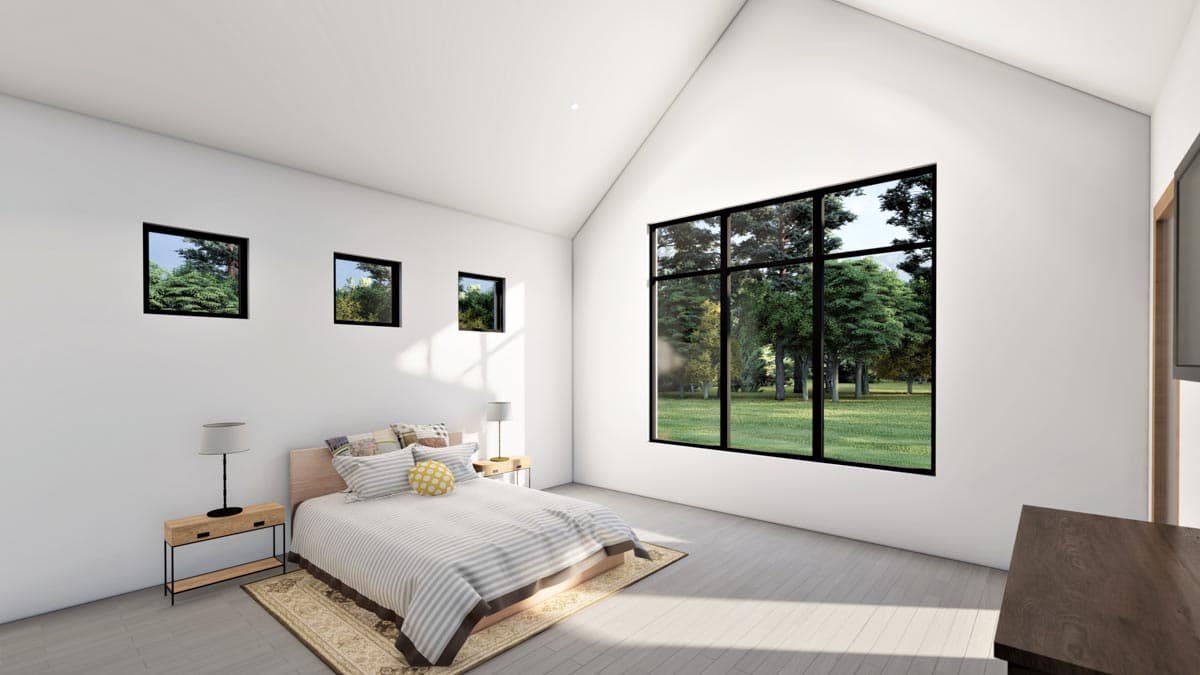

  • Off the entry you'll find two bedrooms with walk-in closets and a shared bathroom. Further in the home, you'll find the master bedroom with a vaulted ceiling and accompanying bathroom and walk-in closet, standing shower, double vanities, and full size tub.
  • Upstairs, you are greeted by a loft overlooking the great room. Another bedroom is upstairs, with a walk-in closet and bathroom across the loft.
  • This home offers basement expansion (1,987 square feet when finished as shown) with a kitchenette, game room, recreation room, two bedrooms, laundry, and storage areas.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

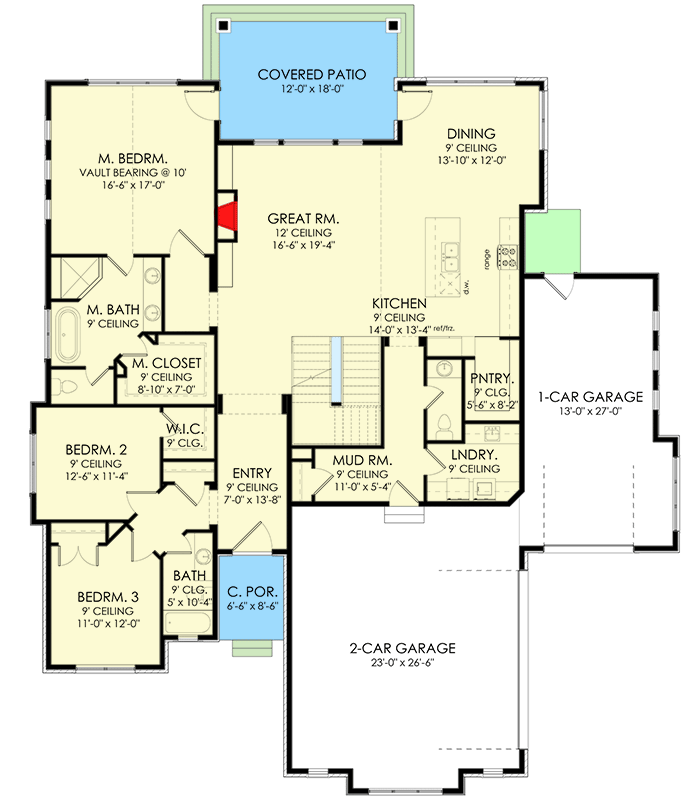

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story New American Home Plan with Vaulted Master and Bedroom-with-Loft Upstairs - 490022NAH floor plan - Main Level

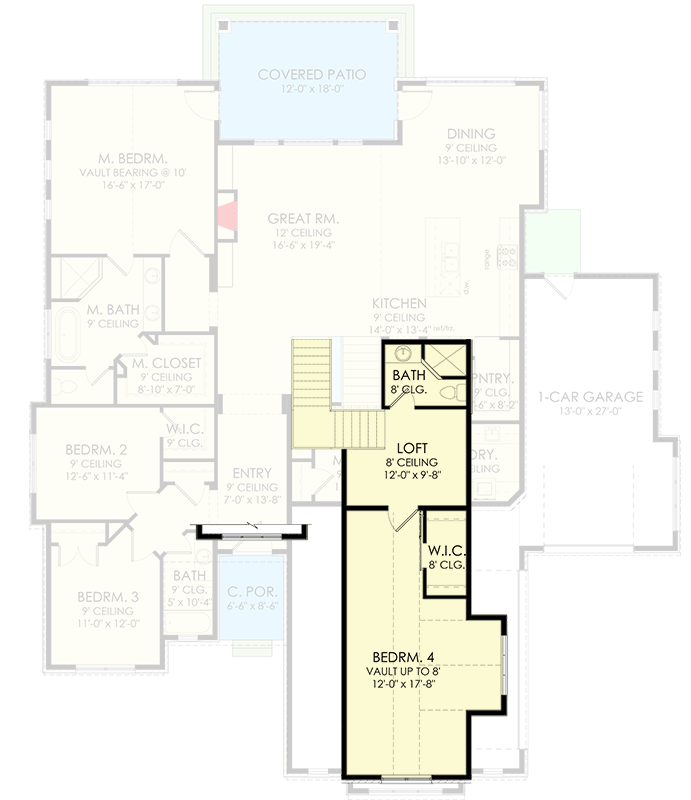

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story New American Home Plan with Vaulted Master and Bedroom-with-Loft Upstairs - 490022NAH floor plan - 2nd Floor

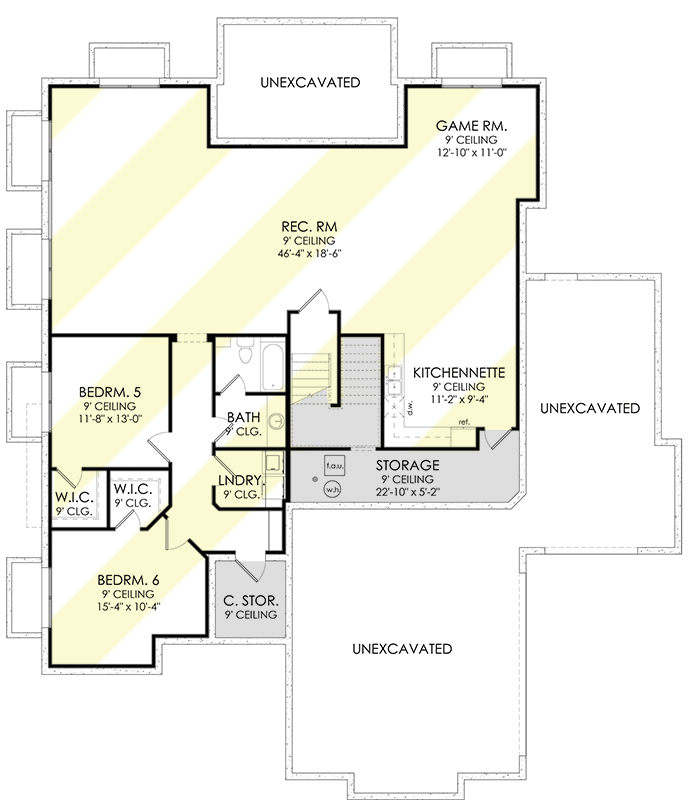

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story New American Home Plan with Vaulted Master and Bedroom-with-Loft Upstairs - 490022NAH floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,901 sq. ft.
  • 1st Floor: 2,320 sq. ft.
  • 2nd Floor: 581 sq. ft.
  • Covered Patio: 216 sq. ft.
  • Porch, Front: 58 sq. ft.
  • Optional Lower Level: 1,987 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 4"
  • Depth: 72' 4"

Garage

  • Type: Attached
  • Area: 1071 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

2-Story New American Home Plan with Vaulted Master and Bedroom-with-Loft Upstairs

  • 2,901

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • PDF - Unlimited Build $2,500
  • CAD Unlimited + PDF $2,800
  • View all purchase option online

About This Plan

  • This 2-story, new American-style house plan offers a covered porch in the front and a covered patio in the rear, with metal roofs that add to the winning curb appeal. The exterior has a mix of wood siding, brick, and stone wainscots with wood and concrete trim around the doors and windows.
  • Step in off the covered porch and you find yourself in the great room with it's vaulted ceiling, fireplace, and series of windows looking out to the backyard. An open concept design, the kitchen and dining rooms each have views of the fireplace in the great room. The kitchen has a modest island, a walk-in pantry and convenient garage access making unloading groceries a breeze.
  • Off the entry you'll find two bedrooms with walk-in closets and a shared bathroom. Further in the home, you'll find the master bedroom with a vaulted ceiling and accompanying bathroom and walk-in closet, standing shower, double vanities, and full size tub.
  • Upstairs, you are greeted by a loft overlooking the great room. Another bedroom is upstairs, with a walk-in closet and bathroom across the loft.
  • This home offers basement expansion (1,987 square feet when finished as shown) with a kitchenette, game room, recreation room, two bedrooms, laundry, and storage areas.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,901 sq. ft.
  • 1st Floor: 2,320 sq. ft.
  • 2nd Floor: 581 sq. ft.
  • Covered Patio: 216 sq. ft.
  • Porch, Front: 58 sq. ft.
  • Optional Lower Level: 1,987 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 4"
  • Depth: 72' 4"

Garage

  • Type: Attached
  • Area: 1071 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
