Plan 421537CHD
2-Story New American House Plan with 3 or 4 Beds
Heated S.F.
2,749
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • Step onto the welcoming 6.5-foot deep porch and enter a majestic 2-story grand foyer. To your left, discover the formal dining space, while on your right, a versatile flex room awaits, perfect for use as a bedroom or a study, complete with its own bathroom.
  • Continuing your journey, you'll be captivated by the great room, featuring a cozy fireplace and sliding doors that seamlessly open to the covered patio in the rear.
  • Connected to the great room, you'll find the well-appointed kitchen, boasting a large island, ample pantry space, and a convenient breakfast nook, ideal for family meals and gatherings.
  • To the right of this inviting space lies the luxurious master suite, complete with a master bath and a spacious walk-in closet.
  • At the front left of the home, a mudroom and laundry area provide practicality, with stairs leading to the second floor.
  • Beyond that, you'll discover a spacious 3-car garage, perfect for accommodating your vehicles and storage needs.

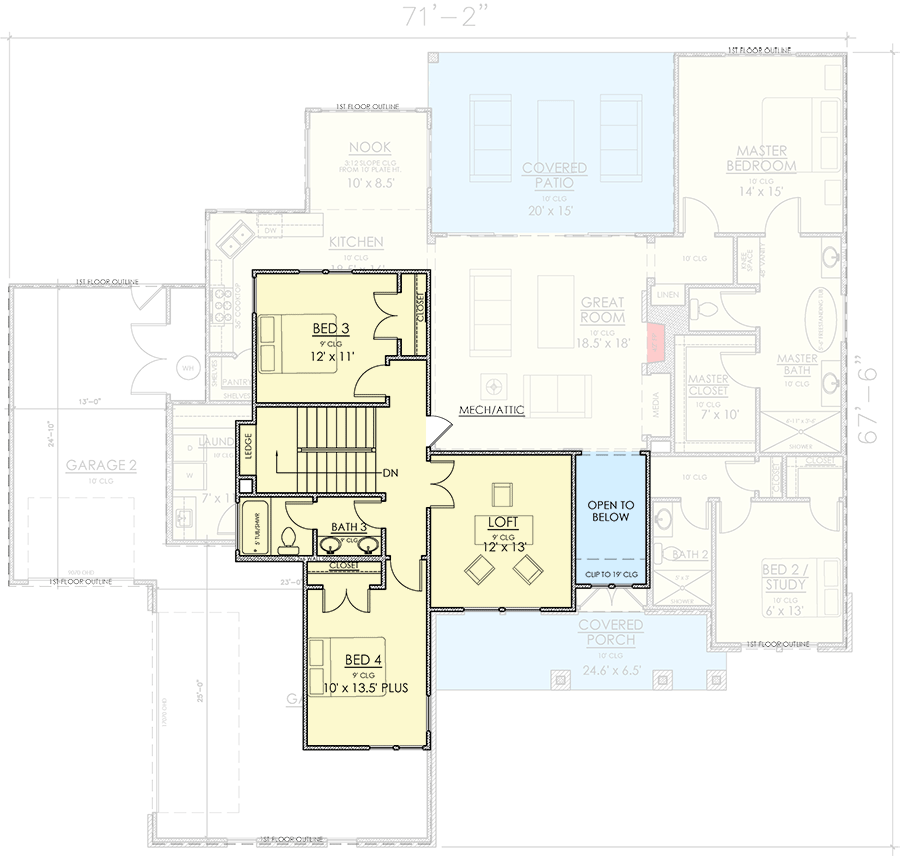

  • Upstairs, two more bedrooms await, accompanied by a versatile loft space.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story New American House Plan with 3 or 4 Beds

  • 2,749

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,749 sq. ft.
  • 1st Floor: 2,099 sq. ft.
  • 2nd Floor: 650 sq. ft.

Dimensions

  • Width: 71' 2"
  • Depth: 67' 6"
  • Max ridge height: 30' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 984 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
