Plan 59796ND
2 Story Quadplex with Matching 1286 Square Foot 2 Bed Units
Heated S.F.
5,144
Units
4
Width
97' 6"
Depth
29' 6"
What's Included
Plan Details
  • Four units come together to create this unique multi-unit house plan. Each units delivers 1,286 square feet of heated living (664 sq. ft. on the main floor and 622 sq. ft. on the second floor), 2 beds and 2.5 baths

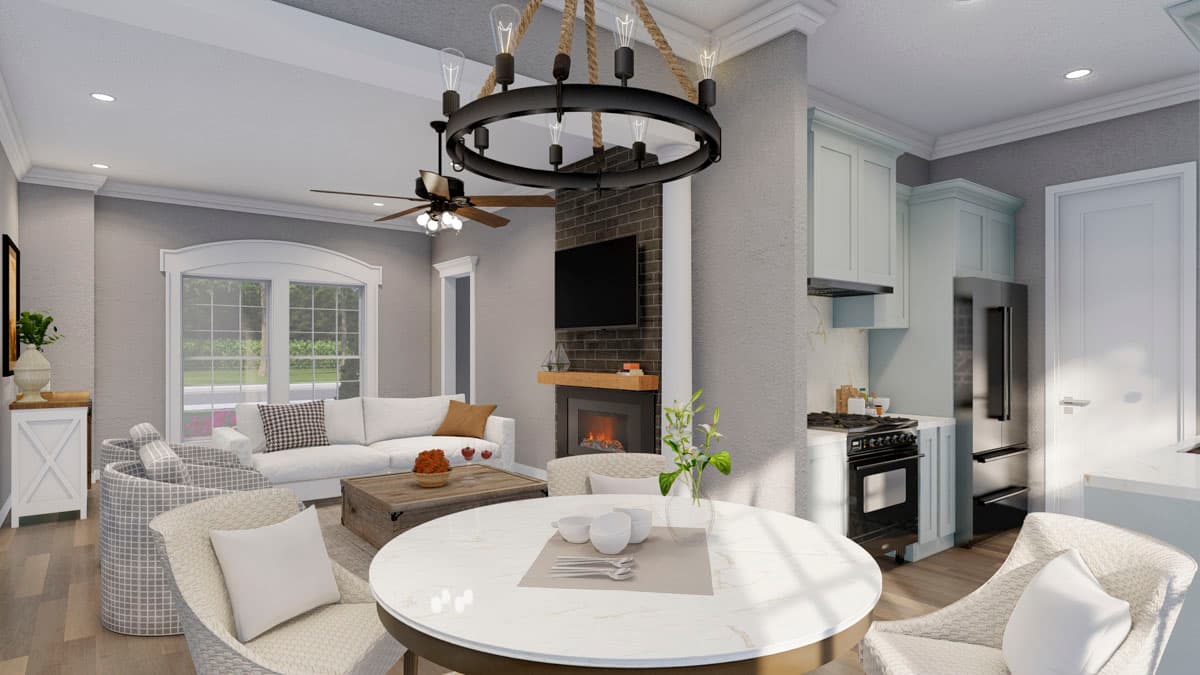

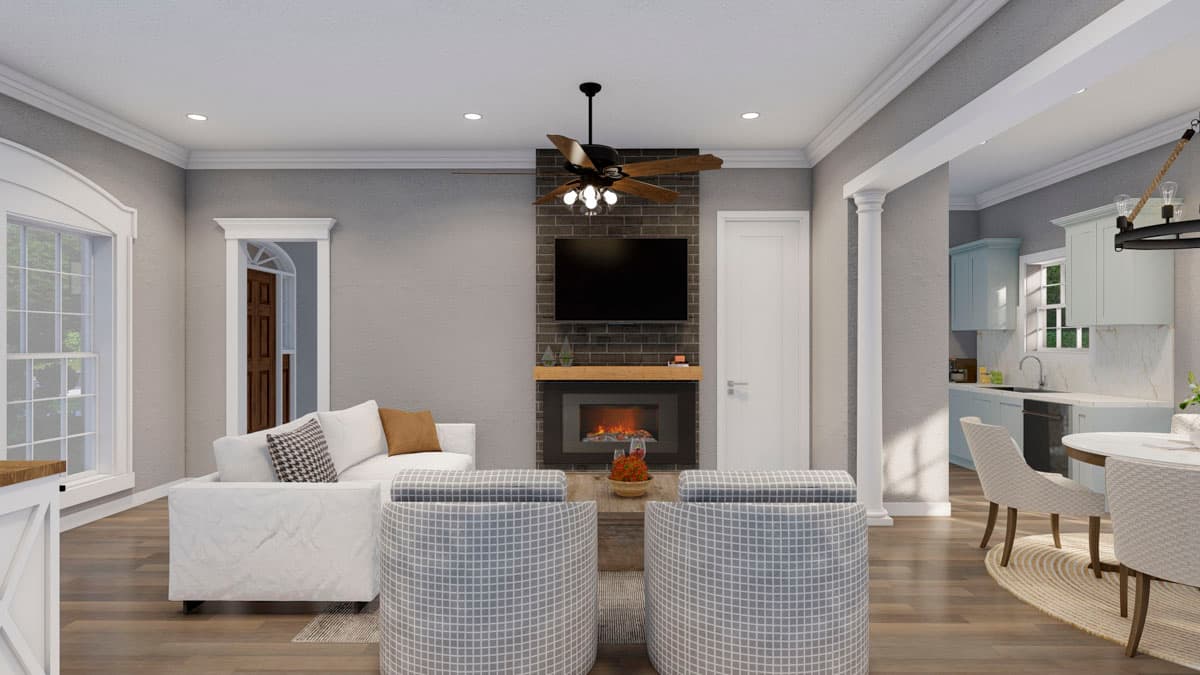

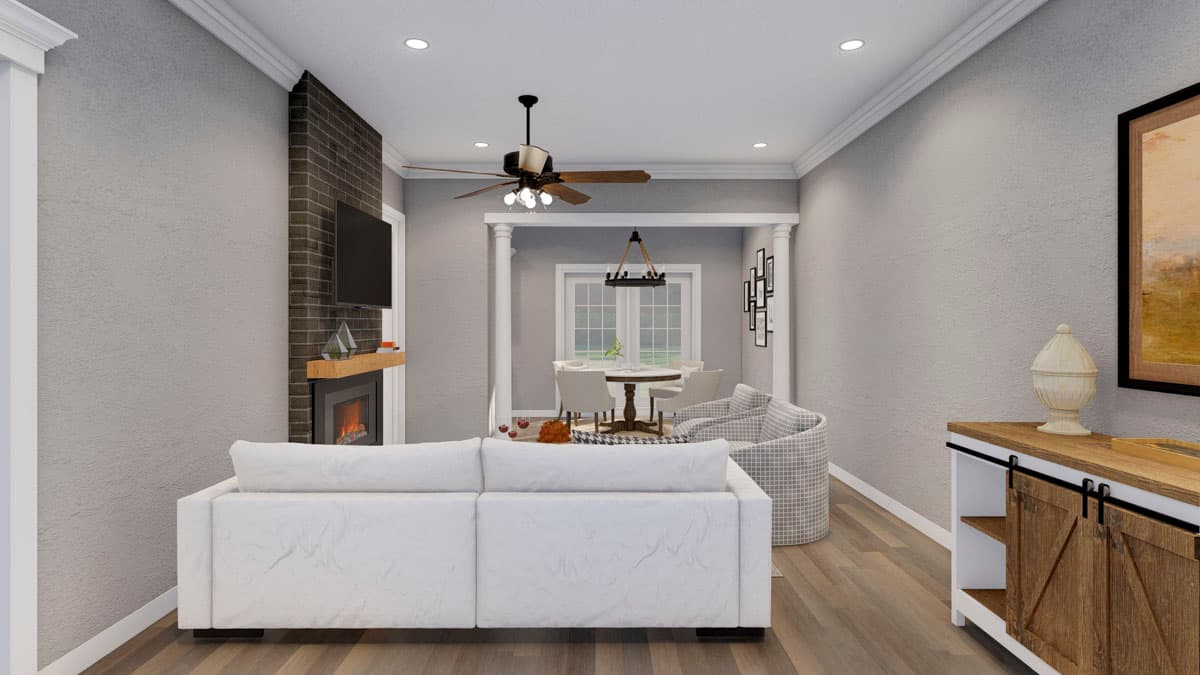

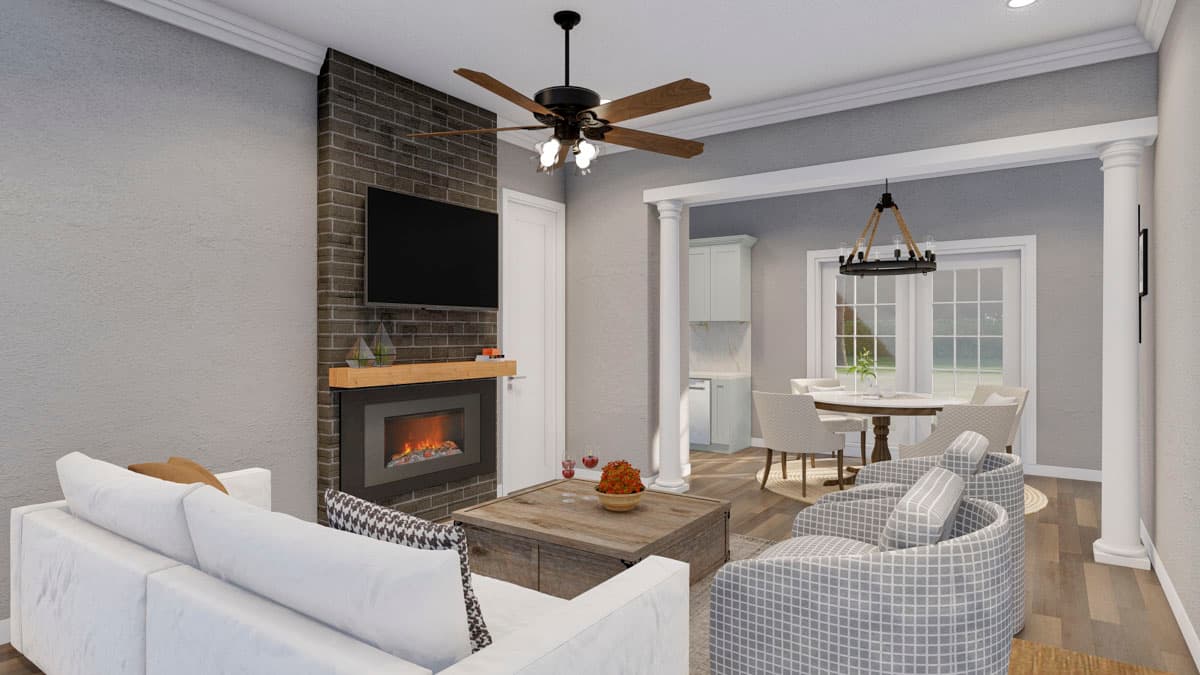

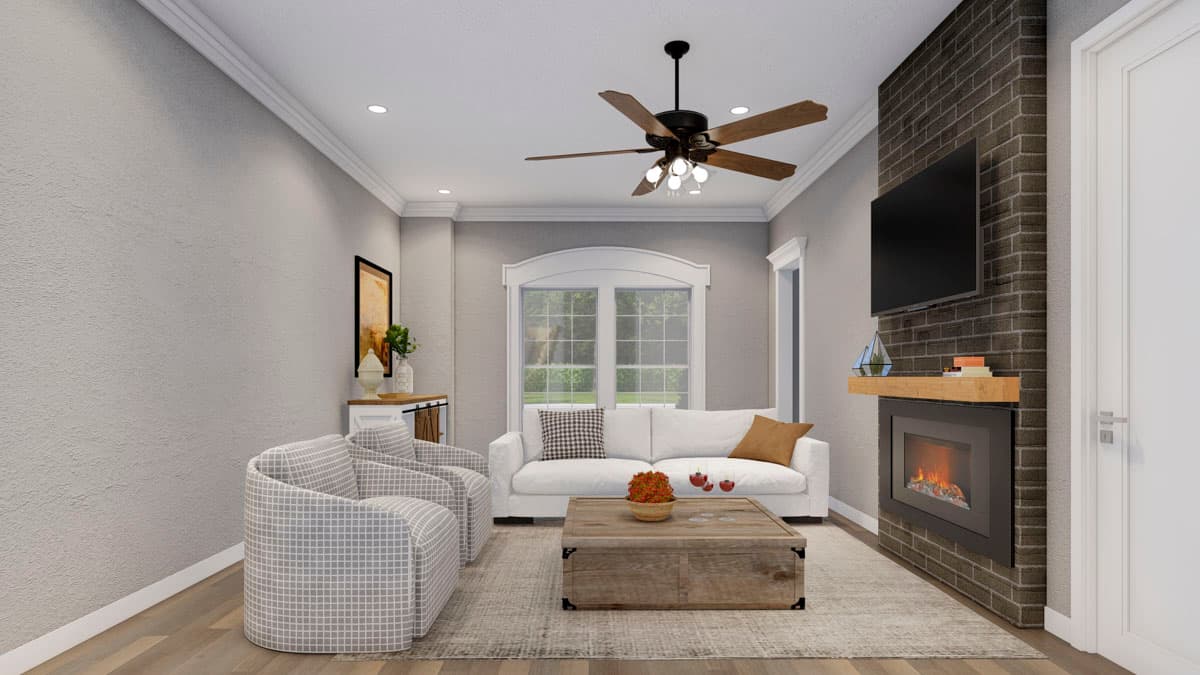

  • The main floor of each home includes a generous great room area with fireplace.

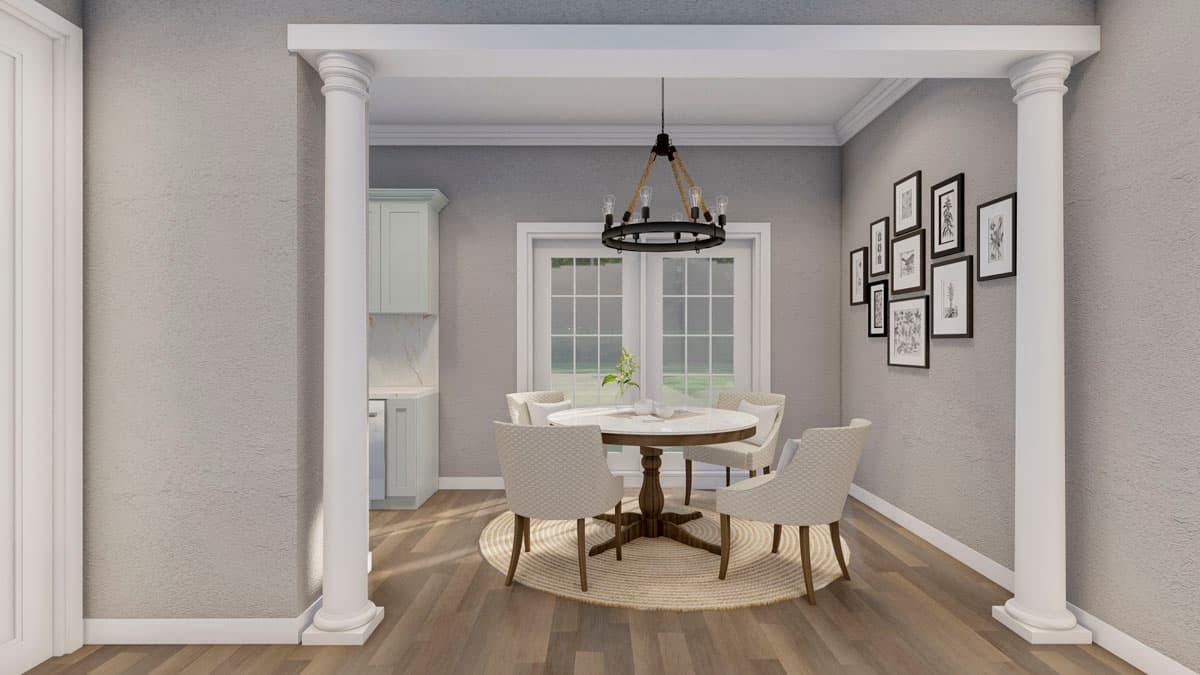

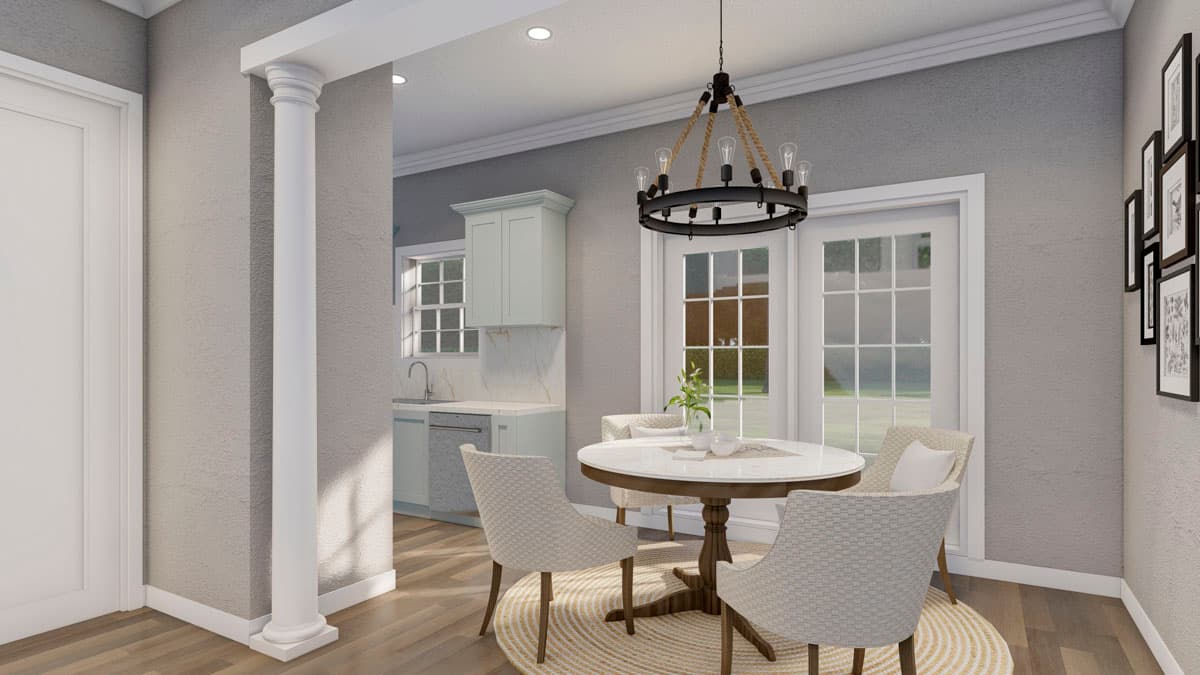

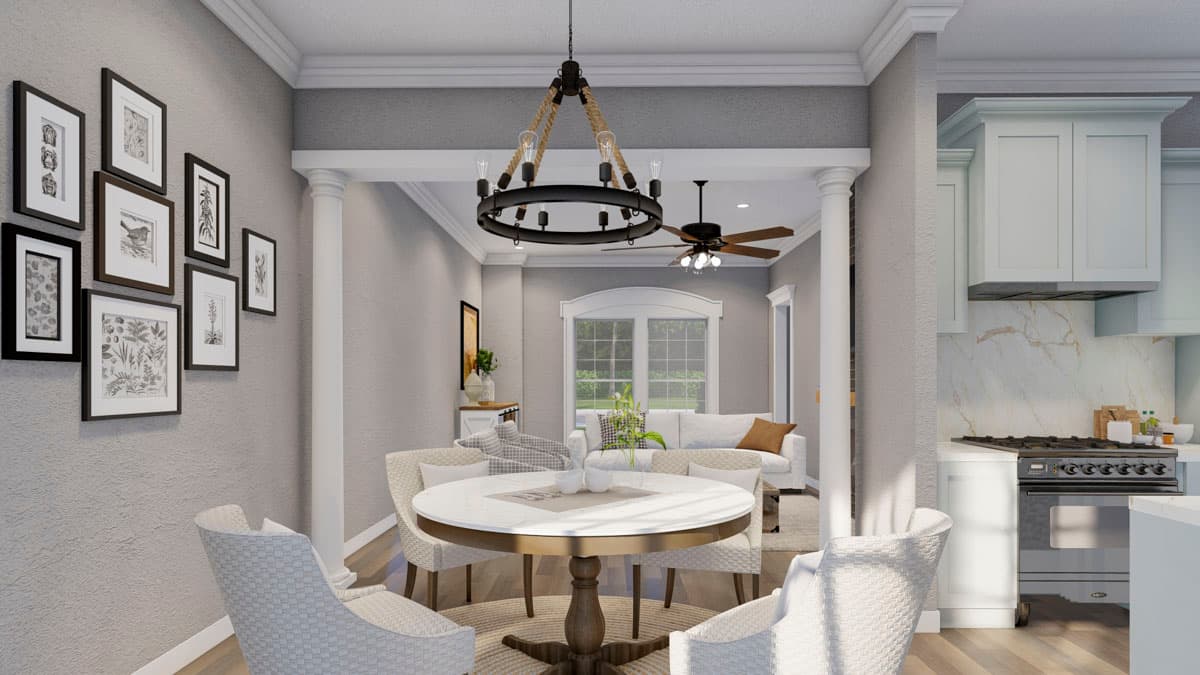

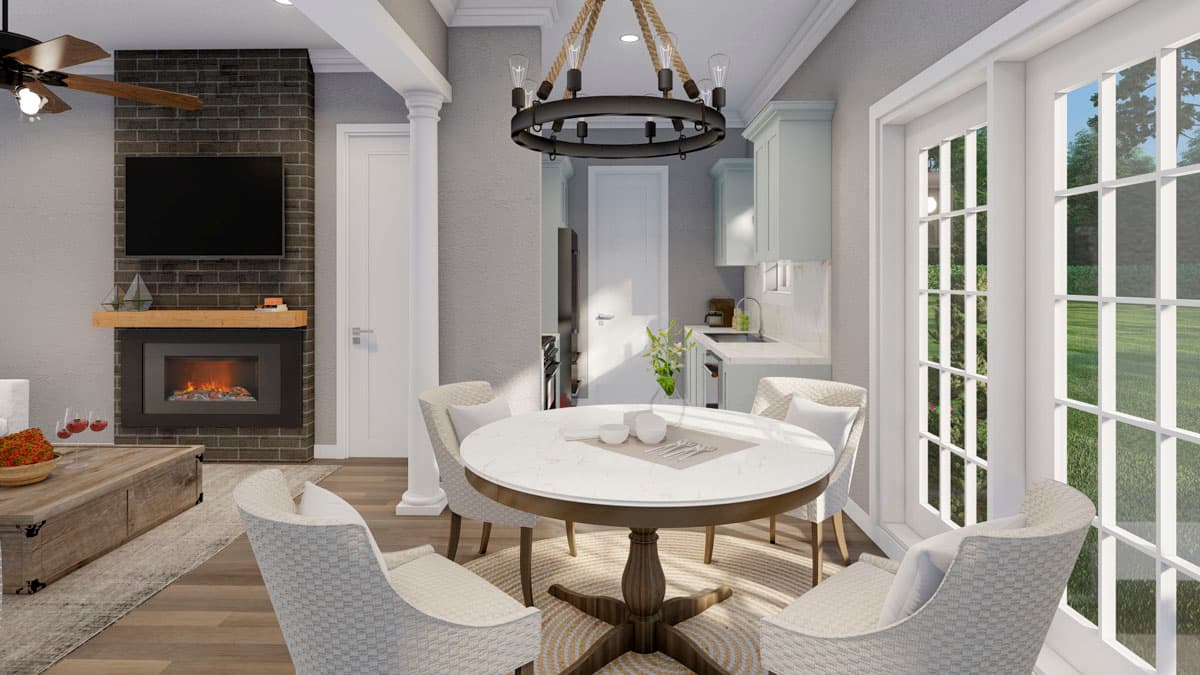

  • Only columns divide the dining room from the great room, creating an airy, open feel.

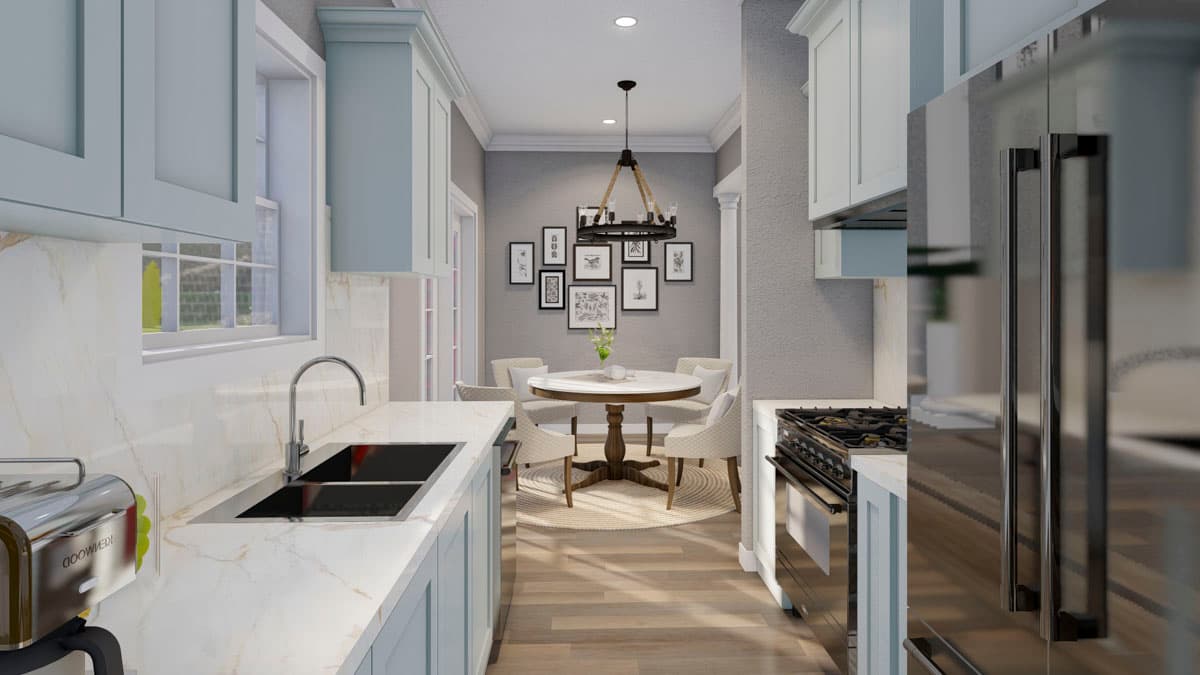

  • A step-saver kitchen completes the main level of each home.
  • The upper floor of each unit houses a large master suite and a second bedroom.
Unit A
1,286 Sq. Ft.
664 Sq. Ft. 1st Floor
622 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
24' 4" w 29' 6" d 31' h
Unit B
1,286 Sq. Ft.
664 Sq. Ft. 1st Floor
622 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
24' 4" w 29' 6" d 31' h
Unit C
1,286 Sq. Ft.
664 Sq. Ft. 1st Floor
622 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
24' 4" w 29' 6" d 31' h
Unit D
1,286 Sq. Ft.
664 Sq. Ft. 1st Floor
622 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
24' 4" w 29' 6" d 31' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

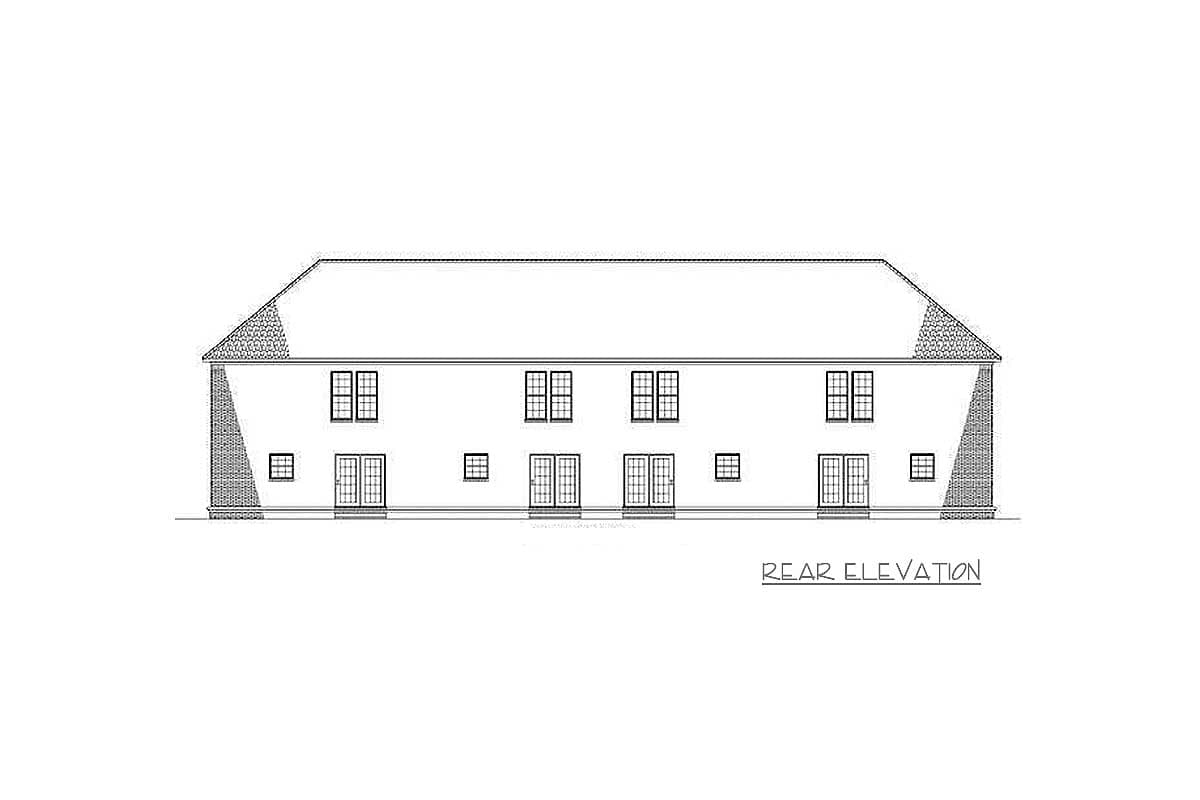

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2 Story Quadplex with Matching 1286 Square Foot 2 Bed Units

  • 5,144

    Heated s.f.

  • 4

    Units

  • 97' 6"

    Width

  • 29' 6"

    Depth

Floor Plan

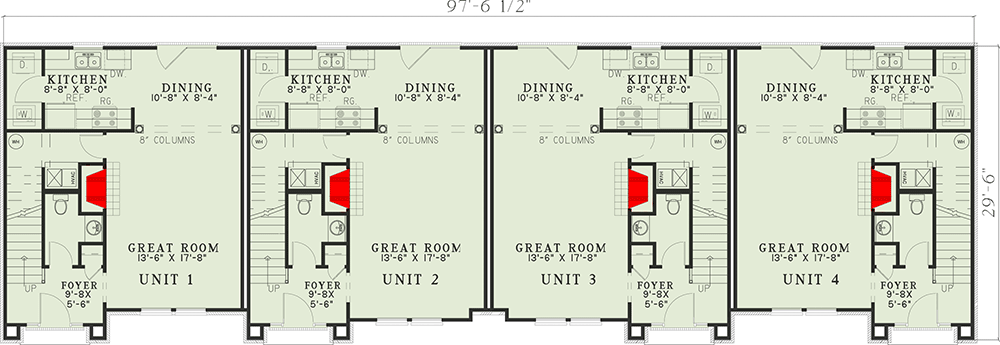

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,144 sq. ft.
  • 1st Floor: 2,656 sq. ft.
  • 2nd Floor: 2,488 sq. ft.

Dimensions

  • Width: 97' 6"
  • Depth: 29' 6"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

2 Story Quadplex with Matching 1286 Square Foot 2 Bed Units

  • 5,144

    Heated s.f.

  • 4

    Units

  • 97' 6"

    Width

  • 29' 6"

    Depth

2 Story Quadplex with Matching 1286 Square Foot 2 Bed Units

  • 5,144

    Heated s.f.

  • 4

    Units

  • 97' 6"

    Width

  • 29' 6"

    Depth

Plan Details

Square Footage Breakdown

  • Total: 5,144 sq. ft.
  • 1st Floor: 2,656 sq. ft.
  • 2nd Floor: 2,488 sq. ft.

Dimensions

  • Width: 97' 6"
  • Depth: 29' 6"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

    Main Level

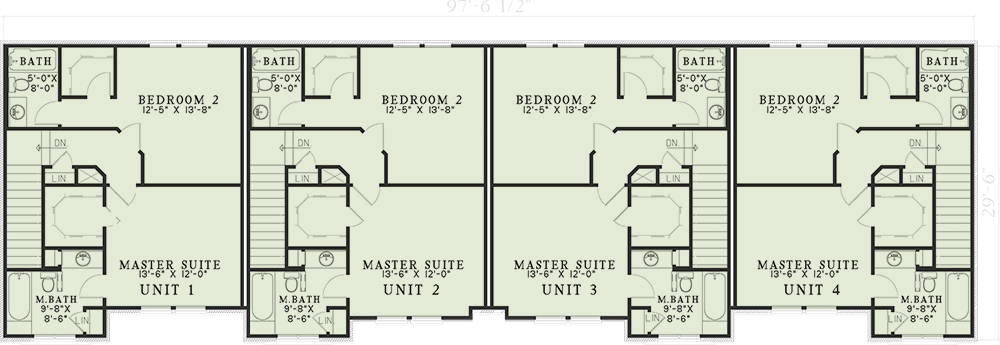

    2nd Floor
