2-Story Rustic Lake House Plan with Home Office and Workshop

Name: Plan 350006GH: 2-Story Rustic Lake House Plan with Home Office and Workshop
Brand: Architectural Designs
SKU: 350006GH
Price: 1480.0 USD
Availability: InStock

Heated S.F.

2,977

Beds

Baths

2.5

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

At just under 3,000 square feet of living space, this two-story Rustic Lake house plan boasts a spacious garage with room for a workshop, along with an open and airy living space in the center of the main level.
The kitchen's cooktop island includes an eating bar for casual meals and a corner pantry is within arm's reach for convenience.
Tall ceilings above the great room make the space feel even bigger and a fireplace flanked by builtins adds to the ambiance.
Retreat to the serene master suite, which consumes the left side of the main level, and discover access to the 6'-deep wraparound porch through french doors, as well as a 5-fixture bath and walk-in closet.

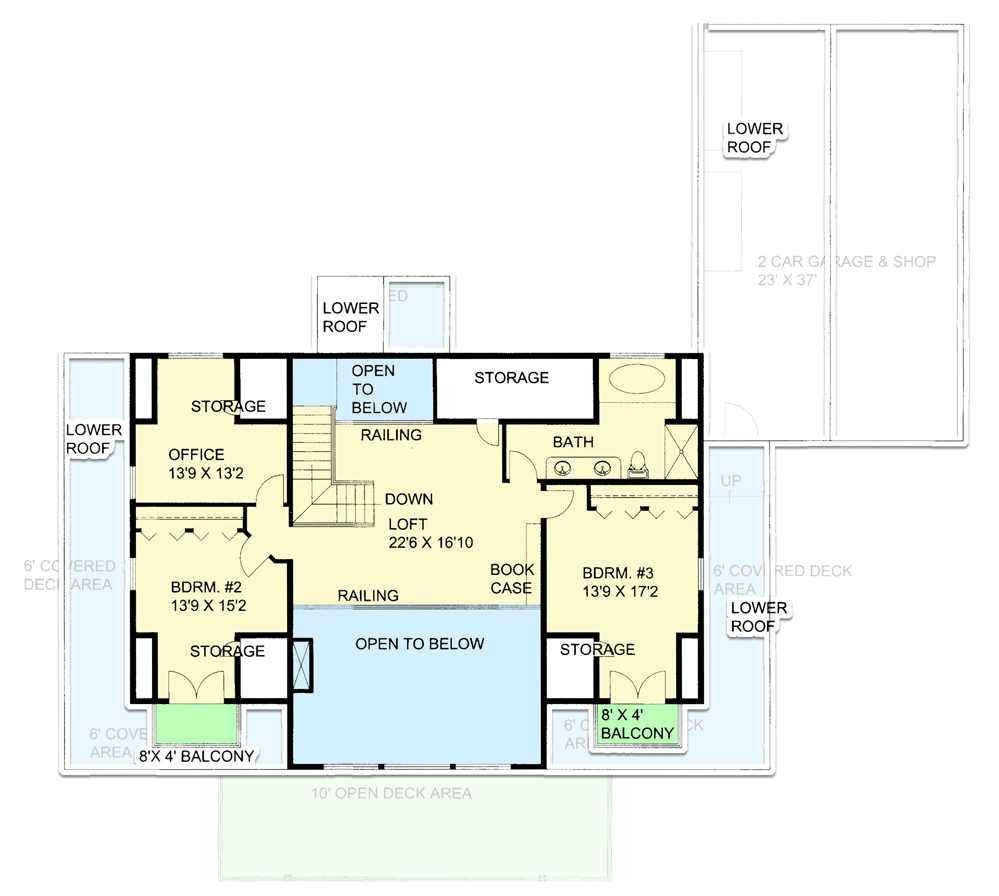

Each of the second level bedrooms include a private balcony and reside on either side of a loft. A home office and 4-fixture bathroom complete the upstairs layout.

What's Included

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.

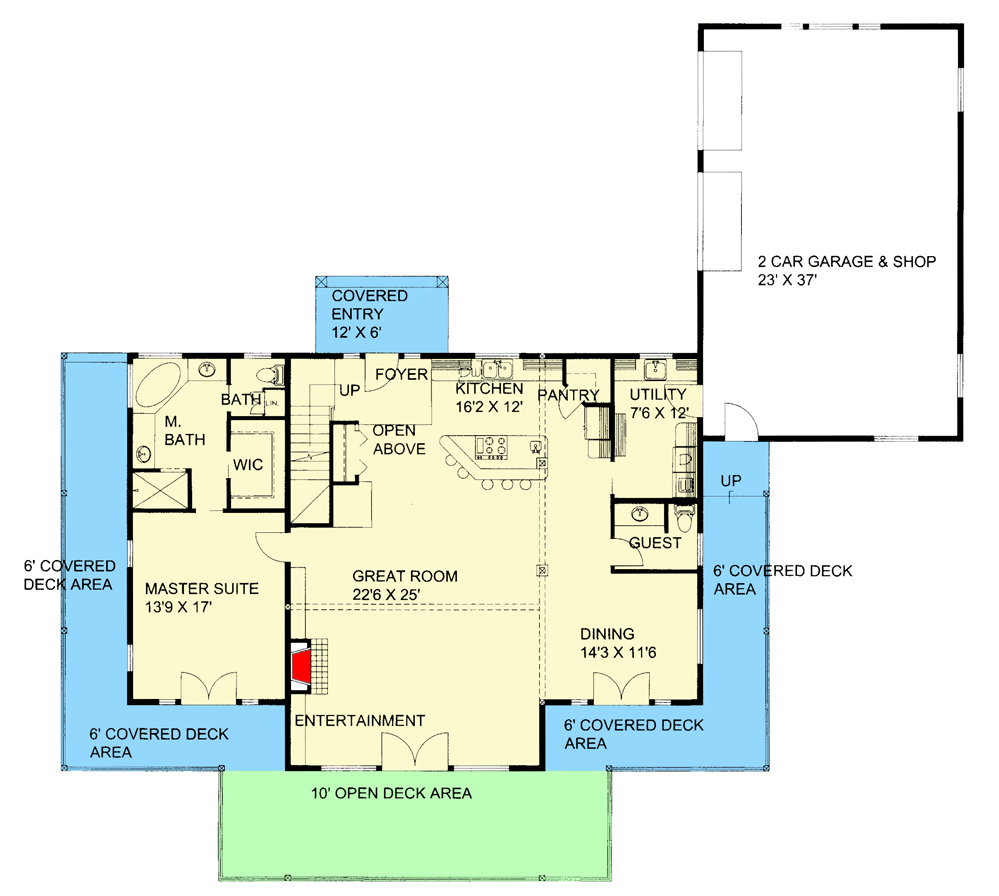

Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
