Plan 48629FM

Exclusive

2-Story Traditional Duplex Home Plan with Outdoor Living - 1697 Per Unit

Heated S.F.
3,394
Units
2
Width
Depth

Floor Plan

Plan 48629FM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 48629FM

M-F 9am-5pm EST |

1-203-761-8500

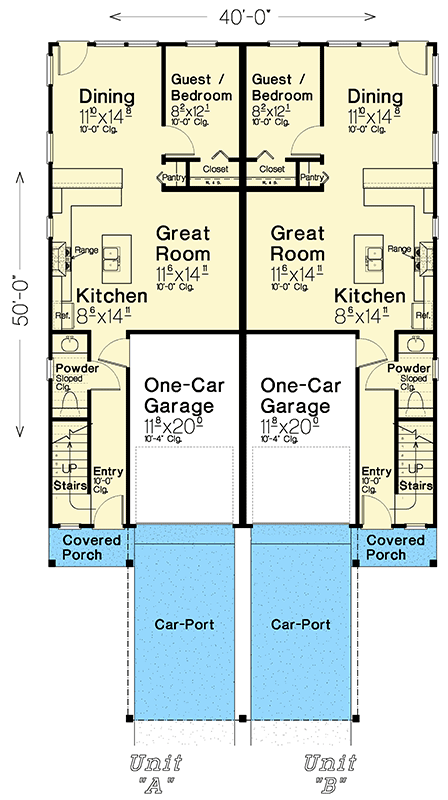

Main Level

Plan 48629FM: 2-Story Traditional Duplex Home Plan with Outdoor Living - 1697 Per Unit - Floor Plan - Main Level - Traditional

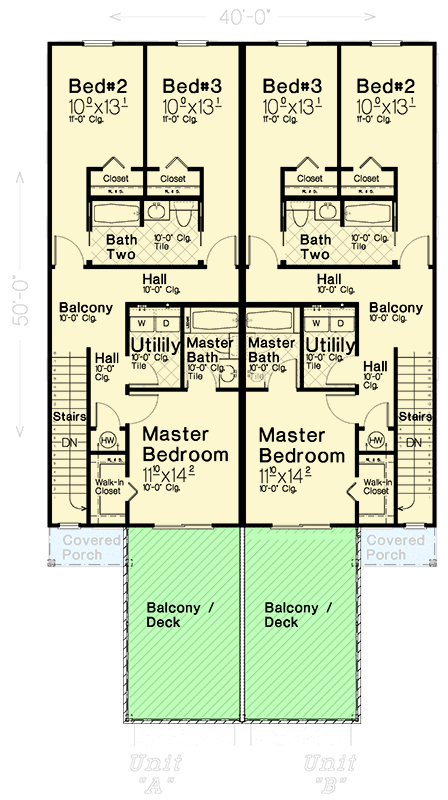

2nd Floor

Plan 48629FM: 2-Story Traditional Duplex Home Plan with Outdoor Living - 1697 Per Unit - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This two-story duplex-family house plan gives you 2 units each with 1,697 square feet of heated living space (732 sq. ft. on the first floor, 965 sq. ft. on the second floor), 4 beds, 2.5 baths and a 233 sq. ft. 1-car garage and a carport.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,697Sq. Ft.
732 Sq. Ft. 1st
965 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
233 Sq. Ft.
Dimensions
20'width
70'depth
33'height
Unfinished Areas
233 Sq. Ft. Garage
244 Sq. Ft. Carport
35 Sq. Ft. Porch, Front
248 Sq. Ft. Balcony / Veranda
Unit B
Heated Area
1,697Sq. Ft.
1464 Sq. Ft. 1st
1930 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
233 Sq. Ft.
Dimensions
20'width
70'depth
33'height
Unfinished Areas
233 Sq. Ft. Garage
244 Sq. Ft. Carport
35 Sq. Ft. Porch, Front
248 Sq. Ft. Balcony / Veranda

What's Included

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

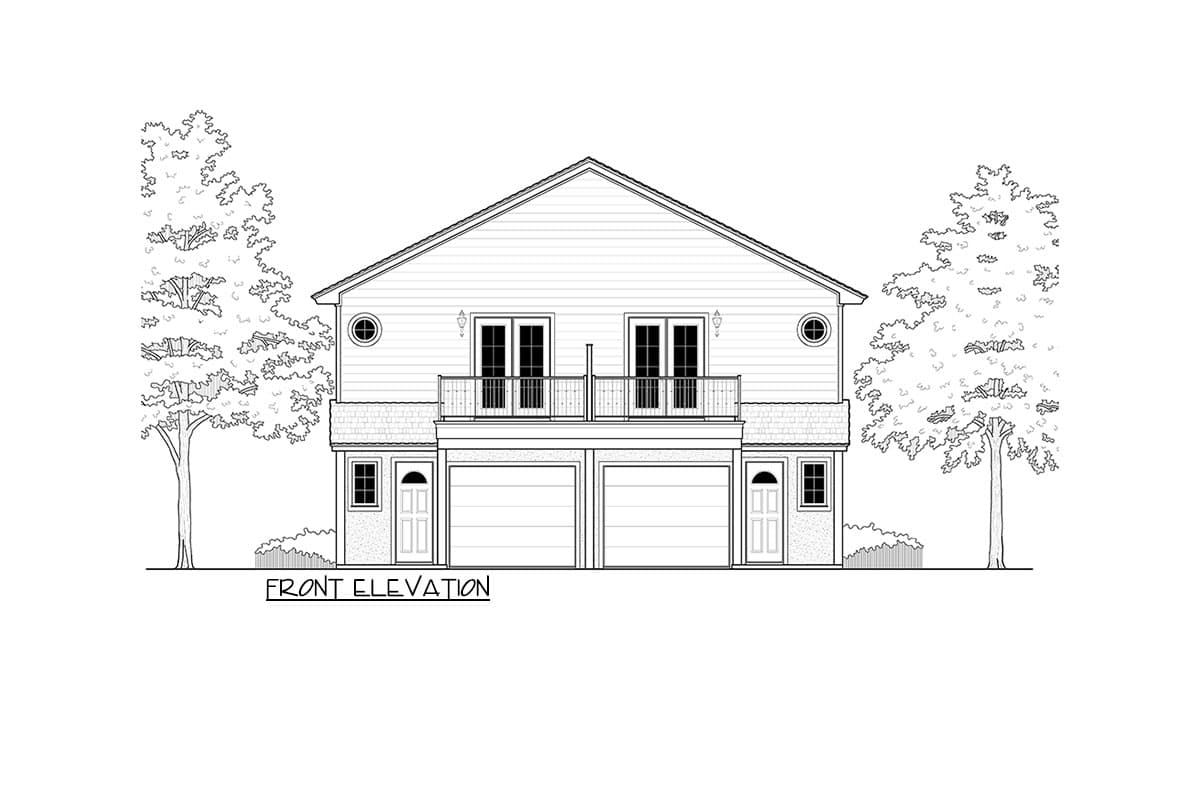

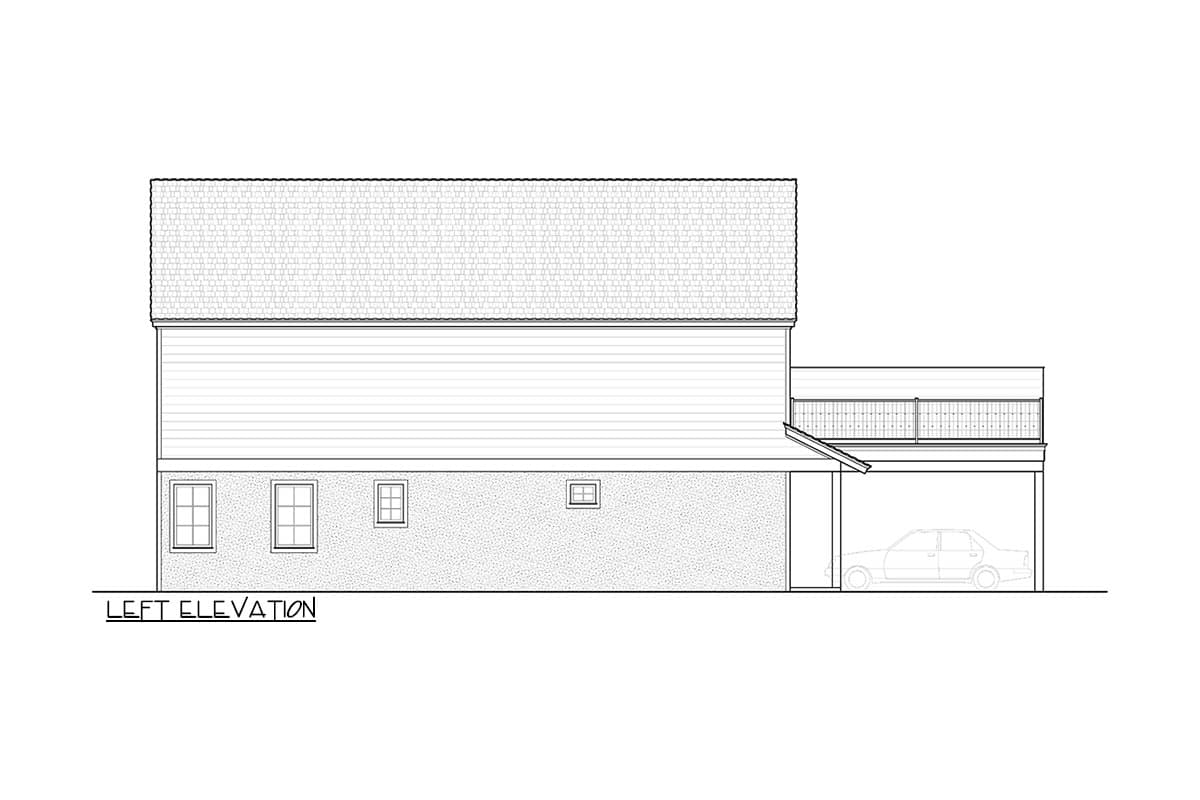

  • Front and Left Elevation

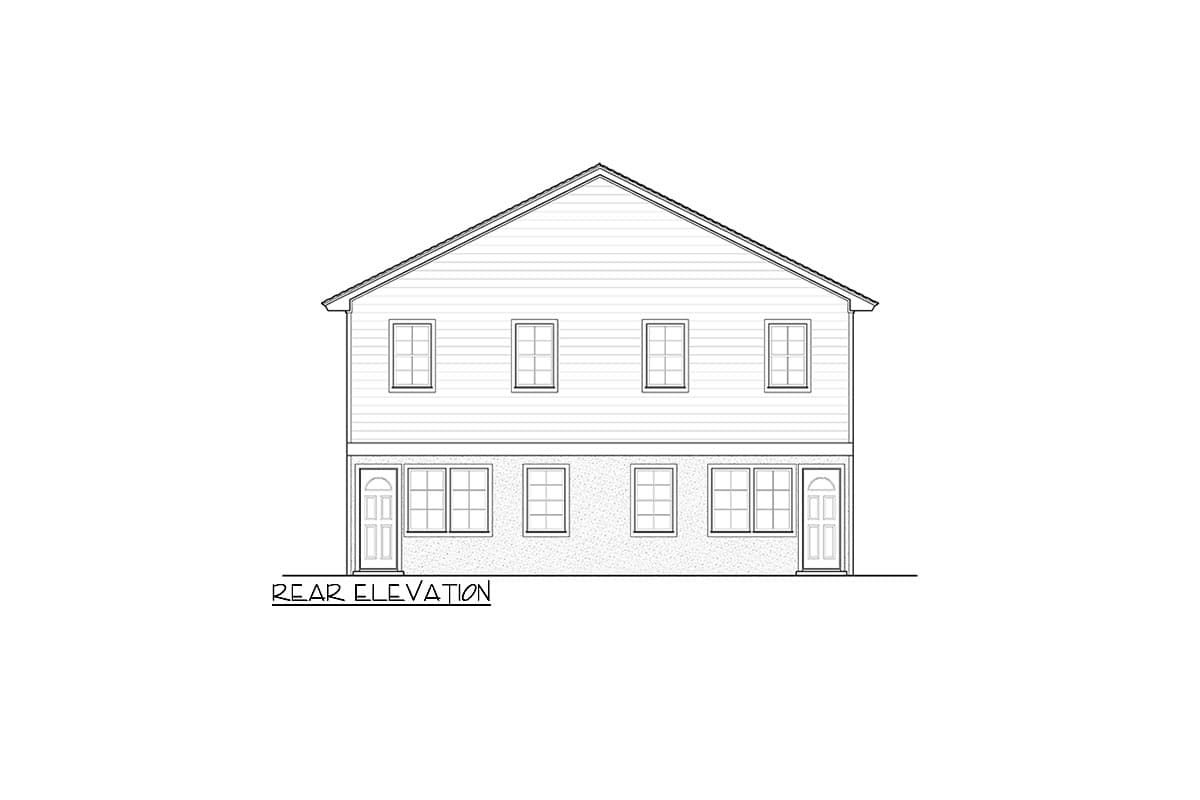

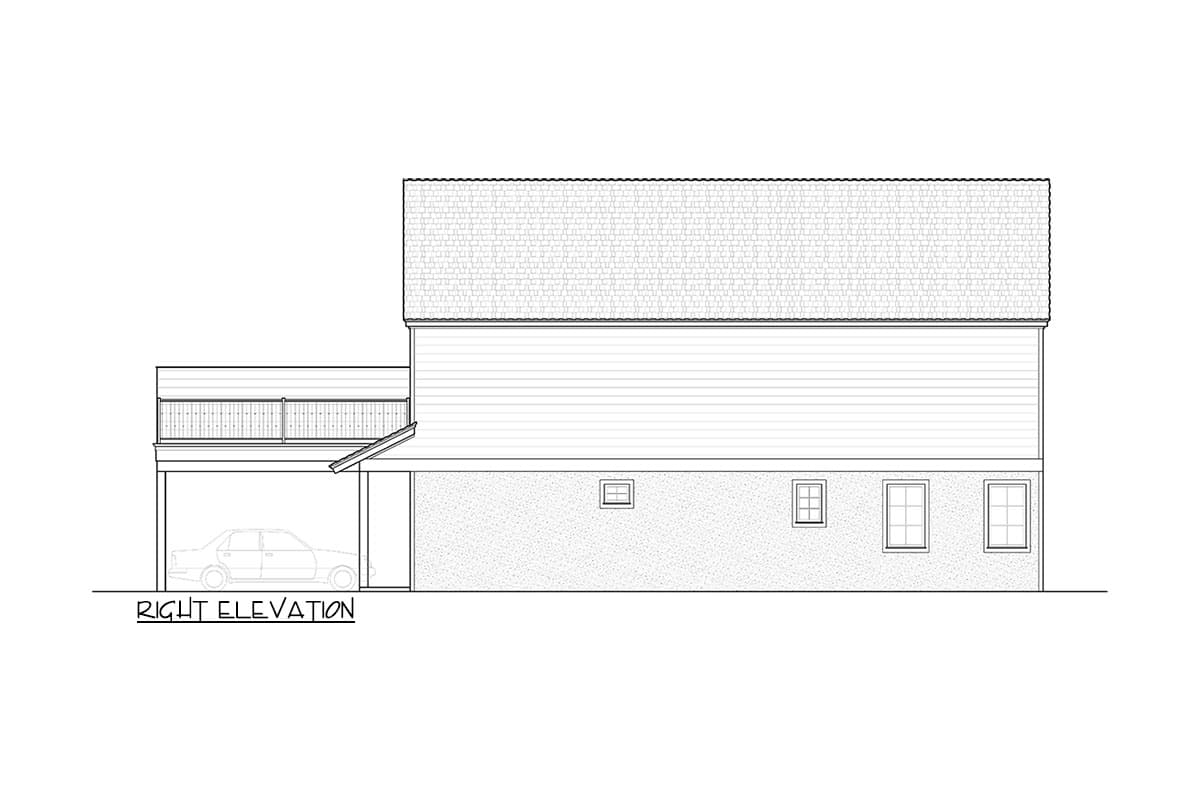

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,394 sq. ft.

1st Floor

1,464 sq. ft.

2nd Floor

1,930 sq. ft.

Carport

488 sq. ft.

Porch, Front

70 sq. ft.

Balcony / Veranda

496 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Max Ridge Height

33' 0"

Garage

Type

Carport

Area

466 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,394 sq. ft.

1st Floor

1,464 sq. ft.

2nd Floor

1,930 sq. ft.

Carport

488 sq. ft.

Porch, Front

70 sq. ft.

Balcony / Veranda

496 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Max Ridge Height

33' 0"

Garage

Type

Carport

Area

466 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive
