Plan 710034BTZ

2-Story Traditional House Plan with Vaulted Family Room

2-Story Traditional House Plan with Vaulted Family Room

Plan 710034BTZ

  • 3,635

    Heated s.f.

  • 4

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The traditional exterior of this 4-bed hose plan combines brick and stone to create a timeless exterior that will fit most any neighborhood.
  • There are two fireplaces in the home: one in the vaulted family room and another in the keeping room that opens to the kitchen.
  • A covered porch in back is accessible from the breakfast room and is great for outdoor entertaining.
  • A main level master suite, with bay windows and a beamed ceiling create a relaxing retreat for the homeowners.
  • Upstairs, a teen suite gives the kids a place to play outside their rooms and the bonus room over the garage gives you expansion space.
  • Related Plan: Get an alternate version in reverse orientation with house plan 710198BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



2-Story Traditional House Plan with Vaulted Family Room

  • 3,635

    Heated s.f.

  • 4

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,625
  • 8 Sets $1,775
  • PDF - multi-use $1,925
  • Reproducible Set $2,020
  • CAD - multi-use $3,670
  • View all purchase option online

About This Plan

  • The traditional exterior of this 4-bed hose plan combines brick and stone to create a timeless exterior that will fit most any neighborhood.
  • There are two fireplaces in the home: one in the vaulted family room and another in the keeping room that opens to the kitchen.
  • A covered porch in back is accessible from the breakfast room and is great for outdoor entertaining.
  • A main level master suite, with bay windows and a beamed ceiling create a relaxing retreat for the homeowners.
  • Upstairs, a teen suite gives the kids a place to play outside their rooms and the bonus room over the garage gives you expansion space.
  • Related Plan: Get an alternate version in reverse orientation with house plan 710198BTZ.

Floor Plans

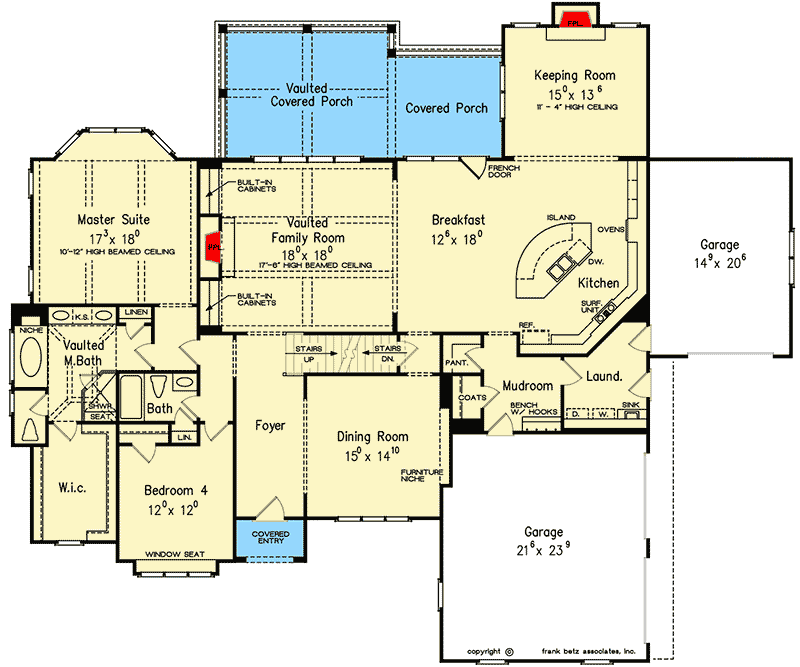

  • Main Level

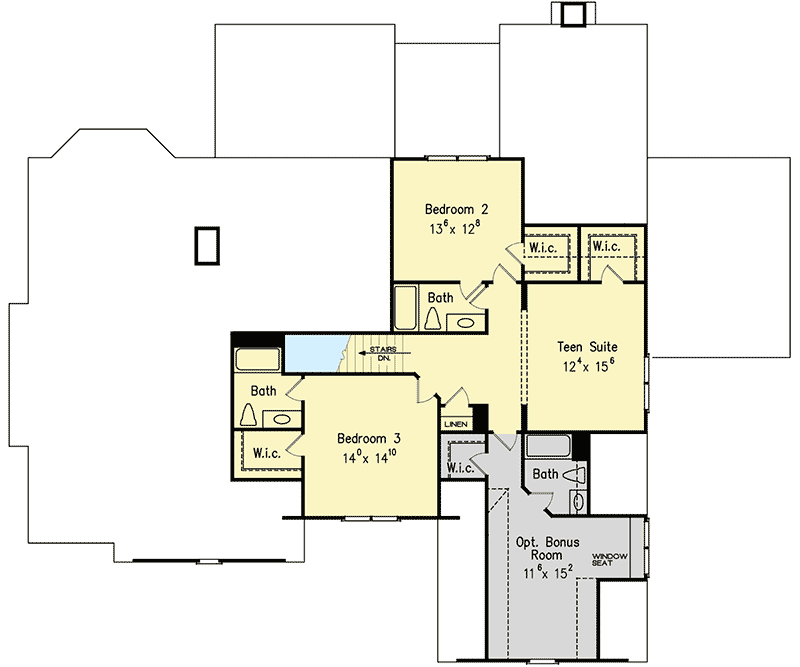

  • Second Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,635 sq. ft.
  • 1st Floor: 2,648 sq. ft.
  • 2nd Floor: 987 sq. ft.
  • Bonus: 338 sq. ft.
  • Basement Unfinished: 2,648 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 82' 0"
  • Depth: 69' 4"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 835 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
