Plan 19247GT

2-Story Victorian Home Plan with Craft Room above Garage

Heated S.F.
3,574
Beds
4
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 19247GT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 19247GT

M-F 9am-5pm EST |

1-203-761-8500

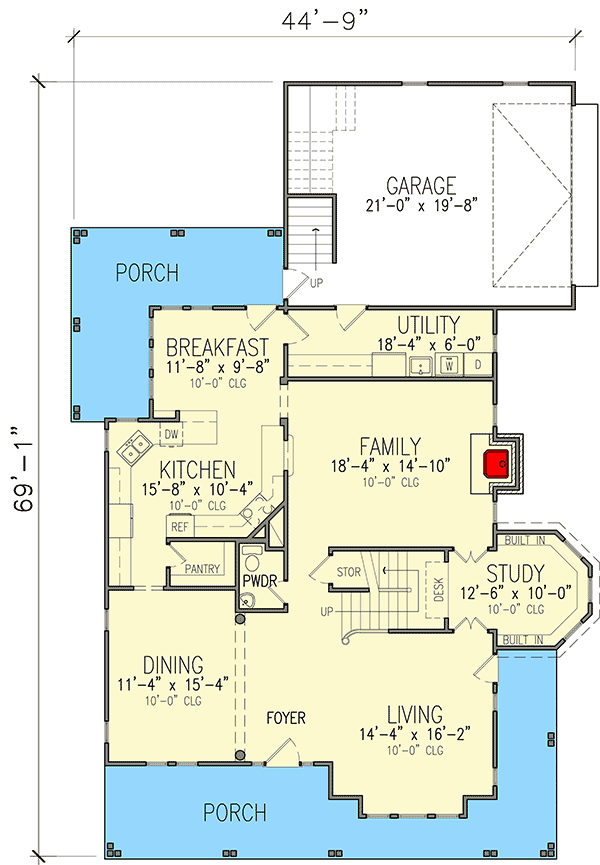

Main Level

Plan 19247GT: 2-Story Victorian Home Plan with Craft Room above Garage - Floor Plan - Main Level - Country, Victorian

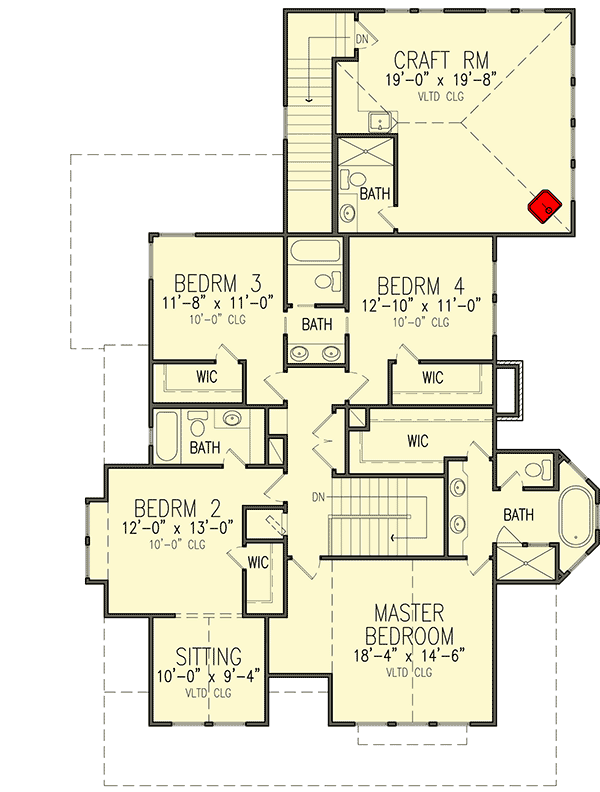

2nd Floor

Plan 19247GT: 2-Story Victorian Home Plan with Craft Room above Garage - Floor Plan - 2nd Floor - Country, Victorian

Plan Details

  • A wraparound porch adds to the curb appeal provided by this 2-story, Victorian home plan. Inside, the formal living and dining rooms frame the foyer, while a unique octagonal study surrounded by built-ins protrudes from the right side of the home.
  • The family room provides a secondary gathering space and features a fireplace and access to the kitchen.
  • A corner sink in the rectangular kitchen overlooks the rear porch, while the adjoining breakfast nook is filled with natural light and provides access to the porch.
  • Four bedrooms are located on the second level. The master bathroom has an octagon footprint and leads to a walk-in closet, while two of the family bedrooms share a Jack-and-Jill bath.
  • A craft room with a full bath can be found above the 2-car garage, which is attached to the rear of the home.

What's Included

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

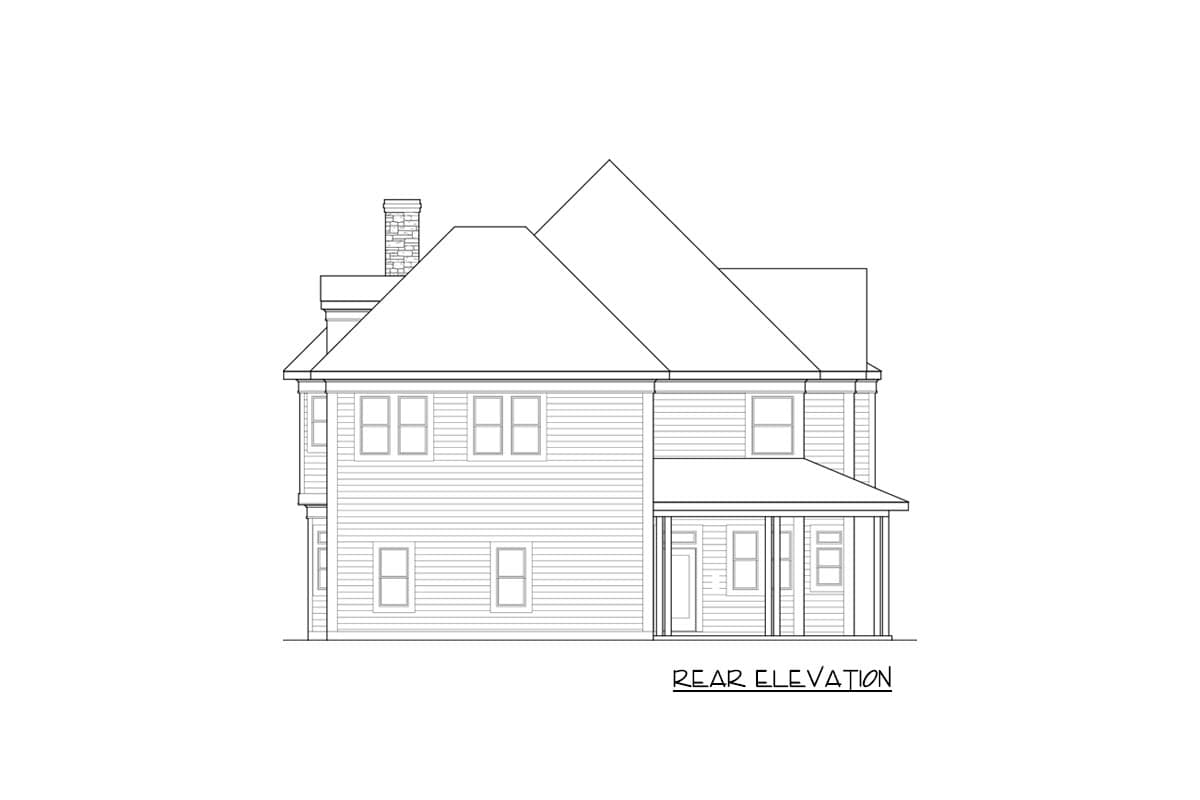

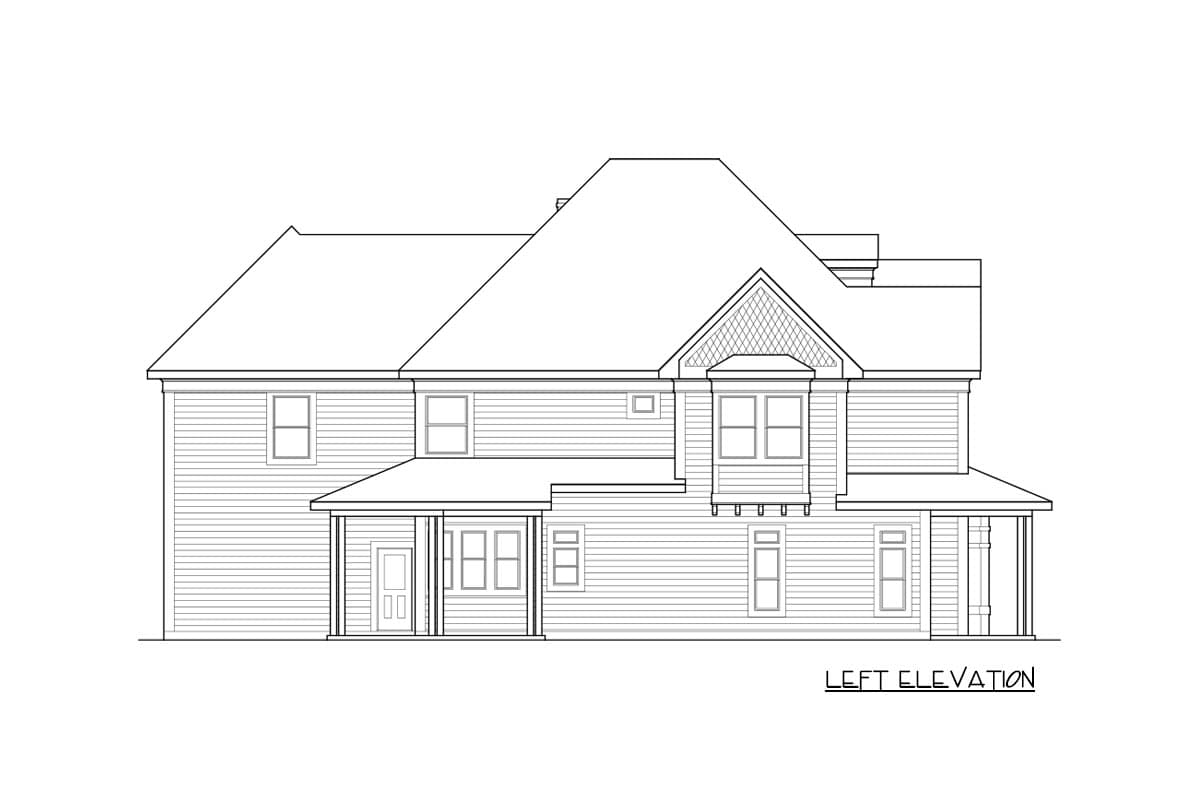

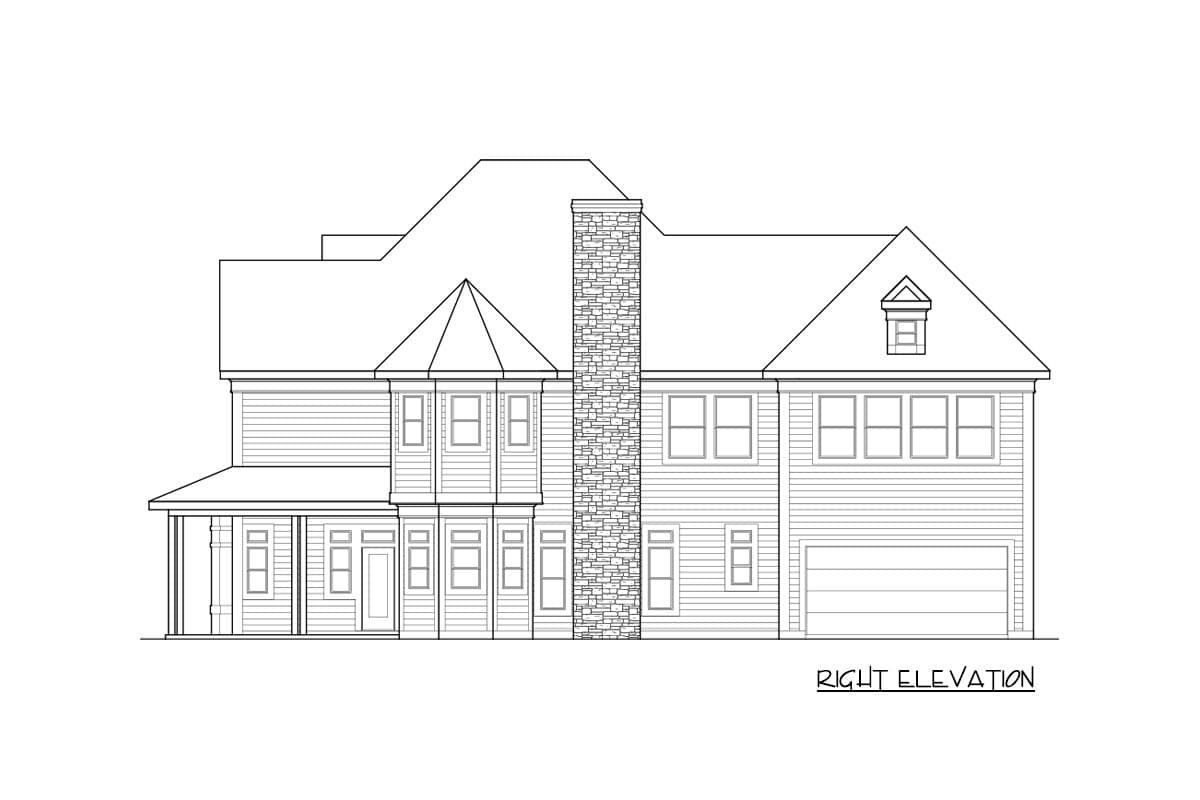

  • Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,574 sq. ft.

1st Floor

1,546 sq. ft.

2nd Floor

2,028 sq. ft.

Porch, Combined

534 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 4"

Depth

47' 2"

Max Ridge Height

37' 7"

Garage

Type

Attached

Area

522 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Victorian

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,574 sq. ft.

1st Floor

1,546 sq. ft.

2nd Floor

2,028 sq. ft.

Porch, Combined

534 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 4"

Depth

47' 2"

Max Ridge Height

37' 7"

Garage

Type

Attached

Area

522 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Victorian

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Walk-in Pantry
