2000 Square Foot Traditional Ranch Home Plan with Split Bedroom Layout

Heated S.F.
2,075
Beds
4 - 6
Baths
3 - 4
Stories
1
Cars
3

Floor Plan

Plan 849007PGE

Main Level
Main Level
Lower Level
Lower Level

Plan 849007PGE

M-F 9am-5pm EST |

1-203-761-8500

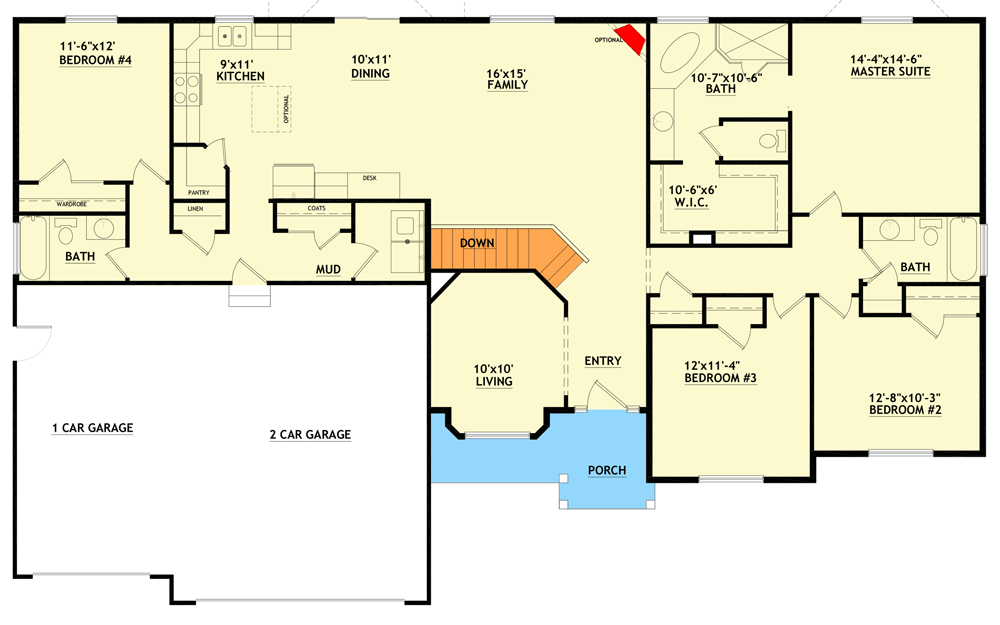

Main Level

Plan 849007PGE: 2000 Square Foot Traditional Ranch Home Plan with Split Bedroom Layout - Floor Plan - Main Level - Craftsman, New American, Ranch, Traditional

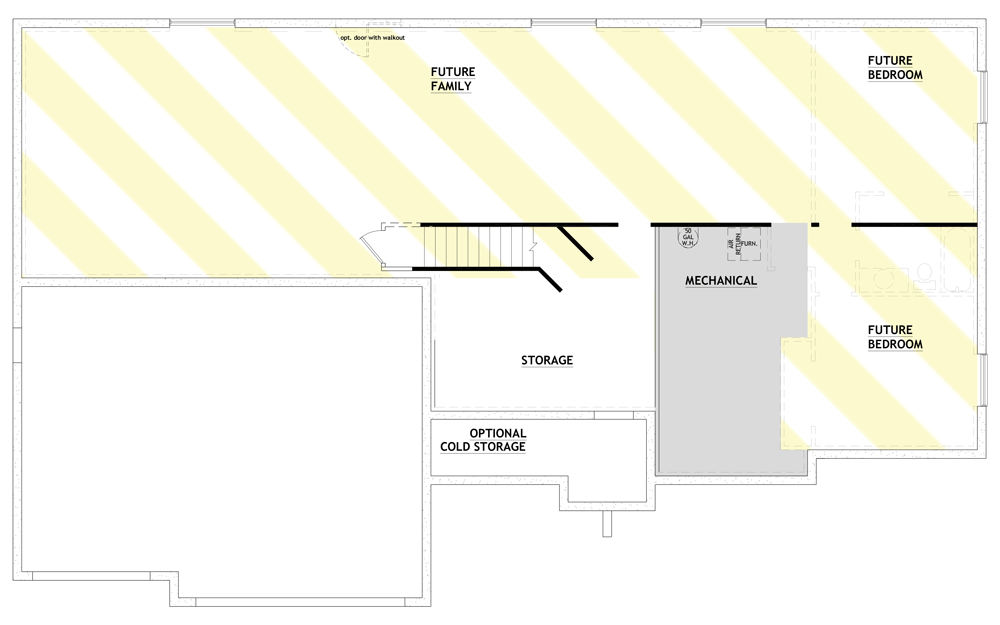

Lower Level

Plan 849007PGE: 2000 Square Foot Traditional Ranch Home Plan with Split Bedroom Layout - Floor Plan - Lower Level - Craftsman, New American, Ranch, Traditional

Plan Details

  • This traditional one-story house plan gives you 4 beds, 3 baths and 2,075 square feet of heated living space. A 3-car front-facing garage gives you 737 square feet of heated living space. Finish the basement and get another bedroom and bath and 1,925 square feet of expansion space.
  • Inside, you get two places to gather: the living room off the family offers a more formal setting while the family room in back - open to the dining room and kitchen - is great for larger informal gatherings.
  • Three bedrooms are on the right, including the master suite. A fourth bedroom is located across the home and can alternatively be used as a home office or a den.

What's Included

  • Cover Sheet

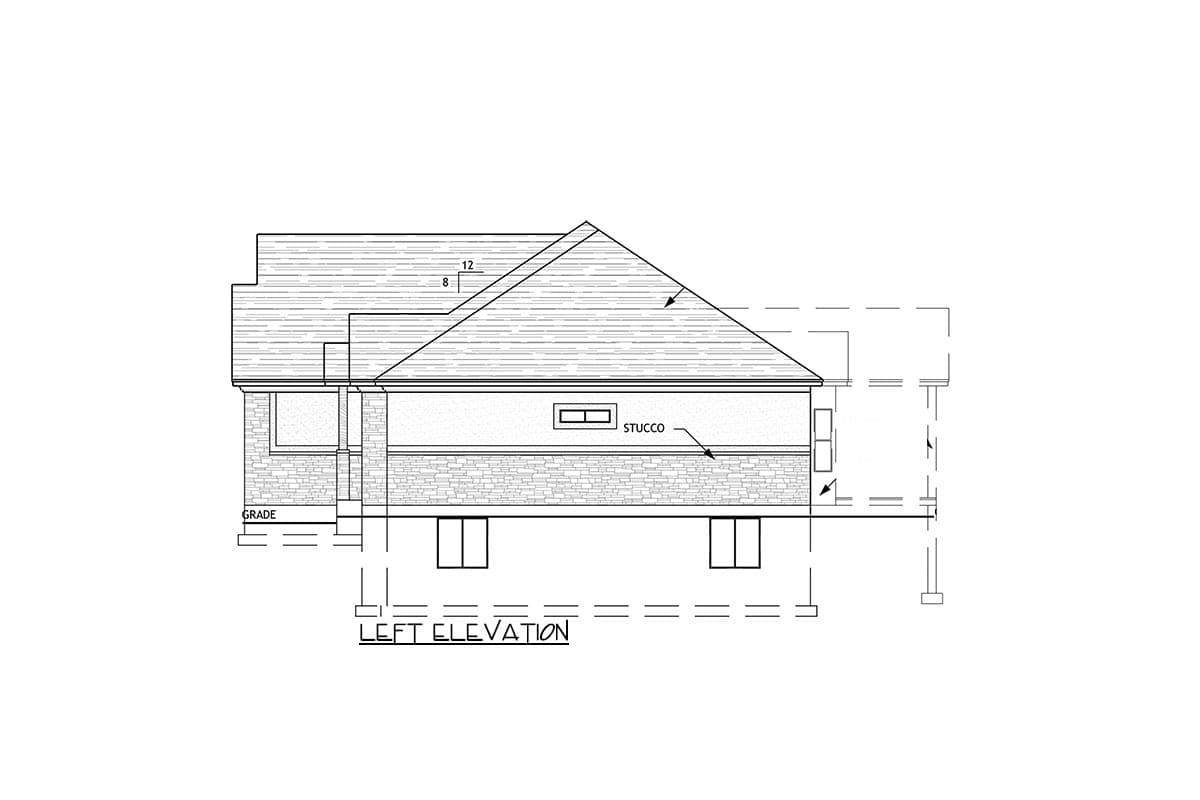

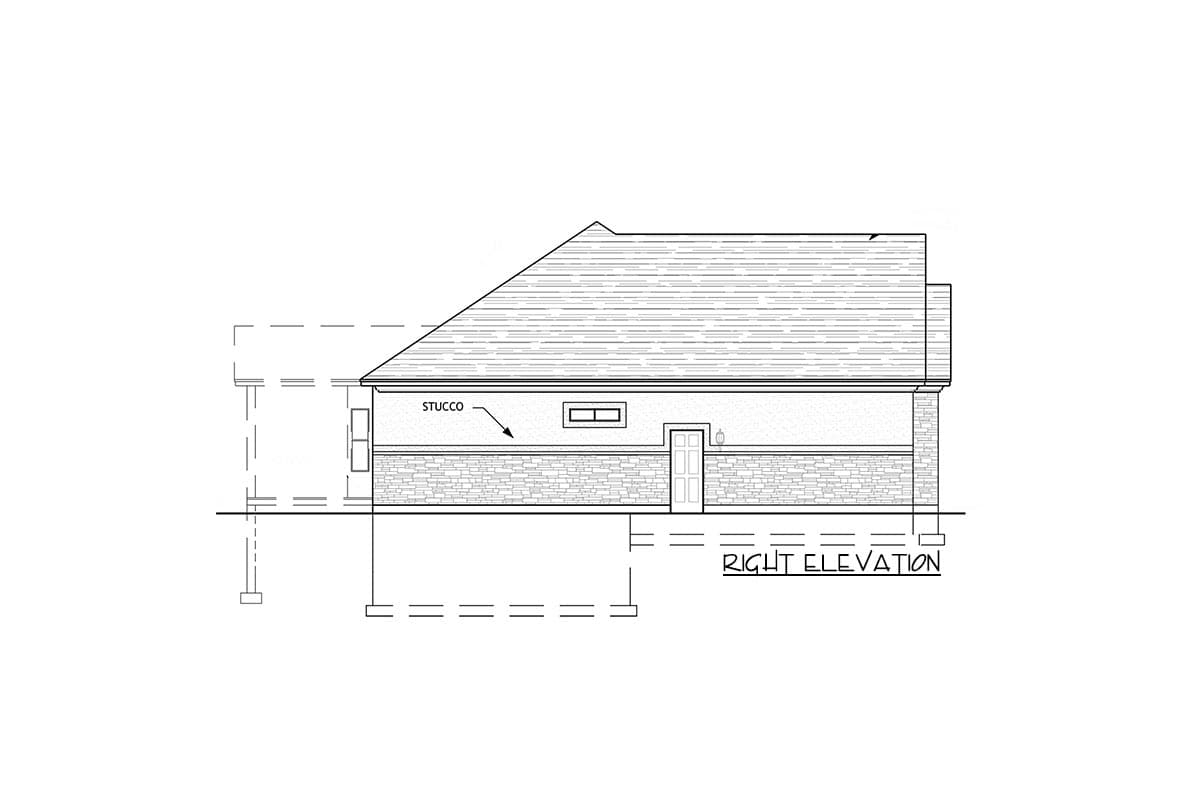

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,075 sq. ft.

1st Floor

2,075 sq. ft.

Optional Lower Level

1,925 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 6"

Depth

45' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

737 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,075 sq. ft.

1st Floor

2,075 sq. ft.

Optional Lower Level

1,925 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 6"

Depth

45' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

737 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
