2144 Square Foot 4-Bed Coastal Cottage House Plan

Plan 46490LA

This plan plants 3 trees

2,144
Heated s.f.
4
Beds
4.5
Baths
2
Stories
2
Cars

This 2,144 square foot coastal cottage gives you drive-under parking on the ground level with an enclosed storage area with stairs to the main living levels above. Two outdoor showers help keep the sand out of the home.
Two bedroom suites on the main floor line the right side of the home. Bed 1 has sliding door access to the rear deck.
The left side of the main living level is open front to back with the kitchen - located in the middle - providing functional separation between the dining and living rooms.
At the top of the stairs, a loft/lounge area serves as a casual hangout space. Two bedrooms and two baths complete the home.
NOTE: Please allow 20 to 25 business days for delivery.

This plan set has the following details:

Floor plans with window and door schedules
Roof plan
Elevations
Front and rear perspectives on some (but not all) plans
Building section, eave detail and typical stair detail
Interior perspectives and elevations
Electrical plans
Foundation plan
Floor framing plans
Ceiling framing plans
Roof framing plan

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

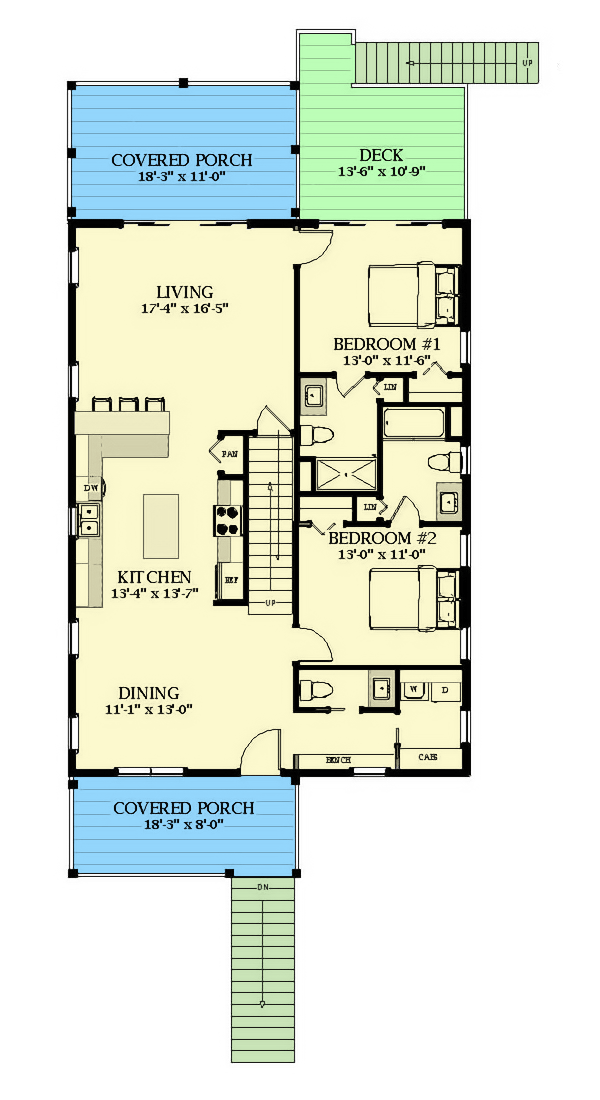

2144 Square Foot 4-Bed Coastal Cottage House Plan - 46490LA floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

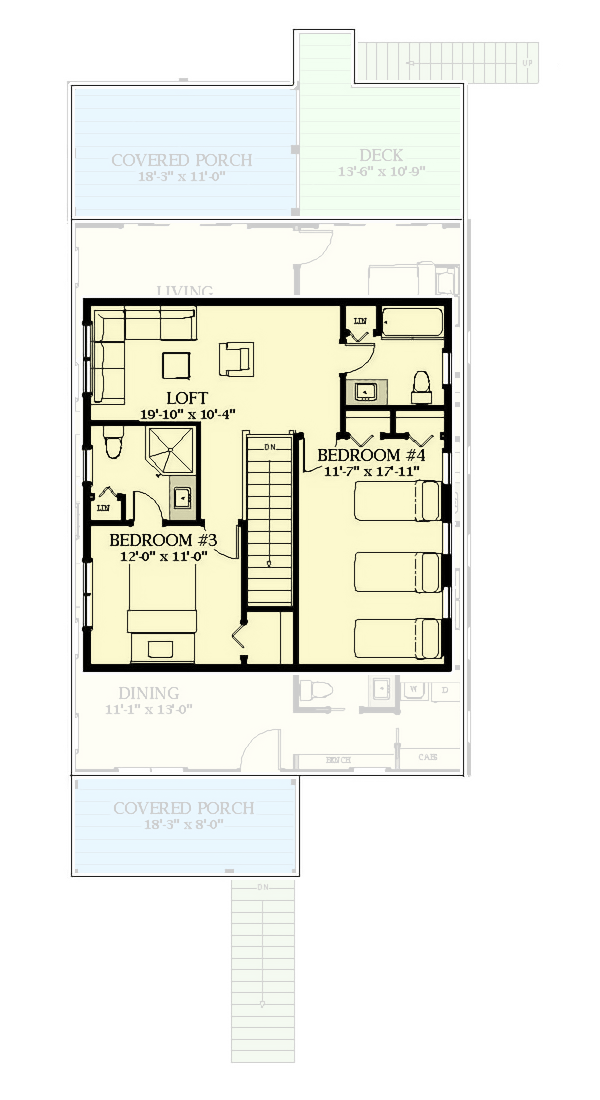

2144 Square Foot 4-Bed Coastal Cottage House Plan - 46490LA floor plan - 2nd Floor

Lower Level Drive-Under Garage

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

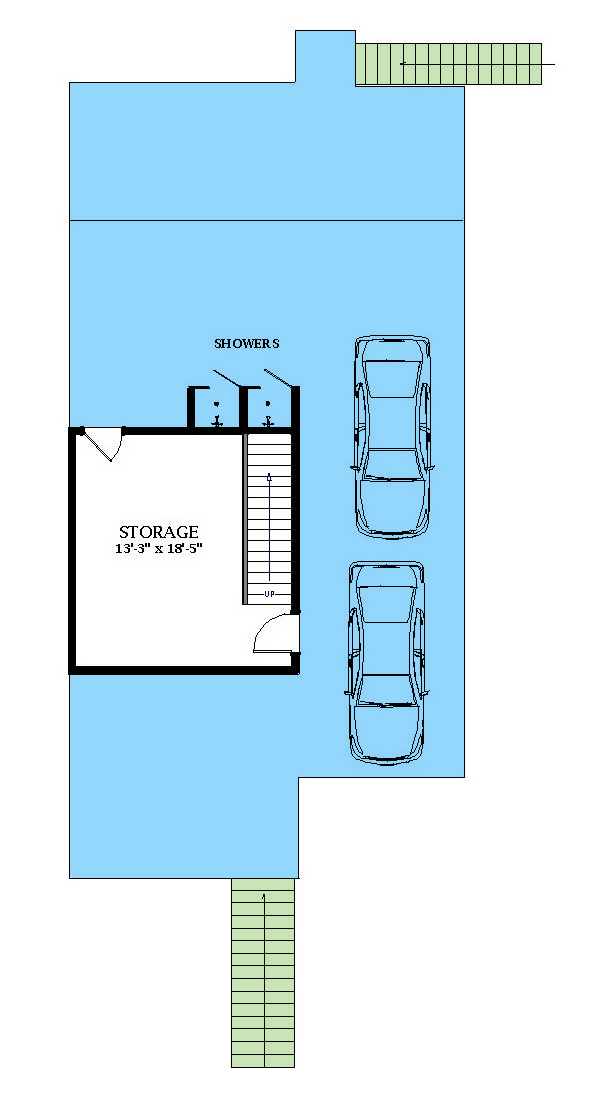

2144 Square Foot 4-Bed Coastal Cottage House Plan - 46490LA floor plan - Lower Level Drive-Under Garage

Plan details

Square Footage Breakdown

Total Heated Area: 2,144 sq. ft.
1st Floor: 1,345 sq. ft.
2nd Floor: 799 sq. ft.

Storage: 351 sq. ft.
Deck: 166 sq. ft.
Porch, Rear: 203 sq. ft.
Porch, Front: 148 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Pier

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 32' 0"
Depth: 66' 5"
Max ridge height: 33' 0"

Garage

Type: Drive Under
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"
