Plan 28117J

2187 Square Foot Craftsman Bungalow with Flex Room

Heated S.F.
2,187
Beds
3 - 4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 28117J

Main Level
Main Level

Plan 28117J

M-F 9am-5pm EST |

1-203-761-8500

Main Level

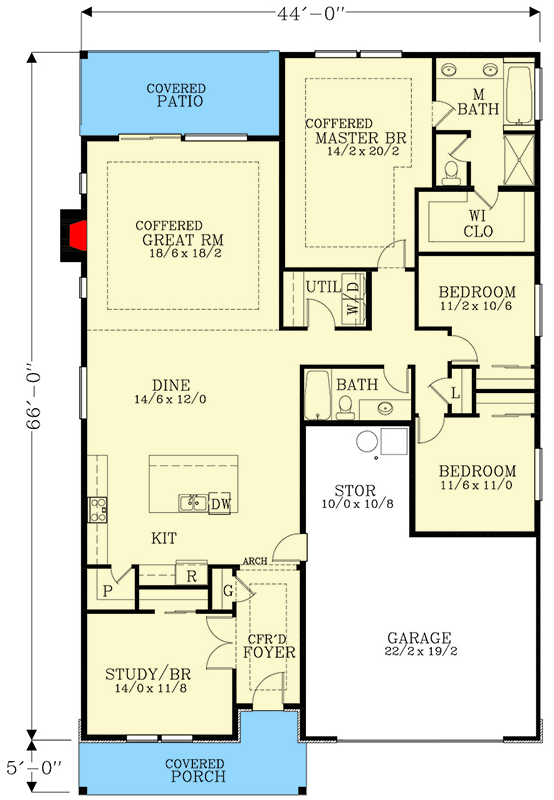

Plan 28117J: 2187 Square Foot Craftsman Bungalow with Flex Room - Floor Plan - Main Level - Bungalow, Craftsman, Northwest

Plan Details

  • Nested gables on the front elevation of this one-level 2,187 square foot home plan are decorated with shake siding, adding texture and character to the already charming curb appeal.
  • Inside, French doors lead to a quiet study, which could be used as a fourth bedroom. Straight ahead, the open floor plan combines the eat-in kitchen with the great room, providing a comfortable flow for everyday living.
  • The rear-facing master bedroom presents a step ceiling, along with a 4-fixture bath and walk-in closet.
  • Bedrooms 2 and 3 reside down the hall and share a full bath, across from the laundry closet.
  • The 2-car garage includes additional space for storage, and enters into the formal foyer, which includes a coat closet.
  • Related Plans: Get an alternate version with house plans 28000J and 28057J.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,187 sq. ft.

1st Floor

2,187 sq. ft.

Porch, Front

125 sq. ft.

Porch, Rear

152 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

66' 0"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

425 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,187 sq. ft.

1st Floor

2,187 sq. ft.

Porch, Front

125 sq. ft.

Porch, Rear

152 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

66' 0"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

425 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
