2194 Square Foot 4 Bed Modern Farmhouse Plan with Vaulted Great Room

Plan 51940HZ

  • 2,194

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 4 bed, 3.5 bath modern farmhouse plan gives you 2,194 square feet of heated living and a 2 car 624 square foot garage. The heart of the home features a large open plan kitchen, dining area, and great room, perfectly designed for socializing and hosting gatherings.
  • A well-appointed walk-in pantry ensures that your kitchen remains tidy and well-stocked. Additionally, an extra half bath adds convenience and functionality to the main level.
  • Step outside onto the expansive porch with an outdoor kitchen, ideal for entertaining and enjoying the outdoors.
  • And prepare to be amazed by the main suite, complete with an oversized closet that conveniently connects directly to the laundry area, making everyday tasks a breeze.

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plan with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

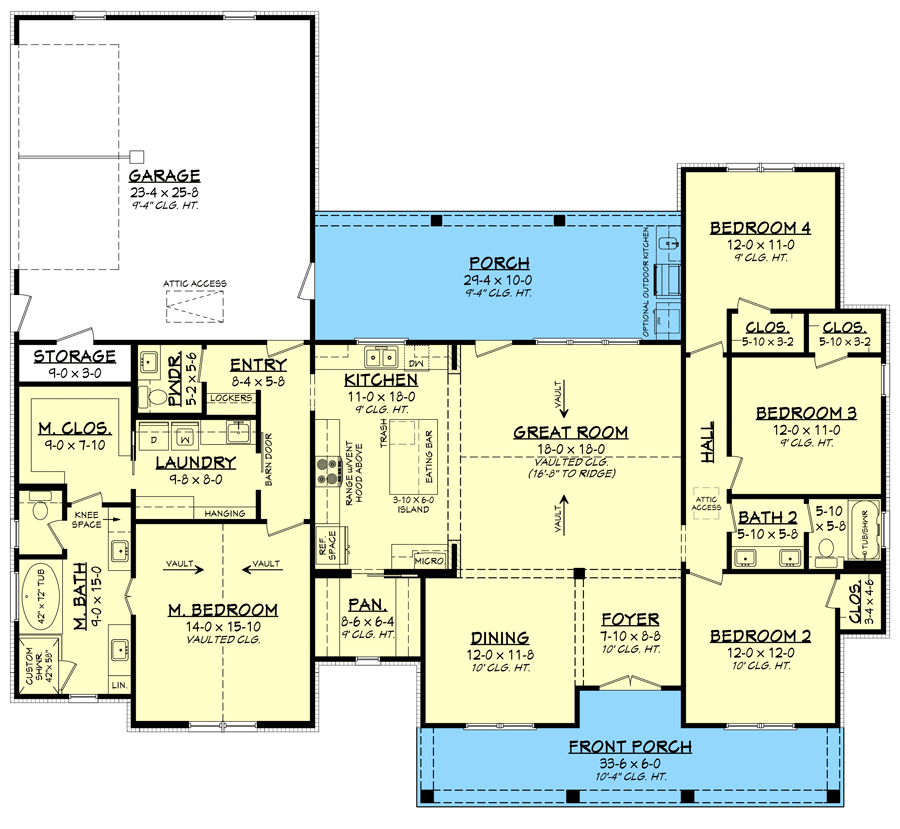

2194 Square Foot 4 Bed Modern Farmhouse Plan with Vaulted Great Room - 51940HZ floor plan - Main Level

Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2194 Square Foot 4 Bed Modern Farmhouse Plan with Vaulted Great Room - 51940HZ floor plan - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,194 sq. ft.
  • 1st Floor: 2,194 sq. ft.
  • Storage: 31 sq. ft.
  • Porch, Combined: 519 sq. ft.
  • Porch, Rear: 293 sq. ft.
  • Porch, Front: 226 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 8"
  • Depth: 63' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted 10' 0"
Master Bedroom Vaulted 10' 0"
Bedroom 2 Vaulted 10' 0"
Dining Room Vaulted 10' 0"
Foyer Vaulted 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

2194 Square Foot 4 Bed Modern Farmhouse Plan with Vaulted Great Room

  • 2,194

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets +PDF Single-Build $1,545
  • PDF - Unlimited Build $1,995
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • This 4 bed, 3.5 bath modern farmhouse plan gives you 2,194 square feet of heated living and a 2 car 624 square foot garage. The heart of the home features a large open plan kitchen, dining area, and great room, perfectly designed for socializing and hosting gatherings.
  • A well-appointed walk-in pantry ensures that your kitchen remains tidy and well-stocked. Additionally, an extra half bath adds convenience and functionality to the main level.
  • Step outside onto the expansive porch with an outdoor kitchen, ideal for entertaining and enjoying the outdoors.
  • And prepare to be amazed by the main suite, complete with an oversized closet that conveniently connects directly to the laundry area, making everyday tasks a breeze.

Floor Plans

  • Main Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,194 sq. ft.
  • 1st Floor: 2,194 sq. ft.
  • Storage: 31 sq. ft.
  • Porch, Combined: 519 sq. ft.
  • Porch, Rear: 293 sq. ft.
  • Porch, Front: 226 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 8"
  • Depth: 63' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
Plan 51940HZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/51940HZ
|
Need Help? 800-854-7852
|
Plan 51940HZ
