22' Wide House Plan with 3 Bedrooms Upstairs and a 1-Car Garage

Plan 31608GF

  • 1,430

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • This 22'-wide house plan gives you three bedrooms located upstairs, along with 2 full and one half bathrooms; a total of 1403 square feet of heated living space.
  • The narrow design is perfect for smaller lots and includes a single garage bay with quick access to the heart of the home.
  • Enjoy the open communal living space that combines the family room and the island kitchen. Sliding doors expand the living space onto a 10' by 6' rear patio.
  • Upstairs, discover three bedrooms including the master bedroom which is located towards the rear and includes a walk-in closet and 4-fixture bath.
  • The two remaining bedrooms share a full bath and the central laundry room is conveniently located upstairs.
  • Related Plan: Find a 20'-wide home plan with 31609GF.

Each plan set includes:

  • Cover Sheet: Shows typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

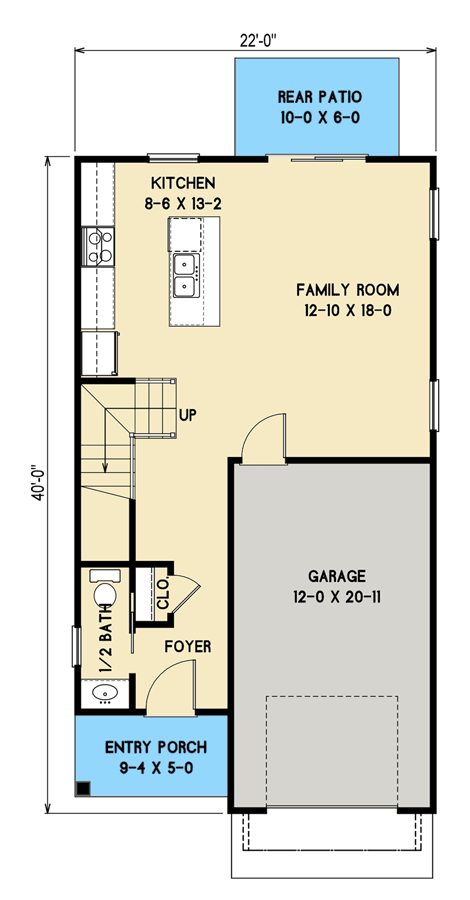

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
22' Wide House Plan with 3 Bedrooms Upstairs and a 1-Car Garage - 31608GF floor plan - Main Level

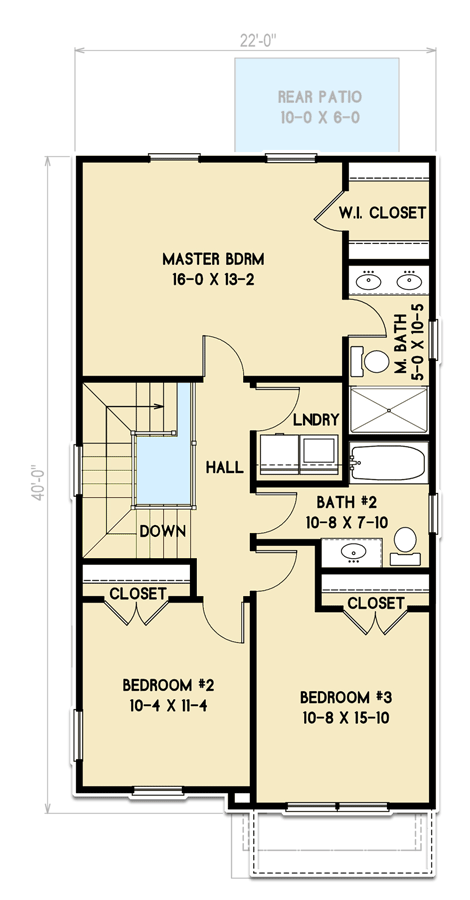

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
22' Wide House Plan with 3 Bedrooms Upstairs and a 1-Car Garage - 31608GF floor plan - 2nd Floor
