Plan 710419BTZ 2400 Square Foot New American Cottage with Flex Room Loft or Bedroom

2,405 3-4 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2400 Square Foot New American Cottage with Flex Room Loft or Bedroom

Plan 710419BTZ

  • 2,405

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

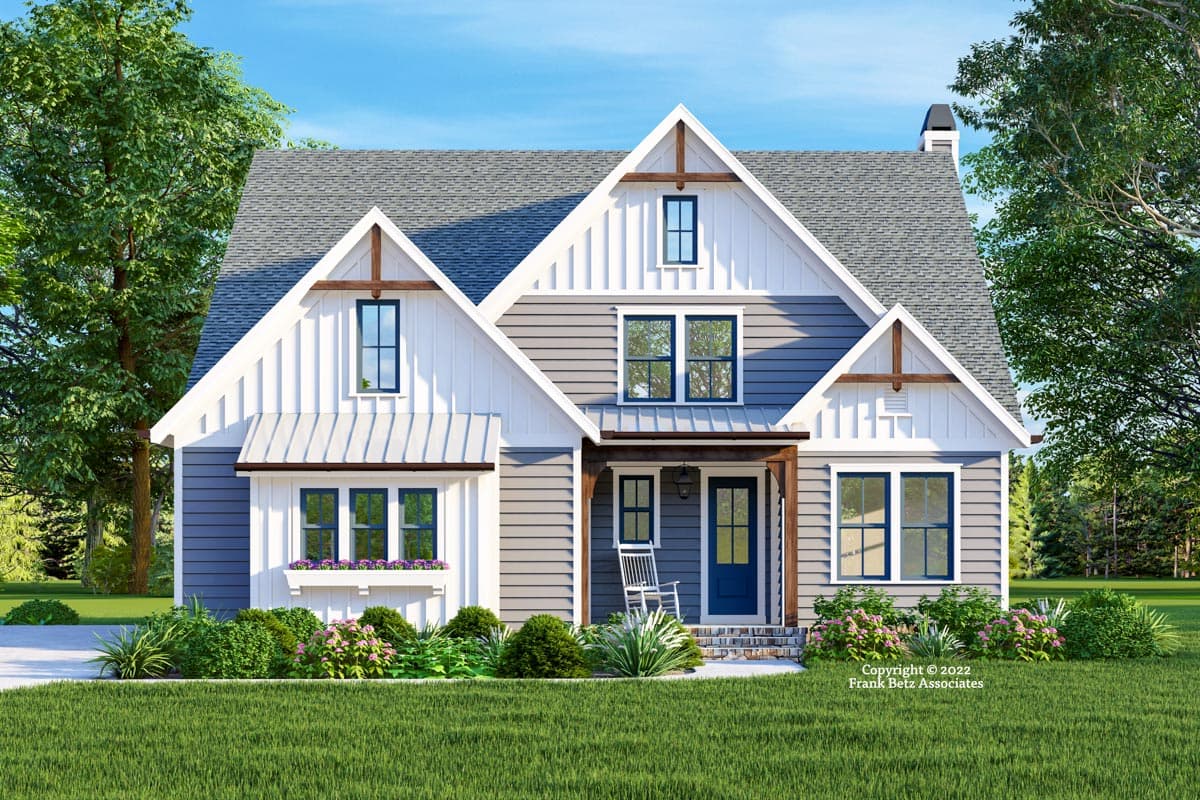

  • A modest 6'-deep front porch which signifies the main entrance welcomes all who approach. The mixed use of textures and colors compliment each other to create a striking elevation design.
  • Steeply pitched gables, stained timber accents and dark window sashes complete the exterior. The main level is open, airy and light filled so that the occupants live free and easy. The owner's suite is private and secluded
  • for rest and relaxation when needed. The spa bath pampers the owners with amenities found at luxurious resorts, The flex room has many uses such as a bedroom, home work space or a cozy den. The covered outdoor space provides additional living space as well as shelter from the elements.
  • The upper level houses two additional bedrooms and a compartmentalized bathroom. The loft is perfect for reading, home work assignments or a gaming console. This space can be converted into another bedroom as the family grows.
  • Related Plan: Get an alternate version with house plan 710040BTZ.

The plans include the following:

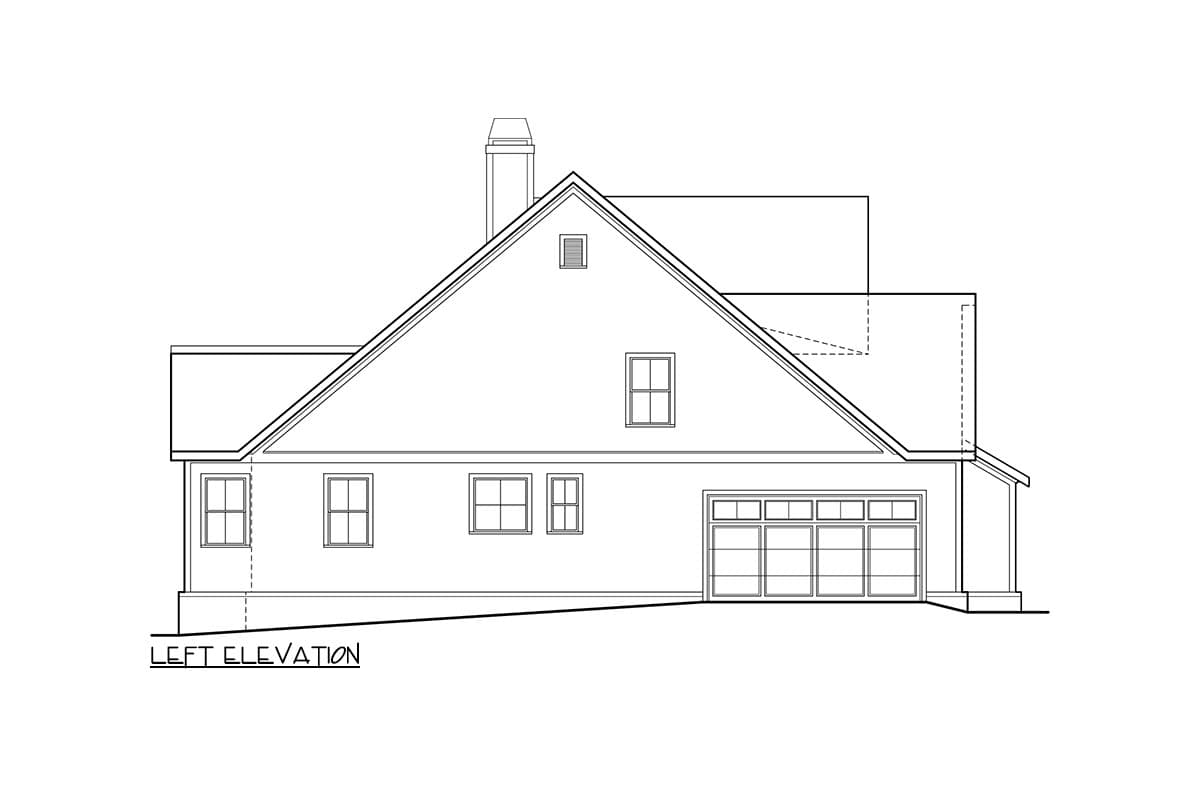

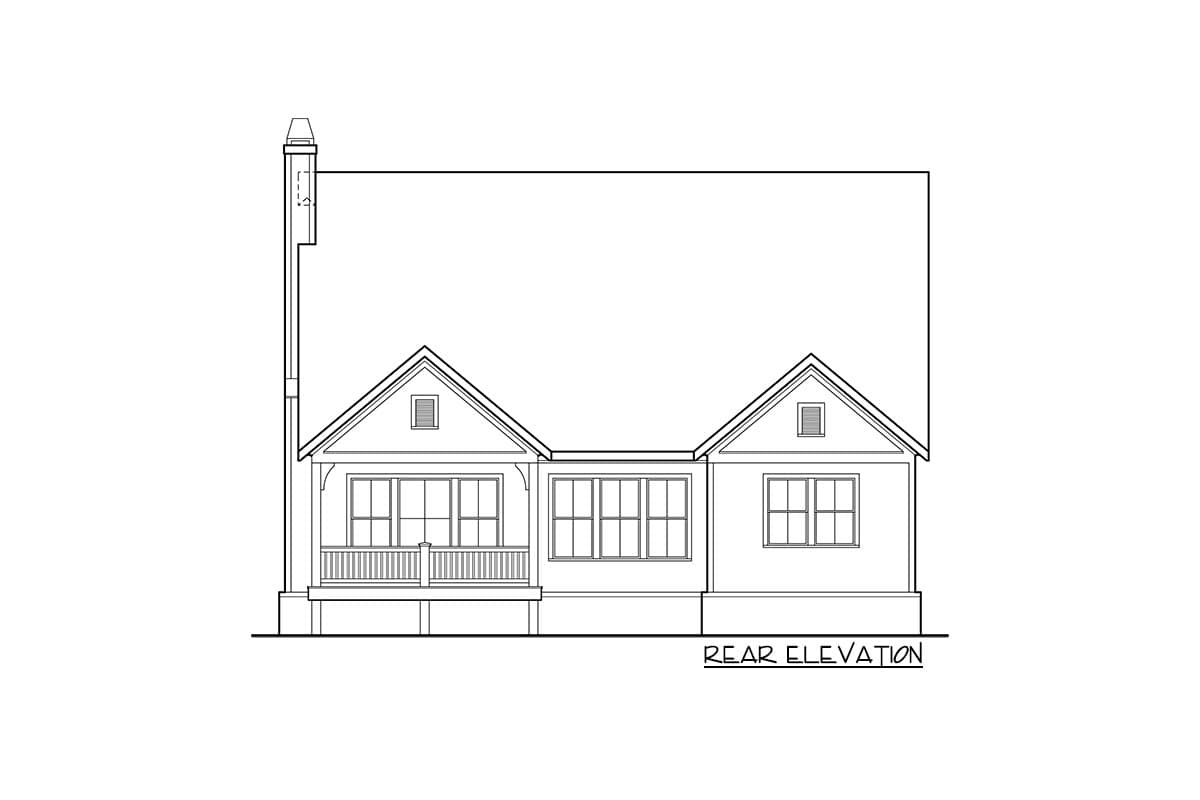

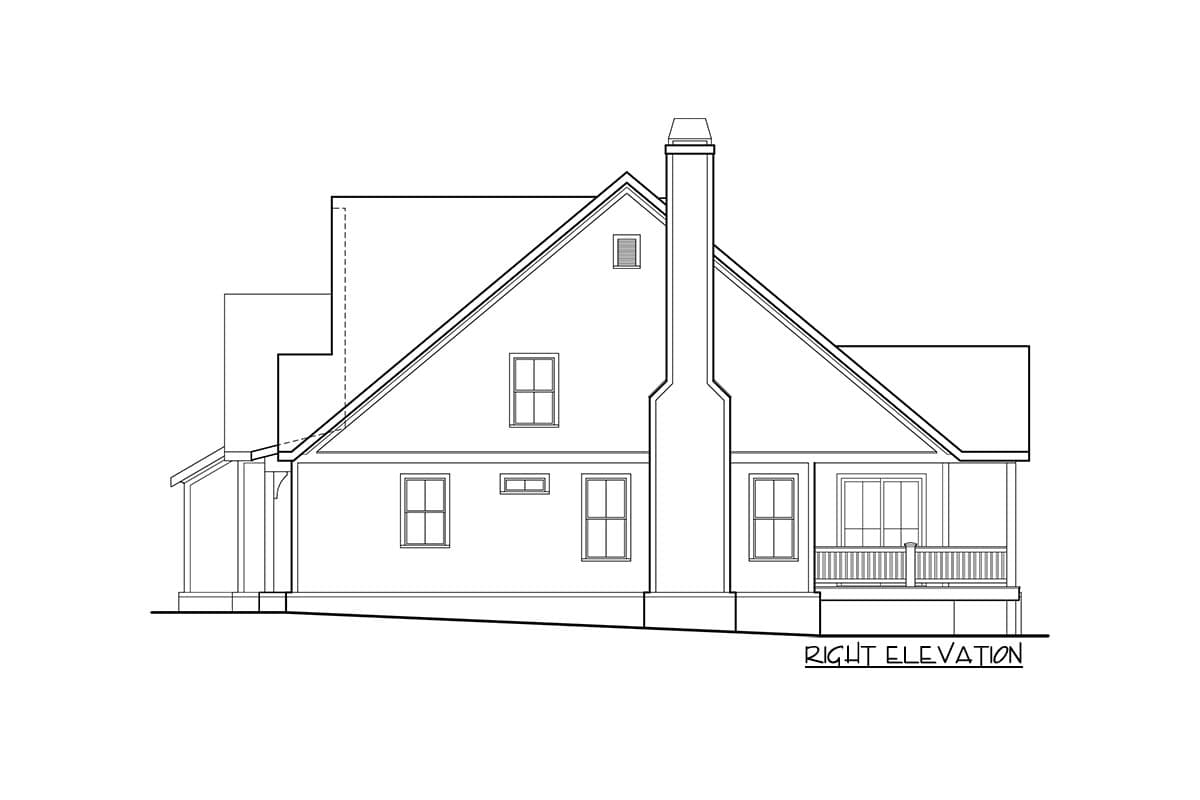

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

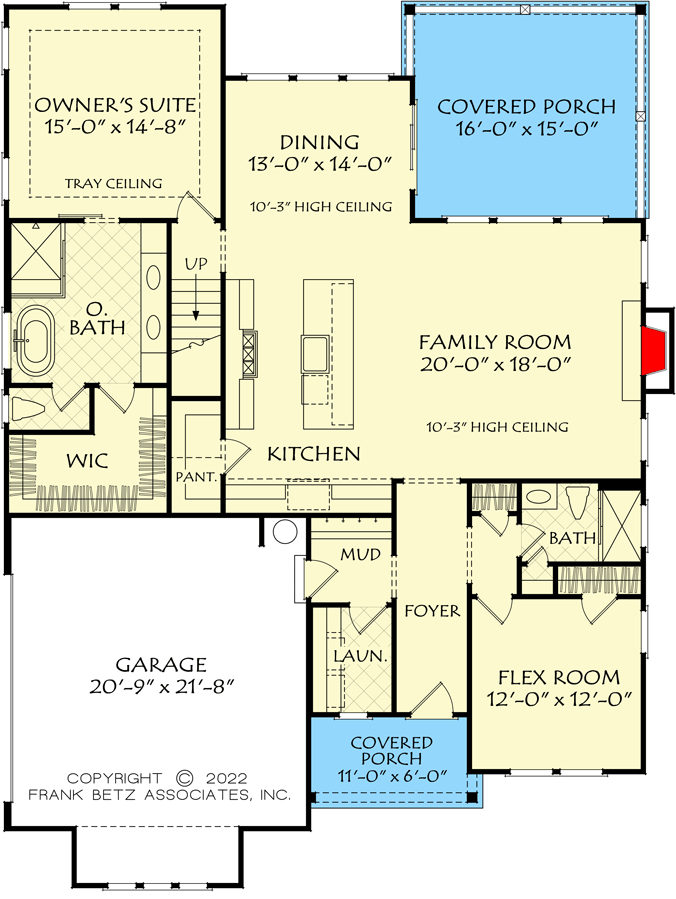

2400 Square Foot New American Cottage with Flex Room Loft or Bedroom - 710419BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

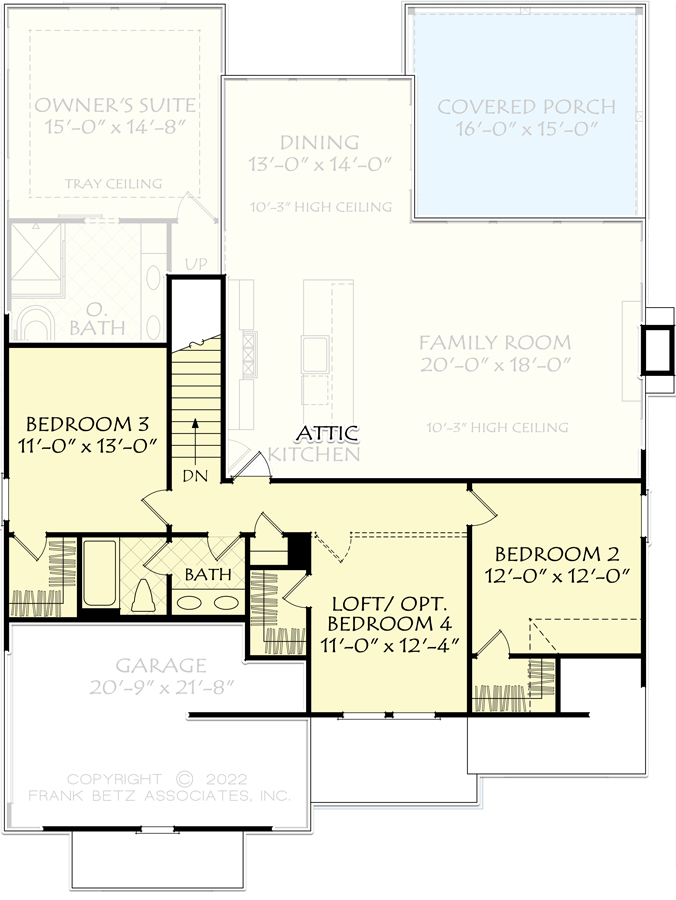

2400 Square Foot New American Cottage with Flex Room Loft or Bedroom - 710419BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • 1st Floor: 1,694 sq. ft.
  • 2nd Floor: 711 sq. ft.
  • Porch, Rear: 246 sq. ft.
  • Porch, Front: 67 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 47' 0"
  • Depth: 62' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 517 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

2400 Square Foot New American Cottage with Flex Room Loft or Bedroom

  • 2,405

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets + PDF $1,875
  • PDF - Unlimited Build $1,895
  • PDF - Unlimited Build + 5-sets $2,175
  • CAD - Unlimited Build $3,195
  • View all purchase option online

About This Plan

  • A modest 6'-deep front porch which signifies the main entrance welcomes all who approach. The mixed use of textures and colors compliment each other to create a striking elevation design.
  • Steeply pitched gables, stained timber accents and dark window sashes complete the exterior. The main level is open, airy and light filled so that the occupants live free and easy. The owner's suite is private and secluded
  • for rest and relaxation when needed. The spa bath pampers the owners with amenities found at luxurious resorts, The flex room has many uses such as a bedroom, home work space or a cozy den. The covered outdoor space provides additional living space as well as shelter from the elements.
  • The upper level houses two additional bedrooms and a compartmentalized bathroom. The loft is perfect for reading, home work assignments or a gaming console. This space can be converted into another bedroom as the family grows.
  • Related Plan: Get an alternate version with house plan 710040BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • 1st Floor: 1,694 sq. ft.
  • 2nd Floor: 711 sq. ft.
  • Porch, Rear: 246 sq. ft.
  • Porch, Front: 67 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 47' 0"
  • Depth: 62' 0"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 517 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
