2434 Square Foot 3 Bed Contemporary House Plan with Large Deck
Heated S.F.
2,434
Beds
3
Baths
2.5
Stories
3
Cars
2
What's Included
Plan Details
  • This 3 bed, 2.5 bath contemporary house plan gives you 2,434 square feet of heated living space including the third floor (250 square foot) loft.

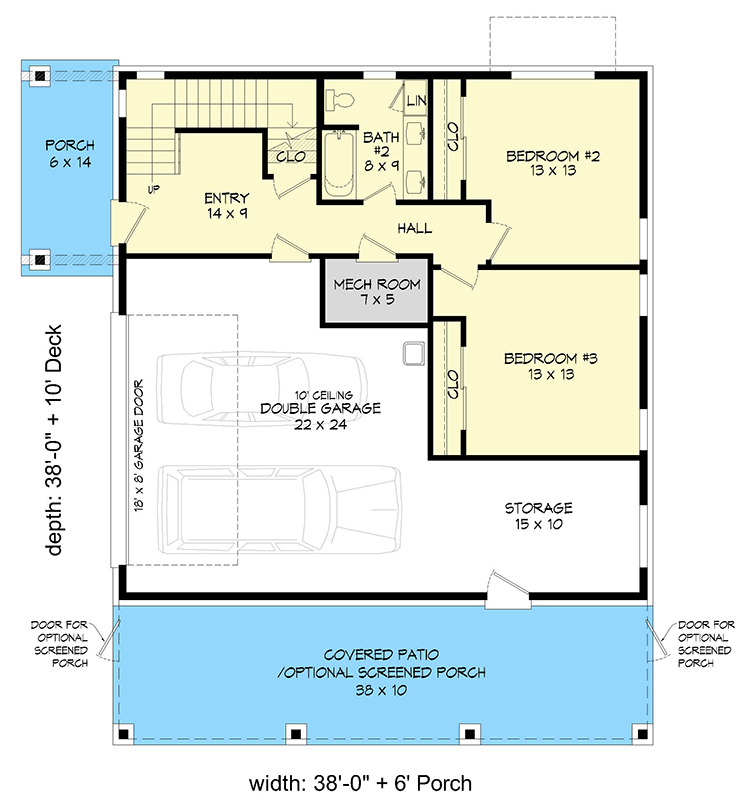

  • Two bedrooms share a bath on the ground floor which also has parking for two cars plus storage. A 38' by 10' covered patio can be optionally screened giving you a great fresh air space to enjoy.

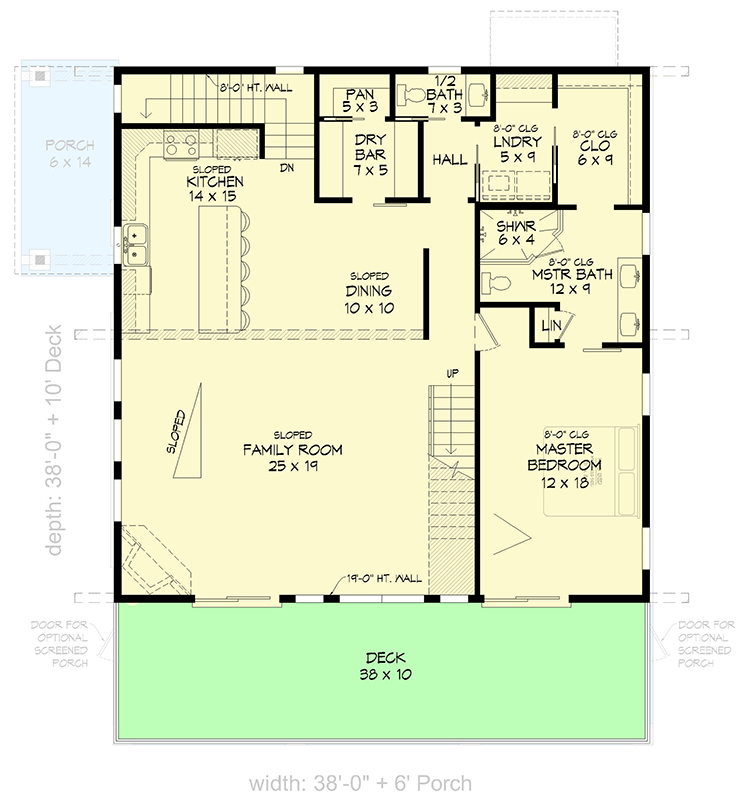

  • The second floor has a vaulted ceiling that rises from 8' to 19'. Windows fill the family room with optional corner fireplace giving you great views and natural light. Sliding doors on the right wall take you to a 38' by 10' open air deck.
  • The master suite occupies the entire back of the home and has a five-fixture bath with a walk-in closet that has direct access to the laundry room.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2434 Square Foot 3 Bed Contemporary House Plan with Large Deck

  • 2,434

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Loft Level

Plan Details

Square Footage Breakdown

  • Total: 2,434 sq. ft.
  • 1st Floor: 740 sq. ft.
  • 2nd Floor: 1,444 sq. ft.
  • 3rd Floor: 250 sq. ft.
  • Mech. Room: 39 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 48' 0"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 665 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
