Plan 444390GDN

2500 Square Foot Modern Farmhouse Plan with Vaulted Great Room and 7'-Deep Pordches

Name: Plan 444390GDN: 2500 Square Foot Modern Farmhouse Plan with Vaulted Great Room and 7'-Deep Pordches
Brand: Architectural Designs
SKU: 444390GDN
Price: 1925.0 USD
Availability: InStock

Heated S.F.

2,500

Beds

Baths

Stories

Cars

Floor Plan

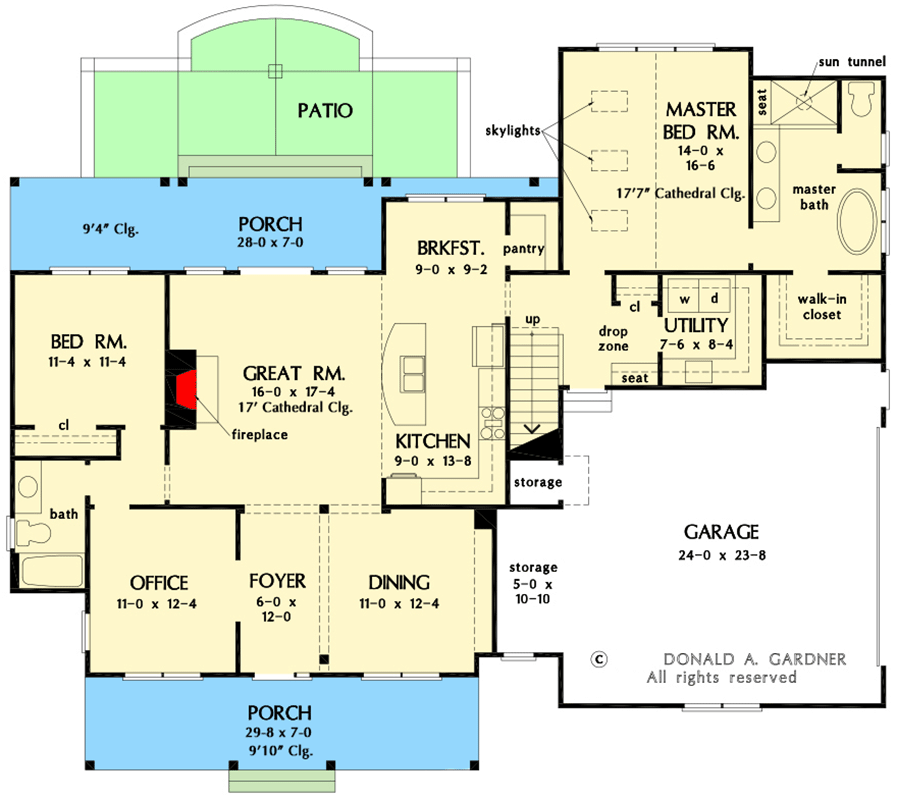

Main Level

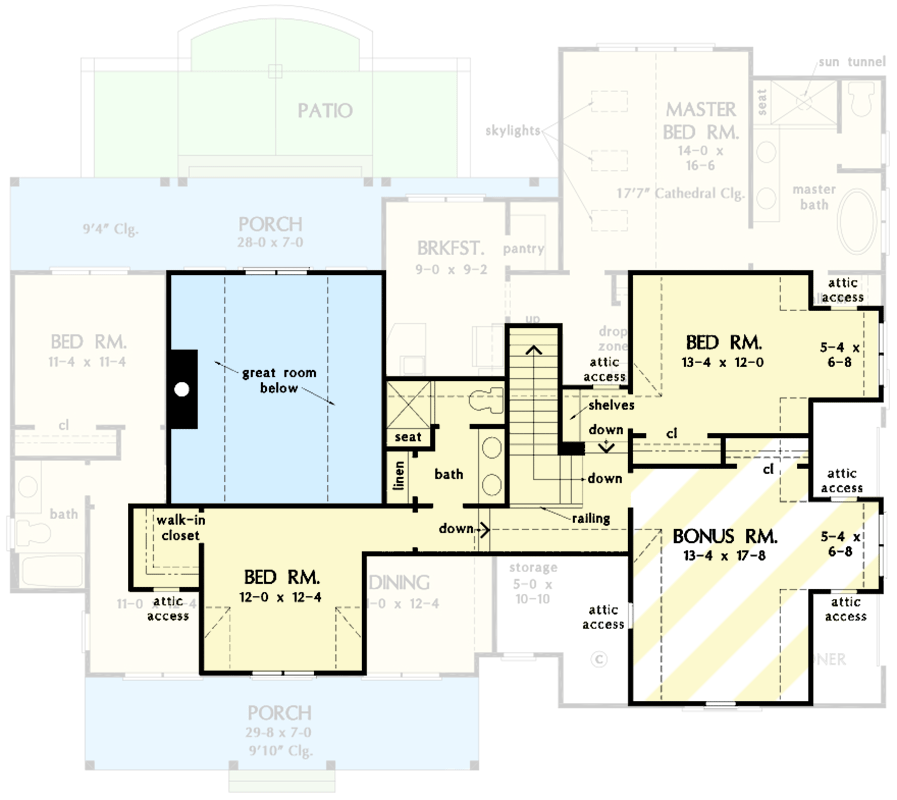

2nd Floor

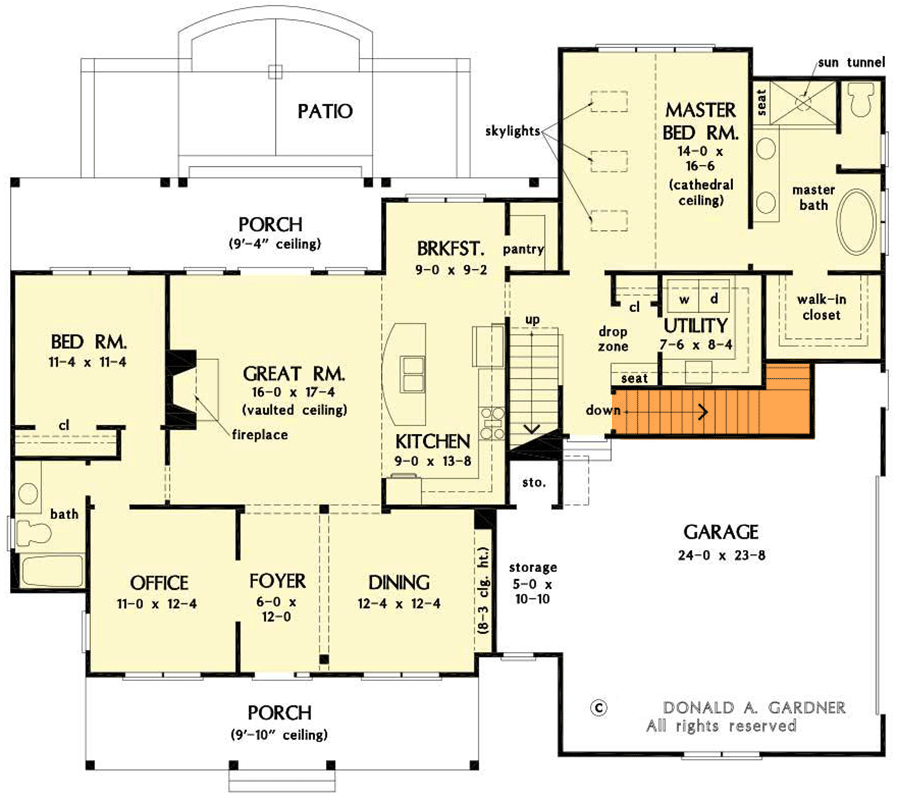

Basement Stairs Location

Plan Details

This modern farmhouse design features a board-and-batten facade highlighted by decorative gable trusses, shutters, and spacious 7'-deep front and rear porches.
The vaulted great room (17' ceiling peak) opens to an island kitchen and a separate dining room and breakfast nook offer flexibility at mealtime.
The master bedroom is spectacular with a cathedral ceiling and a trio of skylights. Thoughtfully designed, the master bathroom features a freestanding bathtub, walk-in shower, and an adjoining walk-in closet.
A secondary bedroom and a dedicated home office are downstairs while two additional bedrooms and an optional bonus room are upstairs.
Related Plans: Get alternate versions with house plans 444121GDN and 444224GDN, both 1,683 square feet, 444399GDN (1,569 sq. ft.) and 444395GDN (2,123 sq. ft.).
Please allow 15 to 20 days for delivery if it includes the 2x6 exterior wall conversion.
Please allow 10 to 15 days for delivery if it includes readable reverse.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
