2614 Square Foot 2-Story New American House Plan with 3 Upstairs Bedrooms
Heated S.F.
2,614
Beds
3
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • This 2-story New American-style house plan gives you 3 beds (all upstairs), 2.5 baths and 2,614 square feet of heated living.

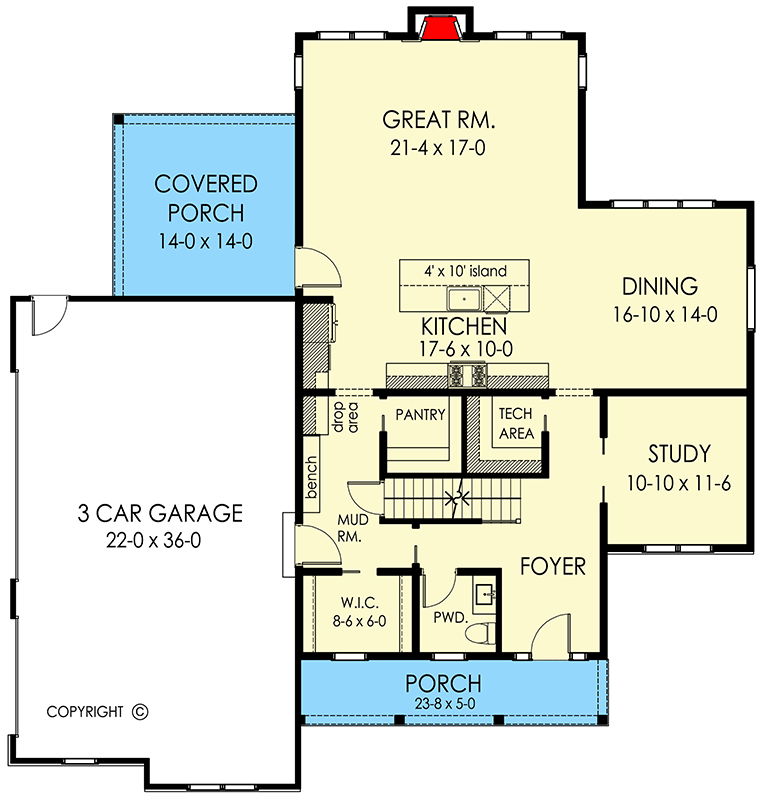

  • The kitchen sits at the intersection of the great room with fireplace and the dining room. The kitchen has an island and a walk-in pantry and convenient access to the garage by the mudroom with built-in bench and drop area.
  • Behind pocket doors, you'll find the study which gives you a great work from home space.

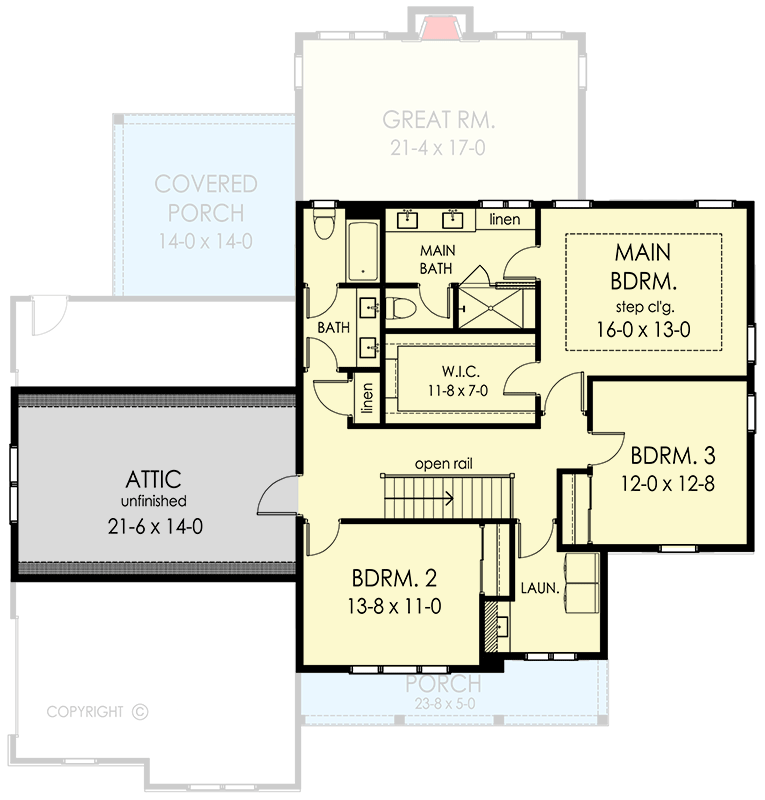

  • Upstairs laundry is a great convenience with all the bedrooms being located upstairs.
  • The 3-car garage gives you 818 square feet of space for your vehicles and gear.
  • Related Plan: Get a smaller version with house plan 790139GLV.
What's Included
  • Cover sheet with notes

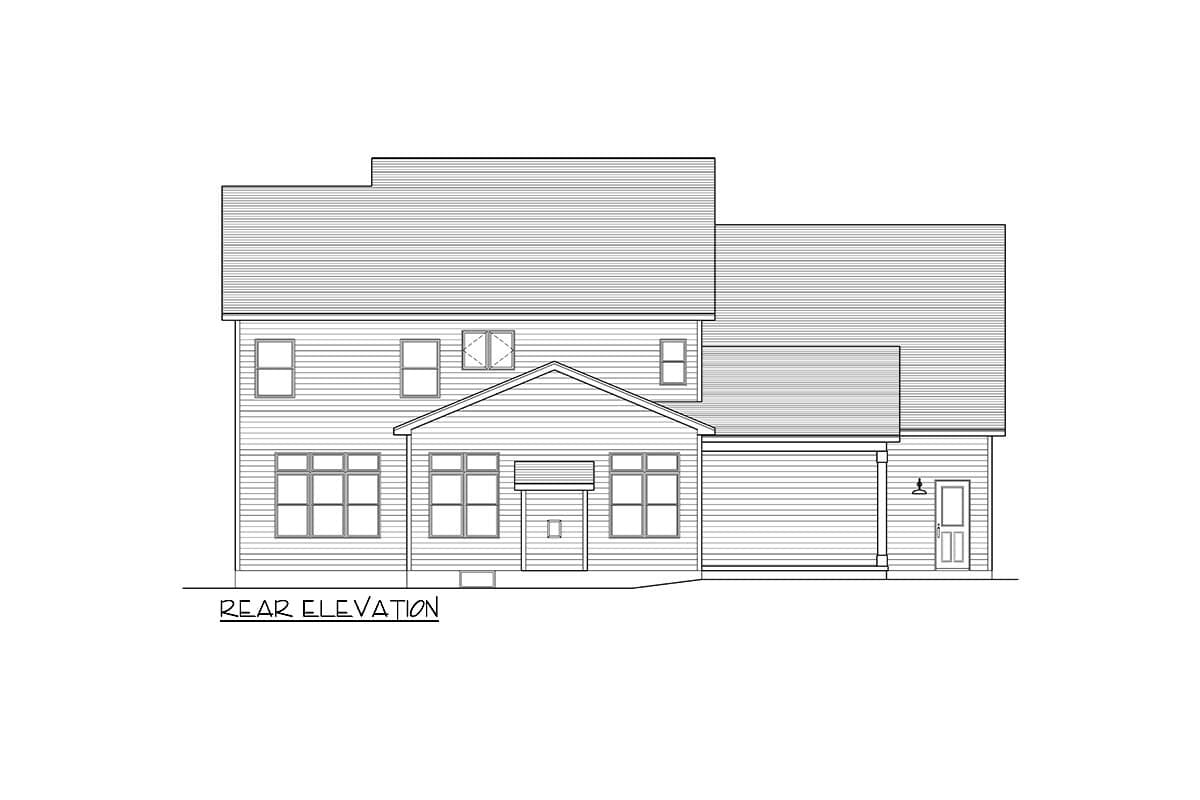

  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
