2640 Square Foot Traditional-Style Rambler with 2-Story Great Room and a Home Office
Heated S.F.
2,640
Beds
2-4
Baths
2.5 - 3.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

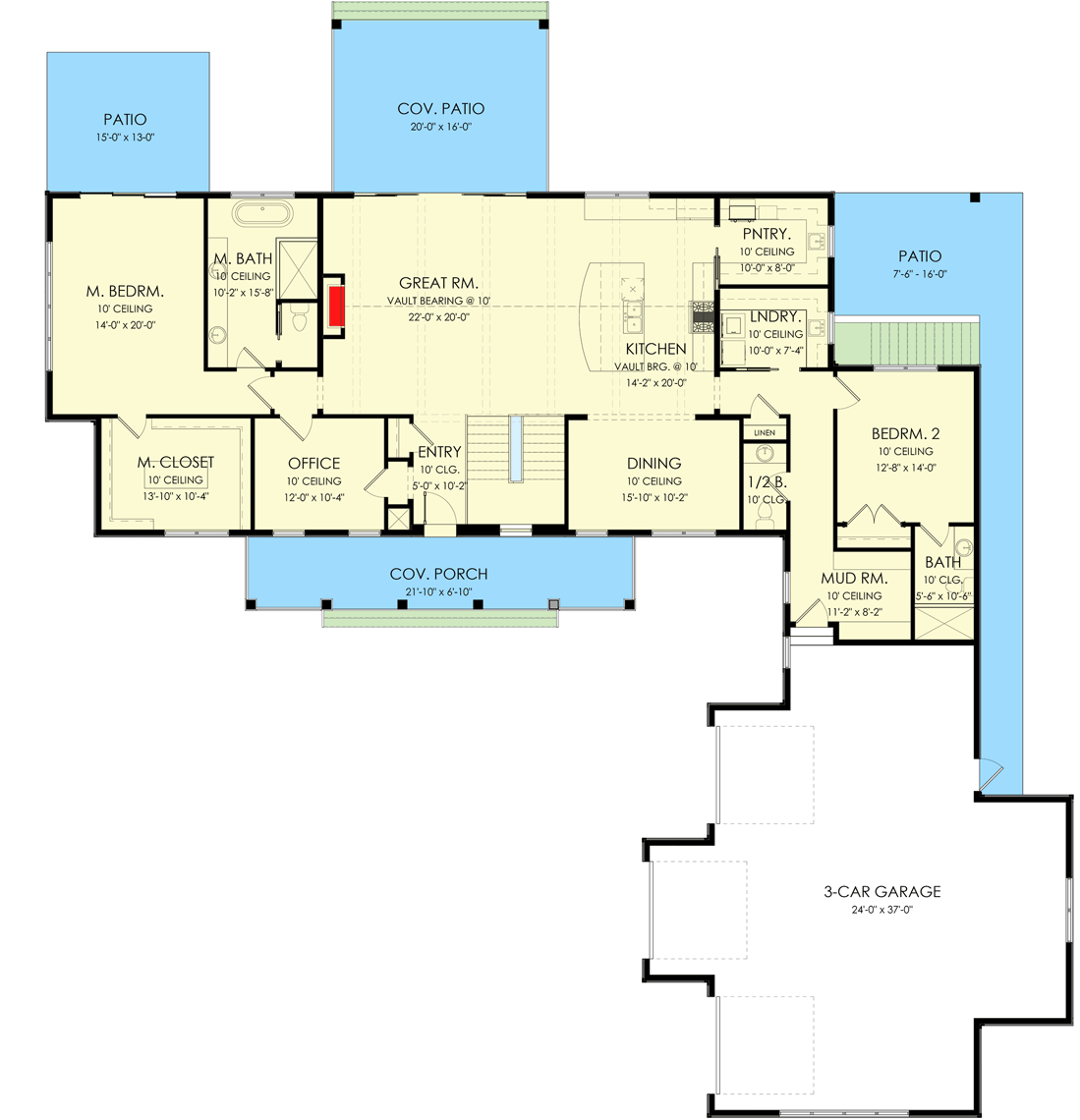

Main Level
Reverse Floor Plan
2640 Square Foot Traditional-Style Rambler with 2-Story Great Room and a Home Office - 490065NAH floor plan - Main Level

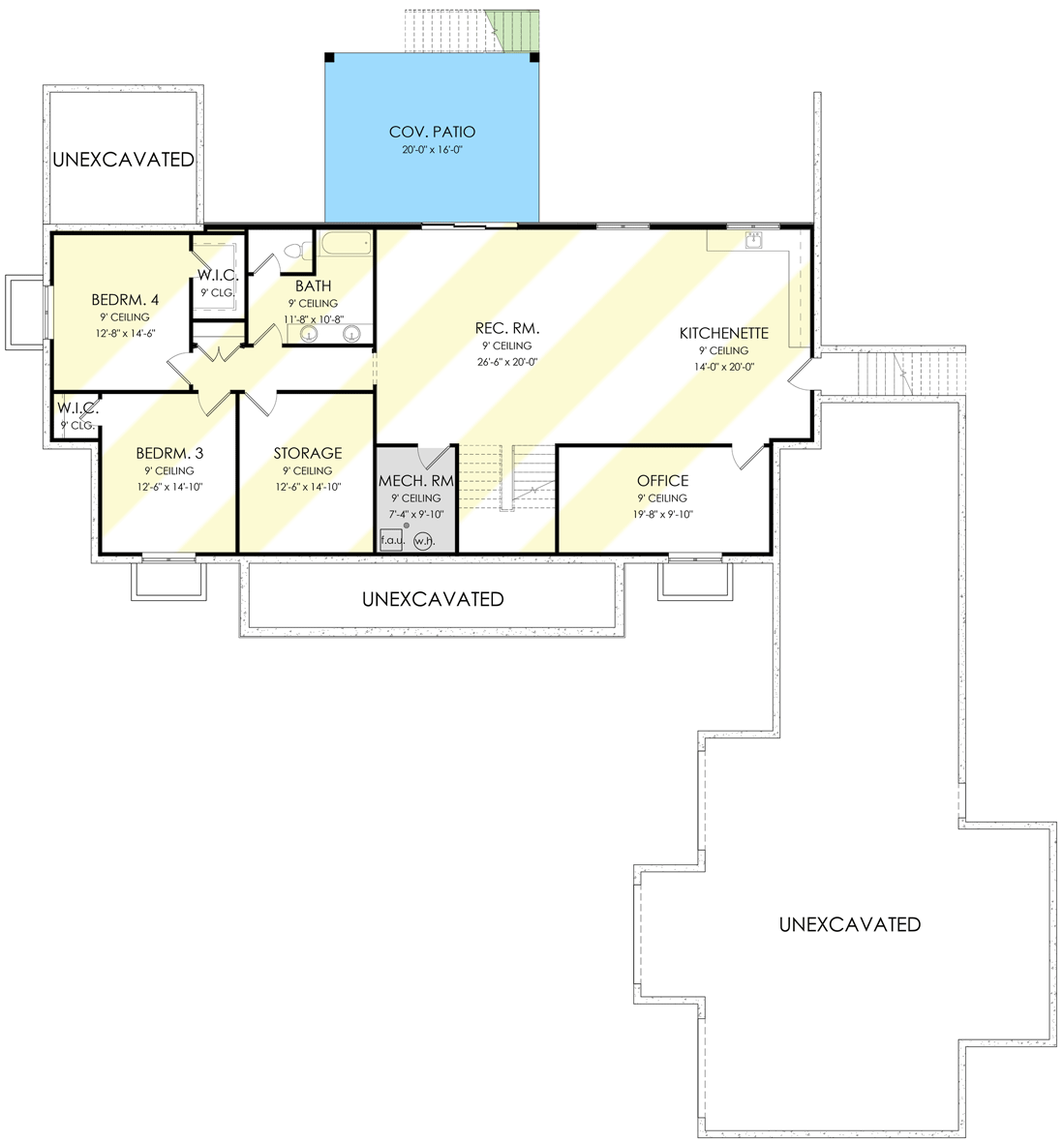

Optional Walkout Lower Level
Reverse Floor Plan
2640 Square Foot Traditional-Style Rambler with 2-Story Great Room and a Home Office - 490065NAH floor plan - Optional Walkout Lower Level

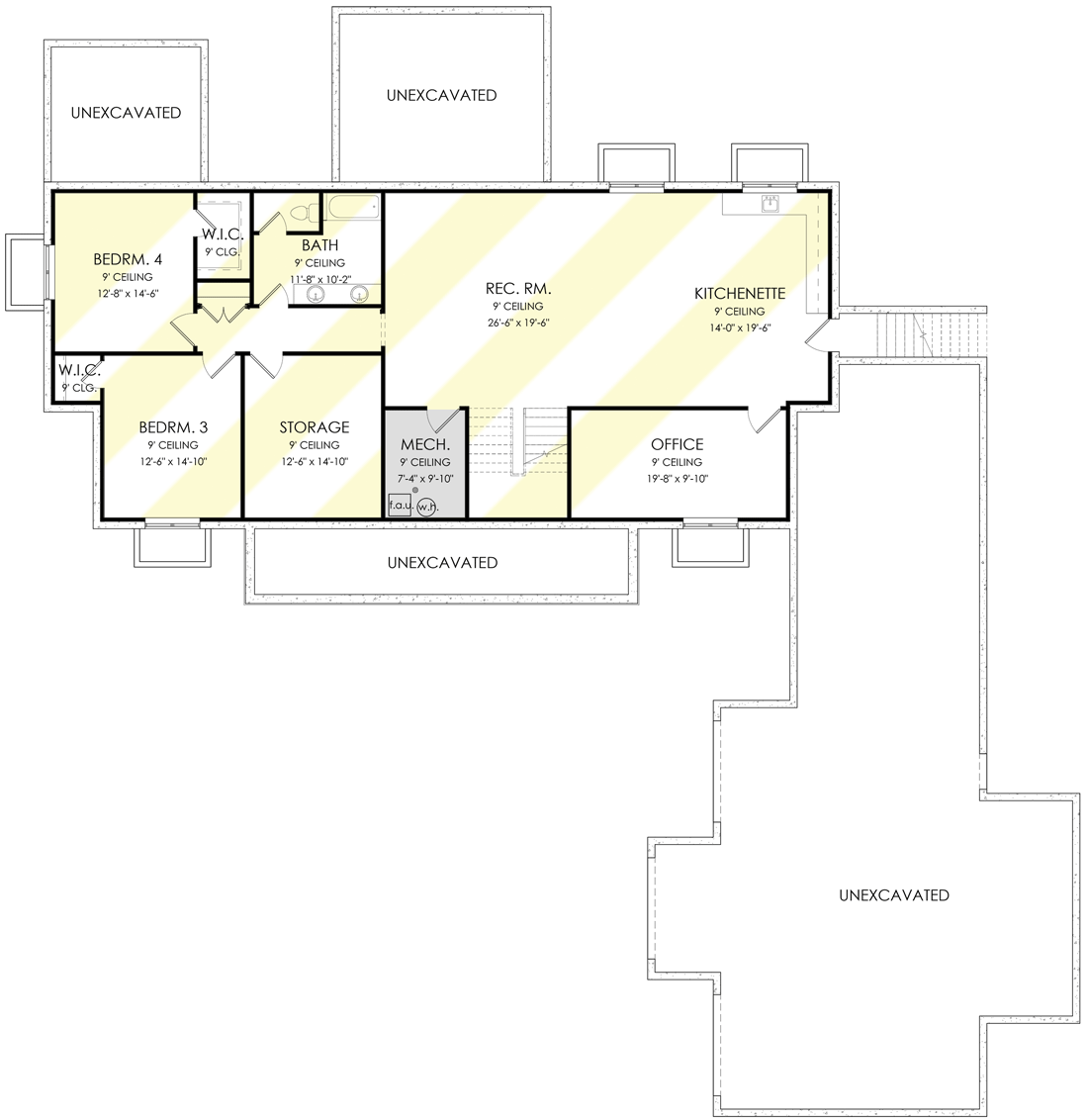

Optional Lower Level
Reverse Floor Plan
2640 Square Foot Traditional-Style Rambler with 2-Story Great Room and a Home Office - 490065NAH floor plan - Optional Lower Level

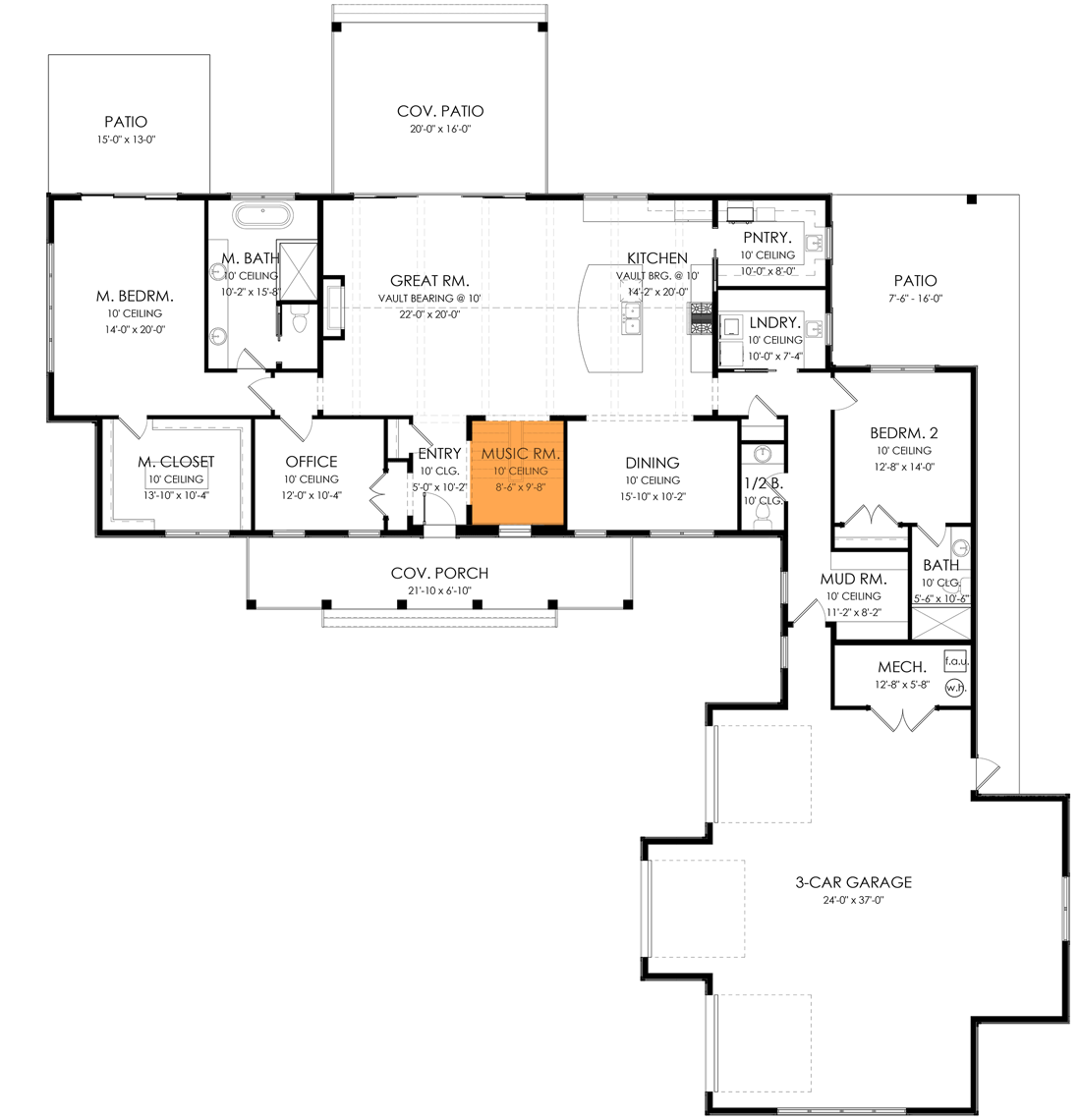

Optional Crawl/Slab Main Level
Reverse Floor Plan
2640 Square Foot Traditional-Style Rambler with 2-Story Great Room and a Home Office - 490065NAH floor plan - Optional Crawl/Slab Main Level
Plan Details
  • This traditional-style rambler offers a covered porch in the front and a patio in the rear giving you great fresh air spaces to enjoy. The exterior has a mix of stone and board and batten siding. Wood columns surround the covered porch and patio.
  • Step in off the covered porch and you find yourself in the entry that opens to the great room and kitchen. The great room has a vaulted ceiling, fireplace, and series of windows and sliding door to the backyard. An open concept design, the kitchen looks towards the great room fireplace, with the dining room off to the side.
  • The master bedroom with walk-in closet and the accompanying bathroom with standing shower, full-size tub, and double vanities enjoys privacy on one side of the house, with another bedroom on the opposite side.
  • This home offers basement expansion (1,722 square feet when finished as shown) with a kitchenette with exterior entrance, recreation room, two more bedrooms with walk-in closets, another office room, and plenty of storage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2640 Square Foot Traditional-Style Rambler with 2-Story Great Room and a Home Office

  • 2,640

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Walkout Lower Level

  • Optional Lower Level

  • Optional Crawl/Slab Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,640 sq. ft.
  • 1st Floor: 2,640 sq. ft.

Dimensions

  • Width: 94' 8"
  • Depth: 101' 4"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1313 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"
