Plan 83643CRW
2695 Square Foot Traditional House Plan with Formal and Informal Dining
Heated S.F.
2,695
Beds
4
Baths
2.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 83643CRW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 83643CRW

1-800-854-7852

1-262-521-4596

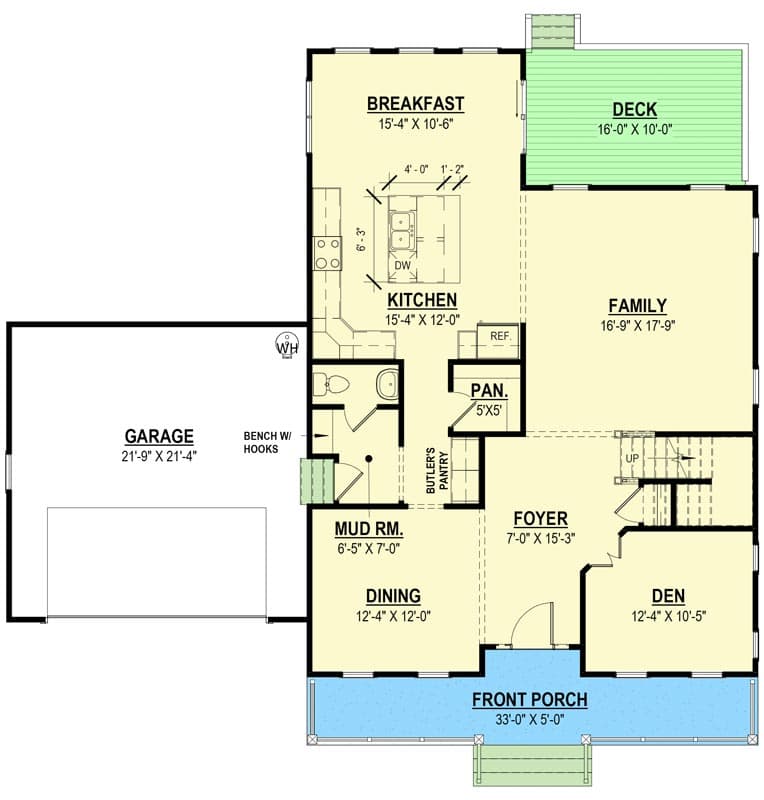

Main Level
floor plan image Main Level

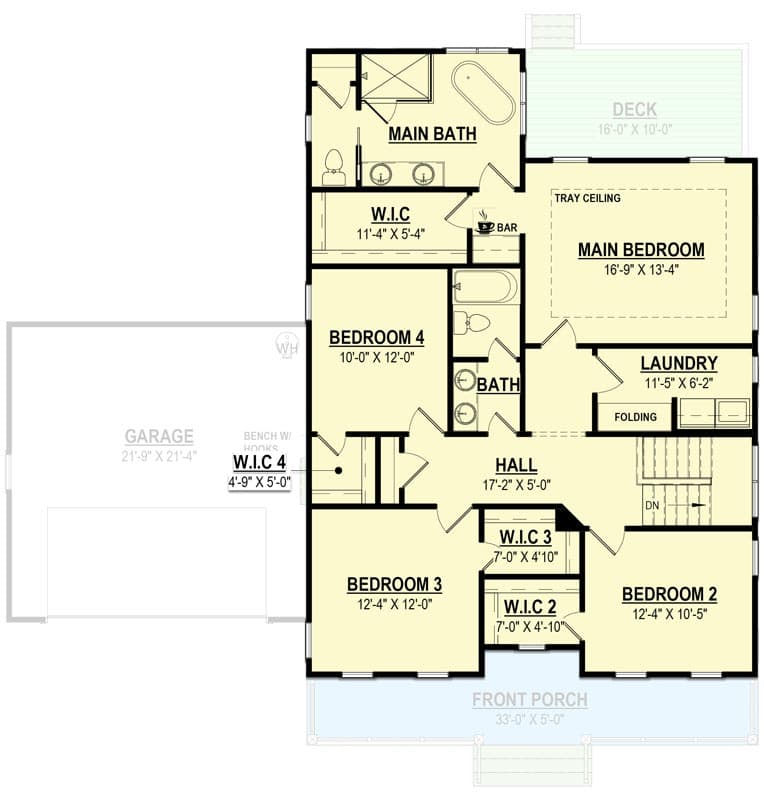

2nd Floor
floor plan image 2nd Floor
Plan Details

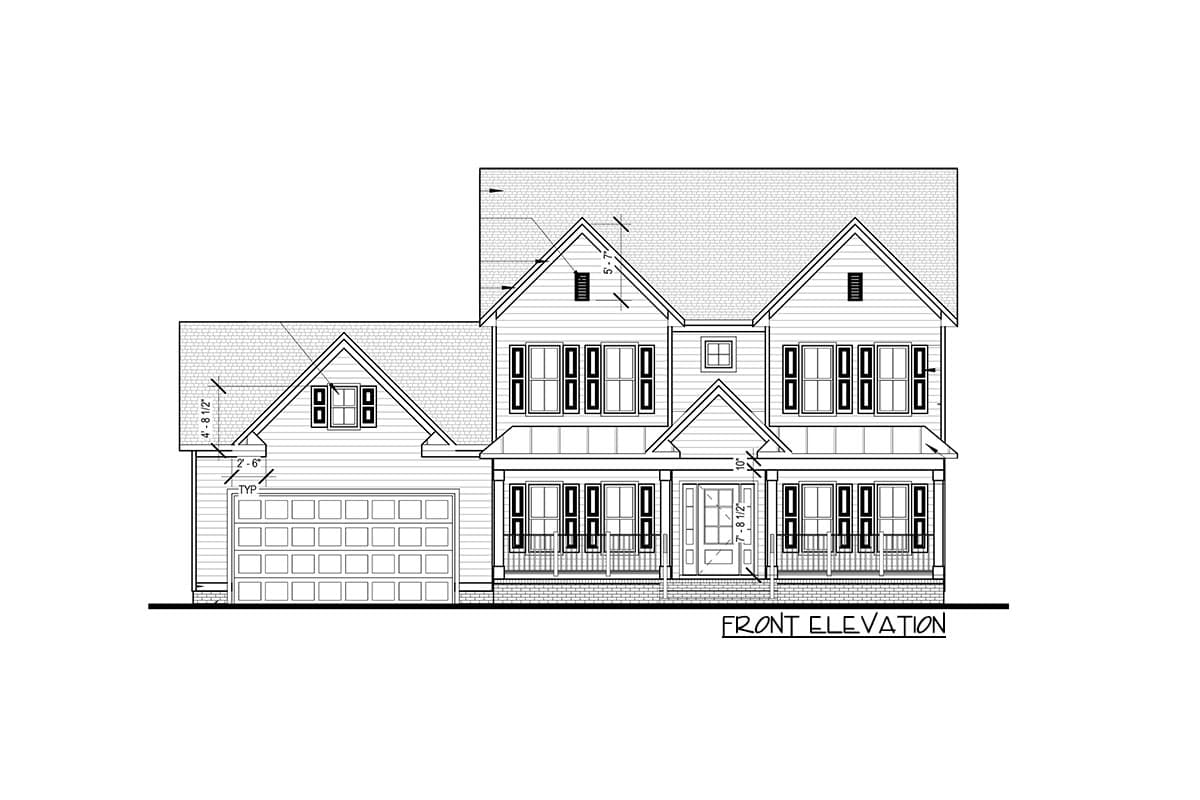

  • A 5'-deep front porch extends across the front of this 2,695 square foot traditional house plan with great symmetry and a 2-car garage. The front door is centered on the porch and leads to the foyer with your formal dining room to the left and a den - this makes a great home office - on the right.
  • Enjoy the views to the side and back from the family room. The kitchen has a large island (5'2" by 6'3") and is open to the breakfast room and the family room. The walk-in pantry gives you great storage and there is even more storage in the adjacent butler's pantry.
  • All the bedrooms - and laundry - are located on the second floor. The master bedroom has a tray ceiling and a morning bar - great for the coffee lover - and a large walk-in closet and a five-fixture bath.
  • Related Plan: Eliminate the front porch with 83642CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

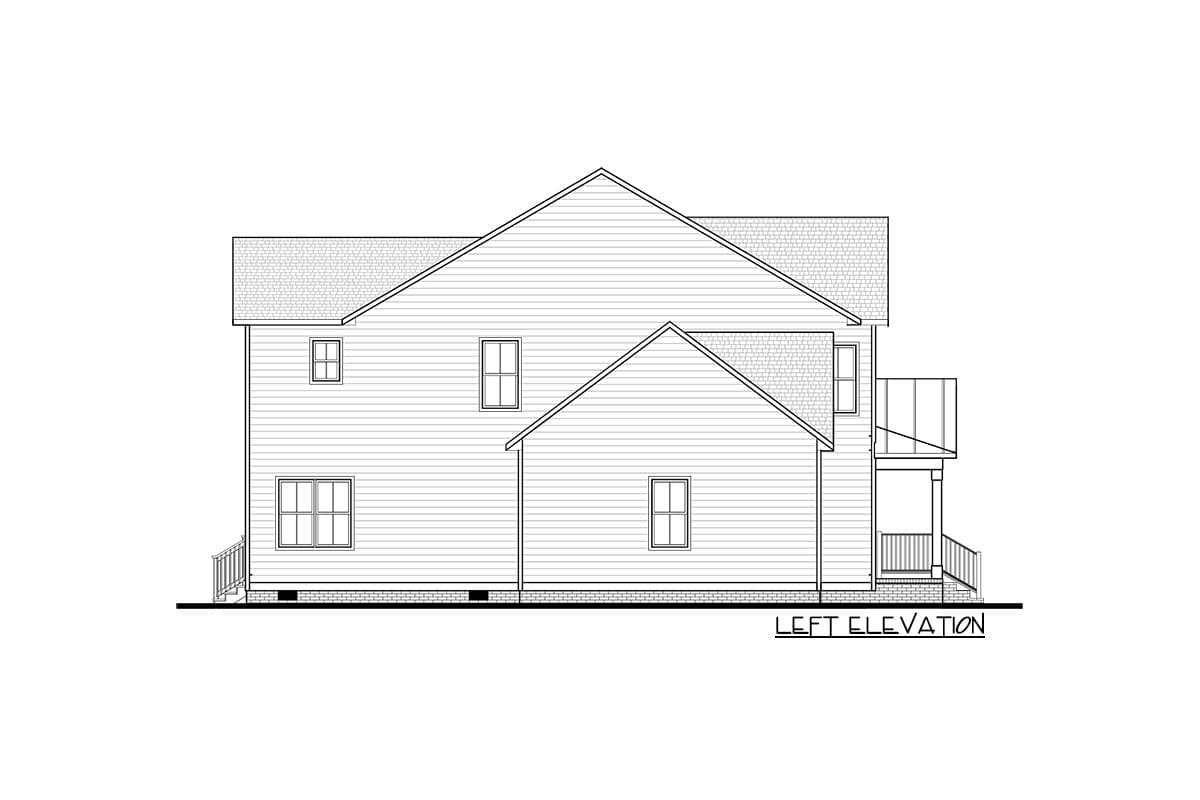

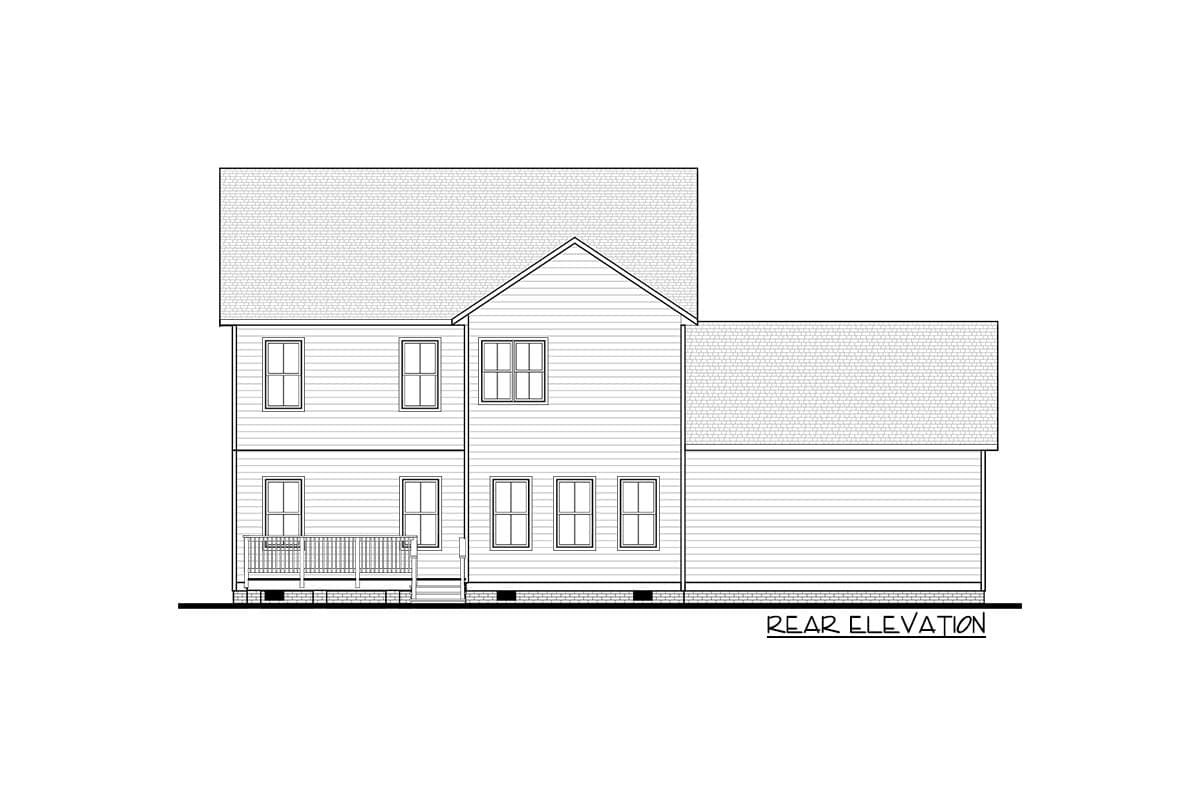

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,695 sq. ft.

1st Floor

1,327 sq. ft.

2nd Floor

1,368 sq. ft.

Optional Lower Level

972 sq. ft.

Porch, Front

179 sq. ft.

Deck

160 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

55' 0"

Depth

46' 0"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

491 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Formal Dining

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
