2718 Square Foot Split Bedroom Craftsman-Style House Plan with 3-Car Garage

Plan 135239GRA

  • 2,718

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This split bedroom house plan gives you 2,718 square feet of one-level living and a 3-car front-facing garage (885 square feet) with mudroom access.
  • A home office is located off the foyer and can be open or enclosed.
  • An open concept layout gives you a great room with views to the back open to the kitchen and dining room. Sliding doors on the back wall of the dining room open to a 14' by 12' deck.
  • The master suite occupies the entire left side of the home and has a five-fixture bath with access to a large walk-in closet. Across the home, two bedrooms with linear closets share a bath.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

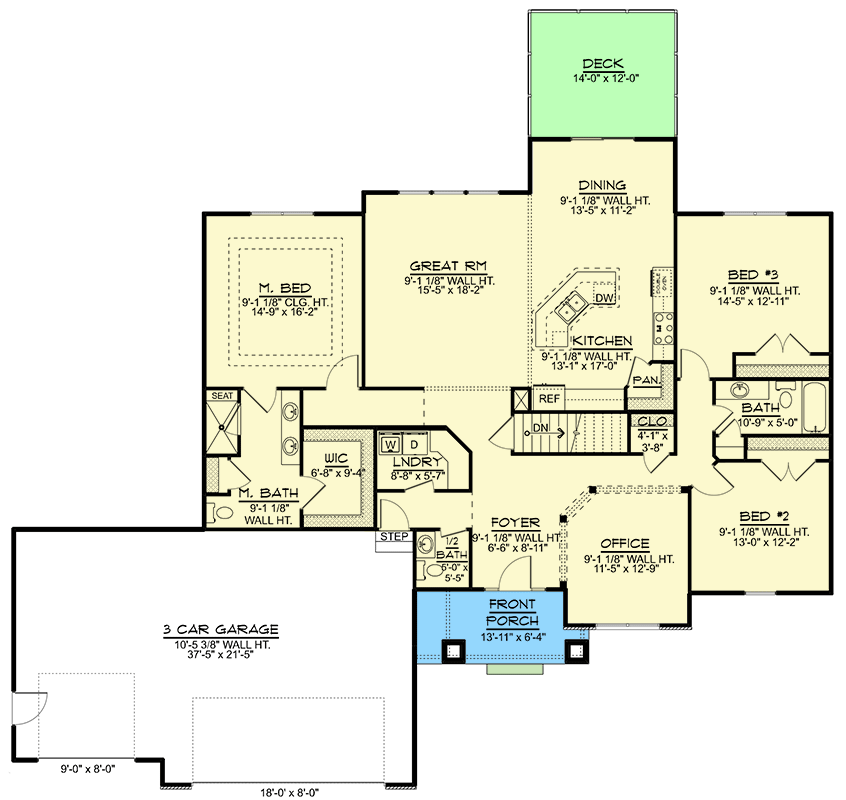

2718 Square Foot Split Bedroom Craftsman-Style House Plan with 3-Car Garage - 135239GRA floor plan - Main Level

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2718 Square Foot Split Bedroom Craftsman-Style House Plan with 3-Car Garage - 135239GRA floor plan - Unfinished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,718 sq. ft.
  • 1st Floor: 2,178 sq. ft.
  • Covered Patio: 168 sq. ft.
  • Porch, Combined: 102 sq. ft.
  • Basement Unfinished: 2,178 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 3"
  • Depth: 61' 0"
  • Max ridge height: 20' 1"

Garage

  • Type: Attached
  • Area: 885 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

2718 Square Foot Split Bedroom Craftsman-Style House Plan with 3-Car Garage

  • 2,718

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,150
  • 5 Sets $1,300
  • 5 Sets + PDF $1,400
  • PDF - Unlimited Build $1,650
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • This split bedroom house plan gives you 2,718 square feet of one-level living and a 3-car front-facing garage (885 square feet) with mudroom access.
  • A home office is located off the foyer and can be open or enclosed.
  • An open concept layout gives you a great room with views to the back open to the kitchen and dining room. Sliding doors on the back wall of the dining room open to a 14' by 12' deck.
  • The master suite occupies the entire left side of the home and has a five-fixture bath with access to a large walk-in closet. Across the home, two bedrooms with linear closets share a bath.

Floor Plans

  • Main Level

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,718 sq. ft.
  • 1st Floor: 2,178 sq. ft.
  • Covered Patio: 168 sq. ft.
  • Porch, Combined: 102 sq. ft.
  • Basement Unfinished: 2,178 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 3"
  • Depth: 61' 0"
  • Max ridge height: 20' 1"

Garage

  • Type: Attached
  • Area: 885 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
Plan 135239GRA
