Plan 623243DJ
2761 Square Foot New American Farmhouse with 4 Upstairs Bedrooms and Laundry
Heated S.F.
2,761
Beds
4
Baths
3.5
Stories
2
Cars
3
Tour
What's Included
Plan Details

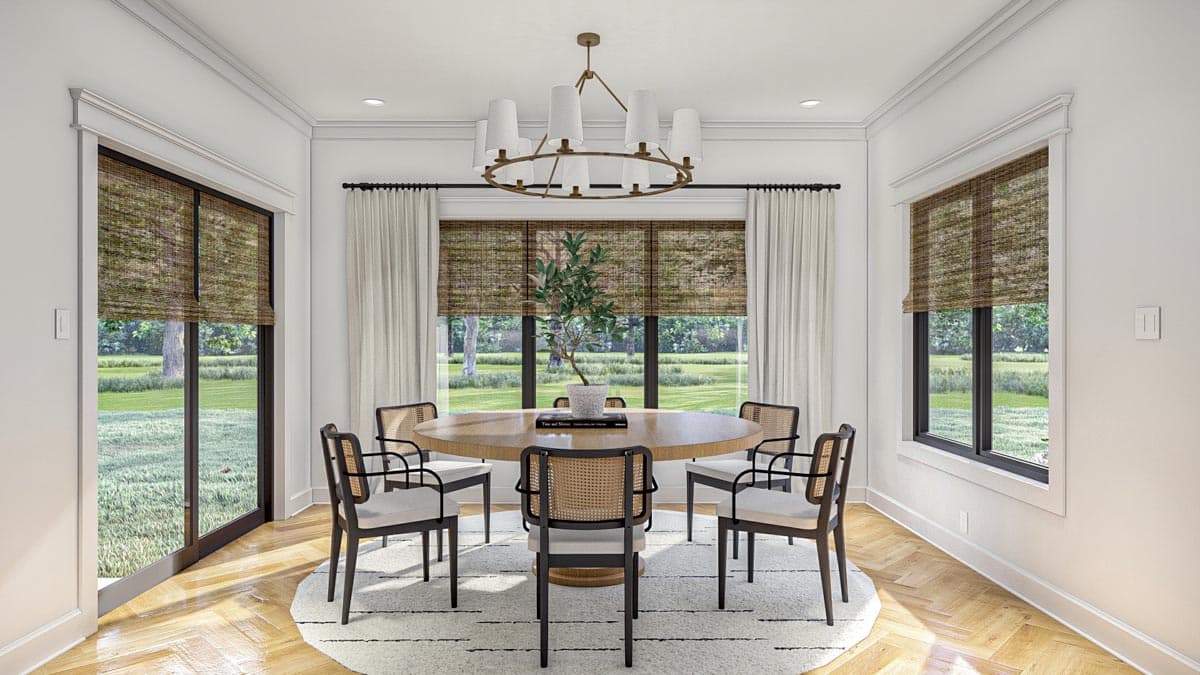

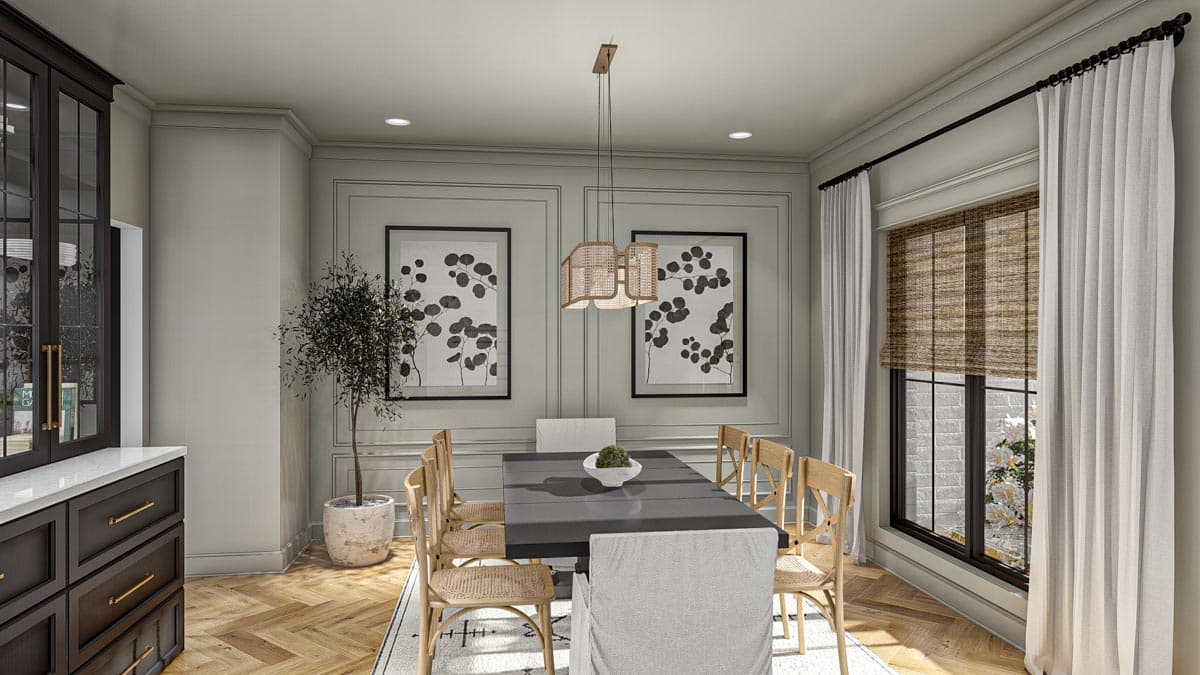

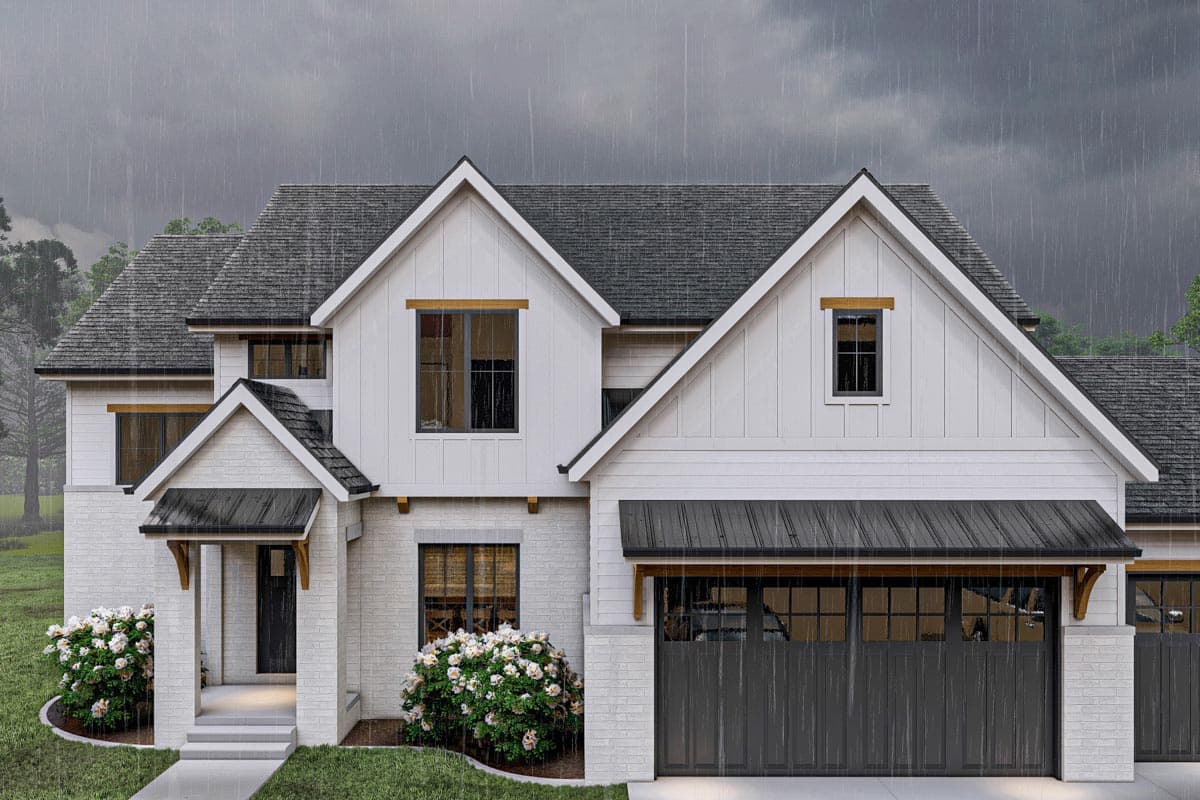

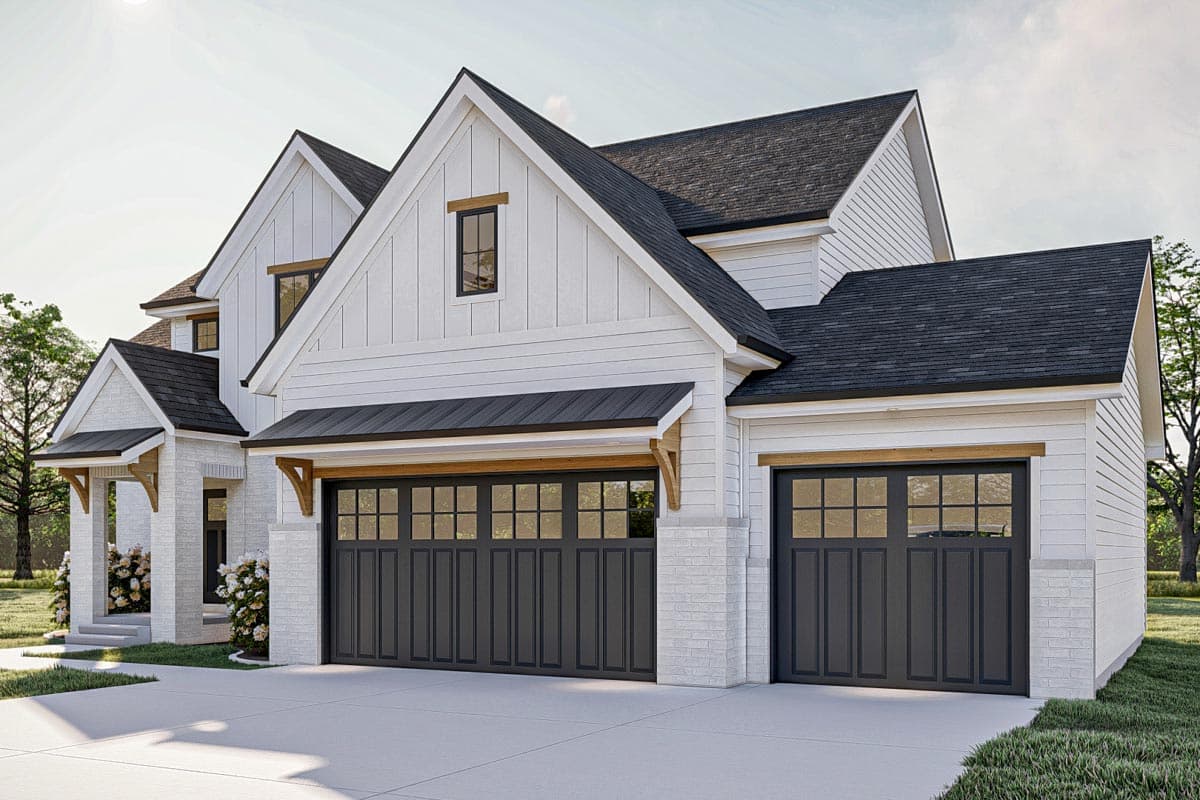

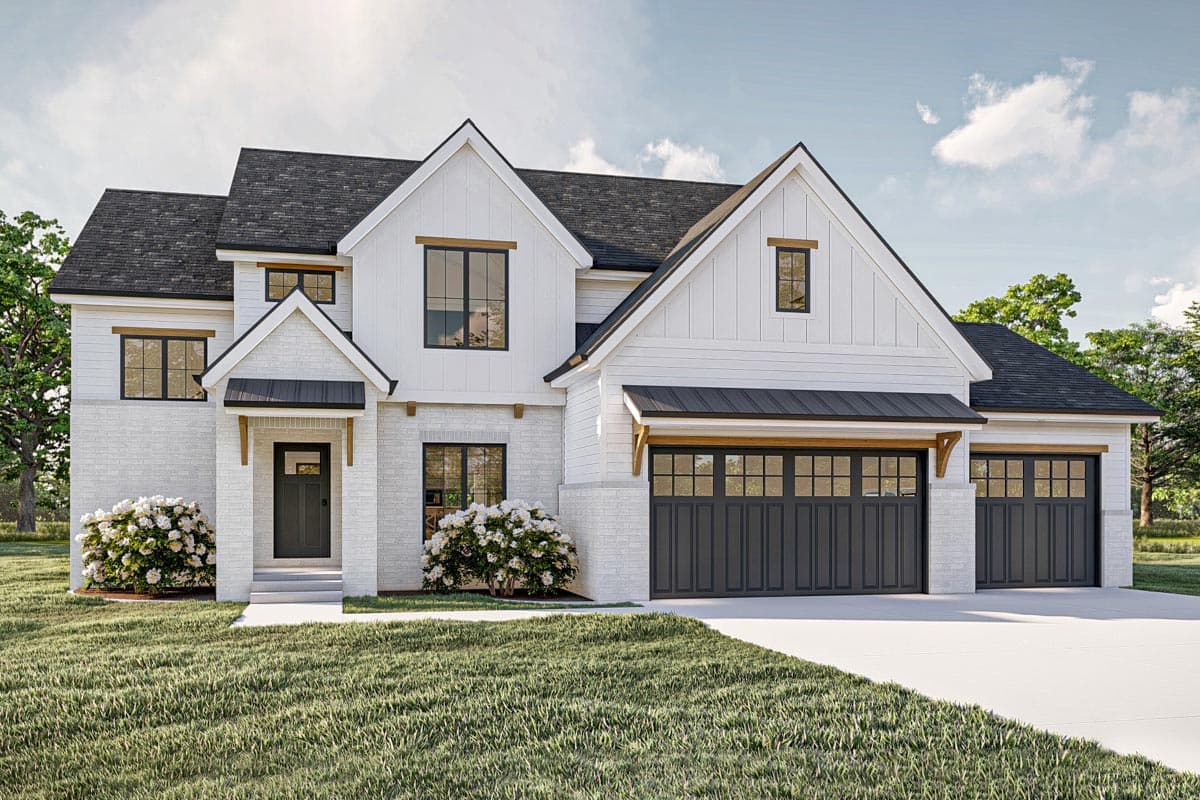

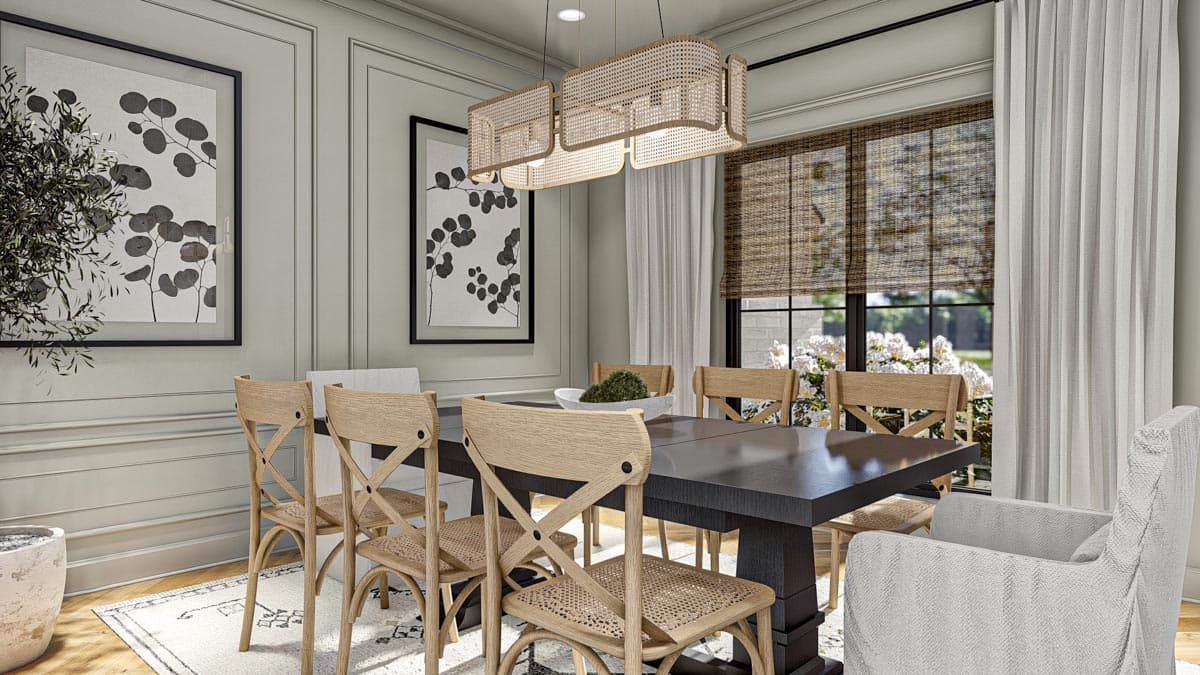

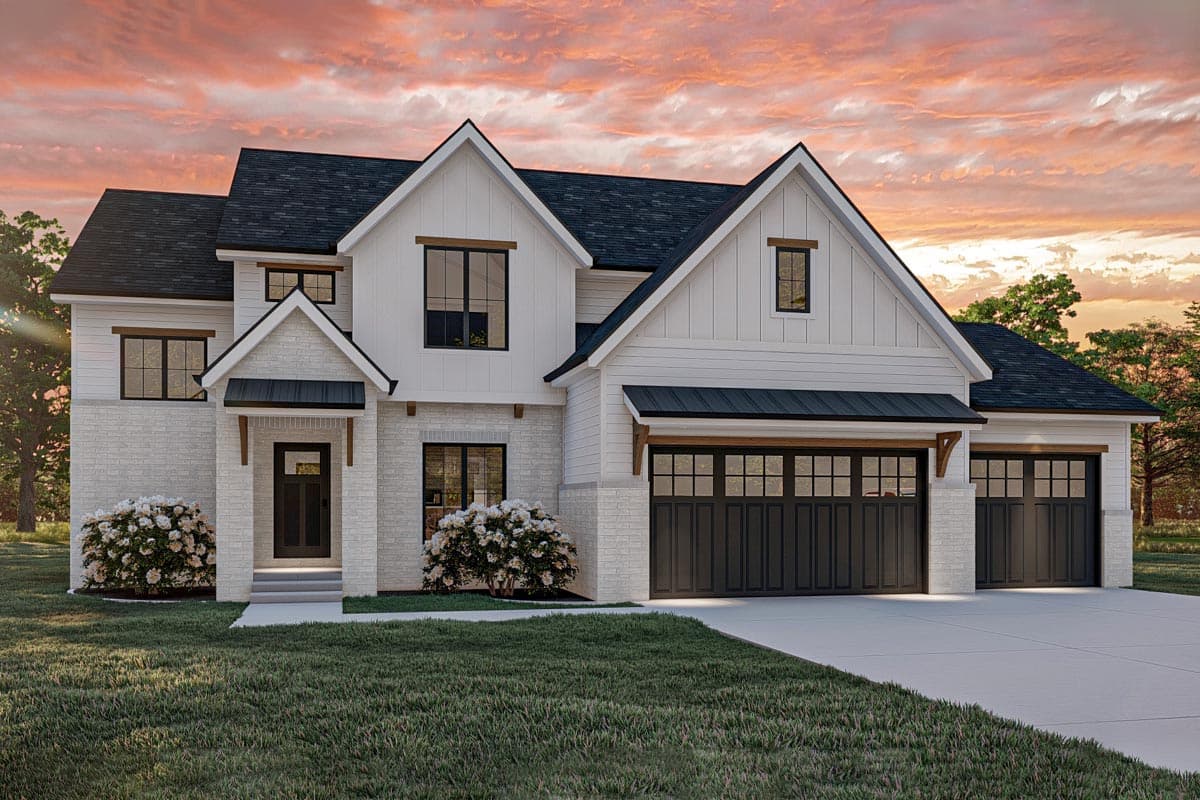

  • This New American farmhouse plan has attractive wood accents with painted brick, siding and board and batten combining to give it great curb appeal. The home gives you 4 beds, 3.5 baths and 2,761 square feet of heated living area. Step in through the covered entryway and find yourself in a two-story foyer with the dining room with large windows to your right, stairs to the left and the great room ahead.

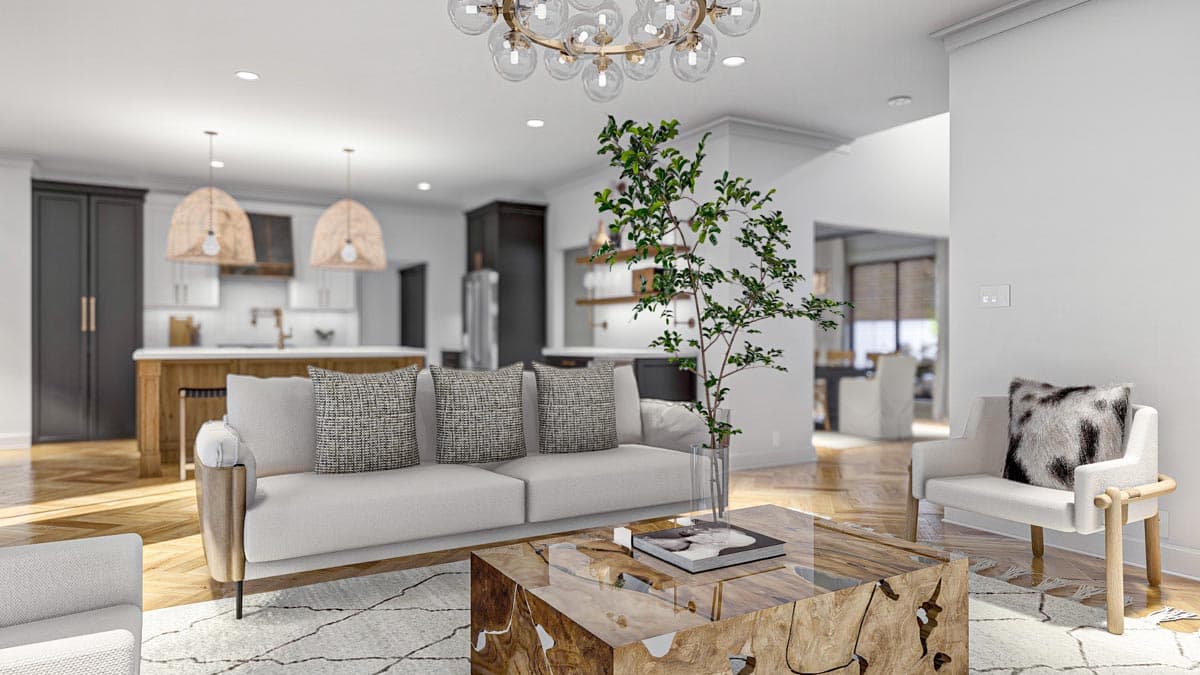

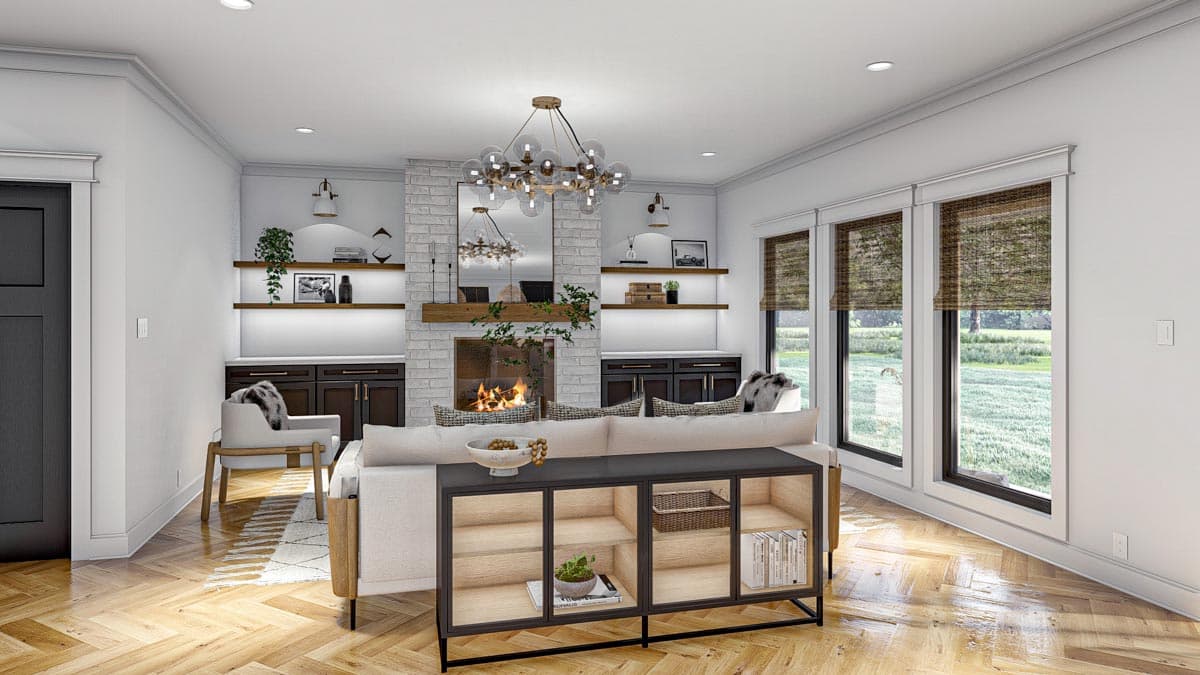

  • The great room, kitchen, and dinette flow seamlessly together, creating a warm and inviting atmosphere. The great room serves as the heart of the home, with a cozy fireplace and expansive windows that frame picturesque views of the surrounding landscape.

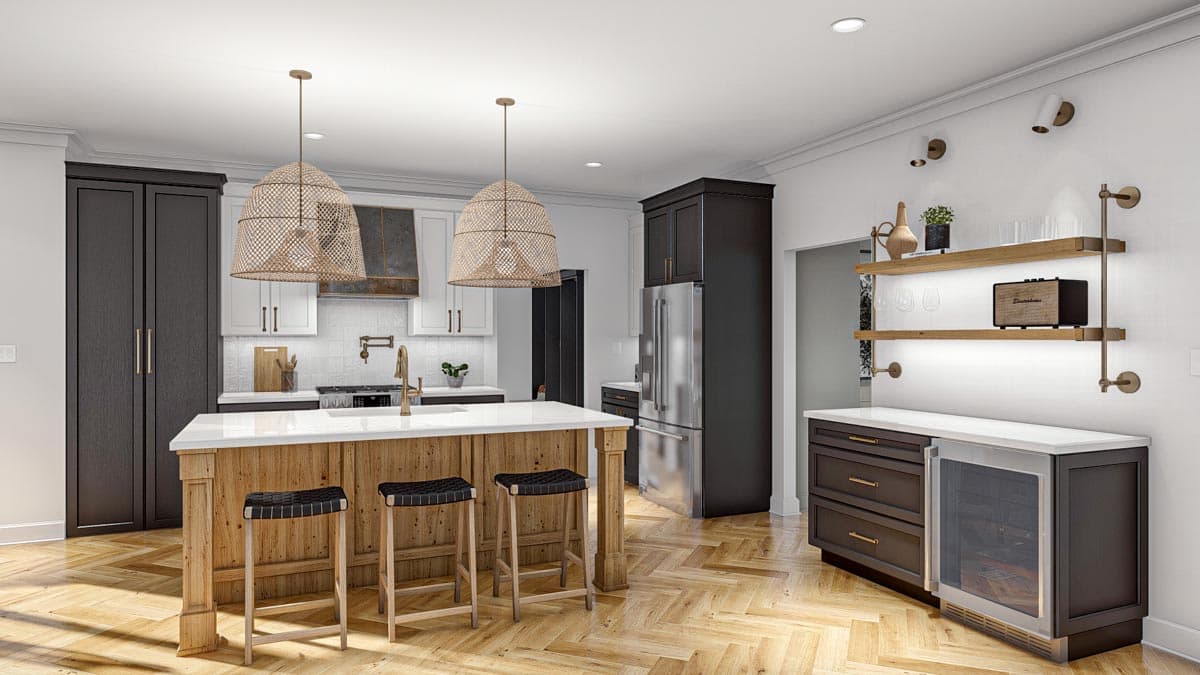

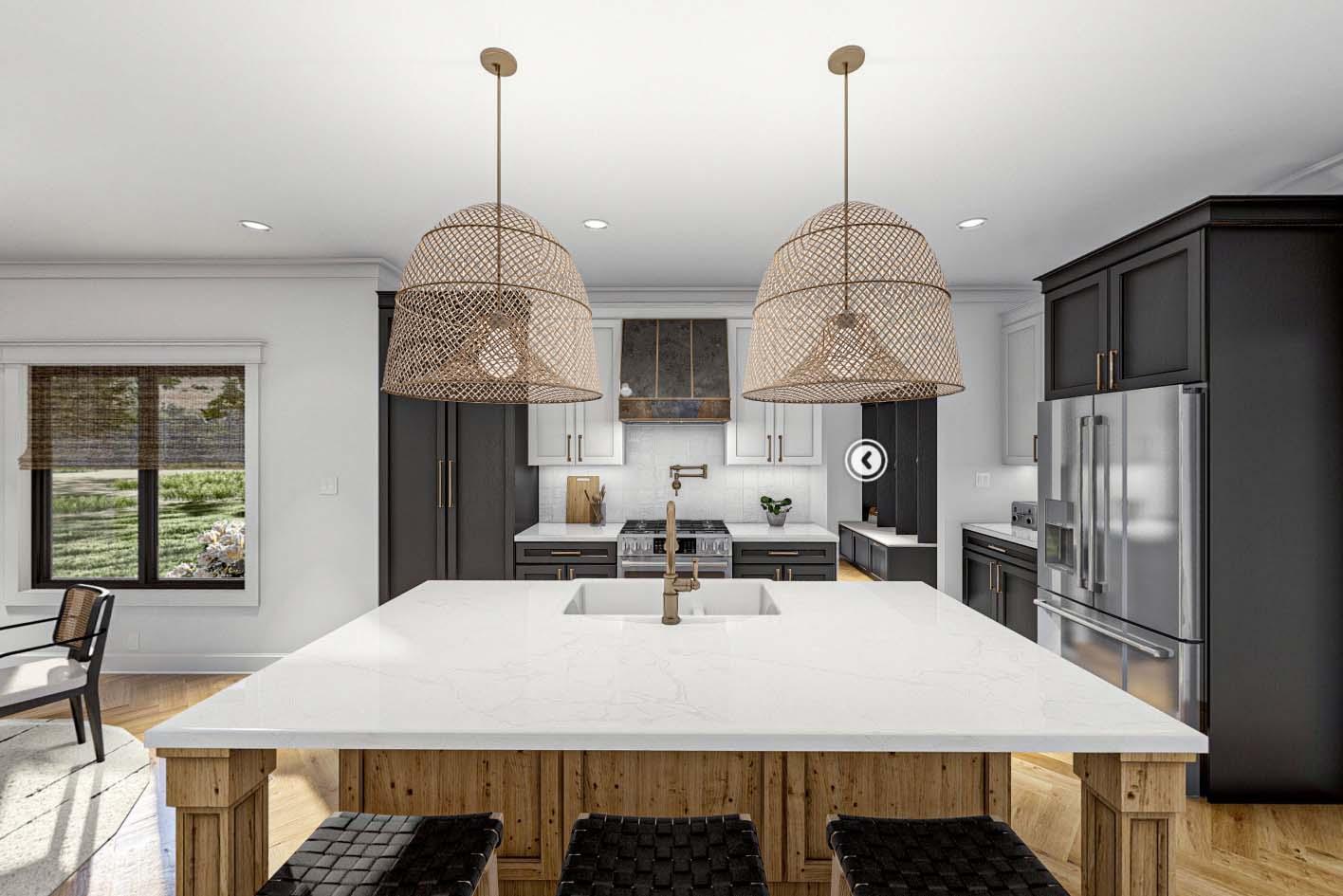

  • The kitchen has great counter space, a walk-in pantry and an island with counter seating. Nearby, the dinette offers an area for casual dining area.

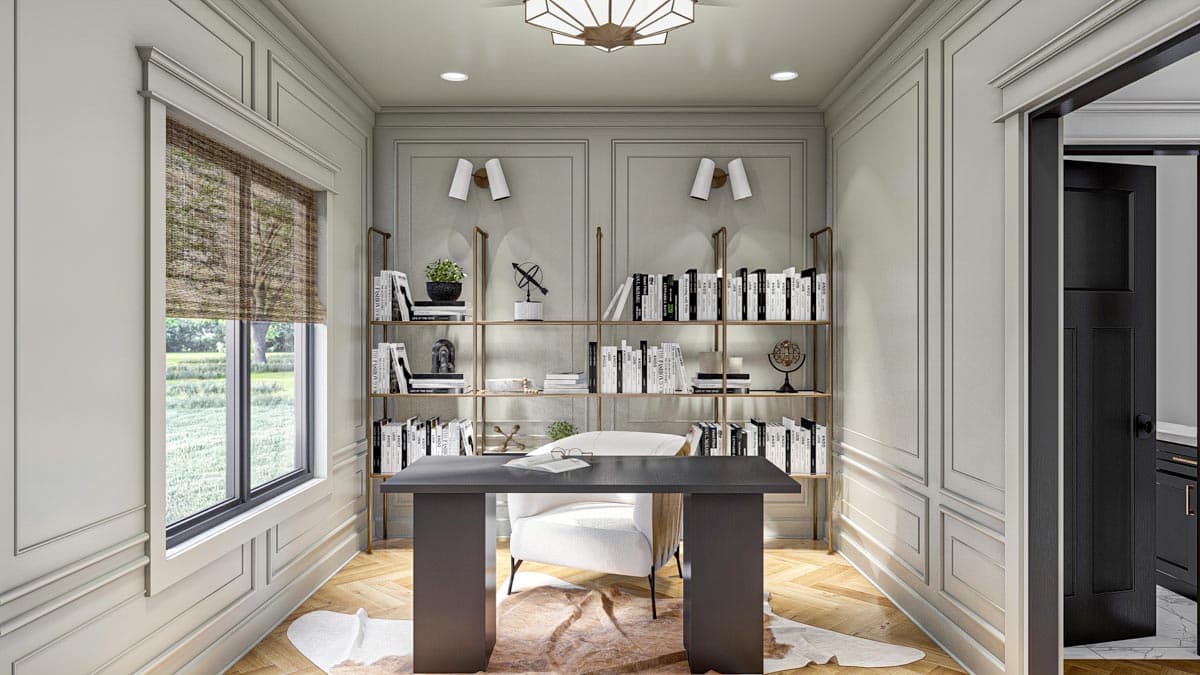

  • The mudroom connects acts as a transition space to the 3-car garage. Steps away, you'll find a powder room and a home office.

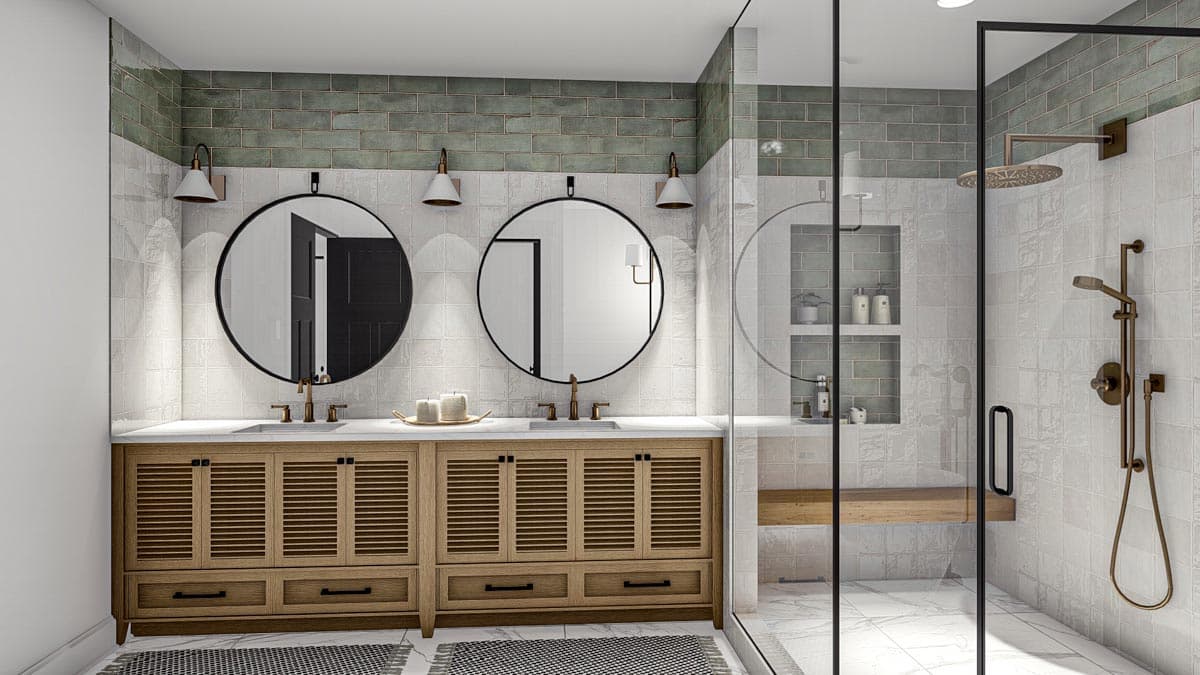

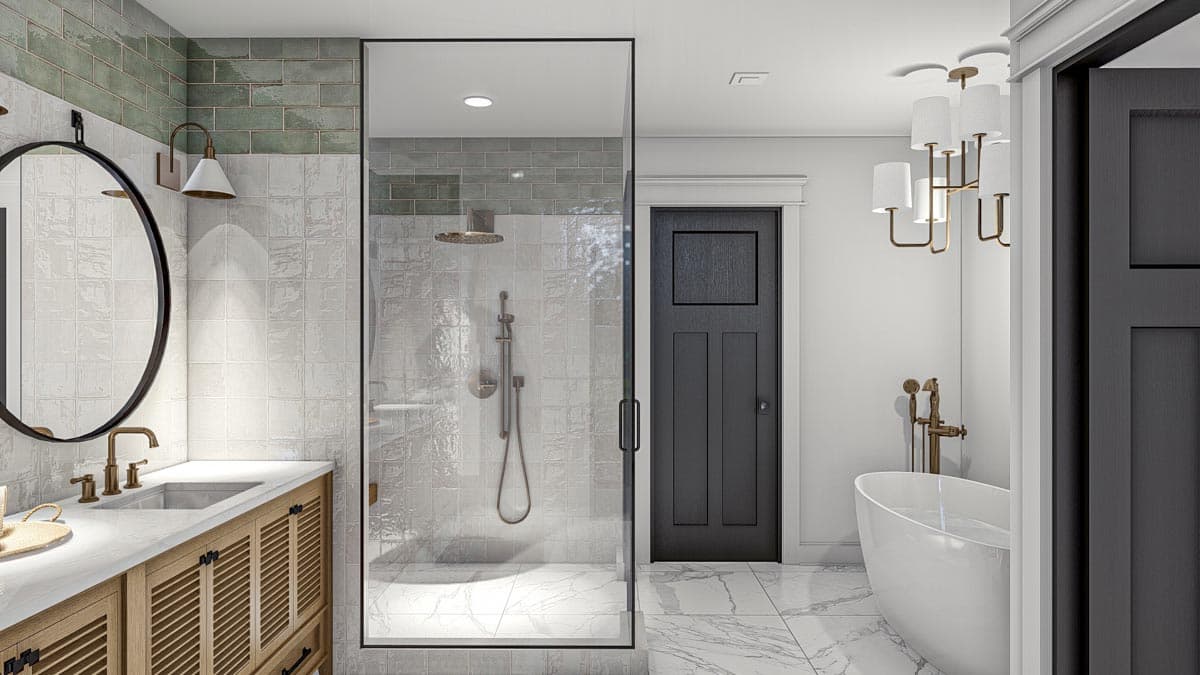

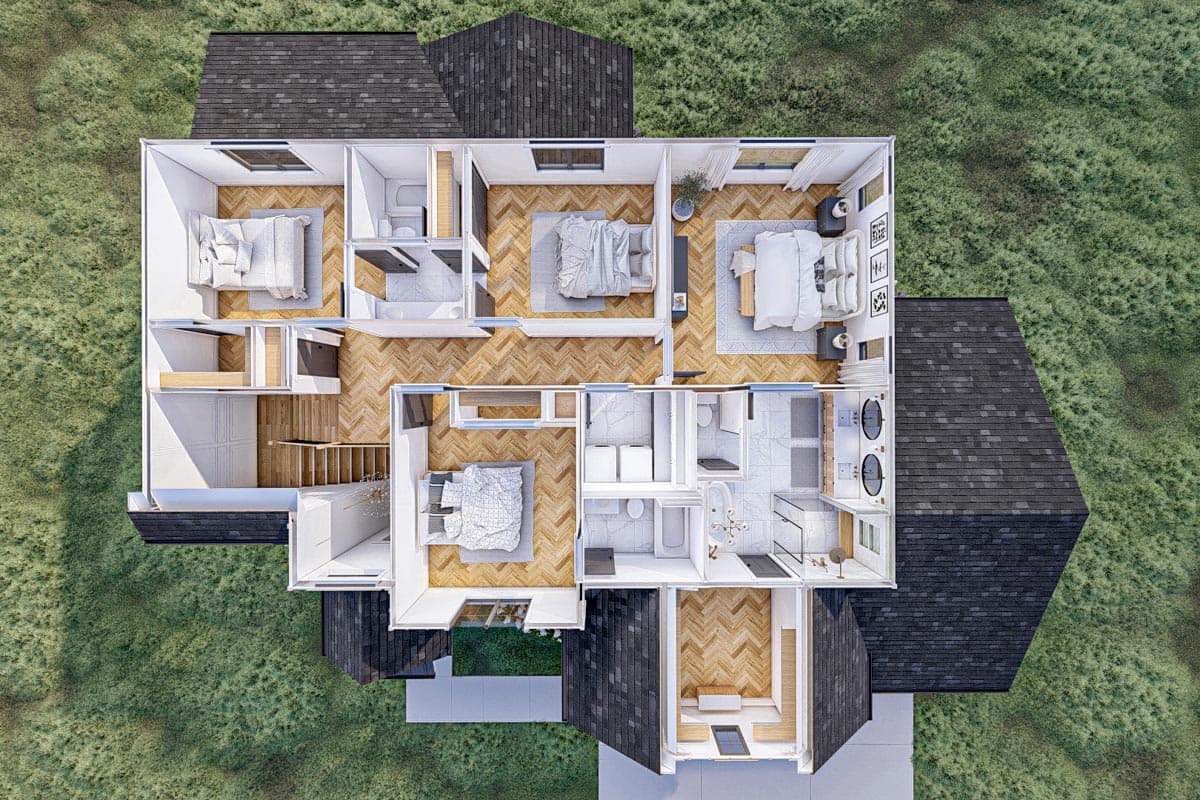

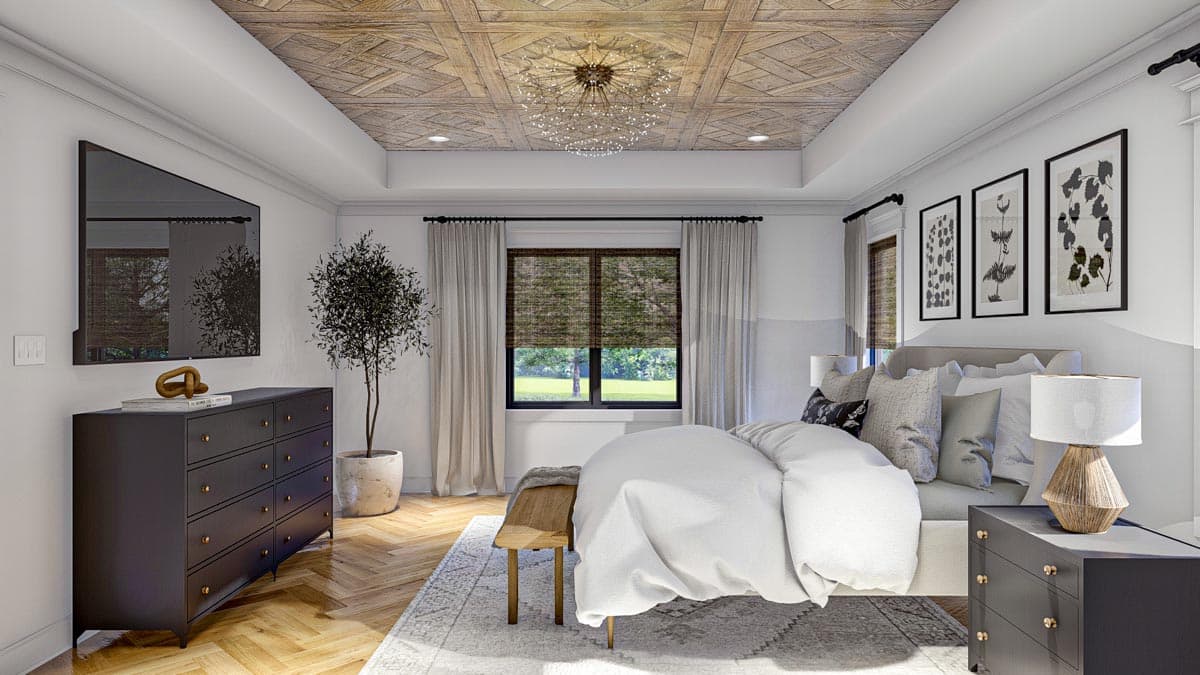

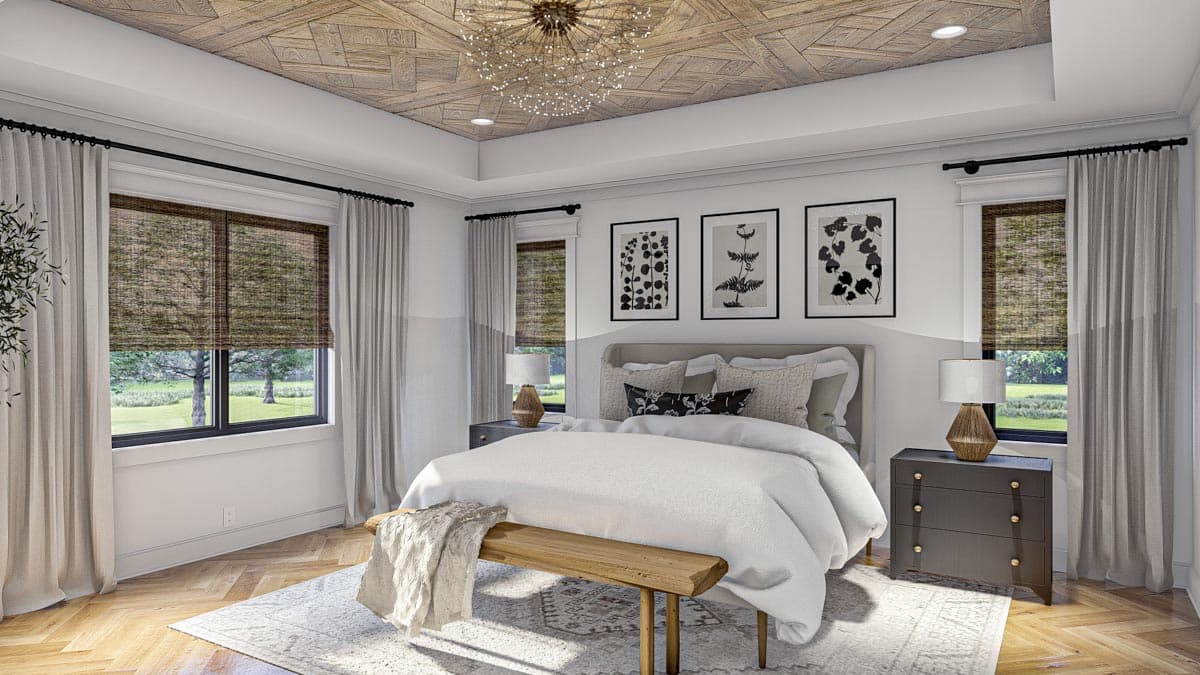

  • Upstairs gives you four bedrooms plus laundry. The master suite has a tray ceiling, a five fixture bath and a large walk-in closet. Bed 4 has an ensuite bathroom and Beds 2 and 3 share a Jack and Jill bath.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2761 Square Foot New American Farmhouse with 4 Upstairs Bedrooms and Laundry

  • 2,761

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

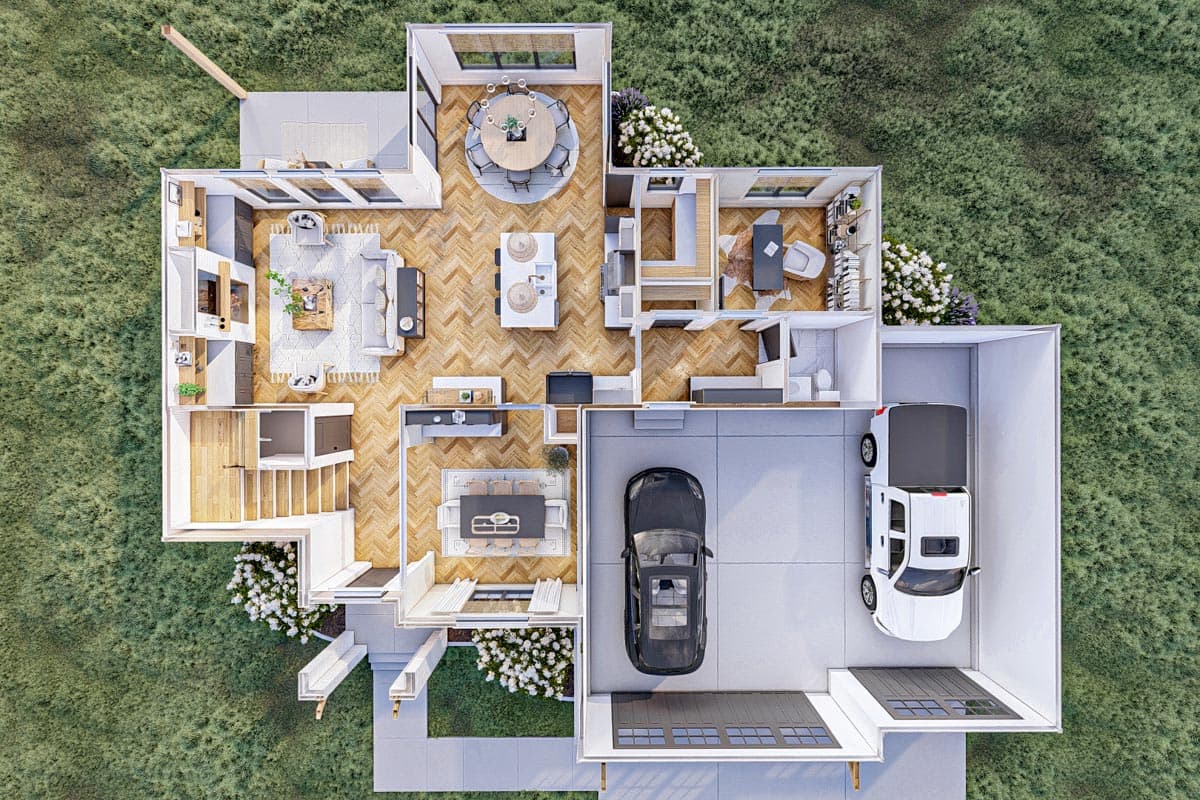

Floor Plan

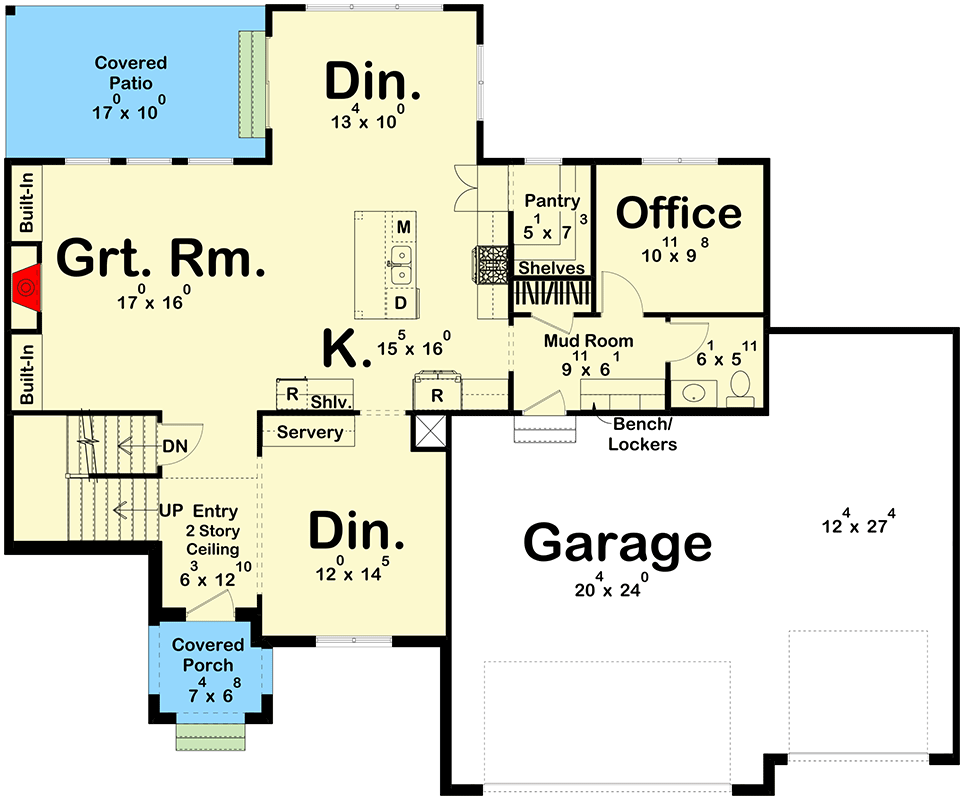

  • Main Level

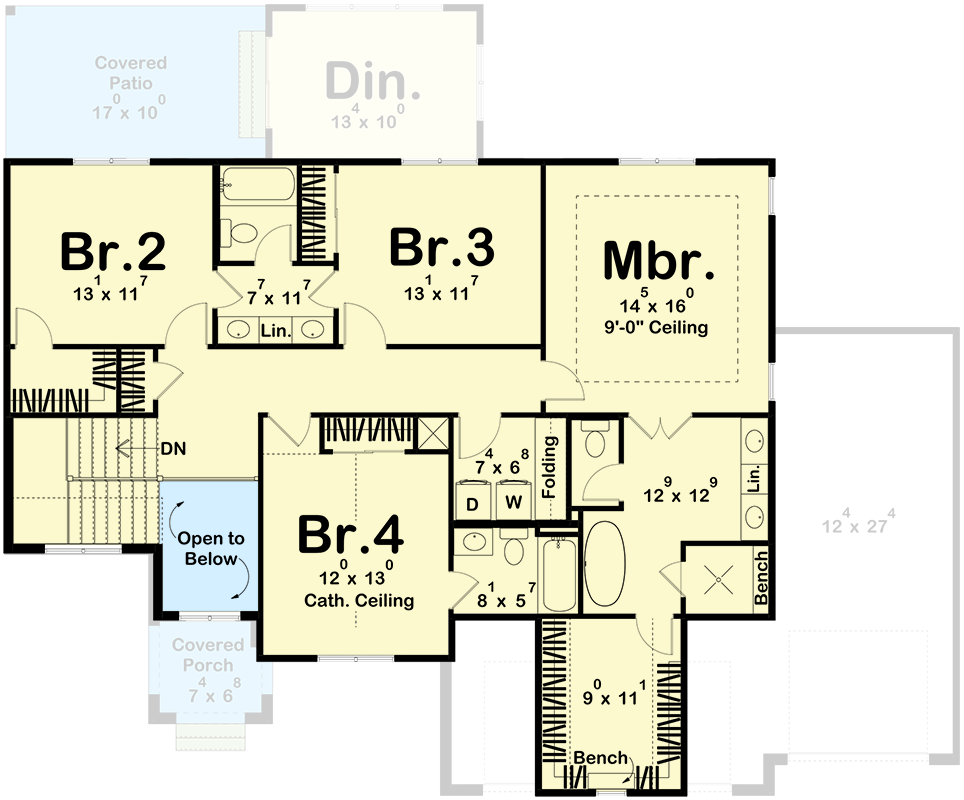

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,761 sq. ft.
  • 1st Floor: 1,320 sq. ft.
  • 2nd Floor: 1,441 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 51' 0"
  • Max ridge height: 28' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 851 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

2761 Square Foot New American Farmhouse with 4 Upstairs Bedrooms and Laundry

  • 2,761

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

2761 Square Foot New American Farmhouse with 4 Upstairs Bedrooms and Laundry

  • 2,761

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,761 sq. ft.
  • 1st Floor: 1,320 sq. ft.
  • 2nd Floor: 1,441 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 51' 0"
  • Max ridge height: 28' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 851 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
