Plan 710427BTZ
2943 Square Foot American Home Plan with 3 Upstairs Bedrooms and Loft
Heated S.F.
2,943
Beds
4
Baths
3.5
Stories
2
Cars
1
Floor Plan

Plan 710427BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710427BTZ

1-800-854-7852

1-262-521-4596

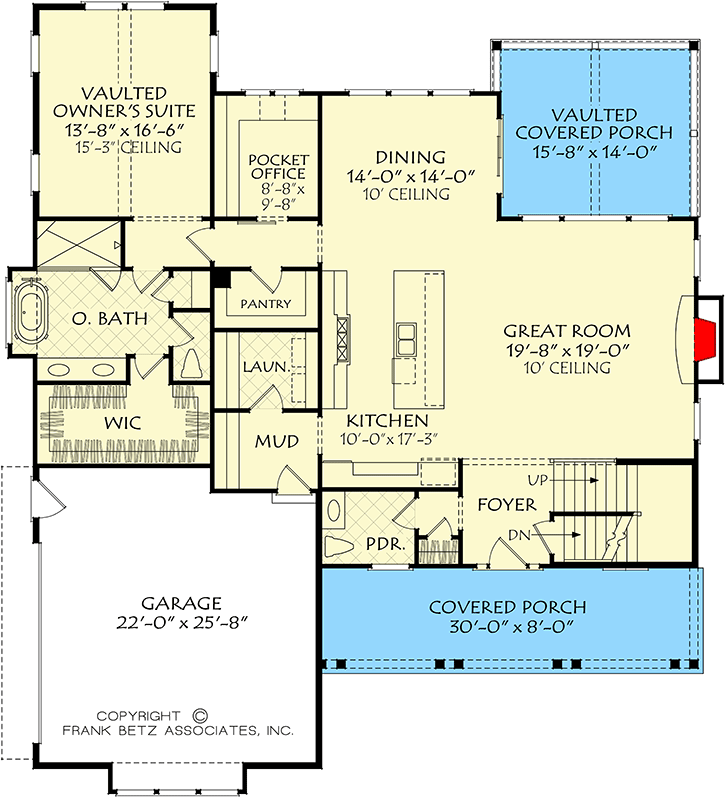

Main Level
floor plan image Main Level

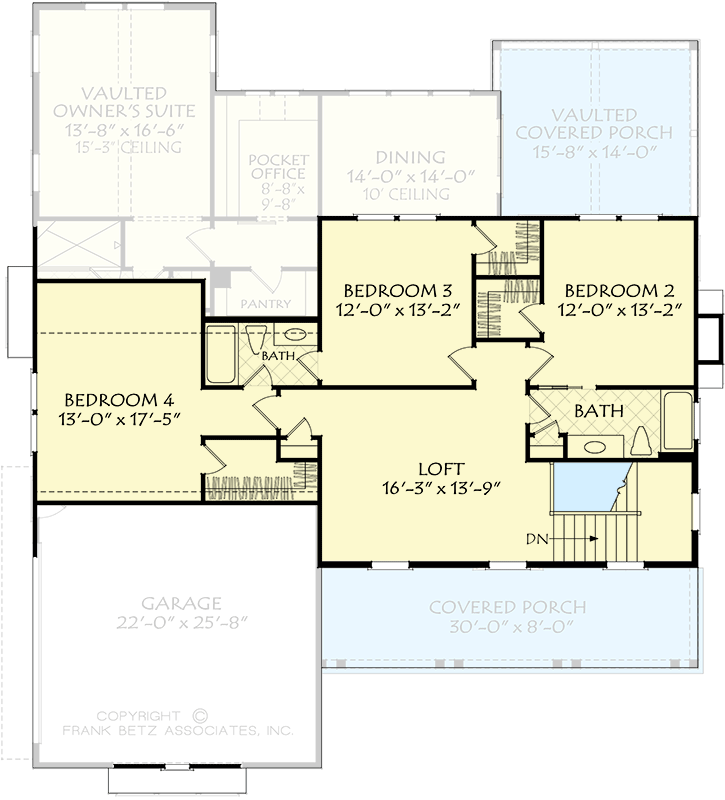

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This classic 4 bed, 3.5 bath American home plan gives you 2,943 square feet of heated living space with a mixture of exterior claddings, gabled roof and a wonderful 8'-deep front porch. Metal roofing, detailed columns, shutters and dovecotes complete the facade.
  • Frequently requested features - a mudroom, large pantry and laundry space - are all found on the main floor.
  • The kitchen is the hub of the home and will provide the space for meal preparation and gathering. The great room and dining are joined to the kitchen for perfect livability.
  • The main floor owner's suite has a vaulted ceiling and a bath with large shower and walk-in closet. Upstairs, find three more bedrooms with walk-in closets and a shared bath.
  • The loft area at the top of the stairs provides additional living space. The kids will love "hang out" space of their own.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,943 sq. ft.

1st Floor

1,810 sq. ft.

2nd Floor

1,133 sq. ft.

Basement Unfinished

1,810 sq. ft.

Porch, Front

240 sq. ft.

Porch, Rear

223 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 0"

Depth

63' 0"

Max Ridge Height

33' 5"

Garage

Type

Attached

Area

553 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,943 sq. ft.

1st Floor

1,810 sq. ft.

2nd Floor

1,133 sq. ft.

Basement Unfinished

1,810 sq. ft.

Porch, Front

240 sq. ft.

Porch, Rear

223 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 0"

Depth

63' 0"

Max Ridge Height

33' 5"

Garage

Type

Attached

Area

553 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
