3-Bay Barndominium Garage Apartment with 2 Bedrooms
Heated S.F.
1,309
Beds
2
Baths
1.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details

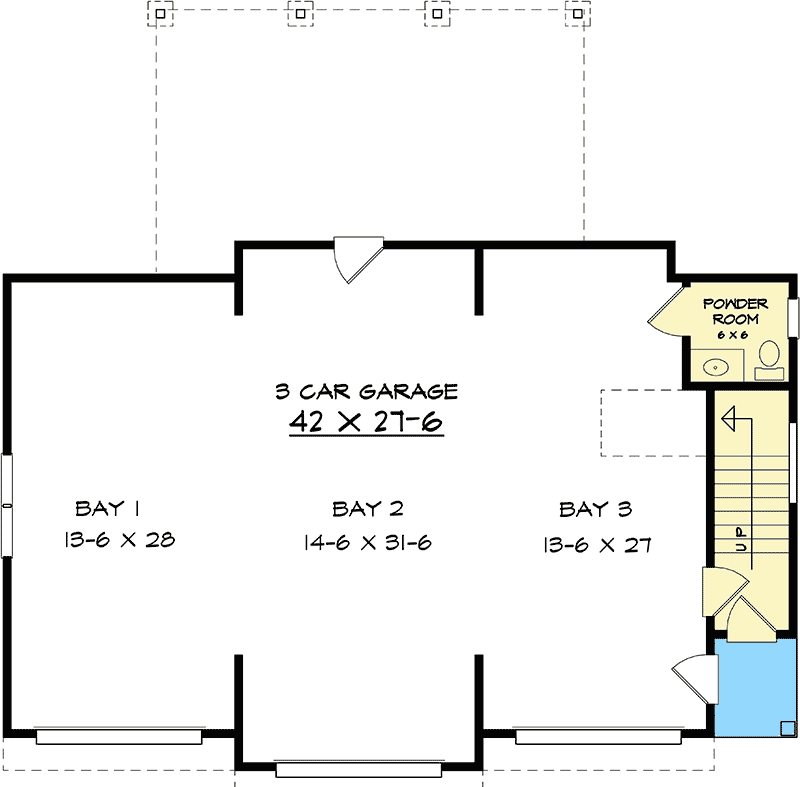

  • This barndominium garage apartment gives you 3 individual garage bays - the first one set forward from the the ones to the sides - and 10' ceilings on the ground level. Centered on the back wall, a door takes you to a covered area. A half bath is tucked in the corner giving you a place to clean up after working on your cars or the yard.

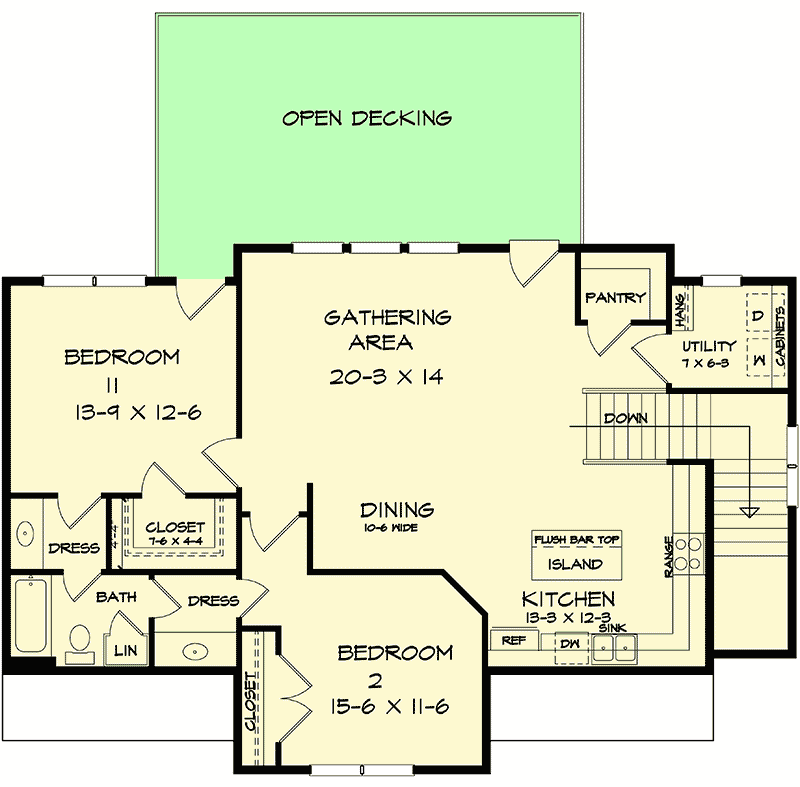

  • Stairs along the right take you upstairs where you arrive in the middle of the floor open front to back. A door to your right takes you to a large open deck (also accessible from the back bedroom.
  • The bedrooms share a Jack and Jill bath.
  • The kitchen island has seating for casual eating and a roomy walk-in pantry is in the back-right corner where you'll also find the utility room.
What's Included

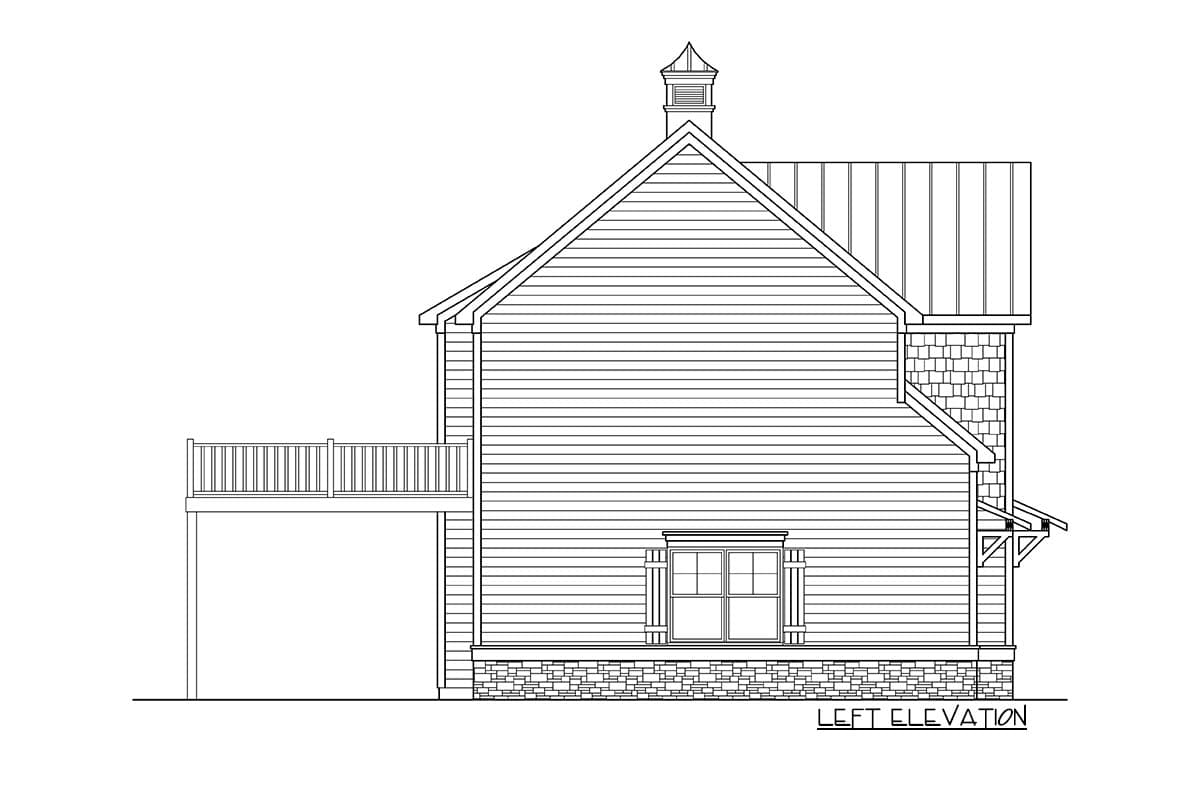

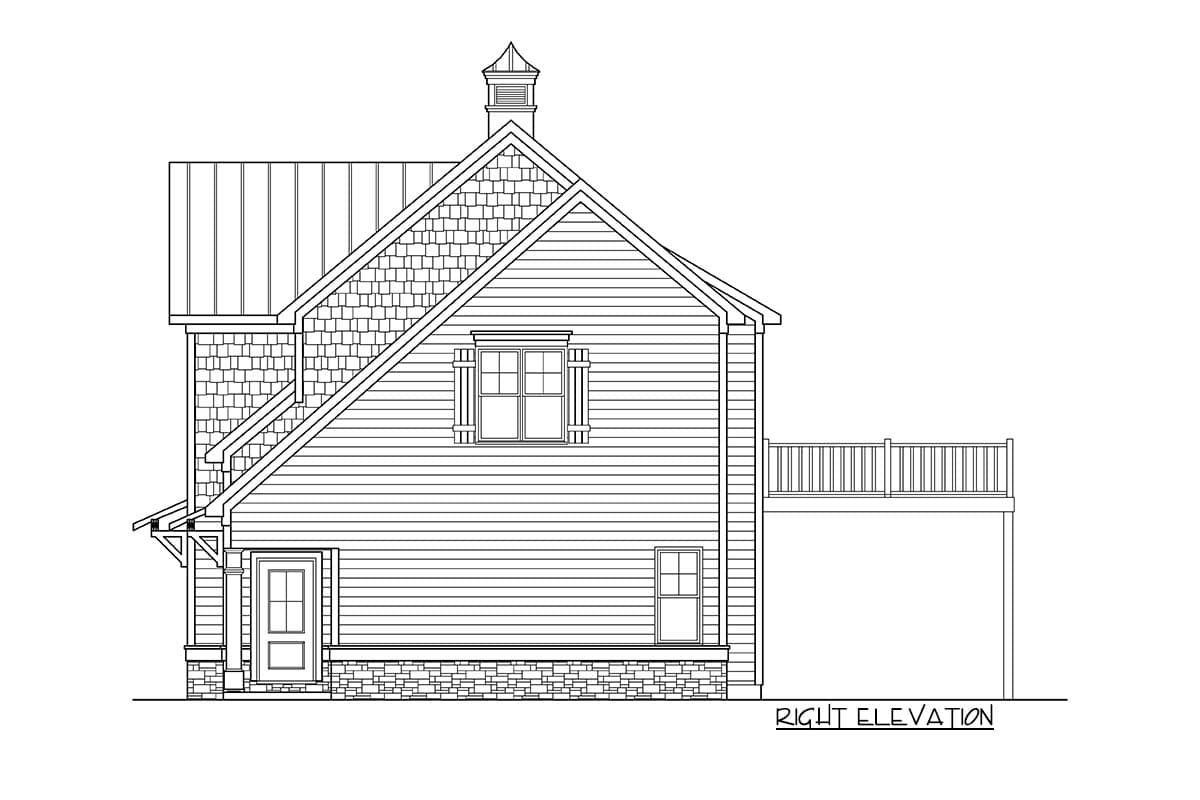

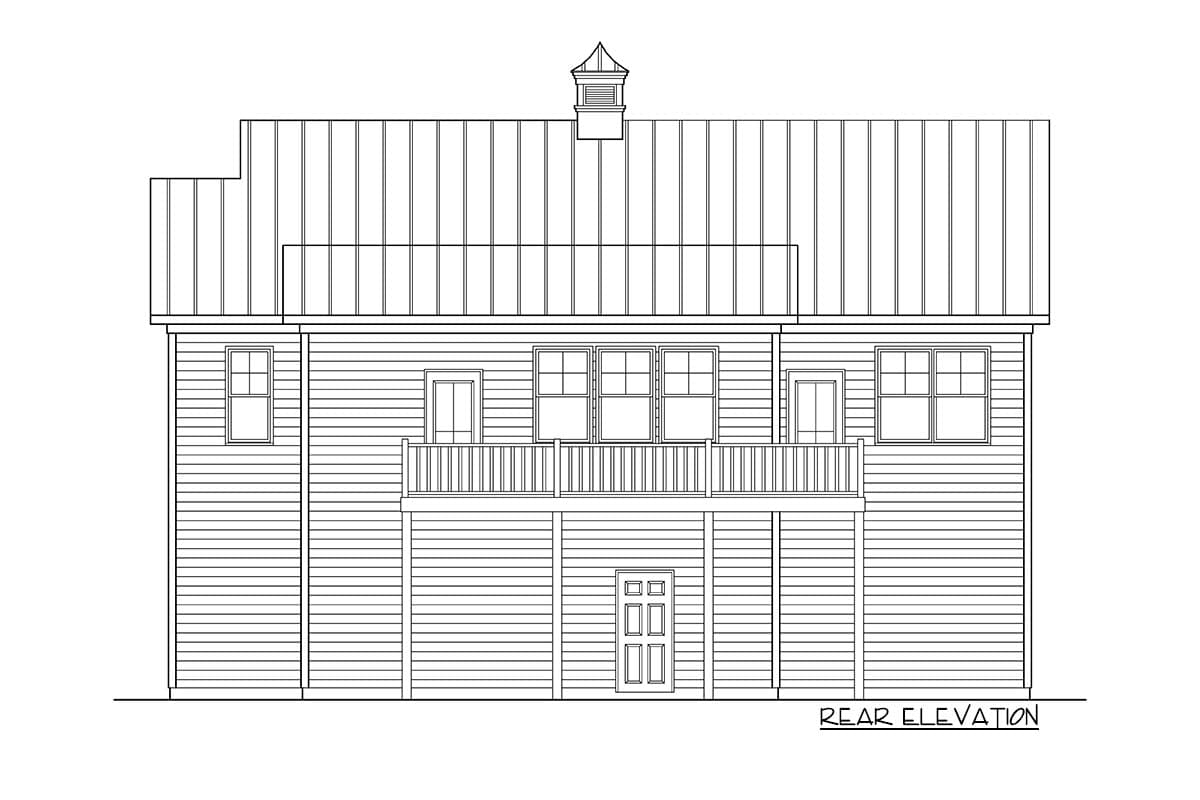

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bay Barndominium Garage Apartment with 2 Bedrooms

  • 1,309

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,309 sq. ft.
  • 1st Floor: 130 sq. ft.
  • 2nd Floor: 1,209 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 32' 0"
  • Max ridge height: 31' 10"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 1267 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
