Plan 29853RL

3 Bay Detached Garage and Apartment

Heated S.F.
837
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 29853RL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 29853RL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

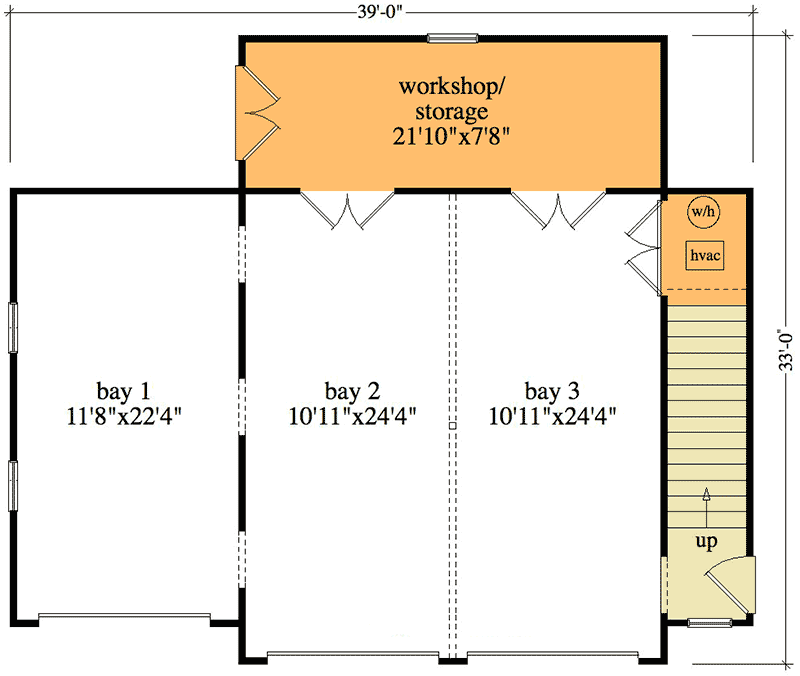

Plan 29853RL: 3 Bay Detached Garage and Apartment - Floor Plan - Main Level - Carriage, Vacation

2nd Floor

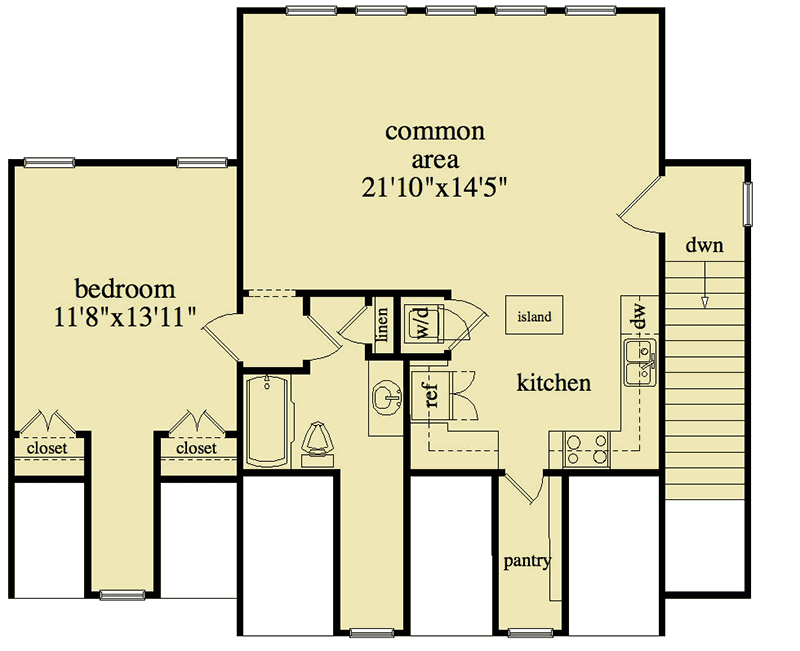

Plan 29853RL: 3 Bay Detached Garage and Apartment - Floor Plan - 2nd Floor - Carriage, Vacation

Plan Details

  • This is a detached 3 car garage and apartment with a traditional exterior. The elevation is primarily clapboard siding with accents of stone and cedar shake.
  • The first floor garage offers 3 bays, 2 of which are over 24' deep. Additionally, there is a workshop or storage space behind bays 1 and 2.
  • Upstairs, one enters the common living area which is open to a full kitchen and laundry closet that can accommodate a stackable washer and dryer.
  • The bedroom has access to two closets and a full bath.

What's Included

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

837 sq. ft.

1st Floor

837 sq. ft.

Workshop

167 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

33' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached

Area

790 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Vacation

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

837 sq. ft.

1st Floor

837 sq. ft.

Workshop

167 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

33' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached

Area

790 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Carriage

Vacation

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Workshop
