Plan 28106J

3 Bed 1254 Square Foot 2-Story Craftsman Home Plan

Heated S.F.
1,254
Beds
3
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 28106J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28106J

M-F 9am-5pm EST |

1-203-761-8500

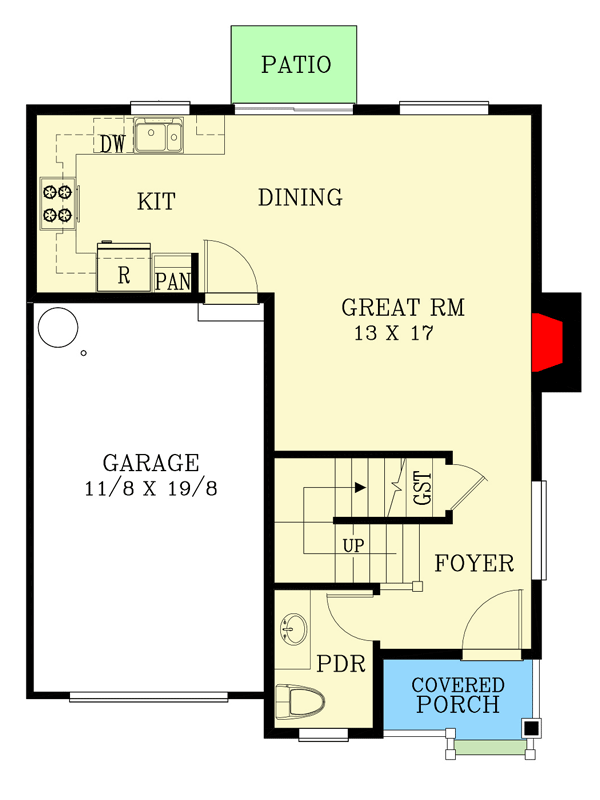

Main Level

Plan 28106J: 3 Bed 1254 Square Foot 2-Story Craftsman Home Plan - Floor Plan - Main Level - New American, Northwest, Traditional

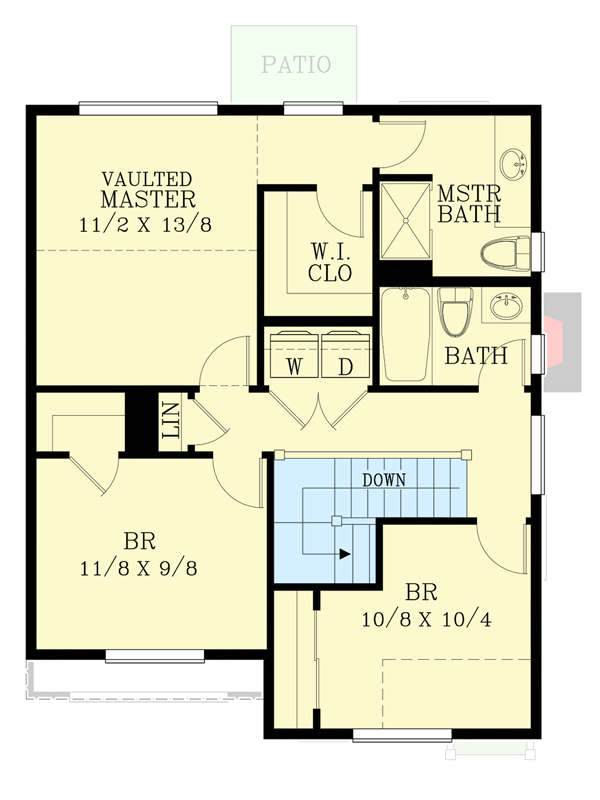

2nd Floor

Plan 28106J: 3 Bed 1254 Square Foot 2-Story Craftsman Home Plan - Floor Plan - 2nd Floor - New American, Northwest, Traditional

Plan Details

  • With 3 bedrooms and the laundry upstairs, that gives you a main floor designed for family and friends time in this 1,254 square foot house plan.
  • A powder room is located off the foyer. Pass the stairs, and find yourself in an open concept space with the great room, kitchen, and dining room.

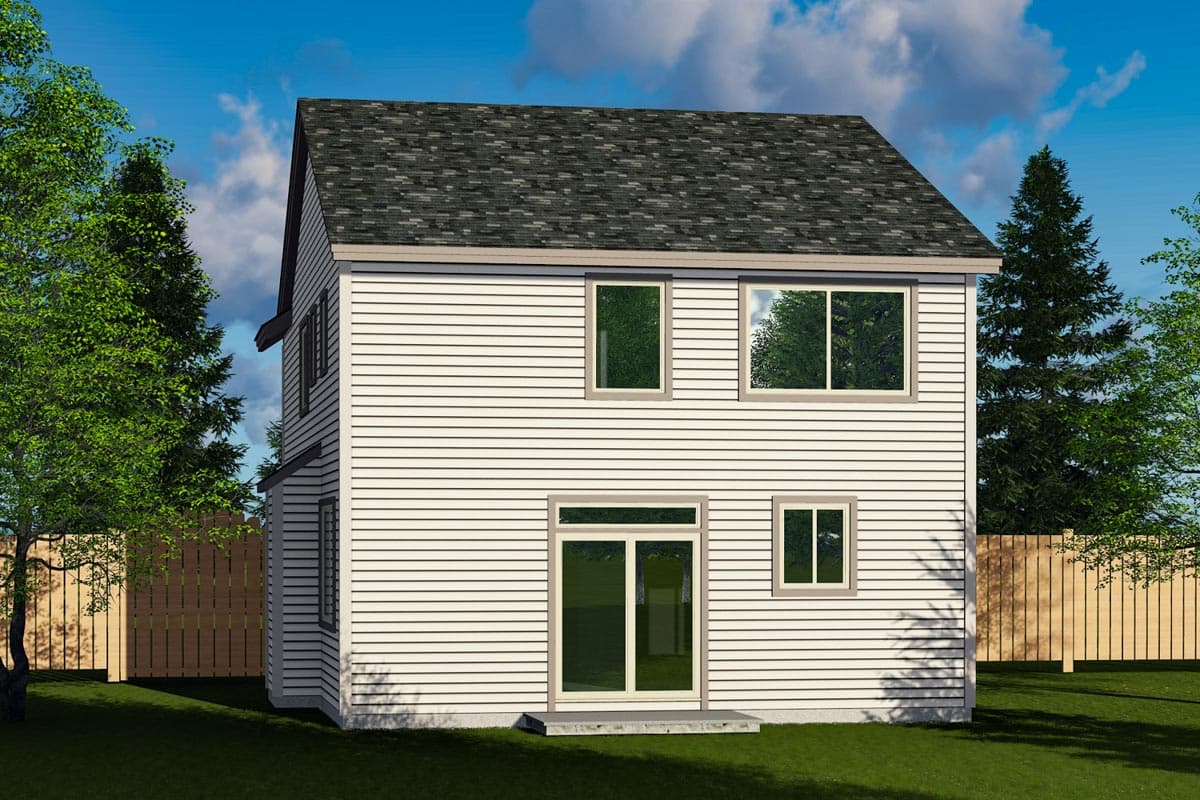

  • Sliding doors on the back wall take you to a patio.
  • A 1-car garage has access to the home by the kitchen, making unloading groceries a breeze.
  • Related Plan: Get a 2-car garage with house plan 28107J.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,254 sq. ft.

1st Floor

520 sq. ft.

2nd Floor

734 sq. ft.

Porch, Front

32 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

32' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

256 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

8' 0''

Roof Details

Primary Pitch

12 on 7

Secondary Pitch

12 on 8

Framing Type

Truss

Architectural Style

New American

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,254 sq. ft.

1st Floor

520 sq. ft.

2nd Floor

734 sq. ft.

Porch, Front

32 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

32' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

256 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

8' 0''

Roof Details

Primary Pitch

12 on 7

Secondary Pitch

12 on 8

Framing Type

Truss

Architectural Style

New American

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
