3 Bed 2 Bath House Plan with 2-Car Garage - 1862 Sq Ft
Heated S.F.
1,862
Beds
2-3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This 3 bed, 2 bath house plan gives you 1,862 square feet of heated living. One of the bedrooms can be flexed to give you a study or home office if needed. A 2-car garage gives you 442 square feet of parking set behind a single overhead door with mechanicals lining the back.
  • This sloping lot modern house plan gives you 4 beds, 2.5 baths and 3,138 square feet of heated living area. A 2-car garage gives you 464 square feet of parking and accesses the home by the foyer. A den located off the foyer makes a great work-from-home space.
  • The kitchen with large island and tall pantry is open to the dining room and living room, both of which have access to the back covered balcony.
  • The master suite has outdoor access and occupies the entire right side of the home while the three remaining bedrooms are in the finished lower level.
  • Enjoy movie night in your own home theater. When done, hang out in the rec room or go outside and enjoy the fresh air on your covered patio.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed 2 Bath House Plan with 2-Car Garage - 1862 Sq Ft

  • 1,862

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

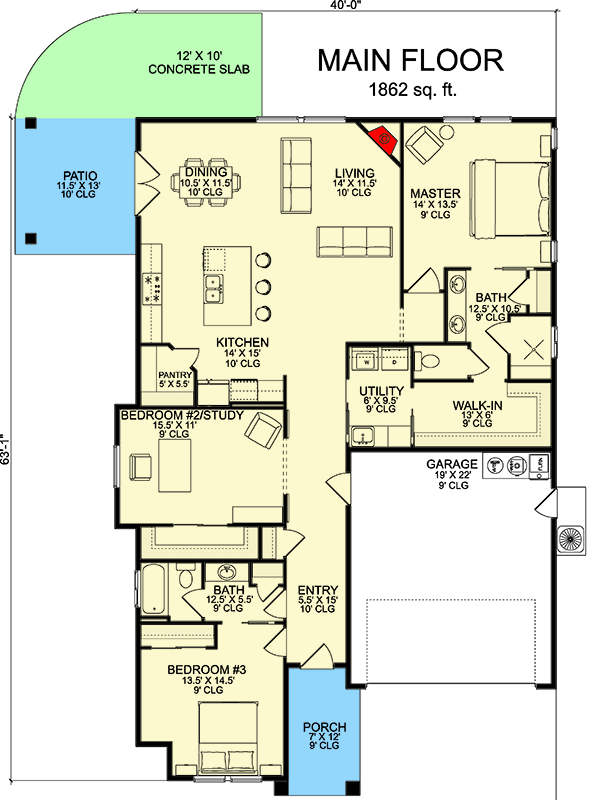

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,862 sq. ft.
  • 1st Floor: 1,862 sq. ft.

Dimensions

  • Width: 50' 6"
  • Depth: 64' 6"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 441 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
