  • This Craftsman 2-story house plan features a welcoming porch for visitors and a 2-story ceiling in the entry.
  • The open-concept floor plan is divided by arched column feature.
  • Large windows allow plenty of natural light into the space and flank the fireplace in the great room.
  • The kitchen includes a breakfast bar and walk-in pantry.
  • The master and two additional bedrooms are located on the 2nd floor. The master includes a private bath and walk-in closet.
  • Each bedroom includes it's own walk-in closet and two bedrooms share a Jack and Jill bathroom.
  • VIDEO: See this house plan from all angles in our YouTube video



Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details

Architectural Style



3 Bed 3 Gabled Craftsman Home

  • 1,778

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $930
  • 8 Sets $980
  • Reproducible Set $1,165
  • PDF - single-use $1,165
  • CAD $1,850
  • View all purchase option online

About This Plan

  • This Craftsman 2-story house plan features a welcoming porch for visitors and a 2-story ceiling in the entry.
  • The open-concept floor plan is divided by arched column feature.
  • Large windows allow plenty of natural light into the space and flank the fireplace in the great room.
  • The kitchen includes a breakfast bar and walk-in pantry.
  • The master and two additional bedrooms are located on the 2nd floor. The master includes a private bath and walk-in closet.
  • Each bedroom includes it's own walk-in closet and two bedrooms share a Jack and Jill bathroom.
  • VIDEO: See this house plan from all angles in our YouTube video



Floor Plans

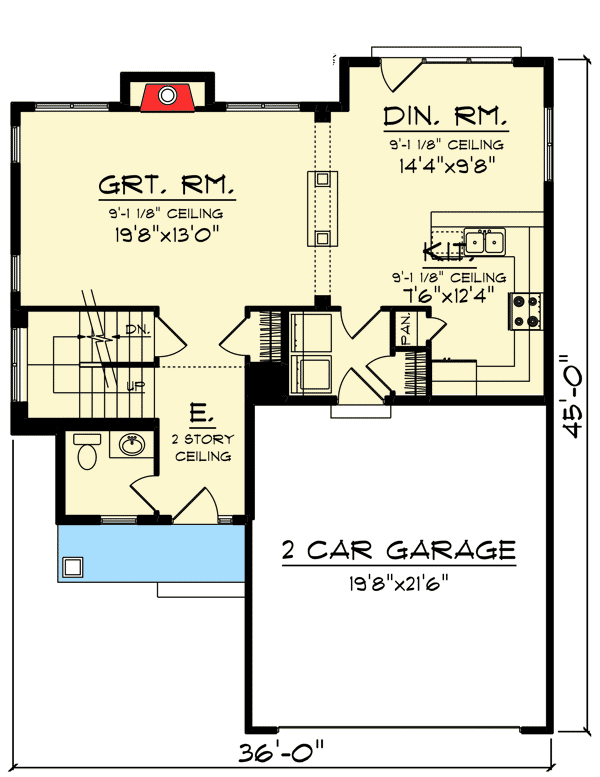

  • Main Level

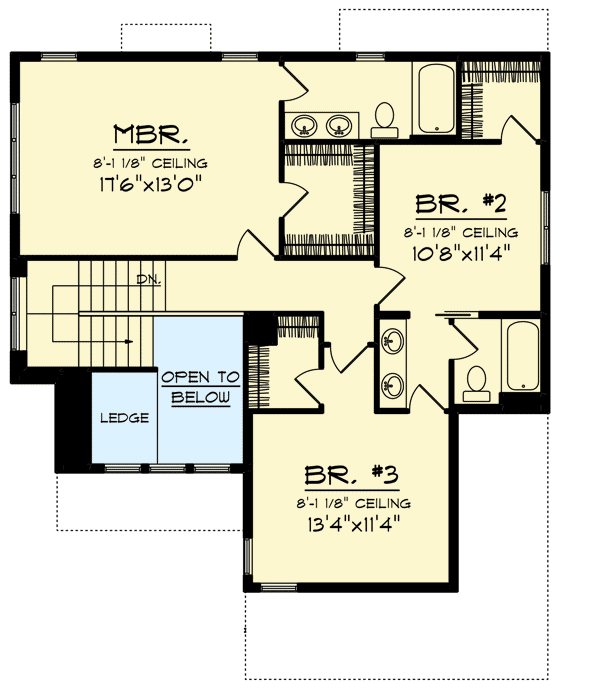

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,778 sq. ft.
  • 1st Floor: 884 sq. ft.
  • 2nd Floor: 894 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 45' 0"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 422 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
