3 Bed Acadian House Plan with Bonus Room

Pageloader

3 Bed Acadian House Plan with Bonus Room

Plan 56403SM

  • 2,497

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • All sorts of extras come with this handsome Acadian house plan, such as built-ins, an unfinished bonus room and a huge storage room complete with half bath.
  • There are front, rear and side porches too, all covered to protect you from rain or hot sun.
  • The huge family room has a big fireplace as the focal point with built-in cabinets on either side.
  • A vaulted ceiling tops the kitchen that comes with a walk-in pantry and a large island that seats 4 people.
  • The master suite is tucked away in the back of the home and boasts a lovely tray ceiling and a giant walk-in closet.
  • In the bonus room, a 5' knee wall rises up to 9' at the center of the room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

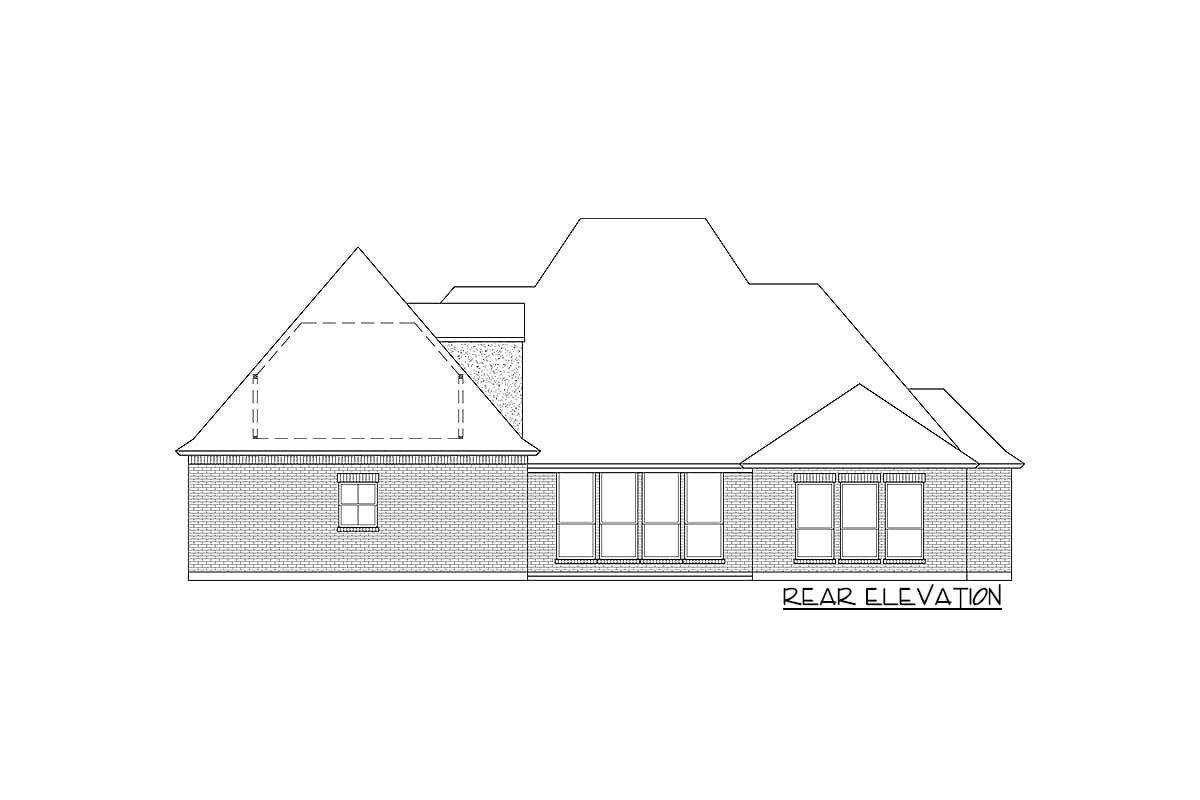

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Plan details



3 Bed Acadian House Plan with Bonus Room

  • 2,497

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $975
  • 6 Sets $1,075
  • 5 Sets PLUS $1,275
  • CAD $1,975
  • CAD - multi-use $2,370
  • View all purchase option online

About This Plan

  • All sorts of extras come with this handsome Acadian house plan, such as built-ins, an unfinished bonus room and a huge storage room complete with half bath.
  • There are front, rear and side porches too, all covered to protect you from rain or hot sun.
  • The huge family room has a big fireplace as the focal point with built-in cabinets on either side.
  • A vaulted ceiling tops the kitchen that comes with a walk-in pantry and a large island that seats 4 people.
  • The master suite is tucked away in the back of the home and boasts a lovely tray ceiling and a giant walk-in closet.
  • In the bonus room, a 5' knee wall rises up to 9' at the center of the room.

Floor Plans

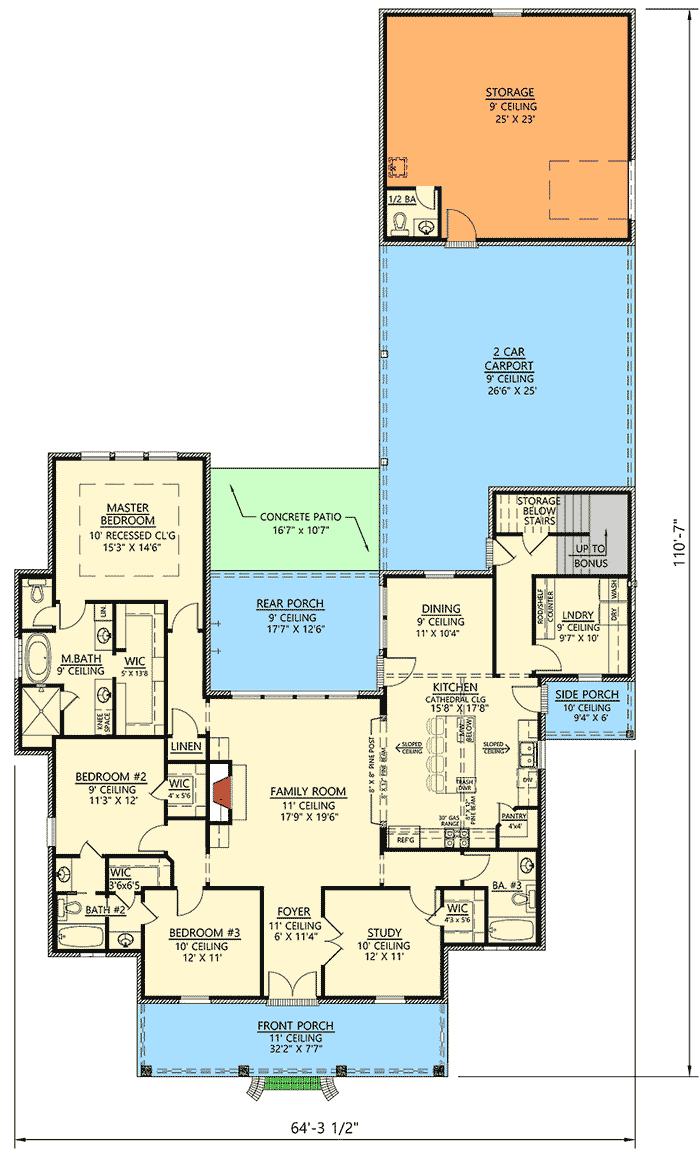

  • Main Level

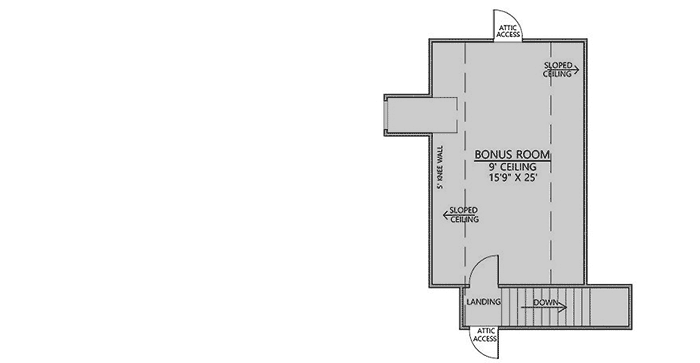

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,497 sq. ft.
  • 1st Floor: 2,497 sq. ft.
  • Storage: 575 sq. ft.
  • Porch, Rear: 220 sq. ft.
  • Porch, Front: 244 sq. ft.
  • Carport: 662 sq. ft.
  • Bonus: 461 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 4"
  • Depth: 110' 7"

Garage

  • Type: Carport
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
