Plan 83940JW
3-Bed Acadian House Plan with Optional Bonus Room above Garage
Heated S.F.
2,587
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan
3-Bed Acadian House Plan with Optional Bonus Room above Garage - 83940JW floor plan - Main Level
Optionally Finished Bonus Room
Reverse Floor Plan

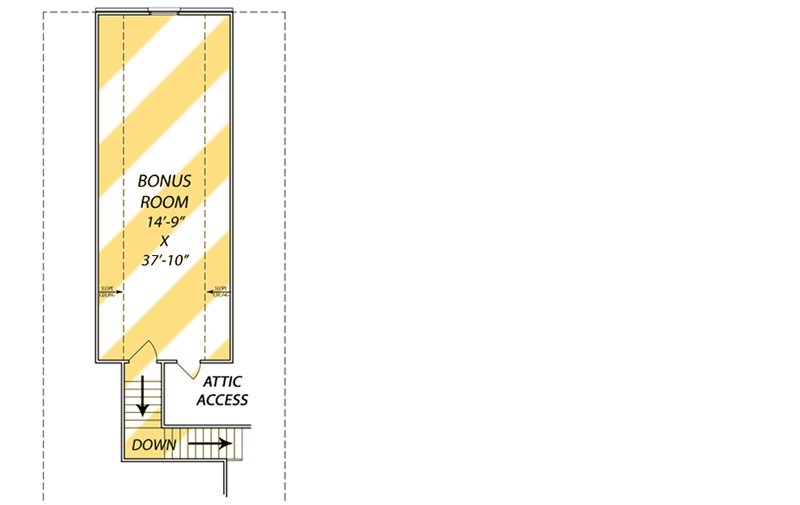

3-Bed Acadian House Plan with Optional Bonus Room above Garage - 83940JW floor plan - Optionally Finished Bonus Room
Plan Details
  • Brick adorns the exterior of this 3-bedroom, Acadian house plan, complete with an 8'-deep front porch.
  • From the foyer, you'll find a quiet study to the right, and a sizable family room straight ahead. Three windows line the rear wall, overlooking the back porch and allowing access to natural light.
  • The open concept design provides a seamless flow between the shared living spaces. The cook in the home will delight in the ample workspace offered by the airy kitchen, and a large pantry maximizes storage space.
  • Situated apart from the secondary bedrooms, discover the master bedroom on the right side of the home, which features two large walk-in closets and a 5-fixture bath with a toilet room. Bedrooms 2 and 3 share the hall bath.
  • Two dedicated storage rooms attached to the 3-car garage is a must-have for today's modern family, while the option to finish a 602 square foot bonus room gives the homeowner a flexible space to grow into.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Acadian House Plan with Optional Bonus Room above Garage

  • 2,587

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optionally Finished Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 2,587 sq. ft.
  • 1st Floor: 2,587 sq. ft.

Dimensions

  • Width: 79' 10"
  • Depth: 92' 7"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1156 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

3-Bed Acadian House Plan with Optional Bonus Room above Garage

  • 2,587

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

3-Bed Acadian House Plan with Optional Bonus Room above Garage

  • 2,587

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,587 sq. ft.
  • 1st Floor: 2,587 sq. ft.

Dimensions

  • Width: 79' 10"
  • Depth: 92' 7"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1156 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
