Plan 510104WDY
3-Bed Acadian House Plan with Semi-Private Courtyard Welcome
Heated S.F.
1,971
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • This 3-bed house plan has a tasteful brick exterior with a semi-private courtyard entry in front. Two garage doors look great in their barn-like style. The window above shines into storage accessed via a pull-down stair.
  • The foyer opens to a combined dining/living room space A fireplace anchors the left wall of the living room and a door takes you to a narrow porch with an outdoor kitchen.
  • The kitchen opens to the living room and has an island with dishwasher, two sinks and counter seating.

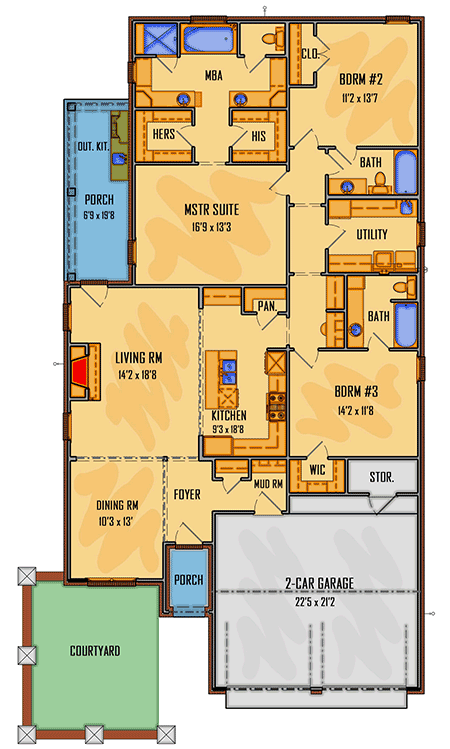

  • Beds 2 and 3 each have their own bathrooms and are separated by them and the utility room maximizing their privacy. The master suite has two walk-in closets and a dual vanities in the bathroom.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Acadian House Plan with Semi-Private Courtyard Welcome

  • 1,971

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,971 sq. ft.
  • 1st Floor: 1,971 sq. ft.

Dimensions

  • Width: 39' 10"
  • Depth: 74' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
