3-Bed Barndominium Plan with Front and Rear Porches and Main-floor Master

Plan 135046GRA

  • 3,172

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The latest trend in rural living is the barndominium, like this 3-bedroom home plan that features a 2,304 sq ft garage / workshop.
  • A 10'-deep front porch invites you inside where you'll find a coat closet in the foyer. A home office neighbors the entryway with views overlooking the front landscape.
  • The square-shaped kitchen opens to the great room and dining area with a corner fireplace and access to the rear partially-covered patio.
  • Upstairs, a loft overlooks the great room below and two bedrooms share a compartmentalized bath.
  • Enter from the garage to find a powder bath and mudroom with a coat closet.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plan: Get a 4-bed version with house plan 135161GRA

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

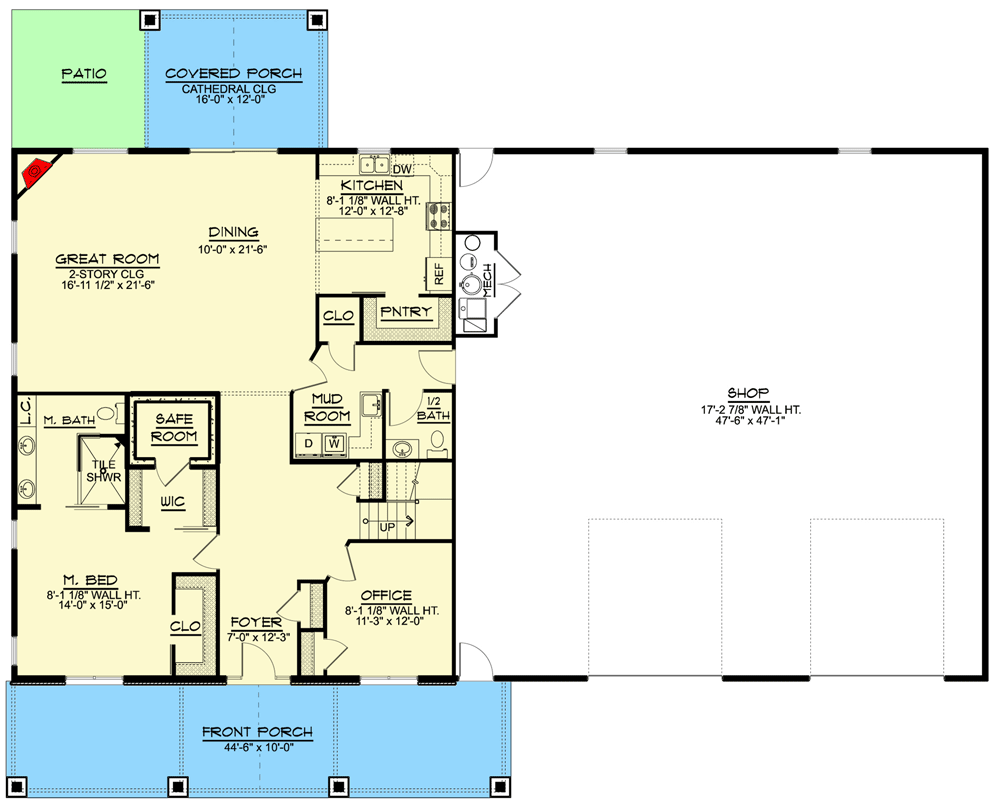

3-Bed Barndominium Plan with Front and Rear Porches and Main-floor Master - 135046GRA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

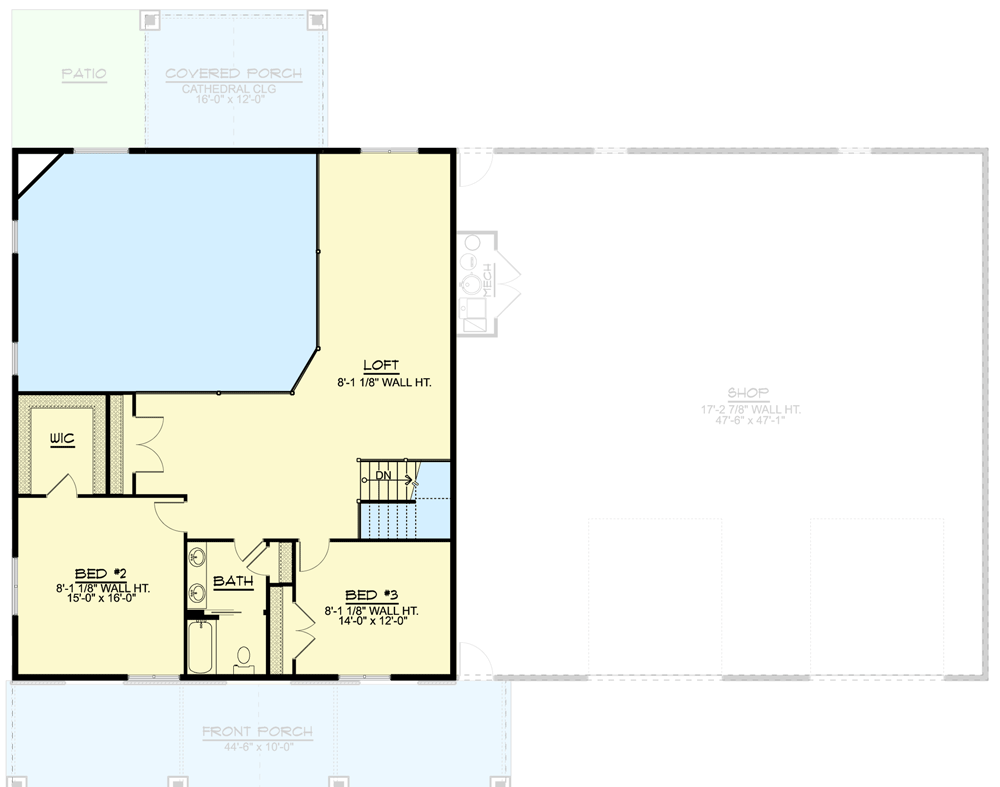

3-Bed Barndominium Plan with Front and Rear Porches and Main-floor Master - 135046GRA floor plan - 2nd Floor
