Plan 135167GRA 3-Bed Barndominium-style House Plan with Two-story Great Room

3-Bed Barndominium-style House Plan with Two-story Great Room

Plan 135167GRA

  • 2,350

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • A ribbed metal roof tops this 3-bedroom, Barndominium-style house plan, which boasts tall ceilings above the light and airy great room.
  • Two doors flank the fireplace in the great room and dining area, connecting the interior with the outdoor living space.
  • Enjoy the convenience of a master bedroom on the main level with pocket-door access to the ensuite.
  • The laundry room neighbors a powder bath and connects to the single garage bay.
  • A loft greets you at the top of the stairs and overlooks the great room below.
  • Bedrooms 2 and 3 each have their own walk-in closet and share a compartmentalized bath, and a home office with a built-in desk completes the second floor.
  • The exterior finish is spec'd for vinyl board and batten cement board siding.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

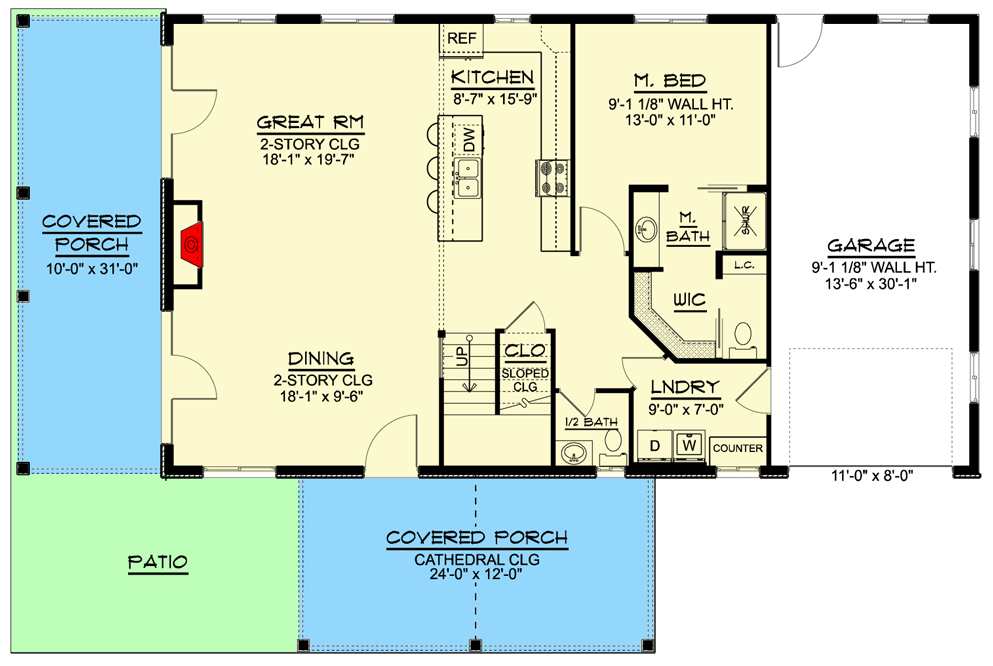

3-Bed Barndominium-style House Plan with Two-story Great Room  - 135167GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

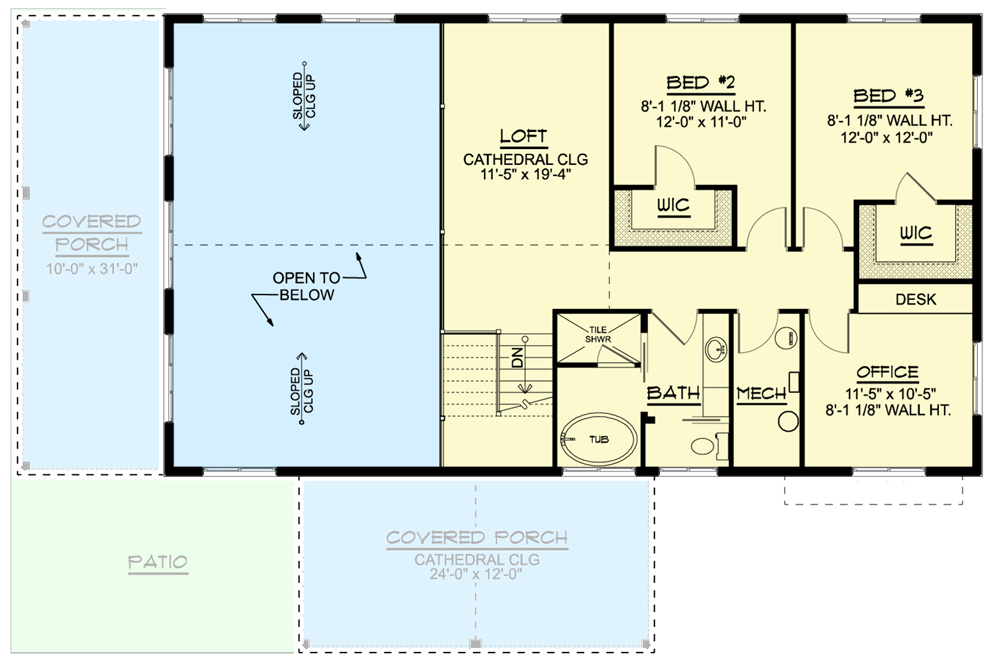

3-Bed Barndominium-style House Plan with Two-story Great Room  - 135167GRA floor plan - 2nd Floor

Plan details

3-Bed Barndominium-style House Plan with Two-story Great Room

  • 2,350

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • 5 Sets $1,200
  • 5 Sets + PDF $1,300
  • PDF - Unlimited Build $1,550
  • CAD + PDF - Single-Build $2,100
  • CAD - Unlimited Build $2,600
  • View all purchase option online

About This Plan

  • A ribbed metal roof tops this 3-bedroom, Barndominium-style house plan, which boasts tall ceilings above the light and airy great room.
  • Two doors flank the fireplace in the great room and dining area, connecting the interior with the outdoor living space.
  • Enjoy the convenience of a master bedroom on the main level with pocket-door access to the ensuite.
  • The laundry room neighbors a powder bath and connects to the single garage bay.
  • A loft greets you at the top of the stairs and overlooks the great room below.
  • Bedrooms 2 and 3 each have their own walk-in closet and share a compartmentalized bath, and a home office with a built-in desk completes the second floor.
  • The exterior finish is spec'd for vinyl board and batten cement board siding.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,350 sq. ft.
  • 1st Floor: 1,303 sq. ft.
  • 2nd Floor: 1,047 sq. ft.
  • Porch, Front: 295 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 31' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 457 sq. ft.
  • Count: 1 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
