Plan 135328GRA

3-Bed Barndominium with Oversized Garage and Workshop - 3816 Sq Ft

Heated S.F.
3,816
Beds
3
Baths
2.5
Stories
2
Cars
4- 6

Floor Plan

Plan 135328GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135328GRA

M-F 9am-5pm EST |

1-203-761-8500

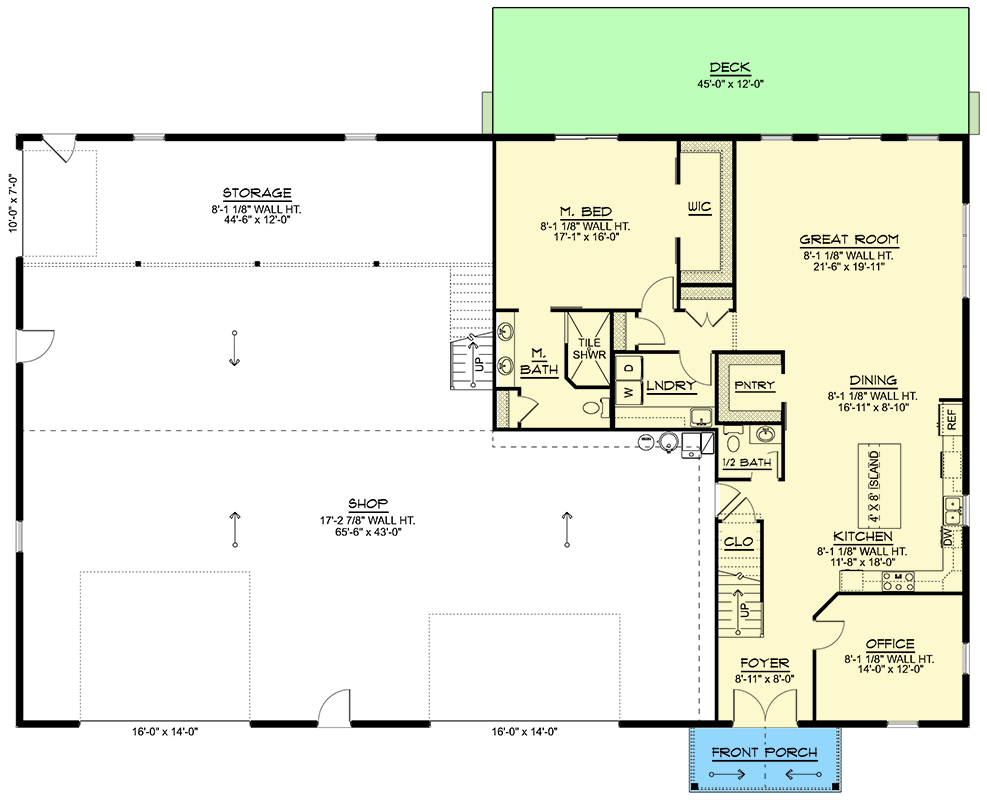

Main Level

Plan 135328GRA: 3-Bed Barndominium with Oversized Garage and Workshop - 3816 Sq Ft - Floor Plan - Main Level - Barndominium

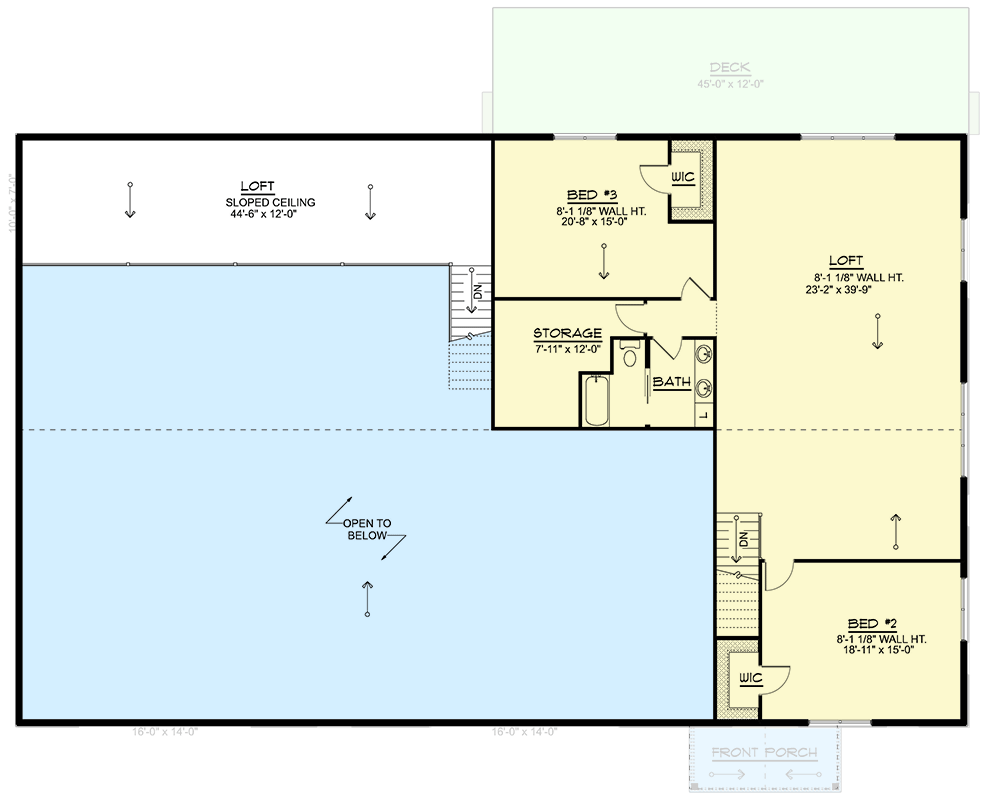

2nd Floor

Plan 135328GRA: 3-Bed Barndominium with Oversized Garage and Workshop - 3816 Sq Ft - Floor Plan - 2nd Floor - Barndominium

Plan Details

  • This expansive 3,816 sq. ft. Barndominium House Plan features 3 bedrooms, 2.5 bathrooms, and an impressive 3,107 sq. ft. attached garage designed to accommodate 4 to 6 vehicles.
  • Step inside from the inviting front porch into a welcoming foyer that immediately opens to a dedicated home office on one side, perfect for focused work or a quiet study. The layout flows seamlessly into the main living areas, emphasizing an open-concept feel.
  • The heart of the home is the open-concept great room, dining area, and kitchen, creating an inviting space for gatherings. The gourmet kitchen boasts a large island with seating and is complemented by a convenient butler's walk-in pantry, offering abundant storage and prep space. A discreet half-bath is also located nearby for guests.
  • The luxurious first-floor master suite provides a private sanctuary, featuring a spacious bedroom, a well-appointed master bath with a tile shower, and a large walk-in closet. Upstairs, two secondary bedrooms are thoughtfully split across the second floor, each with its own walk-in closet, sharing a full bathroom and offering privacy from the main living areas.
  • Beyond the living quarters, this plan excels with its extraordinary utility spaces, including a massive workshop integrated into the structure, providing ample room for projects, hobbies, or storage. Additionally, a versatile loft space on the second floor overlooks the great room, offering a flexible area for recreation, a media room, or a casual lounge.

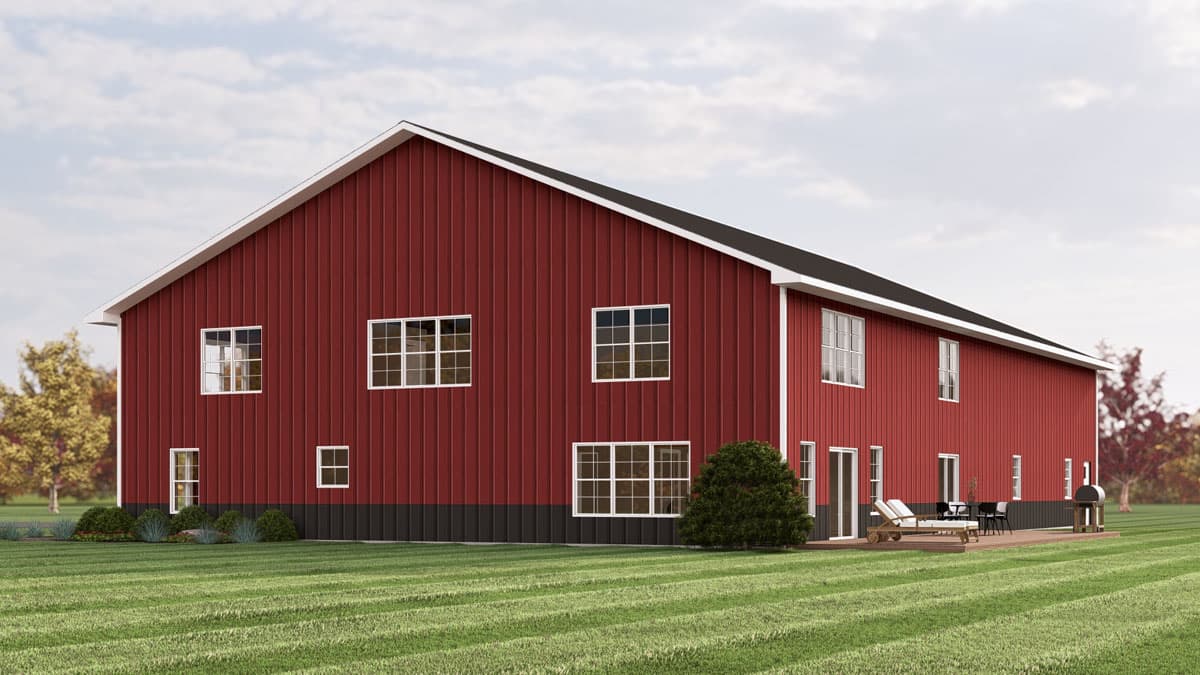

  • Enjoy the outdoors with a charming 84 sq. ft. front porch, ideal for morning coffee, and an expansive 540 sq. ft. rear deck, perfect for entertaining or relaxing while enjoying views of your property.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,816 sq. ft.

1st Floor

1,933 sq. ft.

2nd Floor

1,883 sq. ft.

Loft

561 sq. ft.

Porch, Front

84 sq. ft.

Deck

540 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

74' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

3107 sq. ft.

Count

4, 5, or 6 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Walk-in Pantry

Workshop
