3-Bed Builder-Friendly House Plan

Plan 42360DB

  • 1,635

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

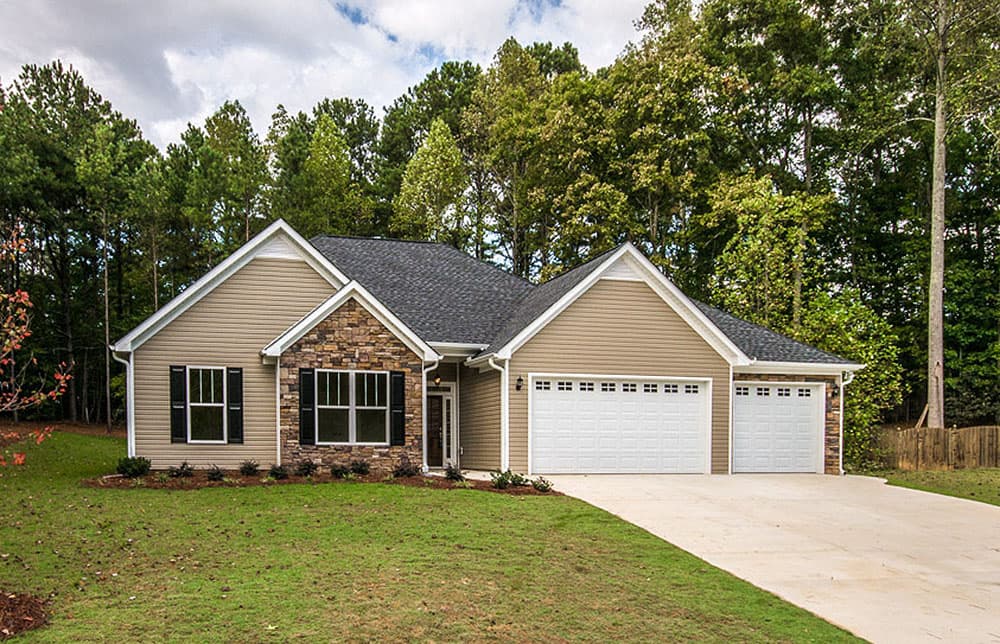

  • A combination of stone and siding plus the hip roof create a handsome Southern house plan.

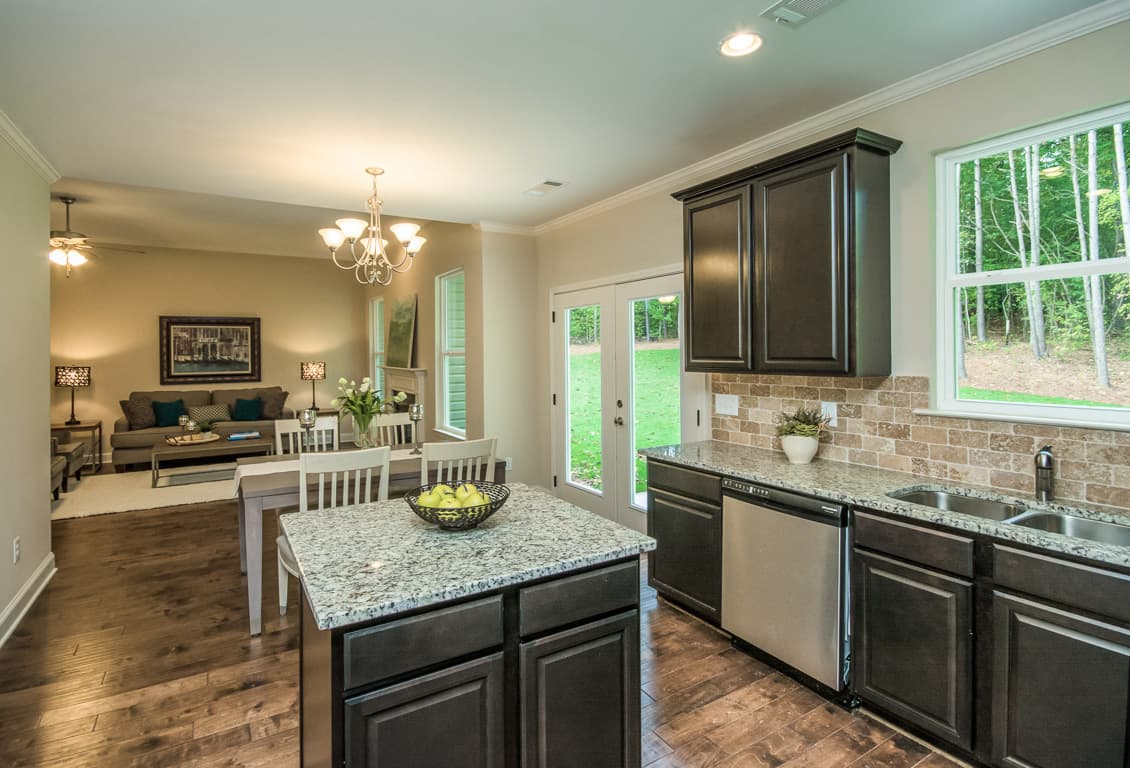

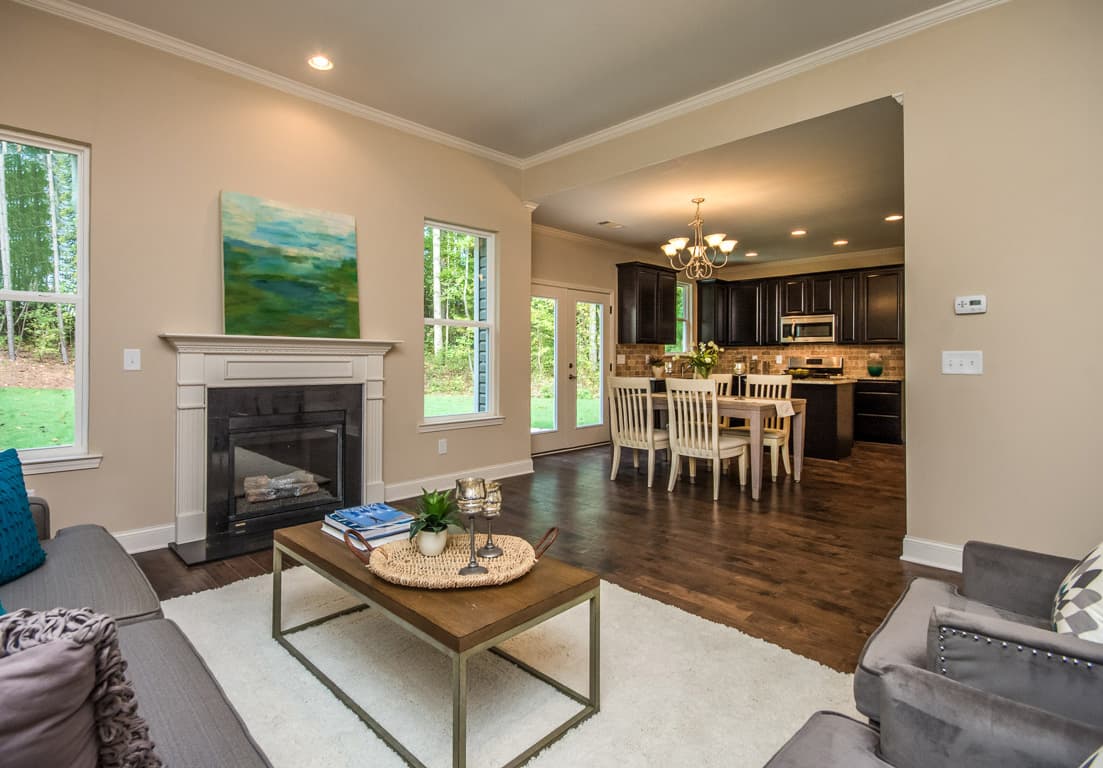

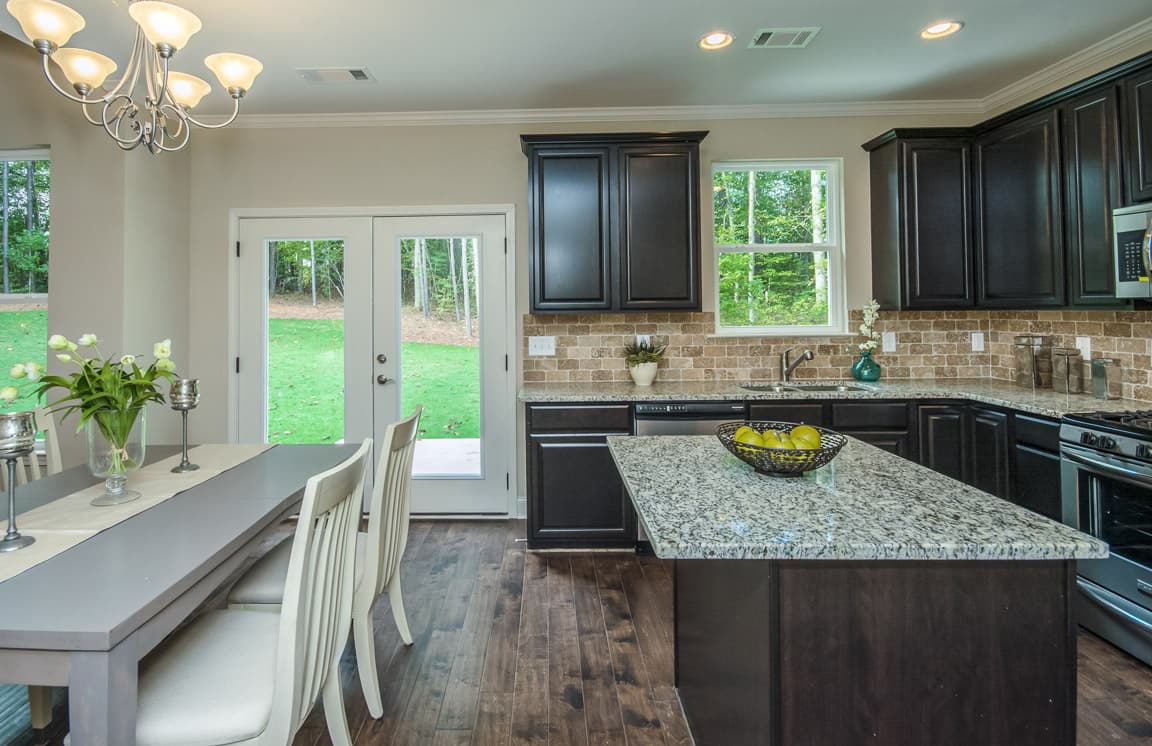

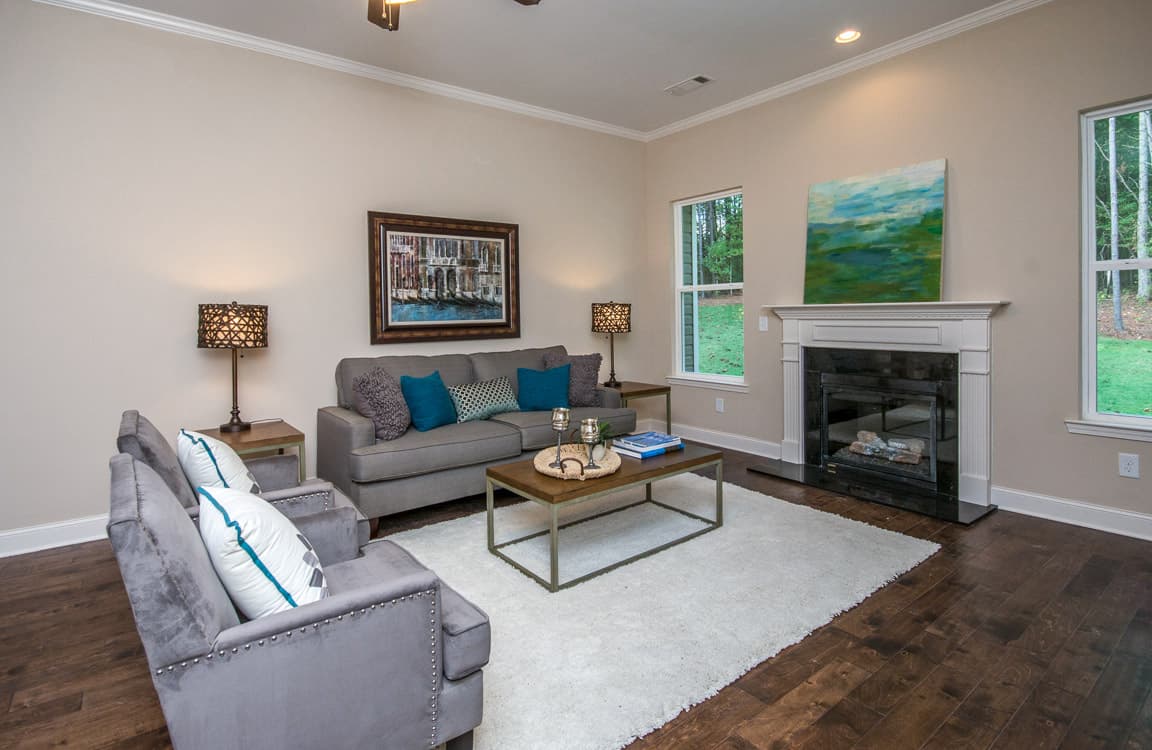

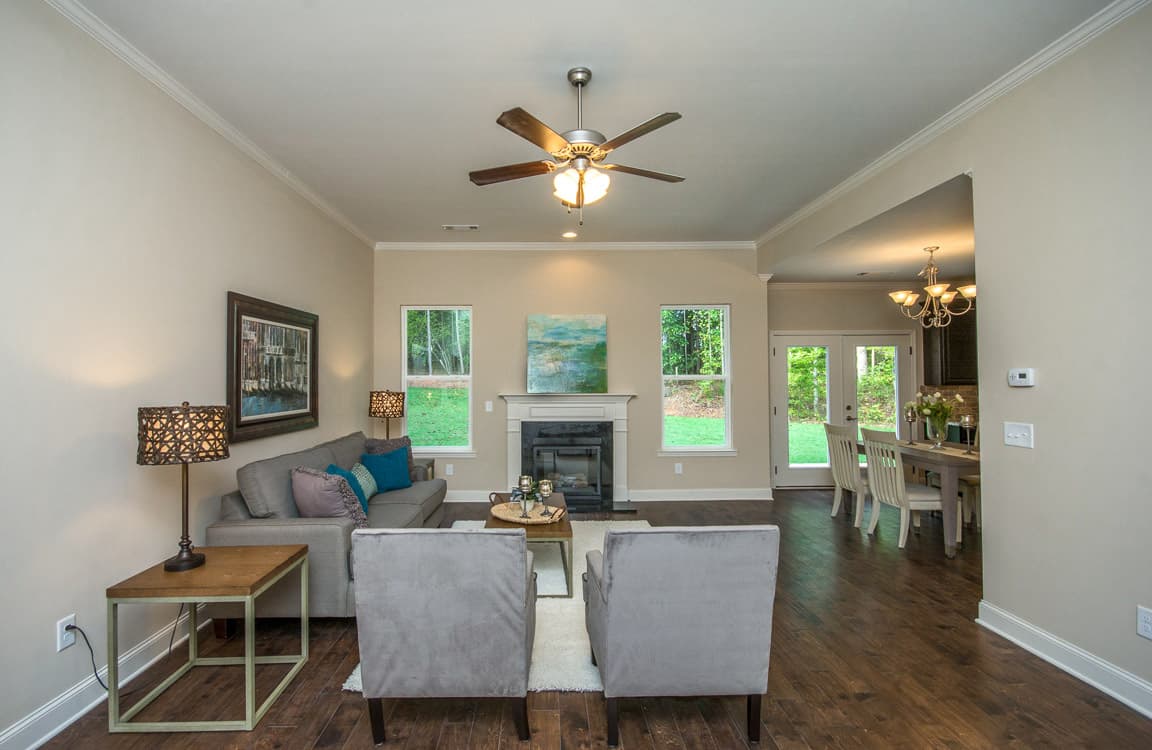

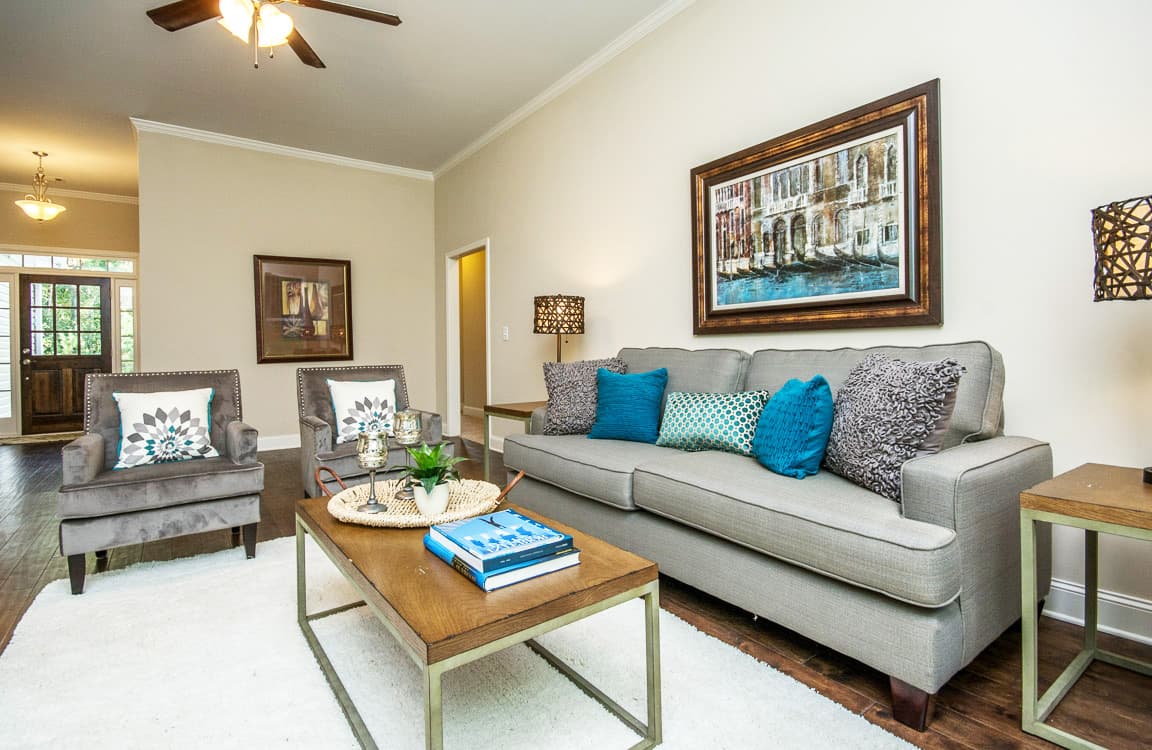

  • The main family living area is in back where the open layout lets you see from the family room with fireplace all the way through to the kitchen (9' by 12'8") with its 3' by 4' island and large walk-in pantry.

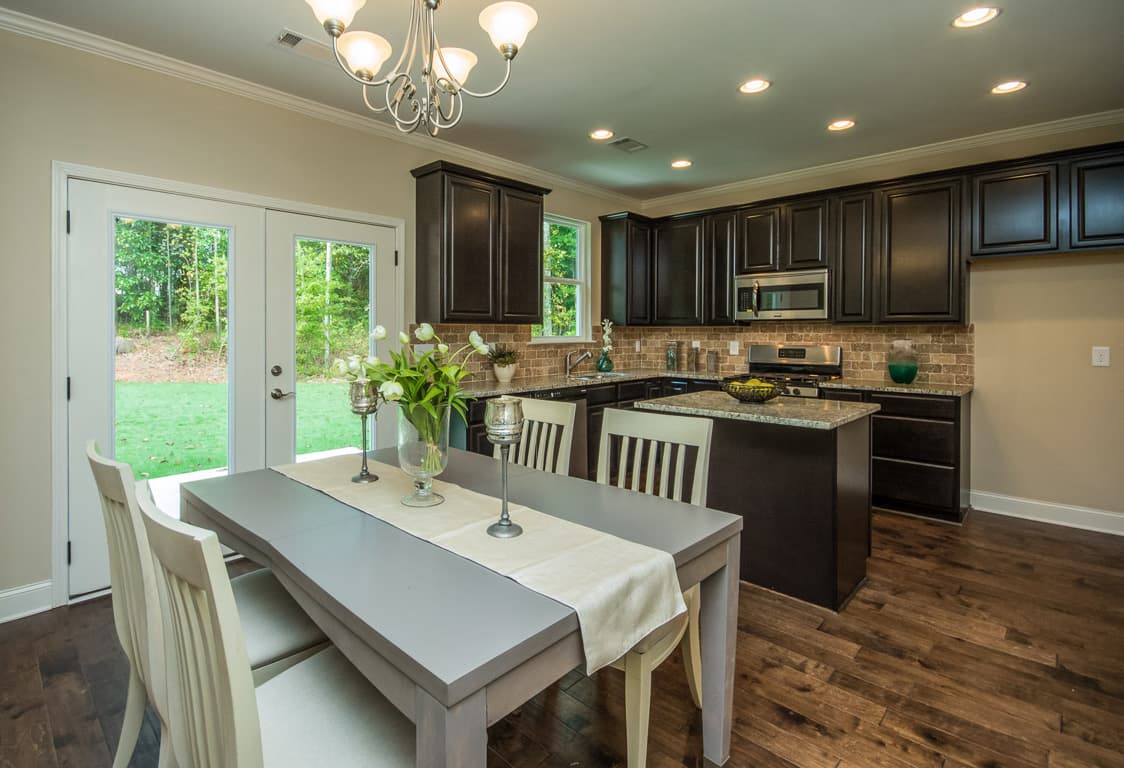

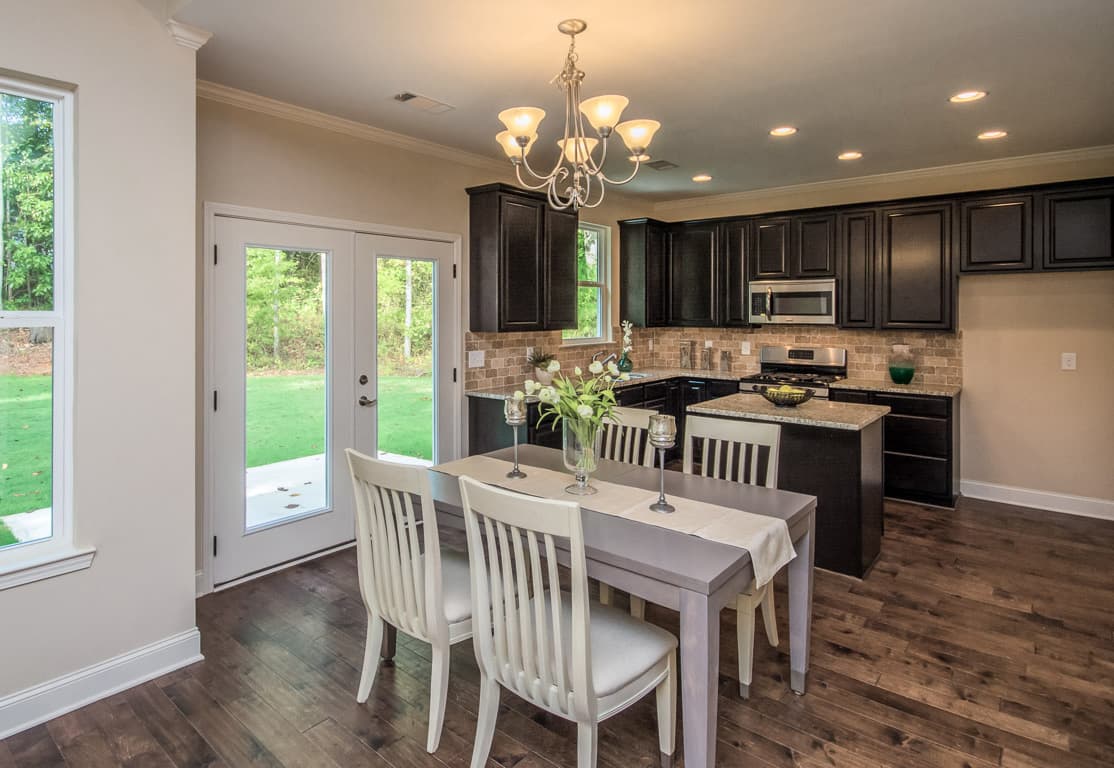

  • Sliding glass doors in the dining area take you out to the back yard.

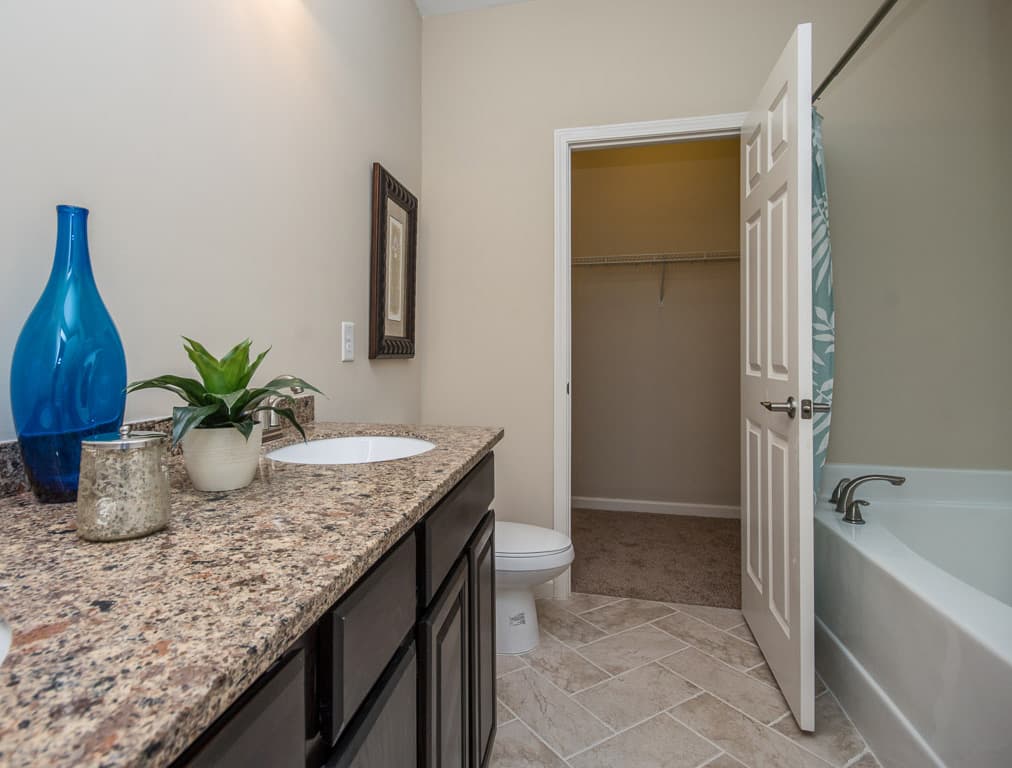

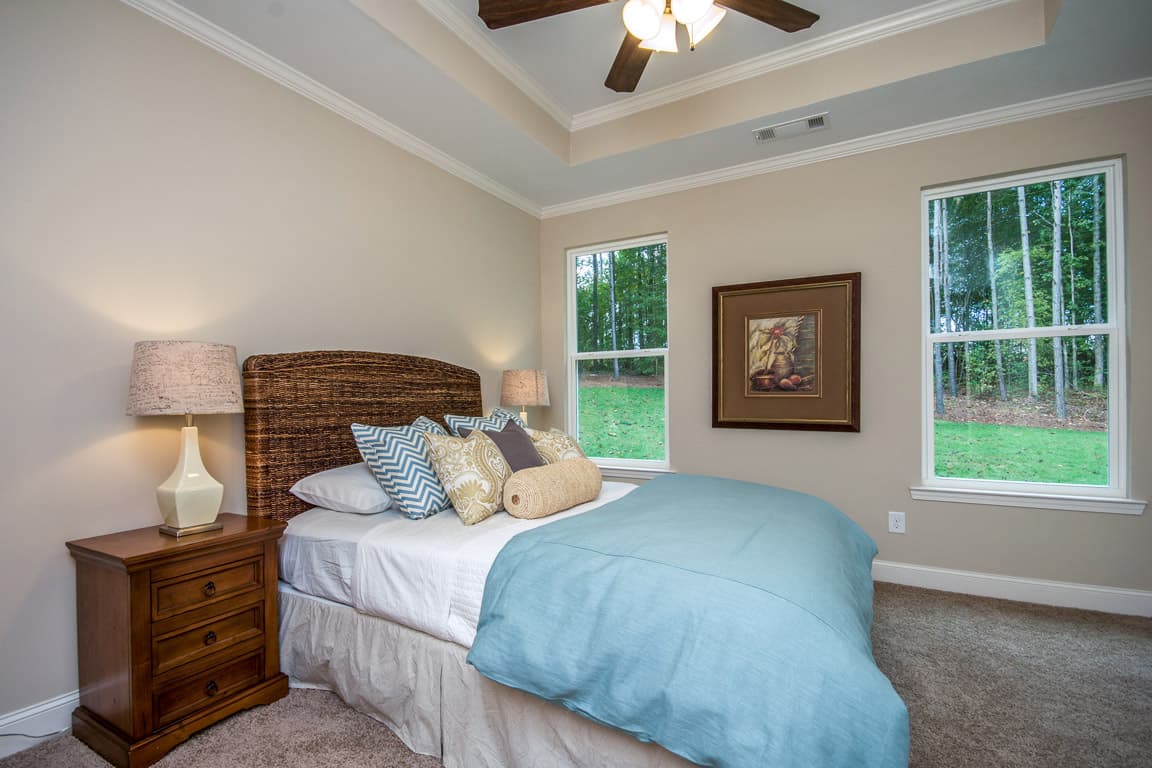

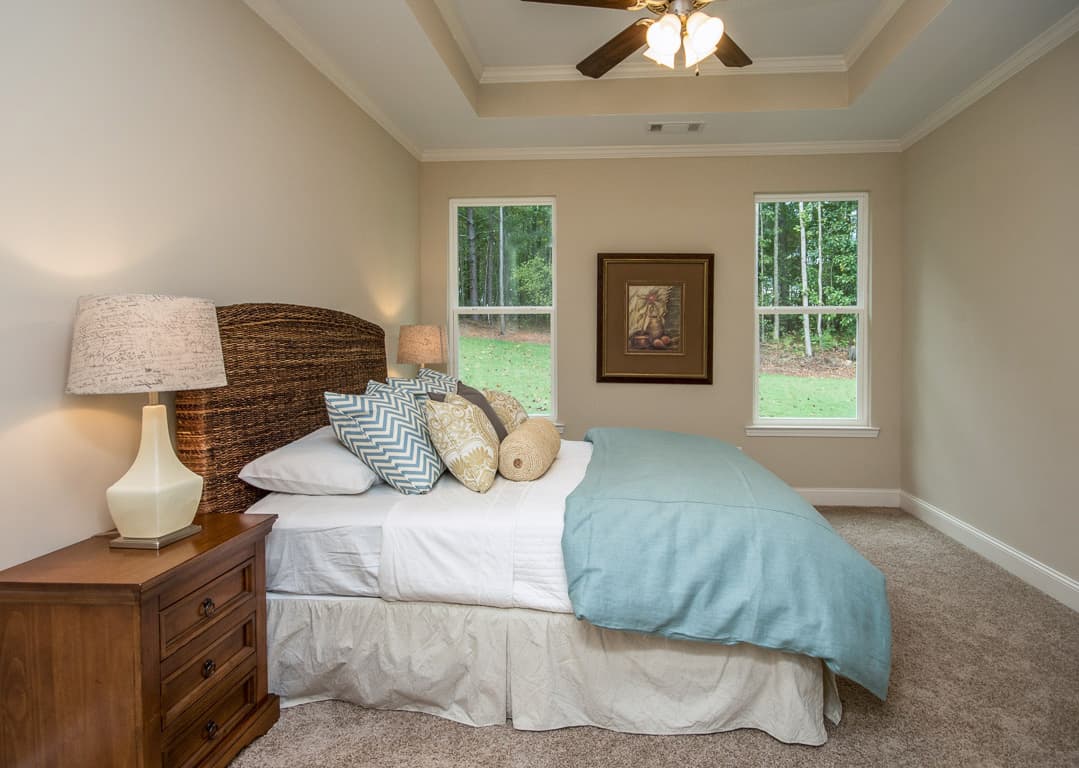

  • Homeowners benefit from a master suite with tray ceiling and handy morning coffee bar.
  • The other two bedrooms face front and share a large hall bathroom.
  • Related Plans: Get an alternate exterior and a vaulted family room with house plan 42513DB (1,750 sq. ft.). And get more room - 1,750 square feet - with these house plans 42514DB, 42515DB and 42516DB.

This house plan set has the following details:

  • General Notes

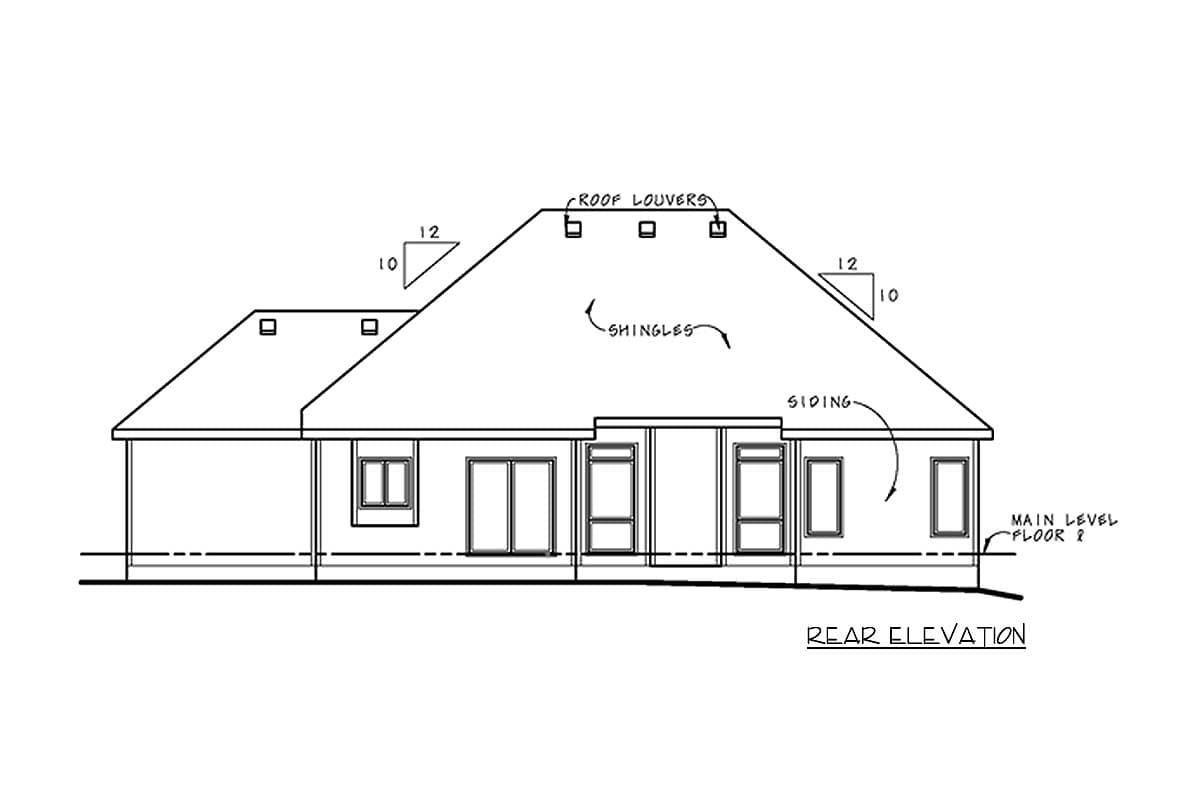

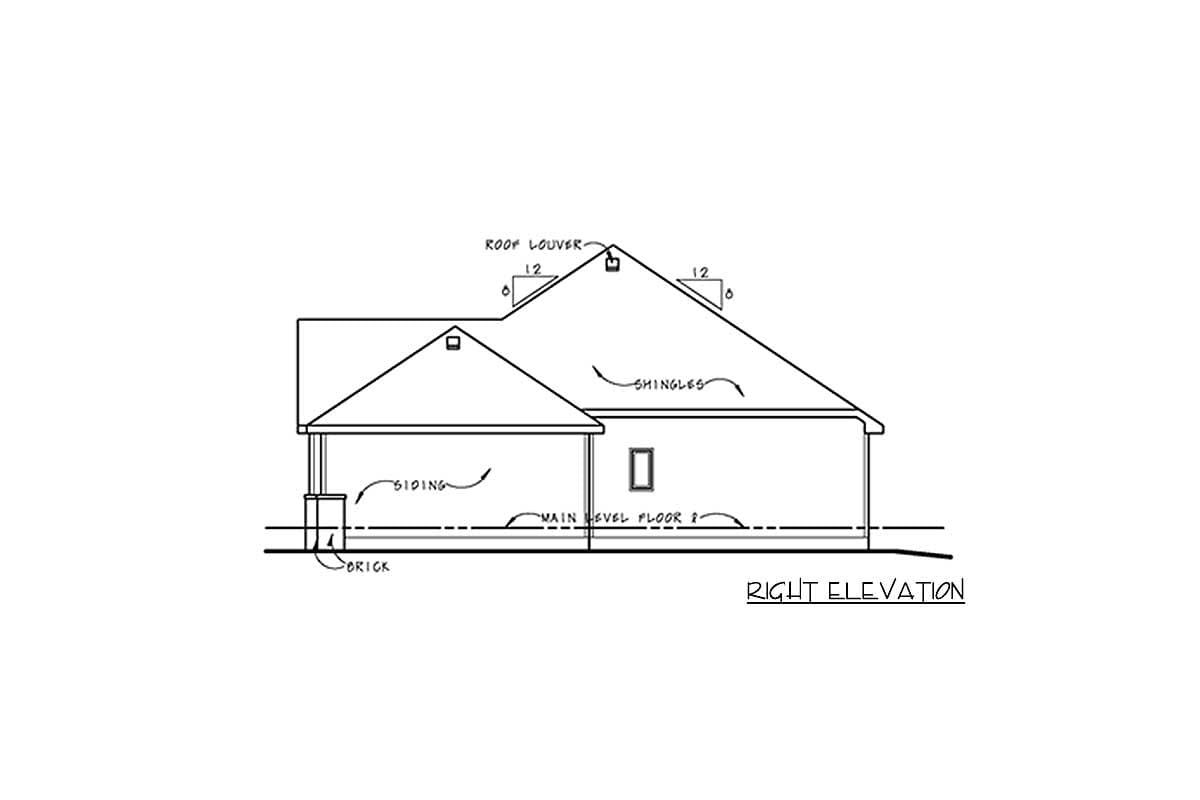

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

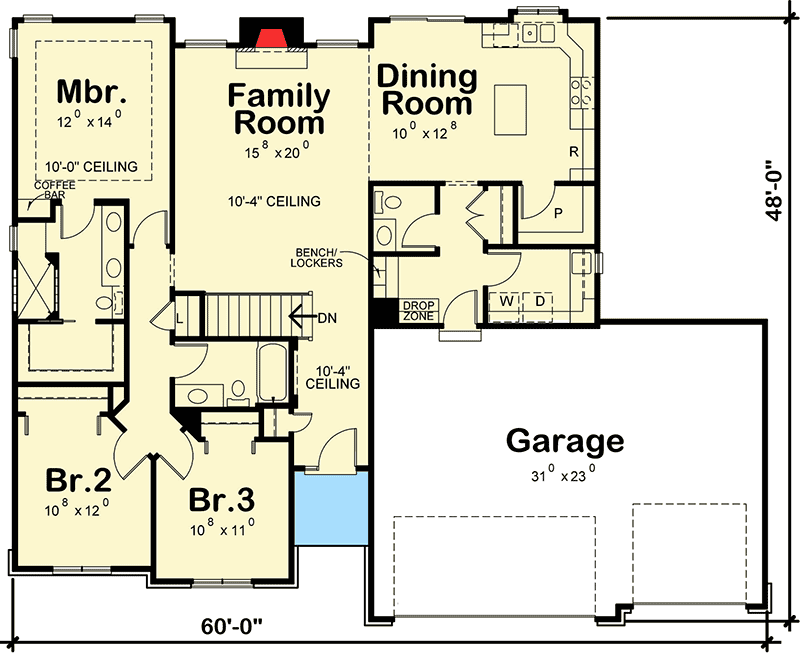

3-Bed Builder-Friendly House Plan - 42360DB floor plan - Main Level
