Plan 68411VR
3 Bed Bungalow with Detached Garage
Heated S.F.
1,768
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This well laid out bungalow house plan comes with a rear-facing detached garage that can be connected to the house with an optional covered breezeway.
  • Less than 24' wide, the home fits well on a narrow lot.
  • The open floor plan inside maximizes the square footage and enhances sightlines.
  • The kitchen has casual seating and is open to the dining and family rooms.
  • The master bedroom is on the main floor and two additional bedrooms upstairs have big walk-in closets.
  • Attic space is easy to reach, offering extra storage room.
  • Related Plan: Remove 2'6" to the depth and get a reconfigured kitchen with house plan 68409VR.
  • NOTE: Please allow 3 business days to fulfill this plan order.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

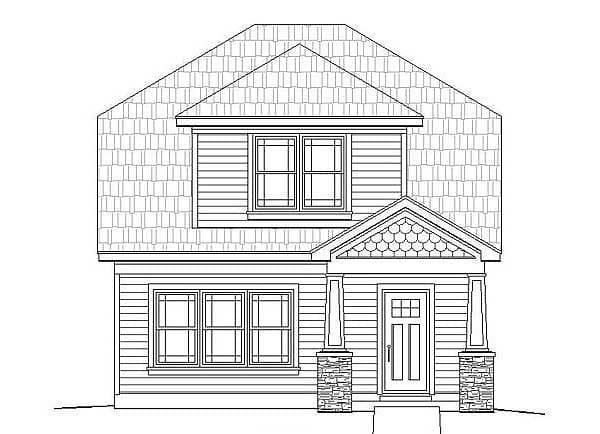

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Bungalow with Detached Garage

  • 1,768

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

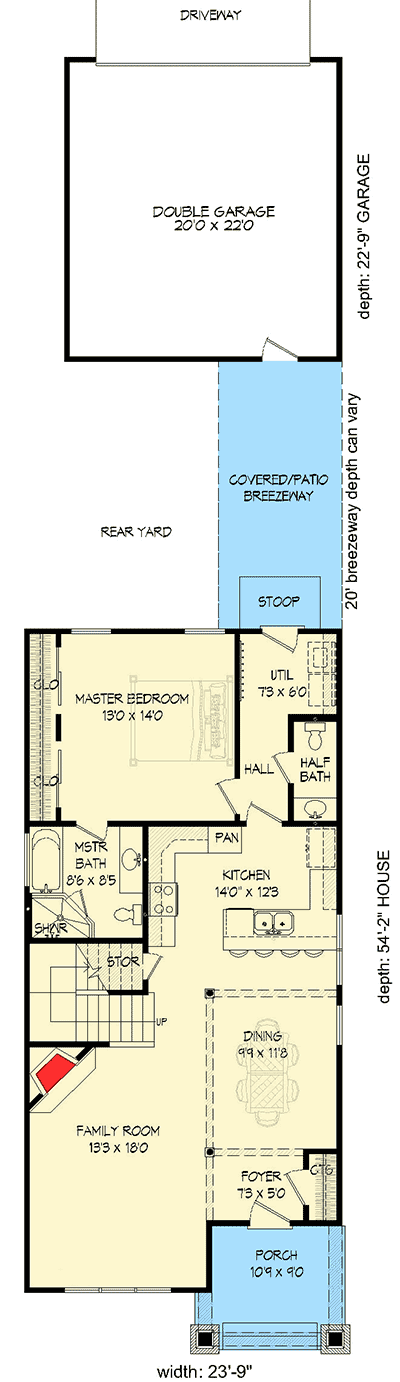

  • Main Level

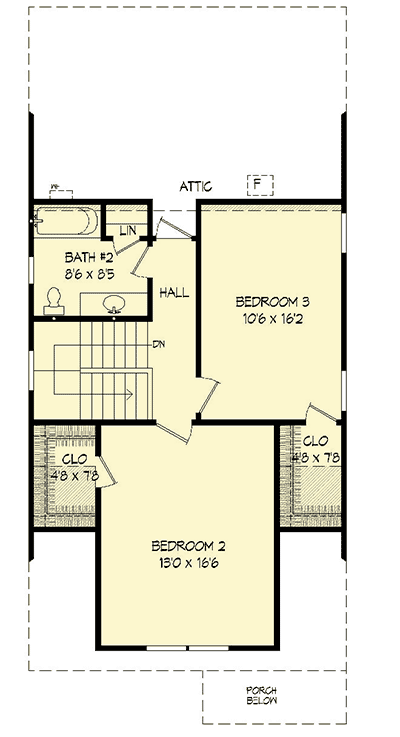

  • 2nd Floor
