3 Bed Contemporary Craftsman with 3 Car Garage - 2002 Sq Ft
Heated S.F.
2,002
Beds
3-4
Baths
2
Stories
1
Cars
3
Floor Plan
Basement Stair Location
Reverse Floor Plan

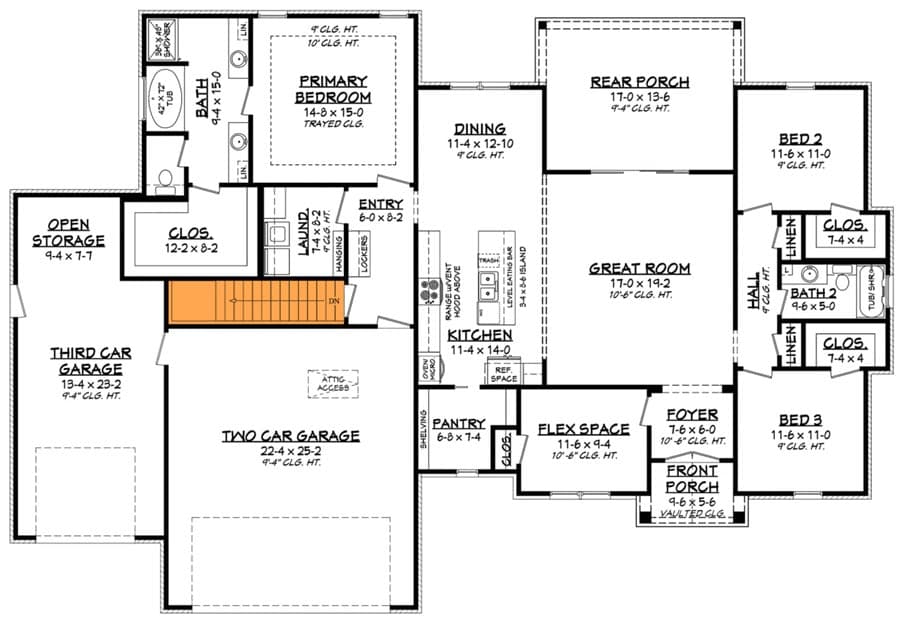

3 Bed Contemporary Craftsman with 3 Car Garage - 2002 Sq Ft - 51849HZ floor plan - Basement Stair Location
Plan Details
  • This contemporary Craftsman house plan offers three bedrooms with a private master suite including a spa-like bath with a 3'6" by 4' shower and generous master closet with convenient access to the laundry room.
  • The exposed truss and beams on the front porch and the arbor at the garage add to the curb appeal.
  • Ten foot ceilings throughout the main living areas create impressive spaces, and the gourmet kitchen with butler's pantry is every home cook's dream.
  • The covered back porch provides additional space for entertaining.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get a 2-car version with house plan 51755HZ and get an alternate version with a 2-car side-entry garage with house plan 51843HZ.
  • Note: Please note that orders including special options may result in a delay. Call us for details.
What's Included
This house plan set has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index and design data
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan(includes window sizes, ceiling joist size and directions, beam sizes and plumbing fixture locations, etc.)

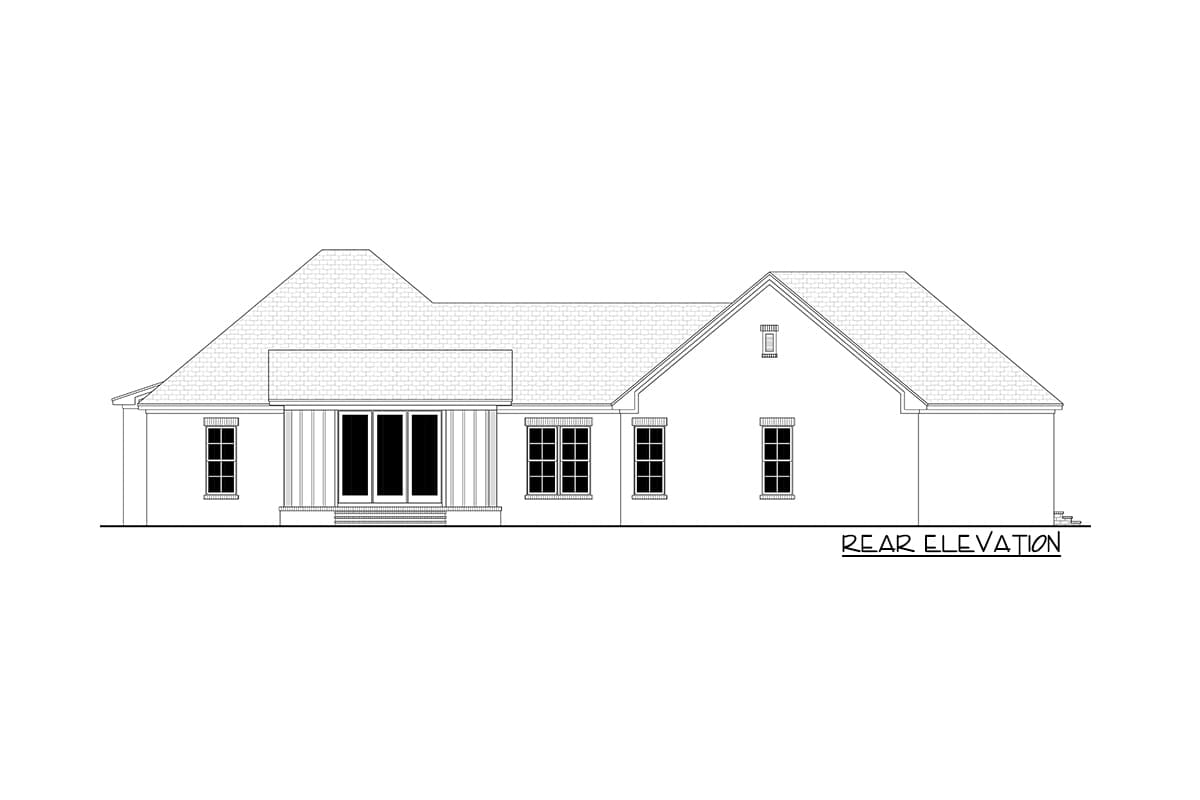

Page 4  Front and rear exterior views with additional details

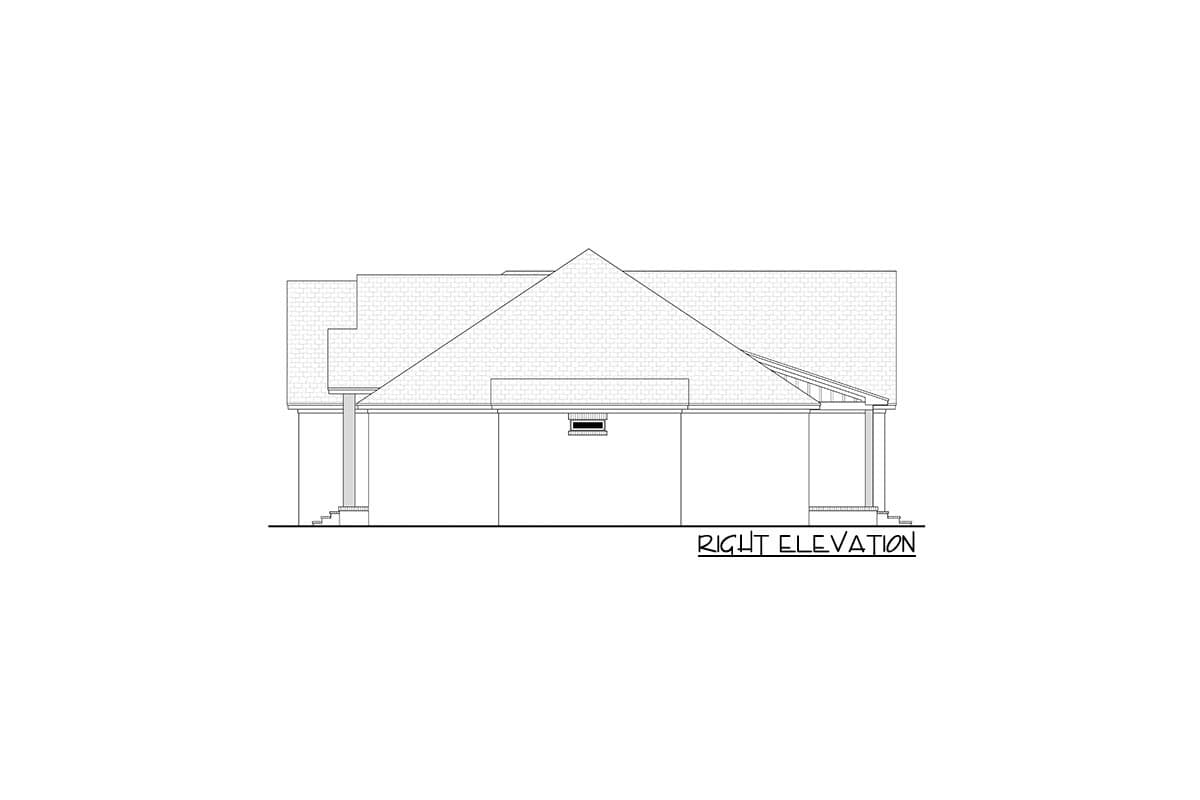

Page 5  Right and left exterior views with additional details
Page 6  Cross Sections, roof plan and cornice details
Page 7  Kitchen cabinet views
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
